Take Control of Your Sound Ease of use has always had its place in the consumer electronics industry. Dayton Audio has now brought to market a digital signal processor (DSP) that combines versatility, incredible sound quality, and ergonomic graphical user interfaces (GUI).
The most unique feature of the DSP-408 is the ability to use it in a vehicle or home audio system right out of the box. This adaptation allows users to use a single model of DSP for all their audio processing needs.
For many individuals, the pursuit of perfect sound quality is a never-ending quest. When utilizing all the features the DSP-408 offers, the ability to manipulate and improve the sound quality of your audio system is simply astonishing. With access to all of the following features, perfecting your audio system is just a matter of time. Connect to your DSP-408 and get to work!

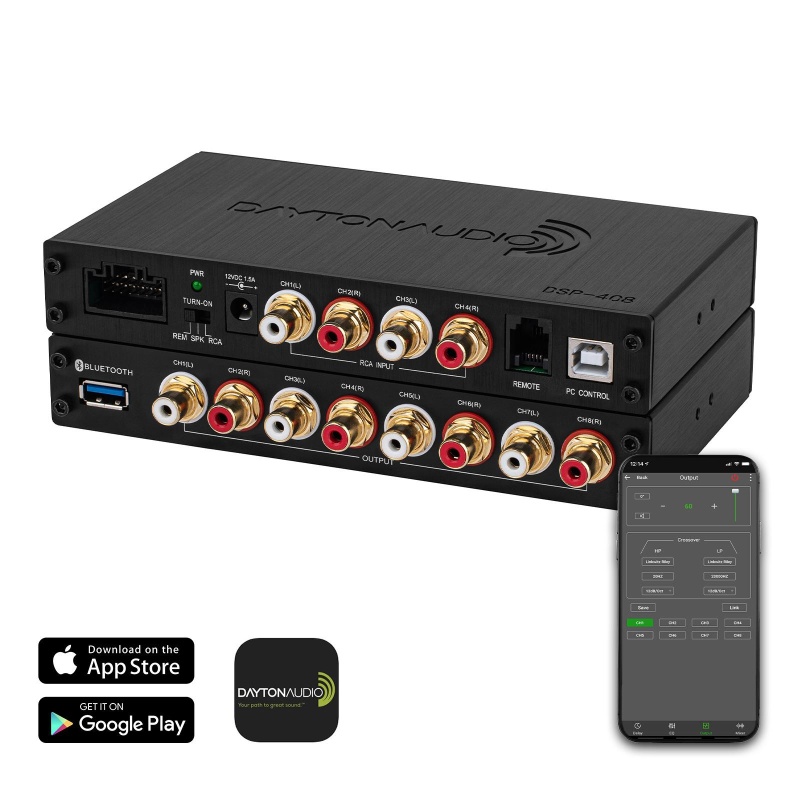

Download the DSP-408 app for iOS and Android for free. Download directly from the Google Play Store or App Store to demo the functionality of the app without the need for the hardware. This fully functional demo allows you to test the features of the app before you purchase the DSP-408.
All backed by a 5-Year Warranty We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Software Features 10-band parametric equalizer per channelHigh and low shelf EQ per channelVariable crossovers: High/Lowpass slopes 0-24 dB, Linkwitz-Riley/Butterworth/BesselTime delay: 0 to 277 cm or 8.1471 ms adjustable in 1 cm stepsInput/Output mixing to customize the signal pathPhase adjustment Customizable name/ID for each of the 6 presetsLoad, save, recall, or delete preset filesSoftware controllable level attenuation on the preamp and high-level inputsMinimum/maximum voltage protectionReverse voltage protectionMute circuit and delay Android and iOS App In the modern age of mobile devices, breaking out the bulky laptop to make modifications to your sound system can seem like a chore. That's why Dayton Audio has given you the option to connect to your DSP via your mobile device using the DSP-BT4.0. This Bluetooth 4.0 dongle allows users to completely tune their DSP via the mobile DSP-408 app. In addition, the user can also use their mobile Bluetooth device as an audio source! Get the app here for IOS or for Android
Download the DSP-408 App Windows-Based GUI The DSP-408 is easily controlled via a Windows application developed by Dayton Audio. This application features all the tools you could need to make your audio system sound its very best, while still being easy to use.

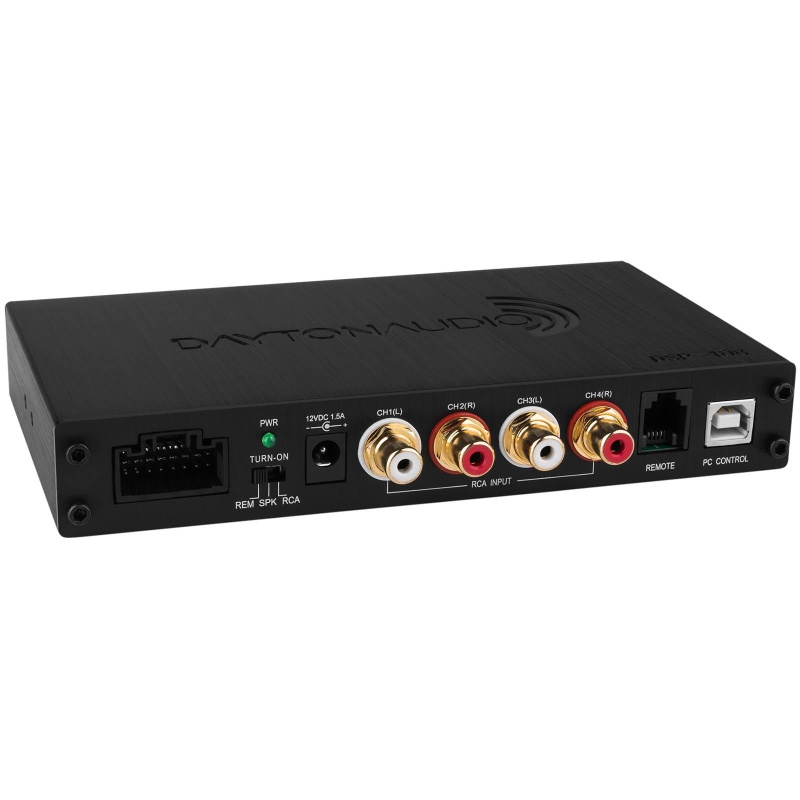

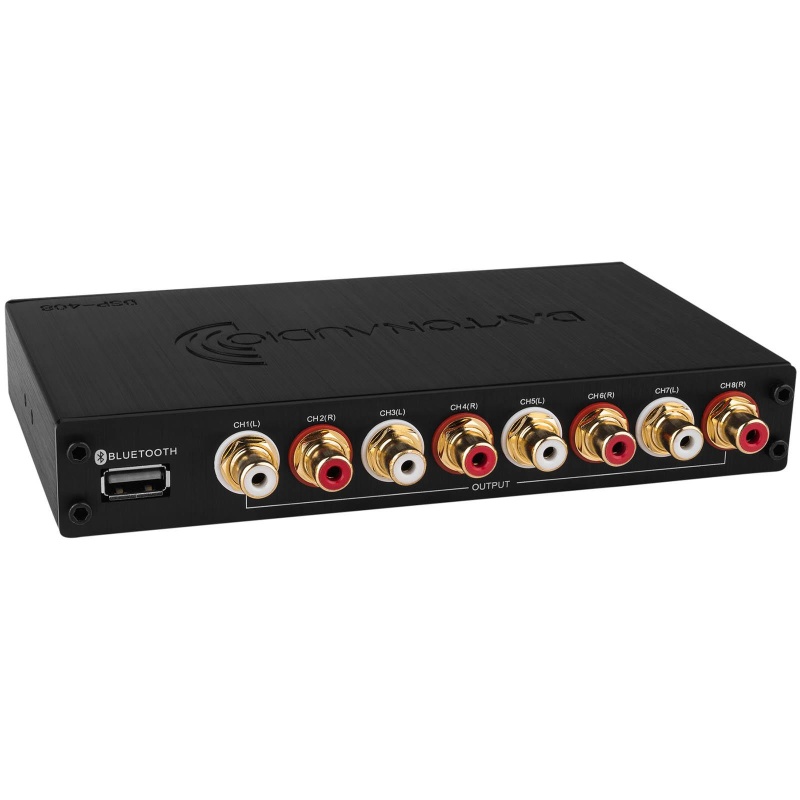

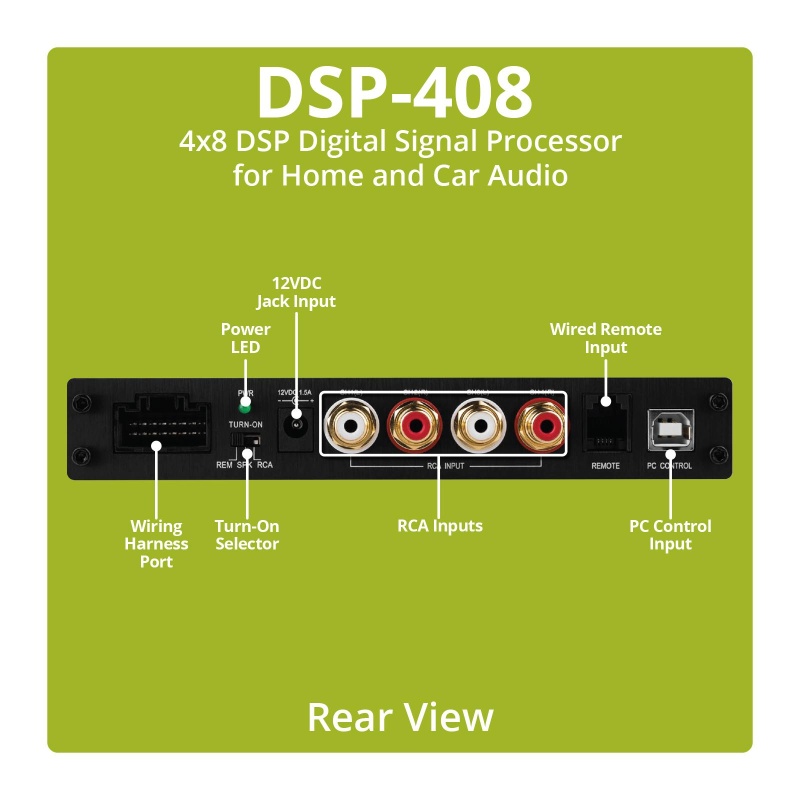

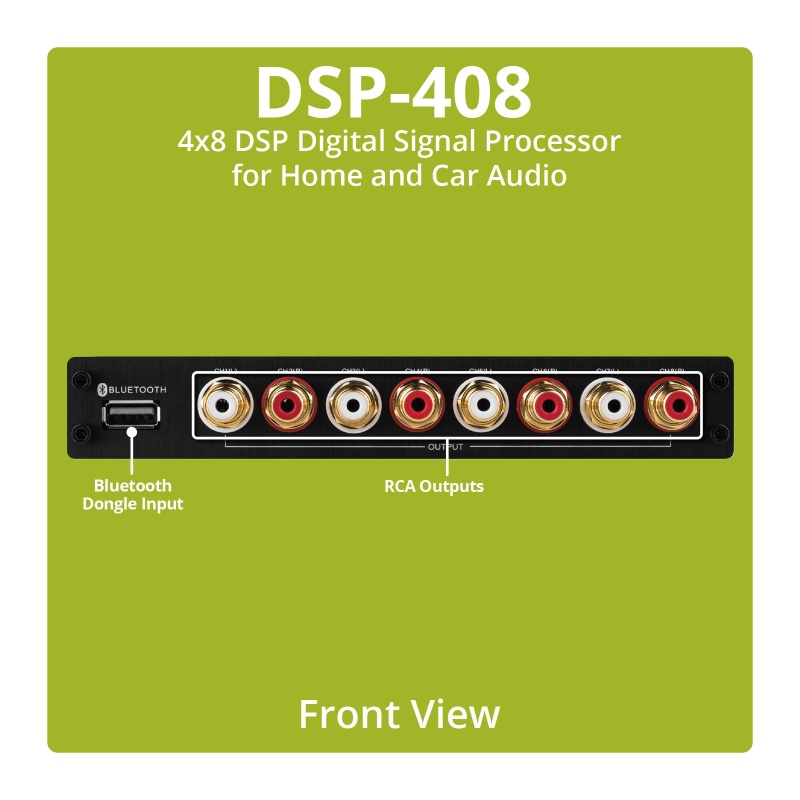

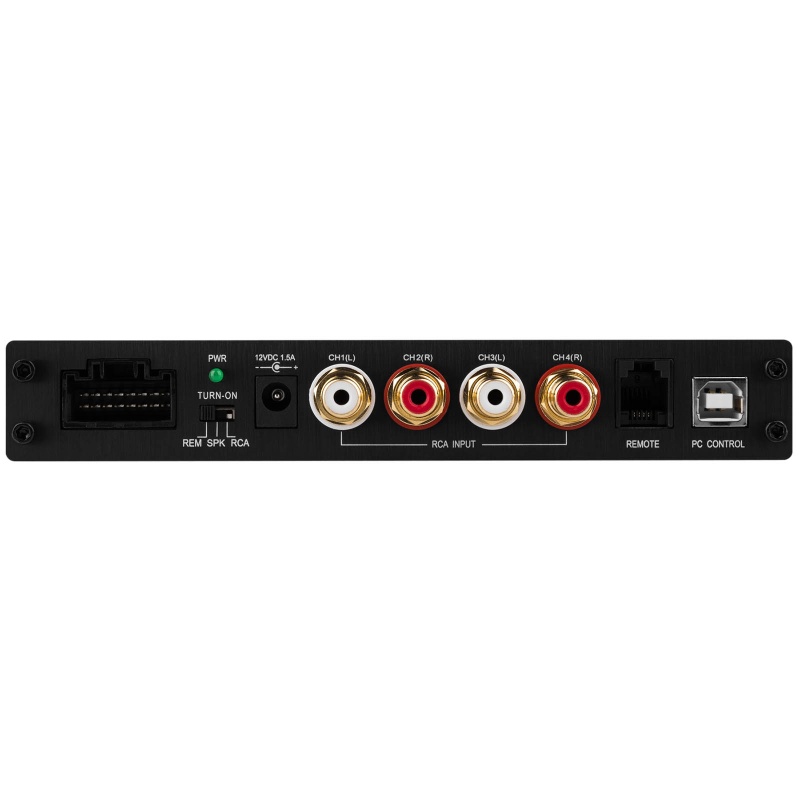

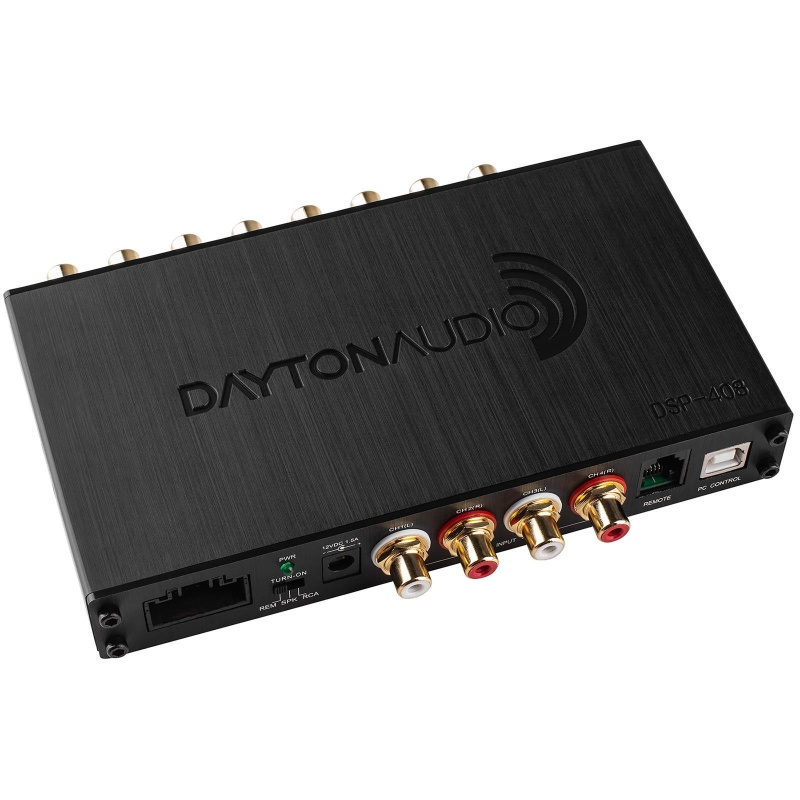

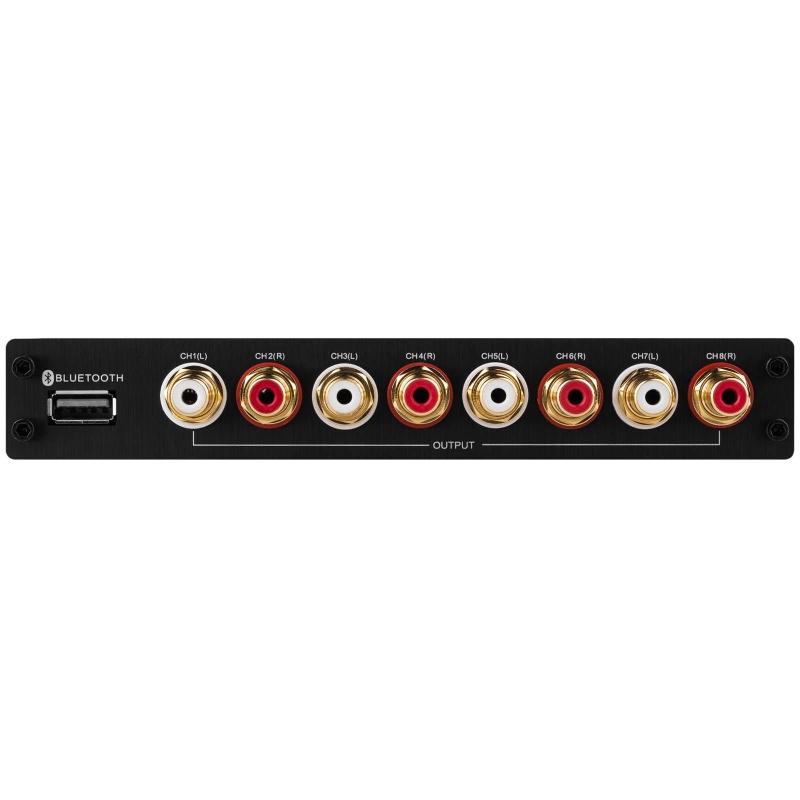

Versatile Connections The DSP-408 gives you versatile connections, including RCA, Bluetooth inputs, as well as remote control connections and RCA outputs. A 12V wire harness connection makes implementing the DSP-408 easy for car audio applications.
Optional Wired Remote Control The allure of a wired remote control is obvious when installing in a mobile environment. Being able to effortlessly control the volume and which preset you are using is an invaluable feature. To satisfy the need for the customers installing the DSP-408 in a mobile environment, Dayton Audio has offered the DSP-NRC as an optional accessory.
Specifications:
Chipset: Analog Devices ADAU1701 SigmaDSP 28/56-bit Audio ProcessorSampling: 24-bit/48 kHzRCA inputs: 4RCA outputs: 8High-level inputs: 4High-level input impedance: 180 ohmsMaximum speaker input level: >=8VRCA input impedance: >=20,000 ohmsFrequency response: 20-20,000 Hz • THD+N: 0.008%Output impedance: Maximum input level: RCA output: 4V rmsSignal to noise ratio: >=115 dBRemote out current: >500 mAPower adapter input voltage: 100-240 VACPower adapter output: 12 VDC, 1.5AOperating voltage: 9-17VDimensions: 6.53" W x 1.02" H x 4.55" L

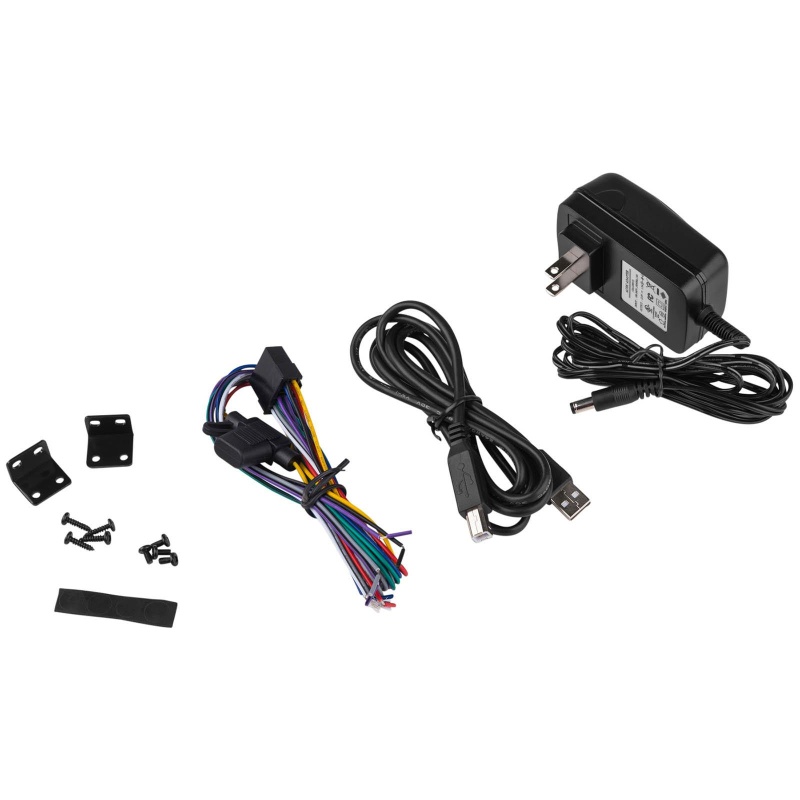

Package Contents 1 x DSP-408 Processor1 x Power Adapter (12V, 1.5A)1 x High-Level/Power Input Harness (16-pin)1 x USB A to B Cable (10 ft.)2 x Mounting Brackets4 x Mounting Bracket Machine Screws4 x Mounting Screws4 x Rubber Cushion Pads1 x Introduction Card
