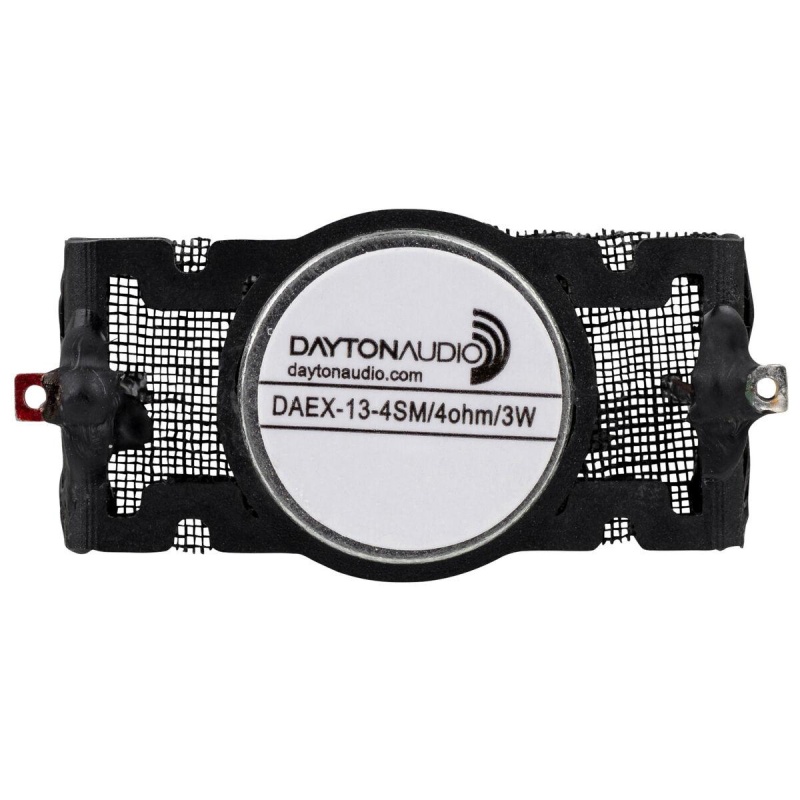

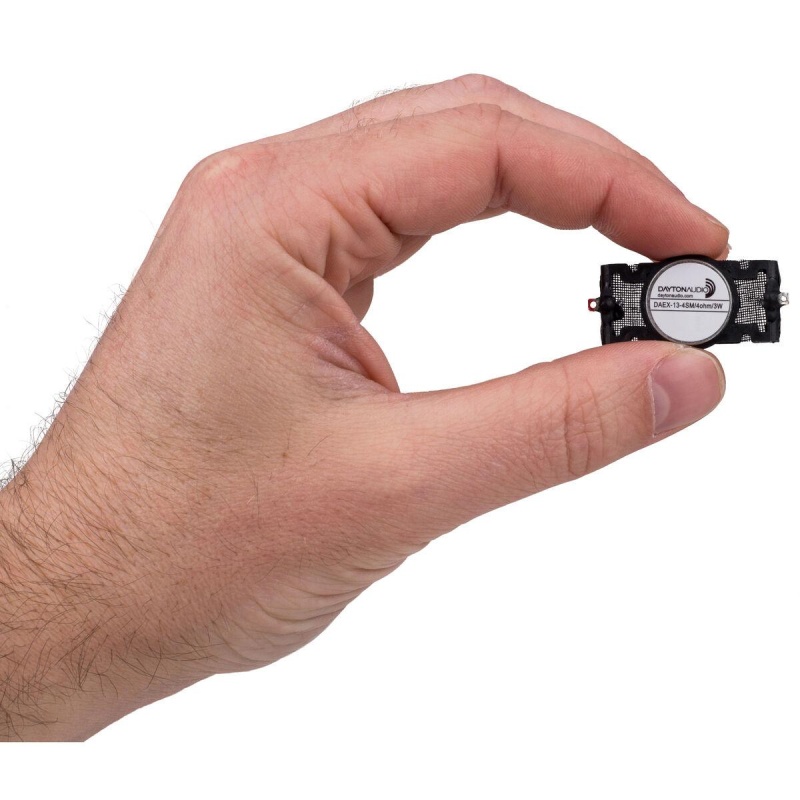

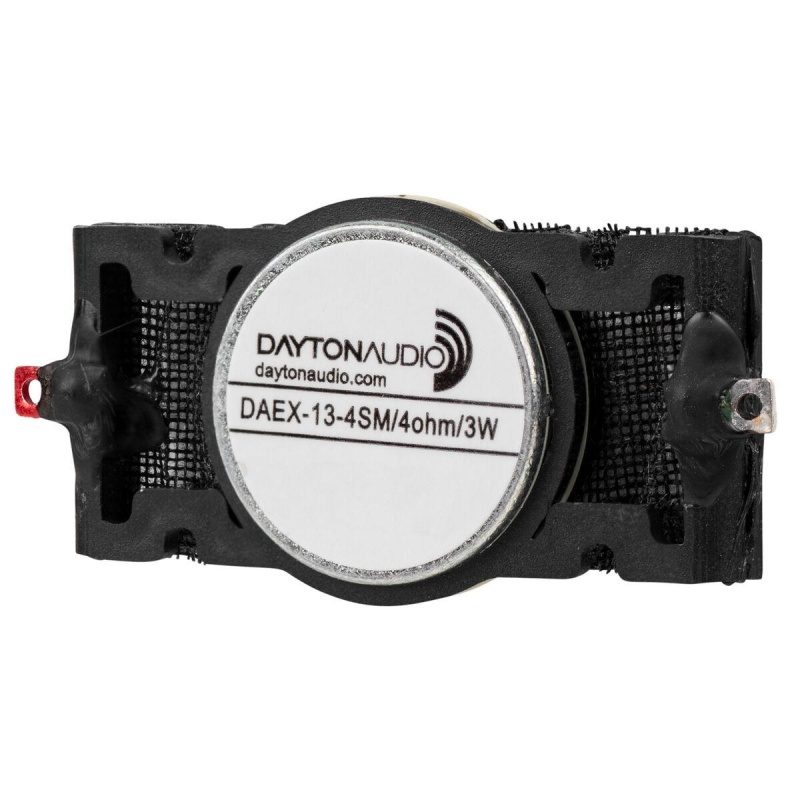

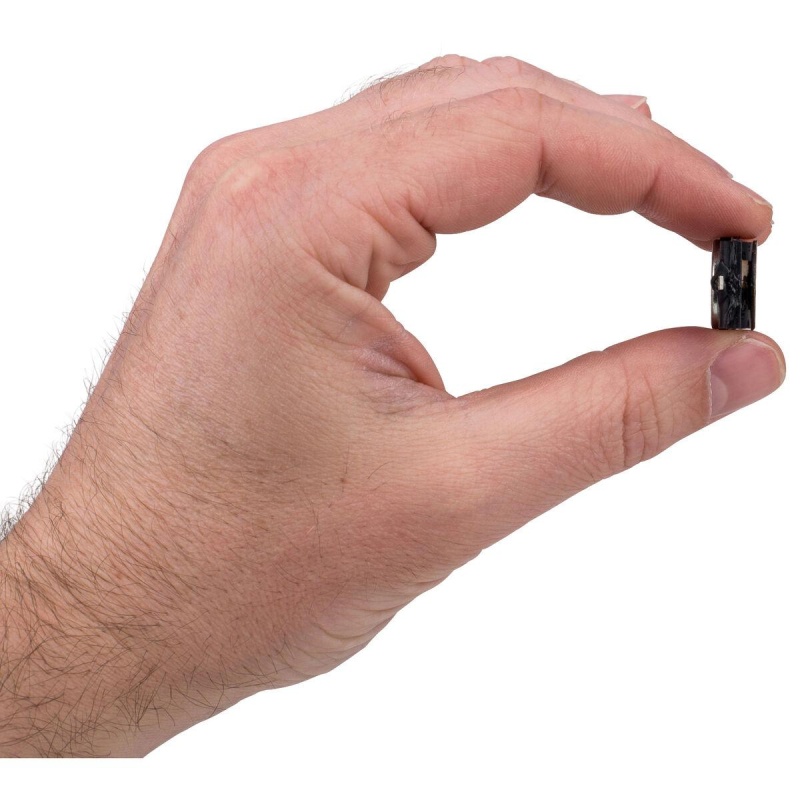

Dayton Audio's DAEX-13-4SM exciter will allow you to add audio or haptic (tactile) feedback to even the smallest projects. This 13 mm exciter is an ideal option when designing pocket sized personal speakers or for adding audio to small art projects and models. At only 0.75" wide by 1.5" long, this exciter is even perfect for use in virtual reality haptic feedback systems such as gloves and headsets.
A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The unique suspension is capable of high physical excursion to allow this extremely small and lightweight exciter to deliver an impressive amount of force while remaining linear.

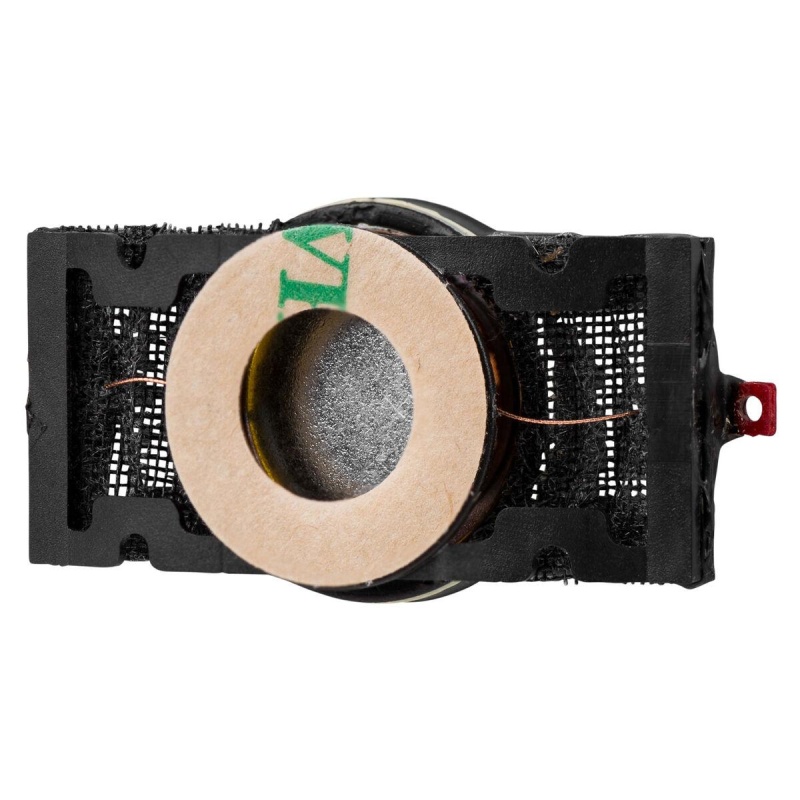

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
Specifications: • Power handling: 3 watts RMS • VCdia: 13 mm • Nominal impedance: 4 ohms • Re: 3.7 ohms • Le: 0.022 mH • Fs: 950 Hz • Dimensions: 0.74" (18.5 mm) W x 1.51" (38.5 mm) L x 0.31" (8 mm) H • Adhesive dimensions: 0.65" (16.5 mm) outside diameter • Weight: 6.7 grams.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out .
