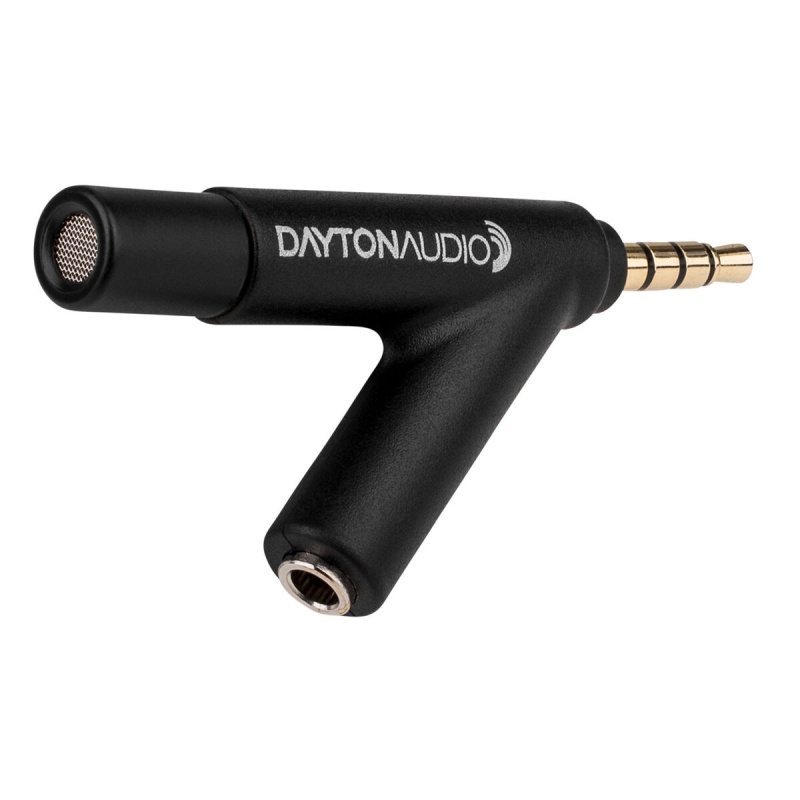

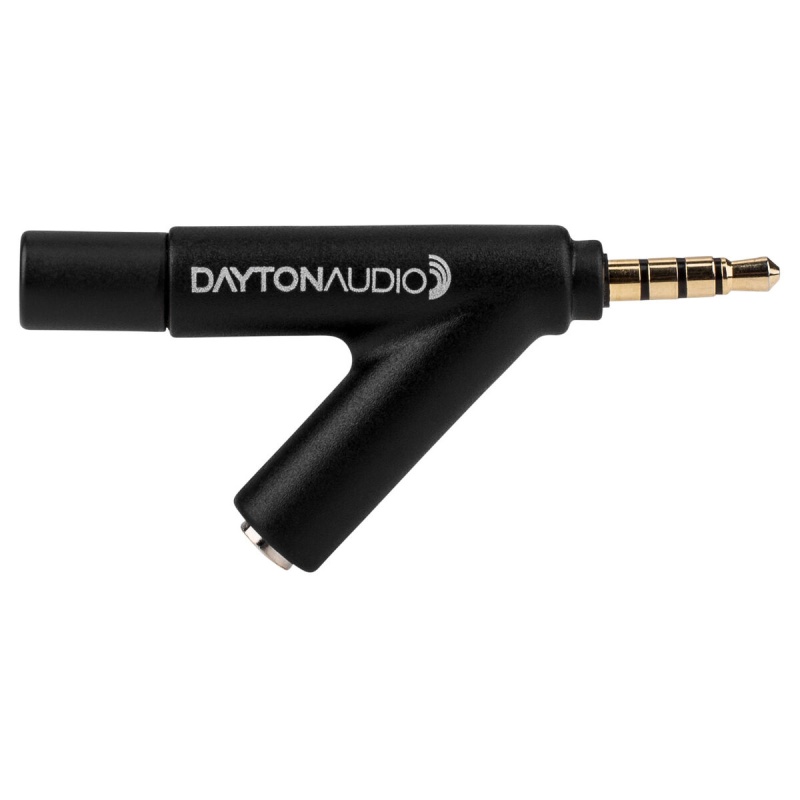

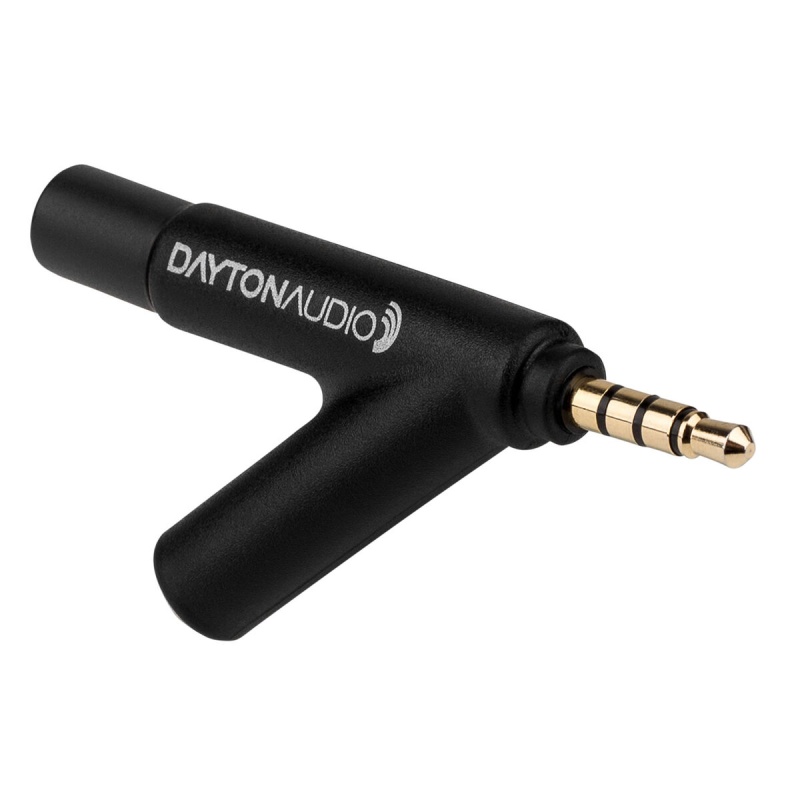

The Dayton Audio iMM-6 is a professional-quality measurement and recording microphone that is designed to work with the entire suite of Apple "iDevices" – iPad, iPhone, and iPod (with 3.5 mm jack). The rugged construction and compact size make it the perfect companion for audio professionals who must work on-location performing acoustic analysis, monitoring audio levels, or recording. Each iMM-6 is individually hand-calibrated using a laboratory-standard measurement microphone, for consistent, repeatable measurements that match the level of precision previously offered only by expensive stand-alone microphones.
The IMM-6 uses an omnidirectional electret condenser capsule that allows for a single calibration file for high-precision measurements so you can measure the output of a speaker driver, or the response of a whole room!
Also compatible with Android and Microsoft devices that use a 3.5 mm TRRS jack, a headphone/line-out is built in for monitoring the recorded signal, and a kickstand elevates and angles the measurement capsule for more direct measurements. Each iMM-6 is ruggedly built with high-quality components and include a sturdy carrying case with foam insert.
A unique serialized calibration file is available for the iMM-6. This calibration file can be used by most audio-analysis apps for the iPad, iPhone, and iPod Touch (see compatibility list for recommendations). Visit the Dayton Audio calibration download tool, where you will be prompted to enter the serial number from the case of your iMM-6. After entering the serial number, your download will start.
Note: In order to use your iMM-6 as a calibrated measurement microphone you may be required to purchase an app for your tablet or smart phone.
Specifications:
Capsule Type: Precision 6mm electret condenserPolar Response: True OmnidirectionalFrequency Response: 18-20,000Hz, ±0.5dB (calibrated)Impedance: 200 ohmsSensitivity at 1kHz into 1kohm: 10 mV/PA (-40 dBV, ref. 0dB=1V/PA)Maximum SPL for 1% THD @ 1k: 127dBS/N ratio: 70 dB (A-Weighted, varies depending on host device)Connector: Gold-plated 3.5mm TRRSWeight: Ultra-light 7.6 grams
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Adapter for 1/2" CalibratorEvery iMM-6 microphone includes a unique calibration file, but using a sound level calibrator is still the most reliable way to confirm accuracy when switching between phones, tablets, and audio interfaces. A calibrator provides a fixed reference level, allowing you to quickly compensate for the varying input sensitivities these devices and their measurement apps often introduce. To make this process simple, we offer a 3D-printable adapter that allows the iMM-6 to fit properly into many popular 1/2" calibrators. Download the 3D files below.
Note: For this print we recommend using PLA or PLA+; other materials may require size adjustments due to shrinkage. Print with 100% infill for the best fit and durability.

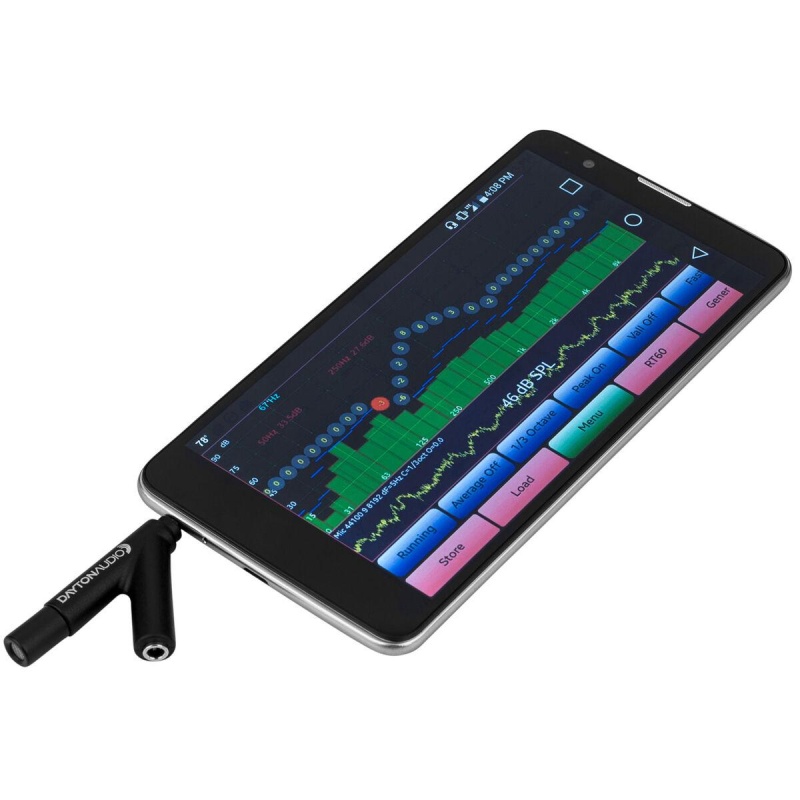

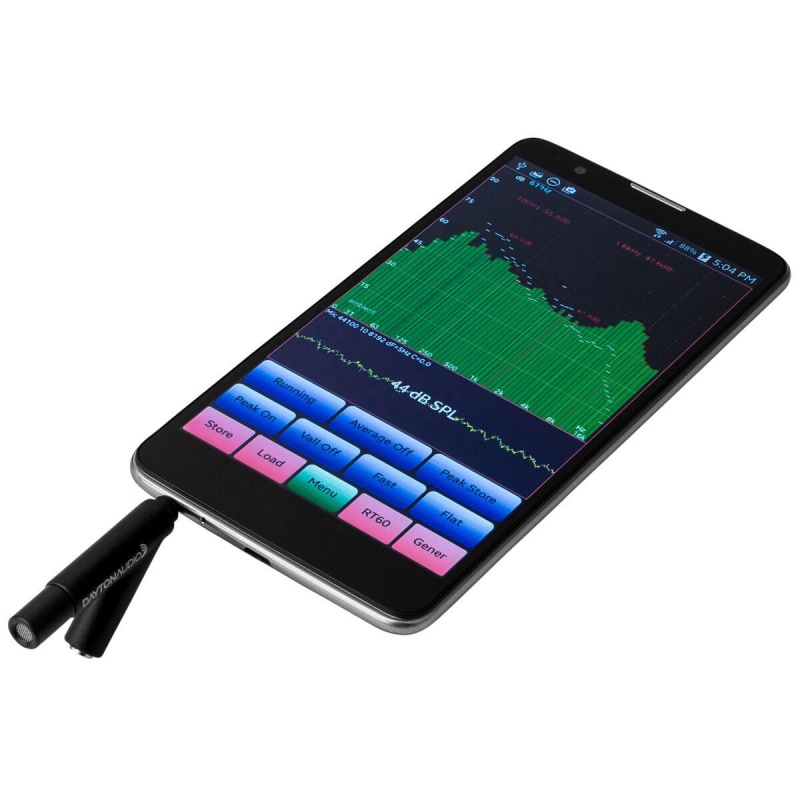

Help for Android and iPhone users:There are many applications in the market that provide users with audio measurement software. We do not recommend any specific apps, however, in an attempt to assist the new user of an iMM-6, we have listed links and some helpful pointers below. One for the Apple/iPhone platform and the other for Android devices.
Android - AudioTool from JJBunnHere is the procedure for loading the iMM-6 calibration file into on an Android device:
iPhone - AudioTools from Studio Six DigitalHere is the procedure for loading the iMM-6 calibration file into on an iPhone:
