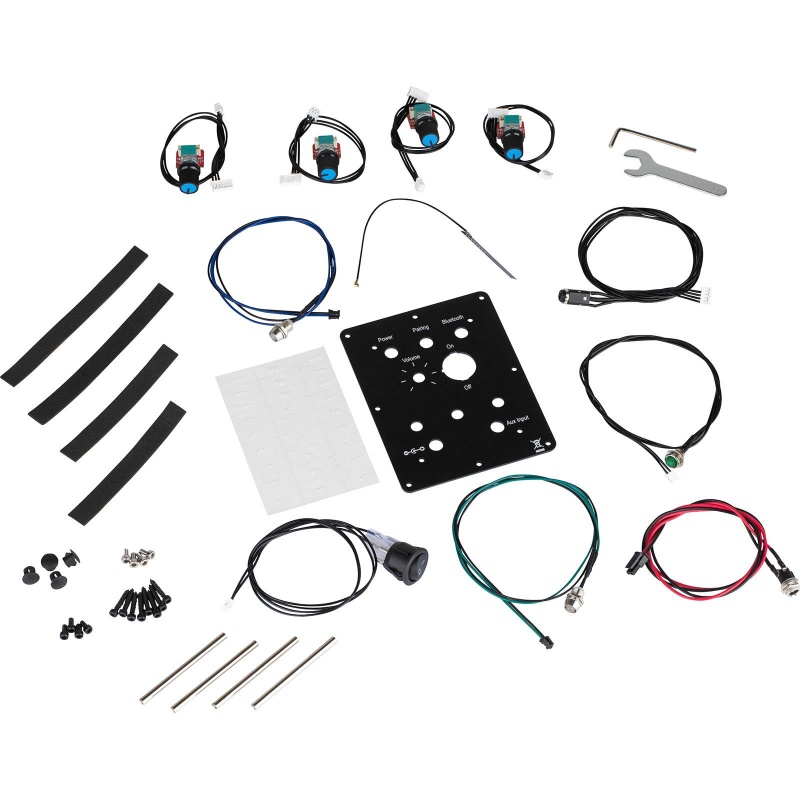

Included in the kit is everything you need for a seamless installation. You will find a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, four potentiometers, a pairing switch, gasket tape, and mounting screws. The best part is that these components plug directly into the board, eliminating the need for any soldering. Installation has never been easier!
To make the process even more convenient, the panel comes with predrilled holes and silk screen white labels, allowing you to identify the location and function of each component with ease. No more guesswork or confusion!
Furthermore, the kit includes a scratch on transfer sheet for three blank control options, giving you the freedom to customize your project according to your preferences. Additionally, black plastic buttons are provided to cover any unused holes, ensuring a clean and professional appearance.
The standoffs included in the kit serve as a sturdy support system, holding the panel and the KABD board firmly together for one-piece mounting. This ensures that your project stays securely in place, even during heavy use.
To complete the installation, gasket tape and screws are included to securely mount the panel to your project. This ensures that the panel stays firmly in place, while also providing a neat and finished look.
With the KABD-PMV4 Panel Mount Kit, you can take your Dayton Audio KABD sound projects to the next level. Give them a professional finish and enjoy the satisfaction of a job well done. So why wait? Get your kit today and transform your project into something truly remarkable!
NOTE: Although the KABD-PMV4 panel mount plate will work with the Dayton Audio KABD-4100, the KABD-4100 cannot mount to the KABD-PMV4 with standoff hardware as its footprint is too large to be compatible for mounting.
Included Components:
PartsDescriptionSpecificationQtyPanelBlack metal4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting1ScrewsBlack for front of standoffM3 x 6 mm4ScrewsSilver for rear of standoffM3 x 6 mm4StandoffsSilverM3 x 60 mm4ScrewsBlack wood screws for mountingM3 x 16 mm8LEDsRed and blue with metal socket and cables5 mm with 20" (500 mm) leads2PotentiometerVolume control, knob, and cable10K ohm with 8" (203 mm) leads4Push button switchPush button and cable for Bluetooth pairingSPST momentary N.O. with 20" (500 mm) leads1Stereo phone JackAux input and cable3-conductor 3.5 mm with 20" (500 mm) leads1DC coax jackDC input and cable2.1 x 5.5 mm with 20" (500 mm) leads1Rocker SwitchOn-off switch and cableSPST with 20" (500 mm) leads1Gasket tapeGasket tape for underneath the outer diameter of the panel4.61" L x 0.39" W (117 x 10 mm)2Gasket tapeGasket tape for underneath the outer diameter of the panel3.47" L x 0.39" W (88 x 10 mm)2WrenchWrench for LED mounts10 mm1Allen wrenchDriver for screws2.5 x 55 x 18 mm1
