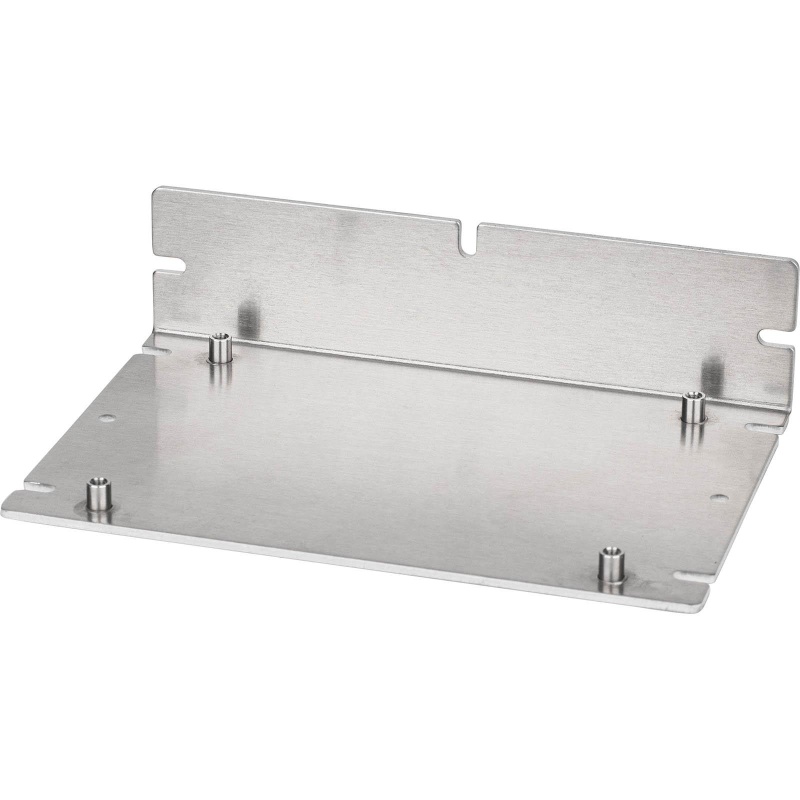

It can be quite difficult to install the audio amplifier boards and battery boards into tight spaces such as portable sound applications. To securely mount the LBB-5Sv2 and KAB-4100 boards and improve space efficiency Dayton Audio offers the LBB-ABS; an L-type aluminum bracket. This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements. The dimensions are 6-1/16" x 4" x 1-9/16" (154 x 101.6 x 39 mm) on the "L" side. Two 0.15" (3.73mm) holes and seven slots give you the versatility to mount the L-type bracket to your project as needed. Built-in threaded standoffs with the required (sold separately) provide a sturdy foundation for mounting to the LBB-5Sv2 in either direction or the KAB-4100 with the fan facing up. Standoff spacing is 4-13/32" x 3-13/32" (112 x 82 mm) to center.
Note: If using this mounting bracket to mount the LBB-6S with the batteries facing the bracket, you must attach a 16mm and a 10mm standoff together to the bracket and then slide the battery board into place. Tighten the standoffs down all the way once the board is in place using the screws supplied with the standoffs. Facing up attach a 10 mm standoff to the board and use a 16 mm standoff on top and use pliers or another 16 mm standoff to tighten. 320-3290 standoff kit sold separately.
