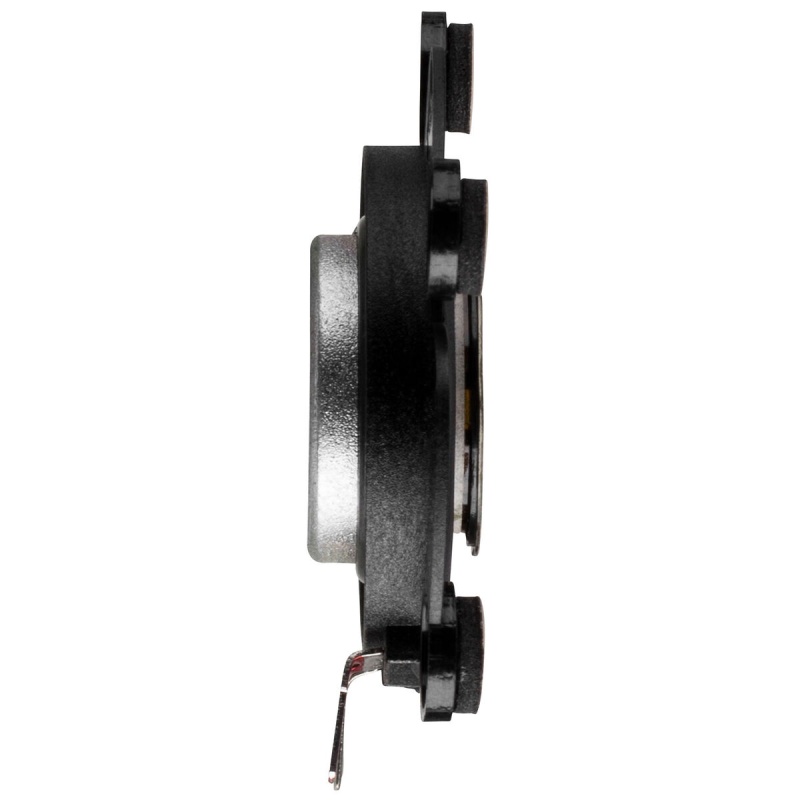

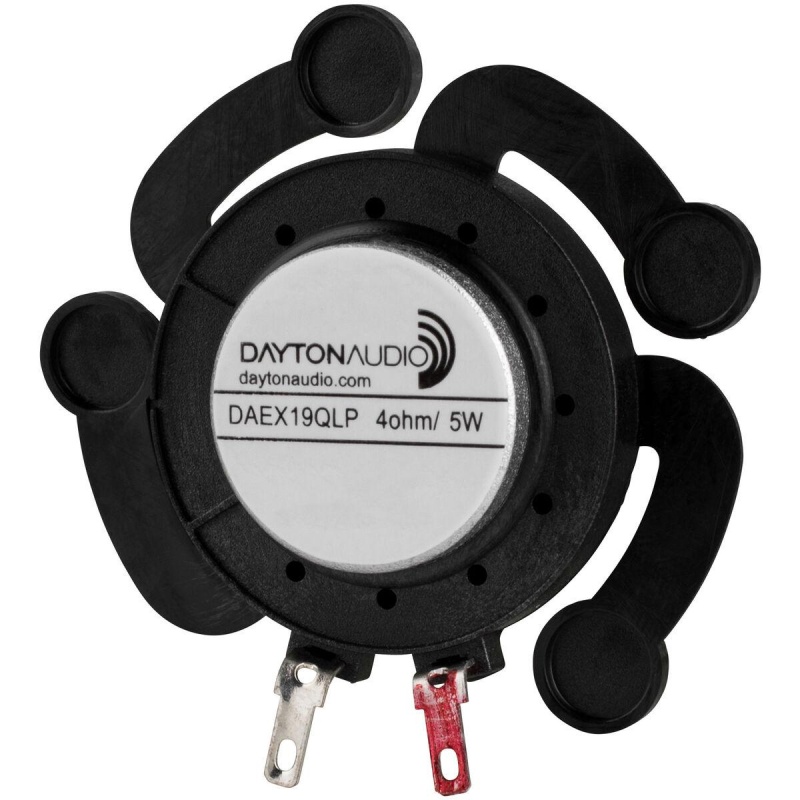

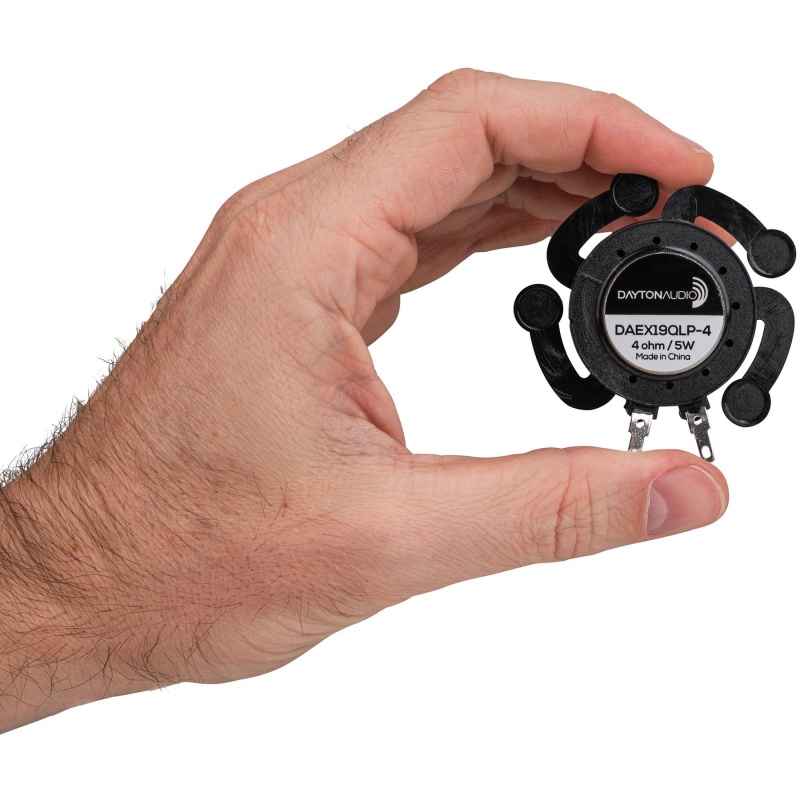

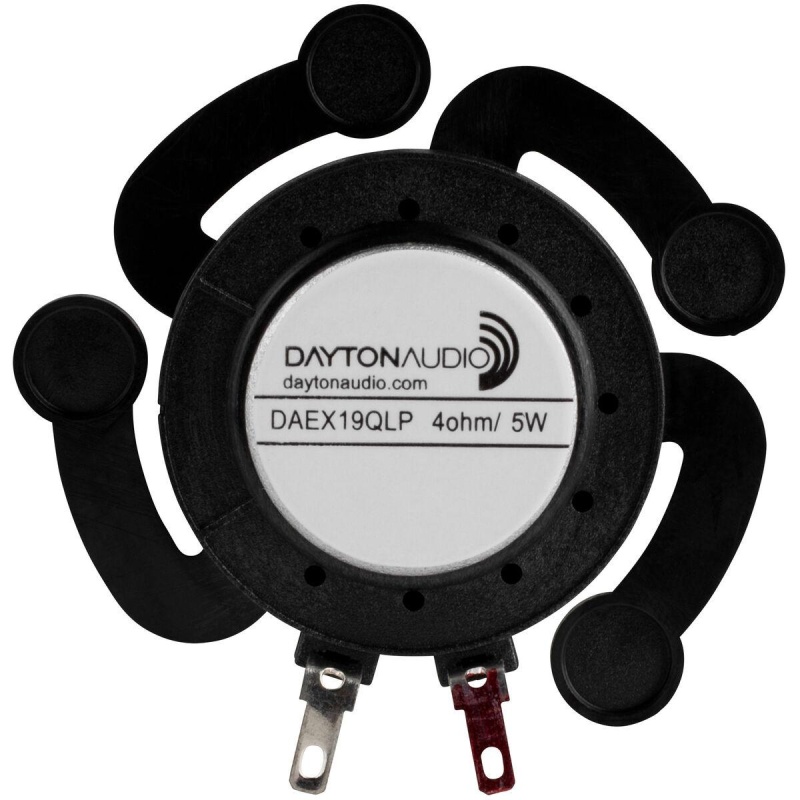

Dayton Audio's DAEX19QLP-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces.

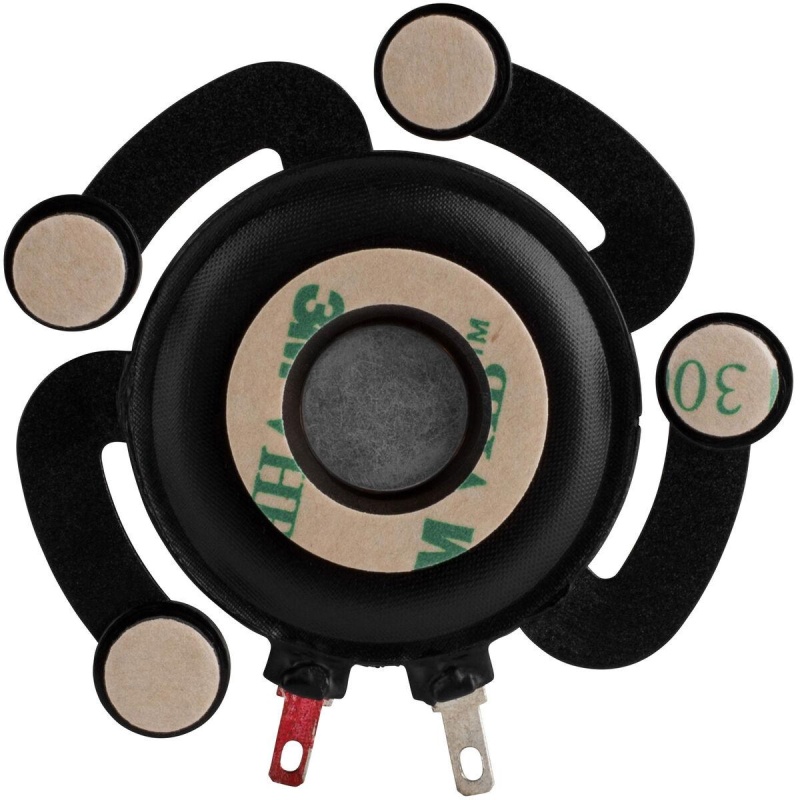

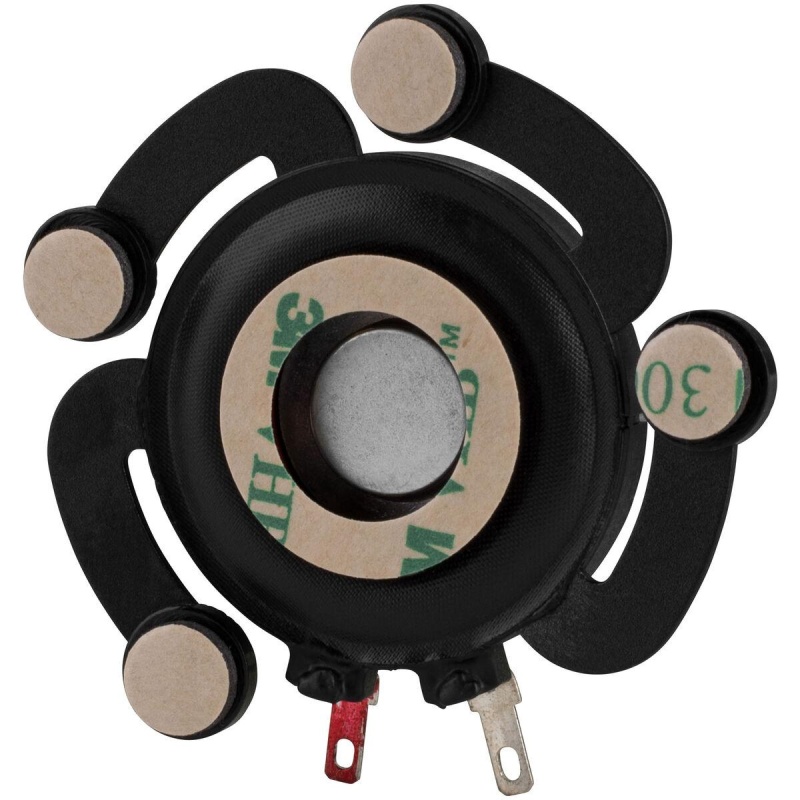

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 0.75" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
Specifications:• Power handling: 5 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 3.5 ohms • Le: 0.13 mH • Fs: 450 Hz • Dimensions: 2.25" (57 mm) overall diameter x 0.5" (12 mm) total height • Weight: 24.2 grams.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out .
