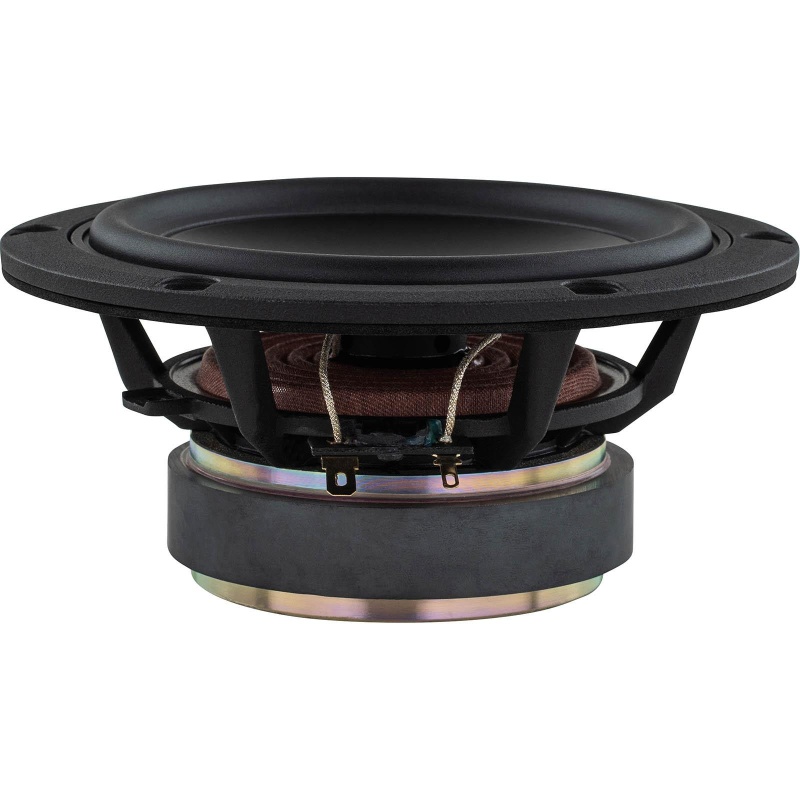

Dayton Audio SIG150-4 5.25” Signature Series Extended Range 60W Driver 4 OhmThe Dayton Audio Signature Series was designed to give speaker designers access to the pinnacle of speaker technology at the value expected from Dayton Audio. Featuring an open aluminum cast frame, anodized aluminum cone and a polyimide former, these drivers can provide extended range with incredibly low distortion.
Key Specs: Nominal Diameter: 5-1/4"Power Handling (RMS): 60 wattsPower Handling (MAX): 120 wattsImpedance: 4ΩFrequency Response: 60 - 4,000 HzSensitivity: 91.1 dB @ 2.83V/1mVoice Coil Diameter: 26.7mmMaximum Linear Excursion: 4mm
Signature Sound and PerformanceThe smooth and extended frequency response of these Dayton Audio speaker drivers ensures that the entire audible spectrum is accurately reproduced, from the lowest bass notes to the highest treble frequencies. This well-balanced frequency response delivers a natural and immersive listening experience, allowing you to hear every detail and nuance in your favorite music or movies.
Meticulous Attention to DetailThe speaker drivers' design, materials, and meticulous engineering work in harmony to minimize distortion, ensuring that the sound remains clean and clear even at high volumes. By achieving low distortion, these speaker drivers provide an accurate representation of the original audio signal, allowing audiophiles to enjoy a true-to-life listening experience with exceptional clarity and precision. The Signature Series speaker drivers used rigorous Klippel testing throughout the design process, a state-of-the-art analysis method to provide optimal performance, consistency, and reliability by precisely measuring and optimizing the drivers' magnetic and mechanical properties.
Featuring the innovative use of aluminum shorting sleeves, our speakers deliver unmatched audio performance. These Faraday rings, expertly situated around the driver's pole piece, not only stabilize the magnetic field but also significantly reduce inductive distortion. The result? Consistent, high-quality sound in every note. Thanks to aluminum's superior conductivity, every audio signal is transmitted efficiently and without distortion.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.

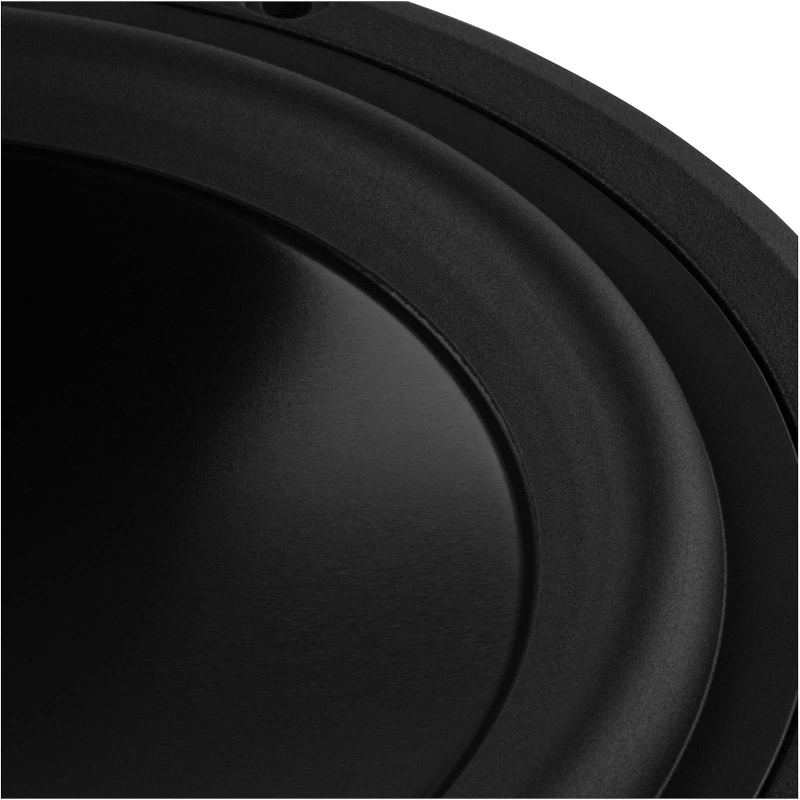

Indexed Cone and Surround JunctionDiffraction caused by the abrupt edge of the surround is minimized by the use of an indexed junction. This design feature helps create a smooth transition between the cone and surround, resulting in improved frequency response while improving the rigidity of the cone further resulting in less cone distortion at high excursion.

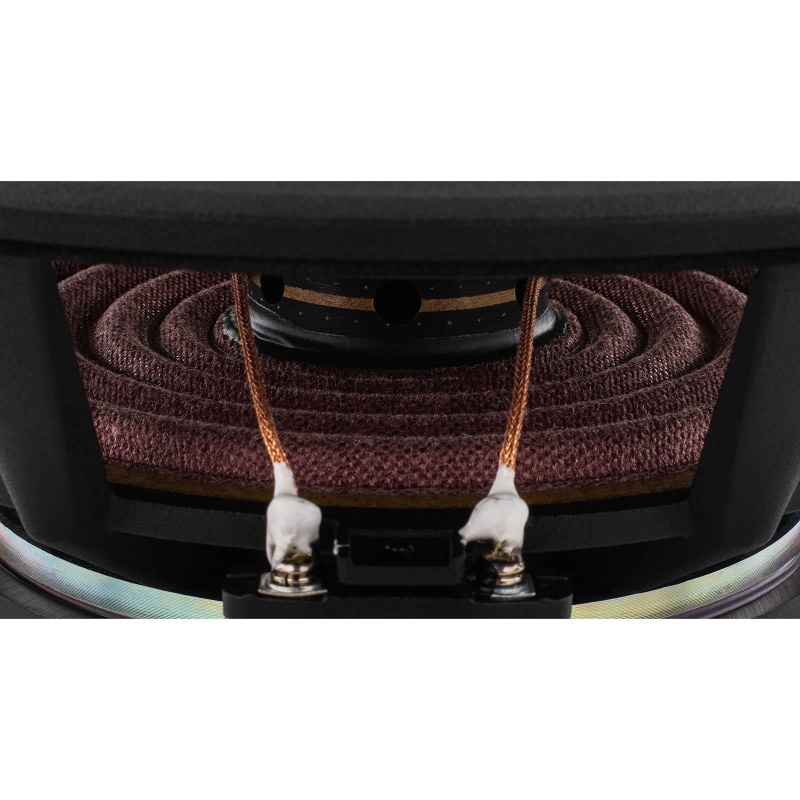

Vented Polyimide Former with CCA Voice Coil Wire and Elevated Spider SuspensionThe polyimide voice coil formers provide excellent mechanical damping and a smoother frequency response, and the copper-clad aluminum (CCA) wire reduces moving mass further enhancing the overall sound quality and increasing the efficiency of the speaker driver. An elevated spider and vented former increases airflow to the coils to keep the assembly running cool during long periods of use.

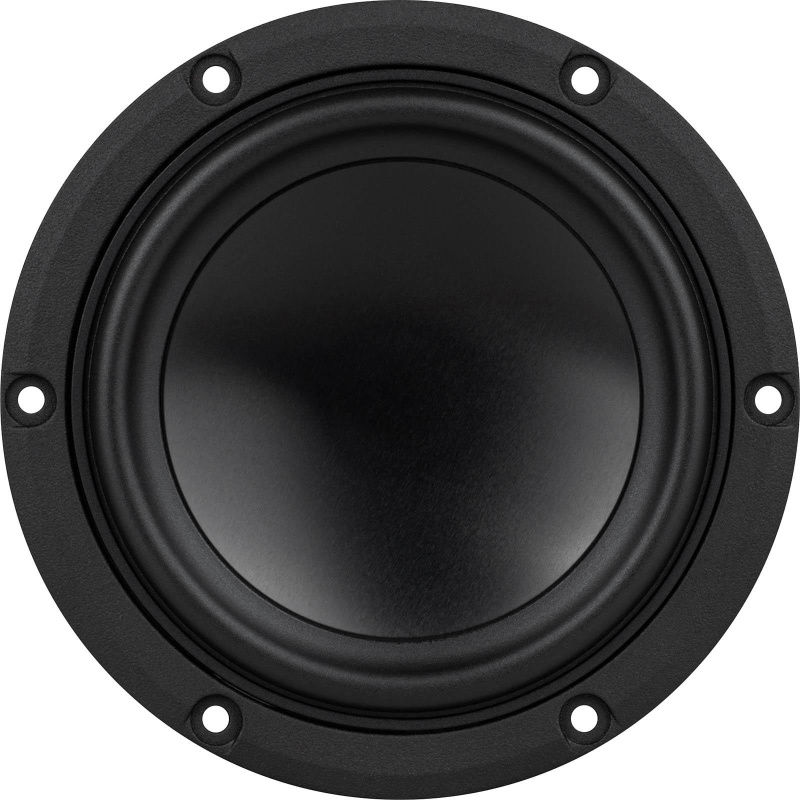

Concave Black Anodized Aluminum ConeThe aluminum construction of the cone is lightweight, rigid, and helps reduce distortion, contributing to a more accurate sound reproduction. The anodization process is optimized to contribute to the dampening of the cone and provides high aesthetic value to any speaker design.

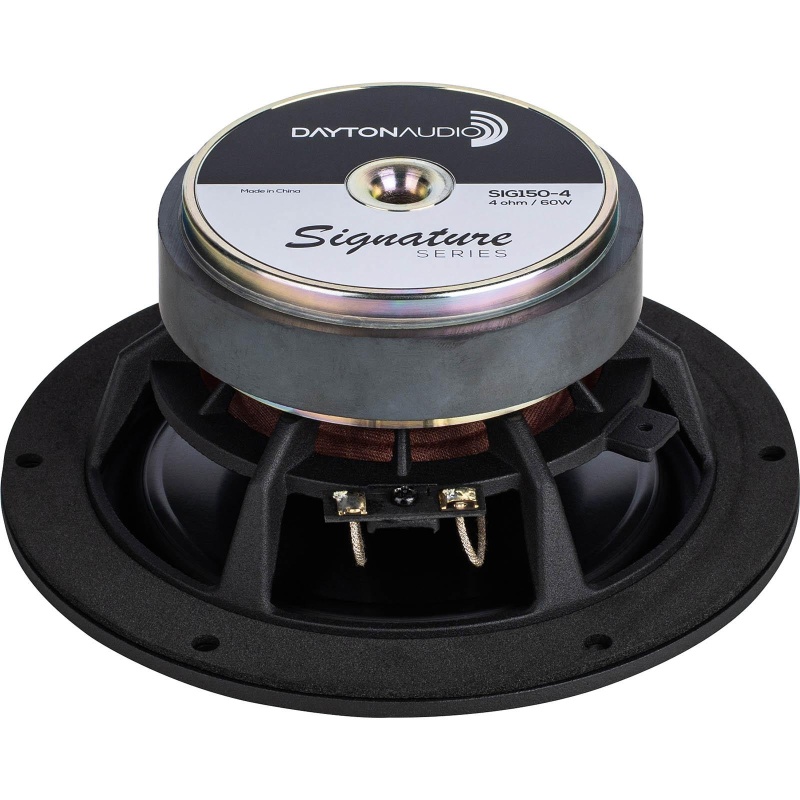

Open Aluminum Cast Frame and Stainless-Steel BadgingThe aluminum cast frame keeps movement isolated to the diaphragm, increasing low frequency performance and providing additional thermal dissipation. Stainless-steel badging completes the sleek aesthetic of the Signature Series drivers providing a timeless visual appeal for every speaker designer.
Sig120-44"80 Watts MAX4 Ohm
Sig180-46-1/2"160 Watts MAX4 Ohm
Sig225-48"200 Watts MAX4 Ohm
Sig270-410"240 Watts MAX4 Ohm
We've Got Your BackWe stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
