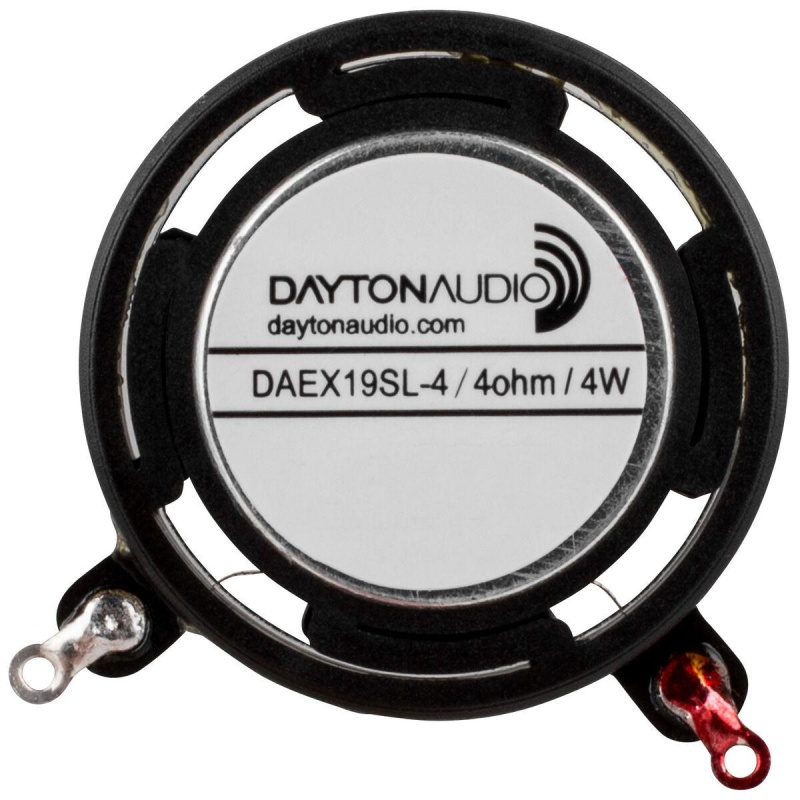

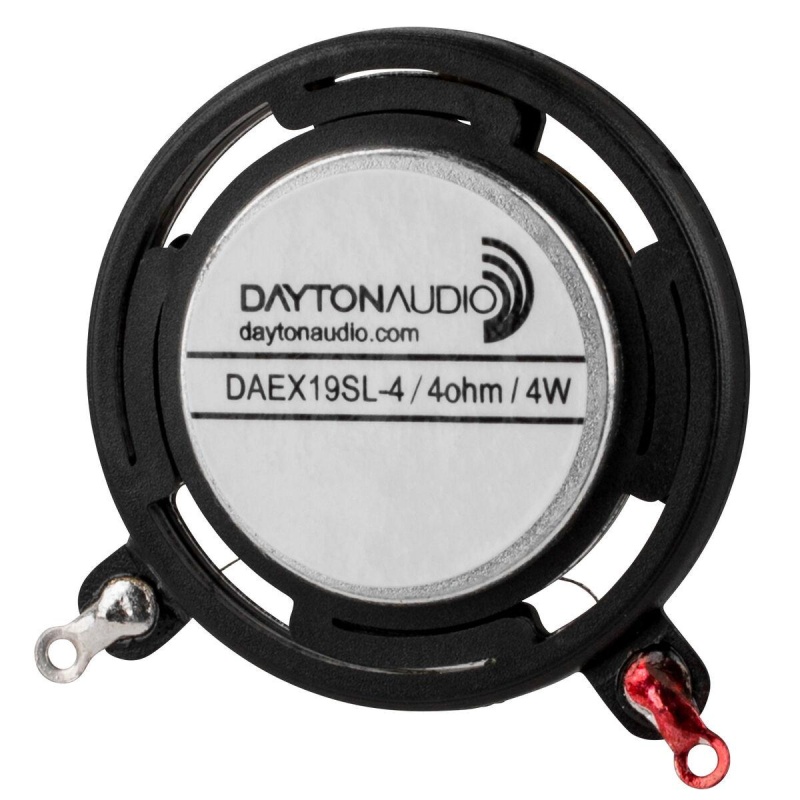

The Dayton Audio 19 mm slimline coin-type audio exciter turns a surface into a speaker in a compact package for applications with limited space, including toys, signs, cabinet doors and windows. A neodymium magnet creates magnetic flux around the proprietary voice coil to increase sensitivity compared with similar-sized exciters, reducing power requirements and allowing use with very small audio amplifiers without sacrificing total output.

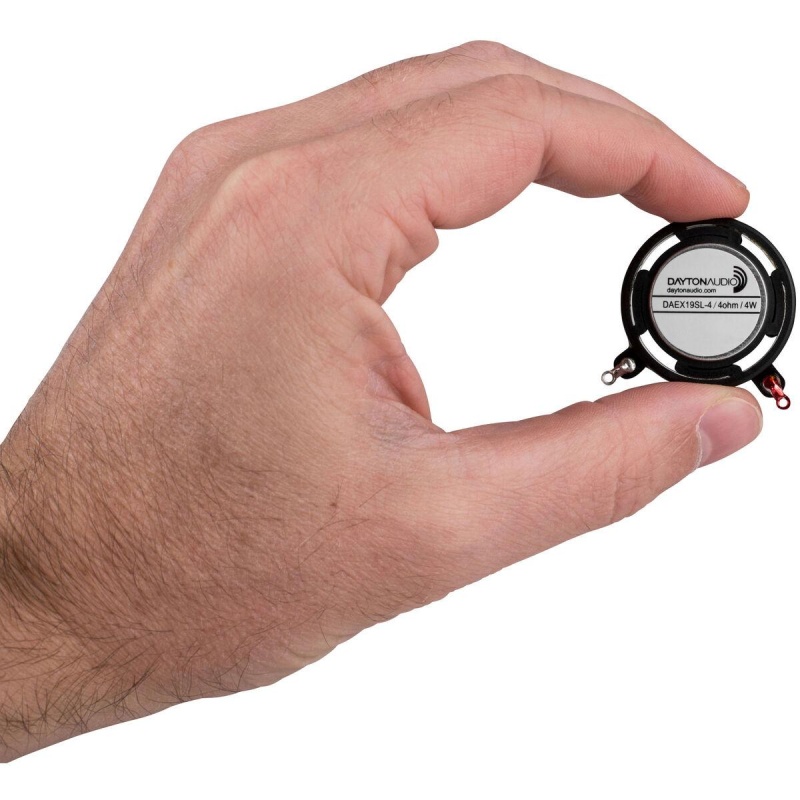

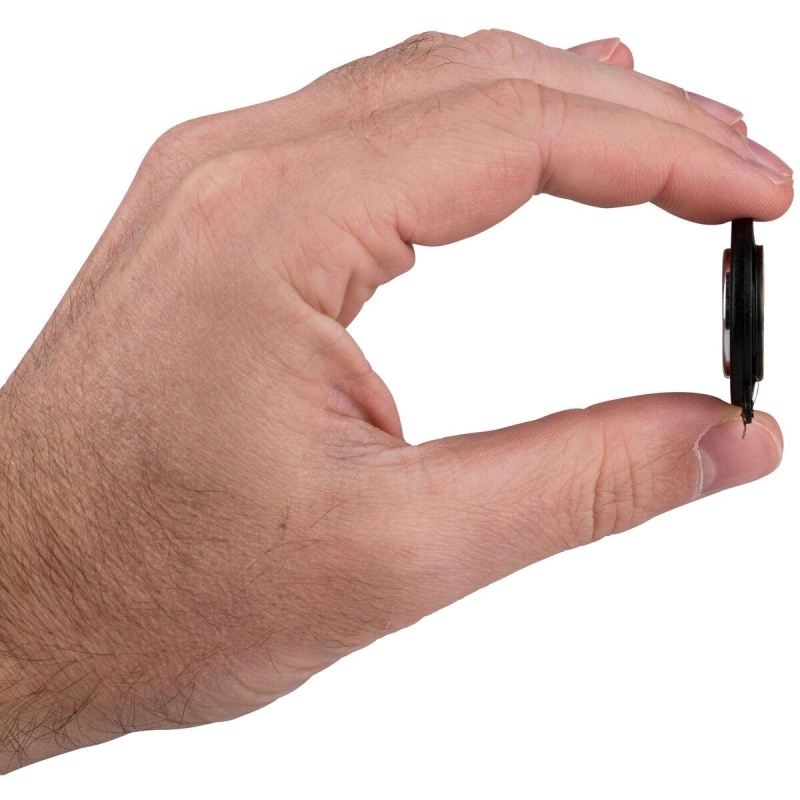

The exciter has 4 watts RMS power handling, a 19 mm voice-coil diameter and 4-ohm nominal impedance. Other specifications: Re 2.94 ohms, Le 0.01 mH and Fs 630 Hz. It measures 1.3" (33 mm) in diameter × 0.26" (6.5 mm) high and weighs 13.5 grams.

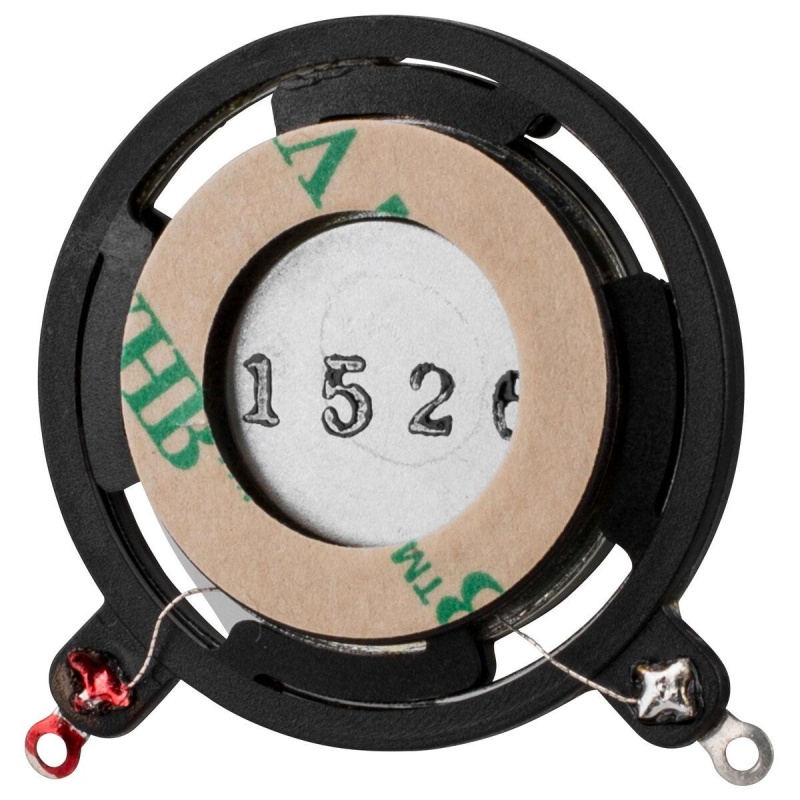

Pre-applied 3M VHB (Very High Bond) adhesive transfers acoustic energy to the attached surface; peel and stick for installation. The adhesive measures 0.9" (23 mm) outside diameter and 0.63" (16 mm) inside diameter. Two PCB solder points keep installation and wiring compact.
Frequency response and sensitivity depend on the surface. Thinner, smaller materials tend to be louder and create a mid/tweeter response. Thicker, larger materials used with multiple exciters tend to be slightly quieter and produce a more full-range sound.
