Dayton Audio SPA100-D 100 Watt Class-D Subwoofer Plate AmplifierThe plate amplifier that packs a punch!The Dayton Audio SPA100-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps. A Class-D topology makes it small, but with the same output capability as a traditional amplifier topology. We've included everything that you need to connect the amp to your system and get maximum performance!
Key Specs: Channels: 1Power Output @ 4 ohms (RMS): 100 WattsPower Output @ 4 ohms (MAX): 200 Watts Frequency Response: 20Hz - 200HzInputs: 2x RCA InputsOutputs: 1x Powered OutputWe Got Your Back
We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Phase SwitchCorrect misalignment between your speakers and your subwoofer with a phase inversion switch
Variable CrossoverMaintain a smooth transition from your full-range speakers with a variable low-pass filter.
Bass BoostGet maximum performance from smaller drivers and enclosures with a switchable 6dB boost at 35Hz.
Auto-OnWhen no signal is present, the SPA100-D will shut itself off until you need it most!
Class-D Excellence The efficient class-D design keeps size and weight to a minimum while providing maximum power to your driver. SPA-D Amplifiers are perfect for subwoofer duty due to their high efficiency and low noise volume at lower frequencies making amplification selection easier than ever.

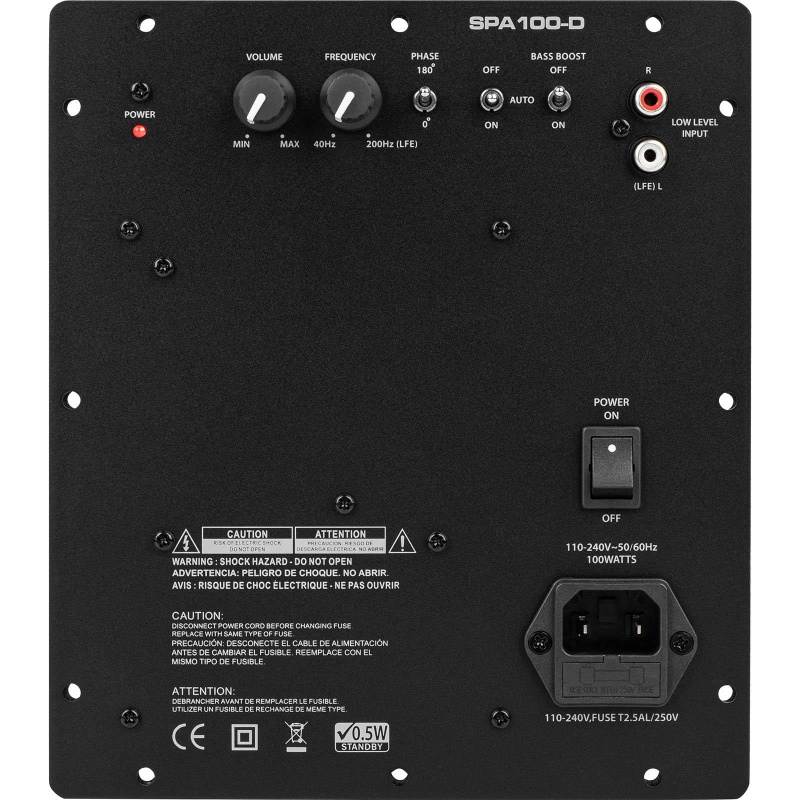

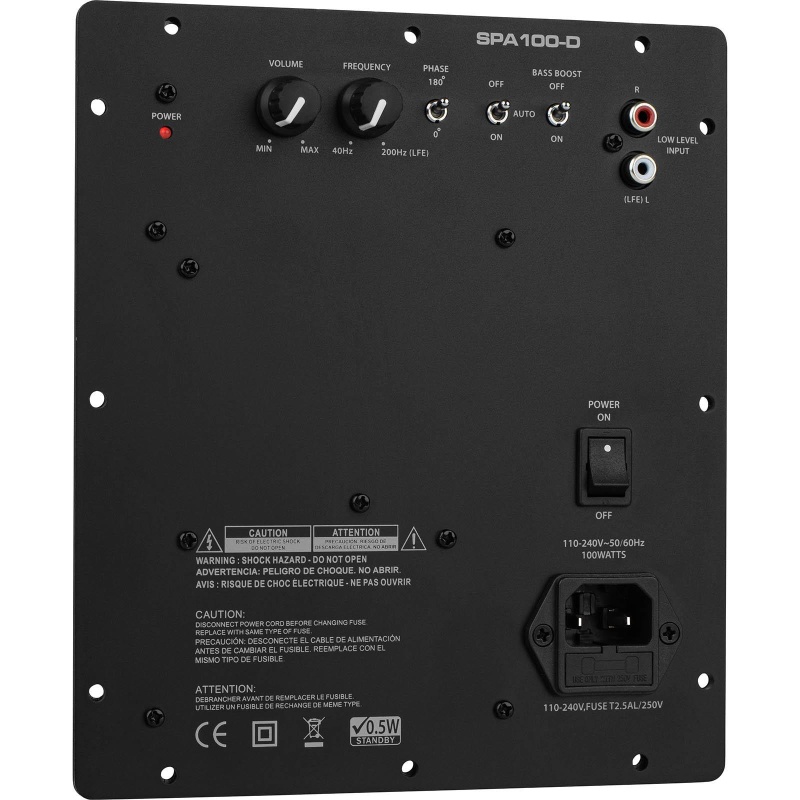

Connectivity Front:1. Power Input - This unit features an IEC Type power jack
Low-Level Inputs (Left/Right) - RCA Style jacks that will accept standard line level inputs from a pre-amp level source.
Output Lead for Subwoofer Driver - Solderless disconnect terminals for driver connection: Red = 0.205" / Black = 0.11"
Power/Clipping LED - This LED indicator will display the current status of the amplifier.
Volume (Gain) - This control will match the amplifier's input sensitivity to the output of the pre-amp source.
Frequency (Low-pass crossover) - This sets the highest frequency the subwoofer will reproduce and has a range between 40-200Hz with a slope of 18dB/Oct.
Phase - This two-position switch helps to compensate for differences between the acoustical and electrical characteristics between the subwoofer and main speakers.
Auto Turn On/Off - When the "auto" position is selected the amp is in standby mode until an input signal is detected.
Bass Boost - This allows the user to add a 6dB boost to the response centered at 35Hz.
Main Power Switch - Main power disconnect.
Shop More Plate AmpsBuild your own high-quality integrated powered subwoofer speaker system, or upgrade an existing setup. The performance, features, and warranty of the amplifier solutions found at Parts Express far exceed those of many similar products. These amps are designed to "do it all" when matched with the appropriate subwoofer enclosure and loudspeaker driver.
SPA300-D
SPA250
SPA500
SPA1000
Specifications:Channels: 1Power Handling (RMS): 100 WattsPower Handling (MAX): 200 WattsFrequency Response: 20 - 200HzInput Sensitivity: 180 mVSNR, A-Weighted: 90 dBTotal Harmonic Distortion: 1%Inputs: 1Driver Connection: Red = 0.205" / Black = 0.11"Power Requirements: 115 - 230 VACPower Consumption: 100 WattsDimensions: 8-1/16" H x 7-1/16" W x 2-1/8" DCutout Dimensions: 7" H x 6" WWeight: 1.6 lbs.Additional ResourcesWe pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.
