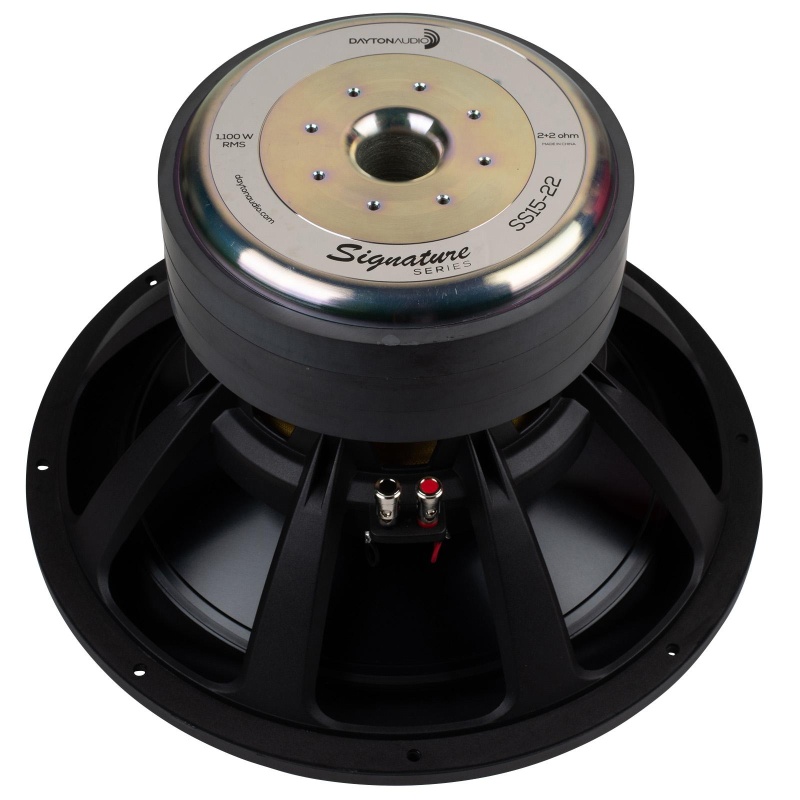

Dayton Audio SS15-22 15" Signature Series DVC Subwoofer The Dayton Audio SS15-22 Signature Series 15" Subwoofer is built to deliver serious low-frequency authority in compact high-power systems. Capable of handling 1,100 watts RMS with long, controlled excursion, the SS15-22 combines output capability with engineering refinements that ensure accuracy and reliability. Designed for both home theater systems demanding impactful LFE and music systems requiring tight, controlled bass, this 15" driver offers the perfect mix of output and fidelity.

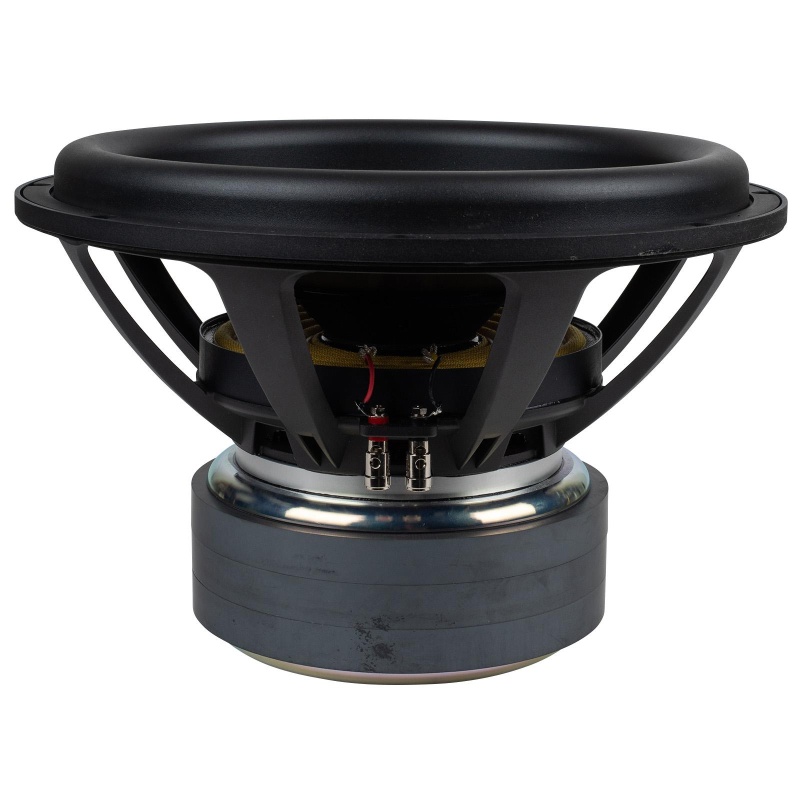

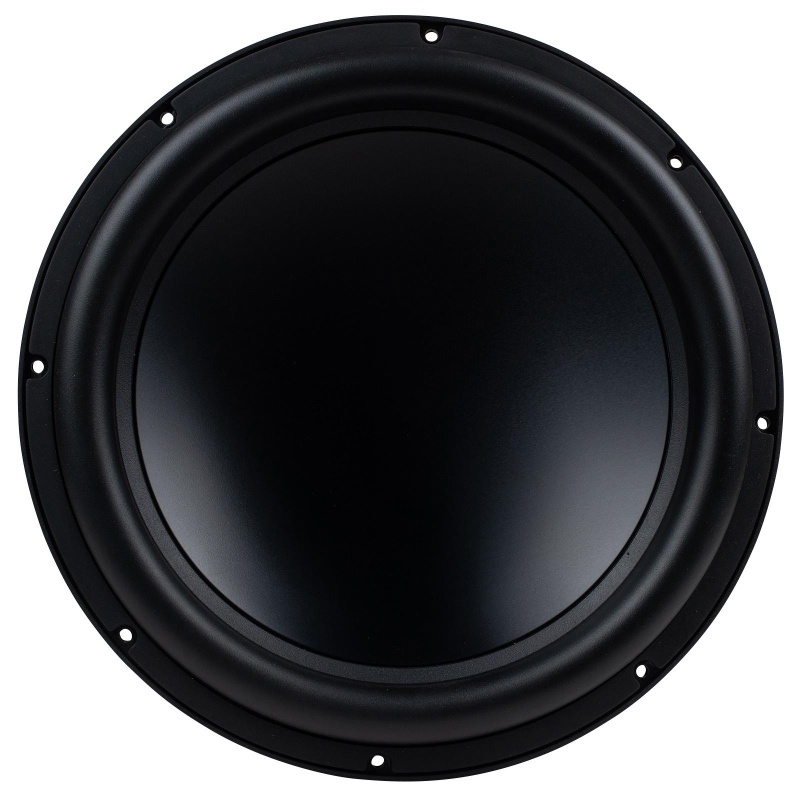

Key Specs: Nominal Diameter: 15"Power Handling (RMS): 1,100WPower Handling (MAX): 2,200WImpedance: 2Ω + 2Ω (Dual voice coils)Frequency Response: 20 - 400HzSensitivity: 90.6 dB 2.83V/1mVoice Coil Diameter: 3"Maximum Linear Excursion: ±22 mm Rigid Cone, Maximum ControlAt the front of the SS15-22 is a thick anodized aluminum cone that provides an exceptional strength-to-weight ratio. This rigid yet lightweight diaphragm resists deformation under heavy excursion, ensuring accurate pistonic motion at all output levels. The cone’s indexed edge enhances stiffness where it meets the surround, minimizing unwanted resonances. A high-roll butyl rubber surround complements the cone, allowing for extreme excursion without sacrificing usable cone area.
3" Voice Coil with Advanced Cooling Driving the SS15-22 is a 3" diameter, 4-layer copper voice coil wound on a vented aluminum former. The multi-layer winding increases motor strength and control by maximizing coil presence in the gap, while the aluminum former acts as a heat sink to pull heat away from the coil during demanding playback. Extensive venting throughout the motor structure—including the former, pole piece, spider, and voice coil gap—ensures efficient airflow and cooling, minimizing compression even at sustained high power.

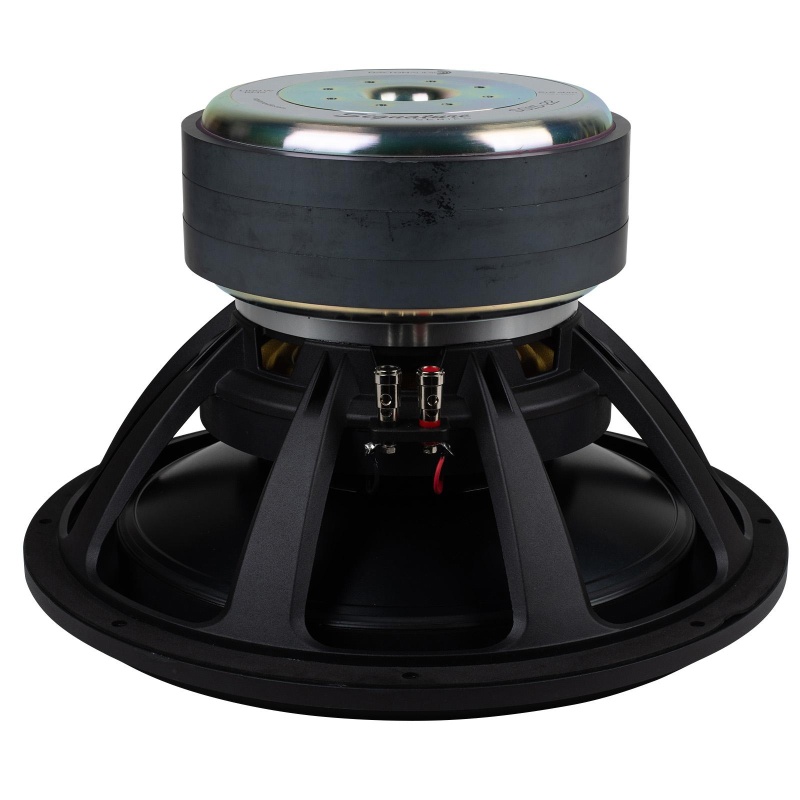

Optimized Motor for Low DistortionThe SS15-22 employs a massive, FEA-optimized, triple-stacked magnet assembly that generates a powerful and symmetrical magnetic field. This ensures the cone moves identically forward and backward, greatly reducing distortion at high excursion. Precision-machined plates with sculpted edges maximize magnetic transfer through the gap. In addition, the inclusion of an aluminum shorting sleeve, top plate ring, and pole cap keeps inductance linear throughout the entire stroke, reducing non-linearities and distortion while extending clean output into the midbass range.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.

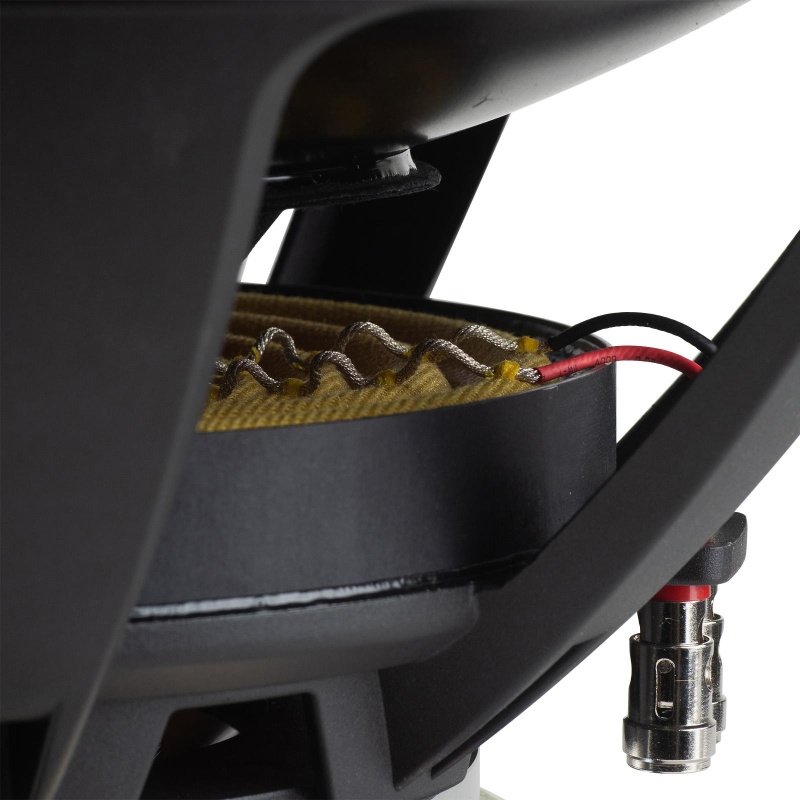

Consistent Performance at High ExcursionTo maintain rock-solid stability during high excursion, the SS15-22 uses a dual spider suspension spaced far apart for maximum cone and coil alignment. This design eliminates rocking and ensures reliable pistonic movement even under extreme loads. Stitched tinsel leads are integrated into the top spider to prevent fatigue and eliminate noise from lead slap, ensuring durability and consistent performance for years of demanding use.
Power, Control, Flexibility, and ReliabilityWith its combination of power, precision, and durability, the Dayton Audio SS15-22 Signature Series 15" Subwoofer is an outstanding choice for serious low-frequency applications. Whether used in a small DSP assisted sealed design for tight, accurate bass or a vented/passive radiator system for maximum SPL, this 15" driver delivers the output, control, low frequency extension that demanding listeners expect. As part of Dayton Audio’s Signature Series, the SS15-22 represents the perfect blend of engineering innovation and raw performance.
Matching Passive Radiator AvailableTo maximize the performance of the SS15-22, Dayton Audio offers the SS15-PR, 15" Signature Series passive radiator – visually identical to the SS15-22 driver. This allows you to achieve massive low-frequency extension from compact enclosures without requiring the impractically long ports that a driver of this size demands or power robbing boost from DSP assisted designs. By using a passive radiator system, you’ll enjoy the same powerful bass output as a vented design but with smaller enclosures, no port noise, and improved group delay—perfect for clean, room-shaking bass with authority.
Explore All of the Signature Series Subwoofers
SS8-22
Nominal Diameter: 8"
SS10-22
Nominal Diameter: 10"
SS12-22
Nominal Diameter: 12"
SS18-22
Nominal Diameter: 18"
Note: The SS15-22 subwoofer is a dual voice coil driver with a 2-ohm impedance per coil. All parameters are measured with the voice coil wires in series, resulting in a single 4-ohm load.
