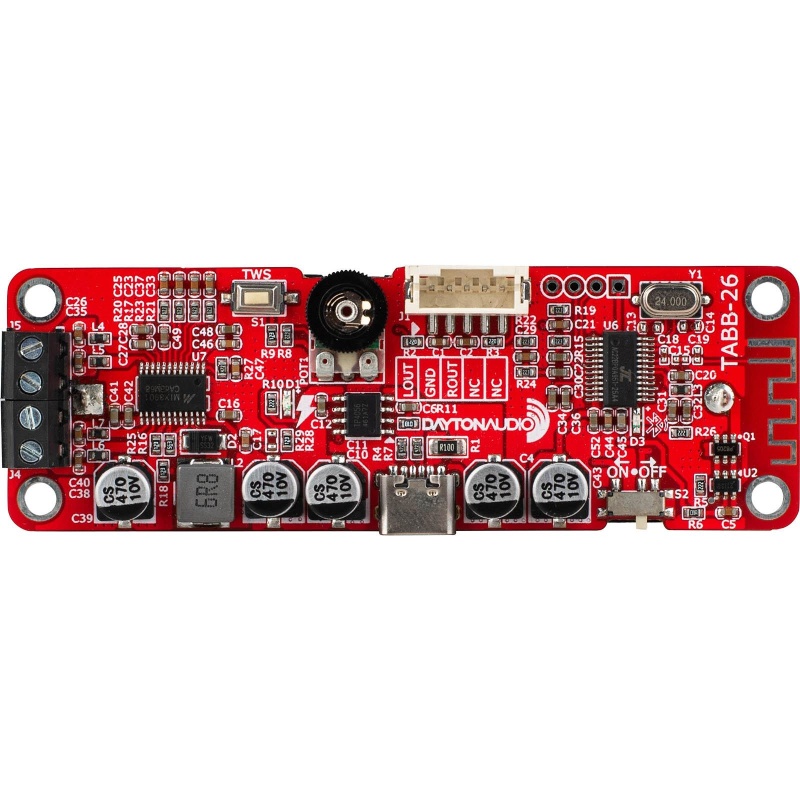

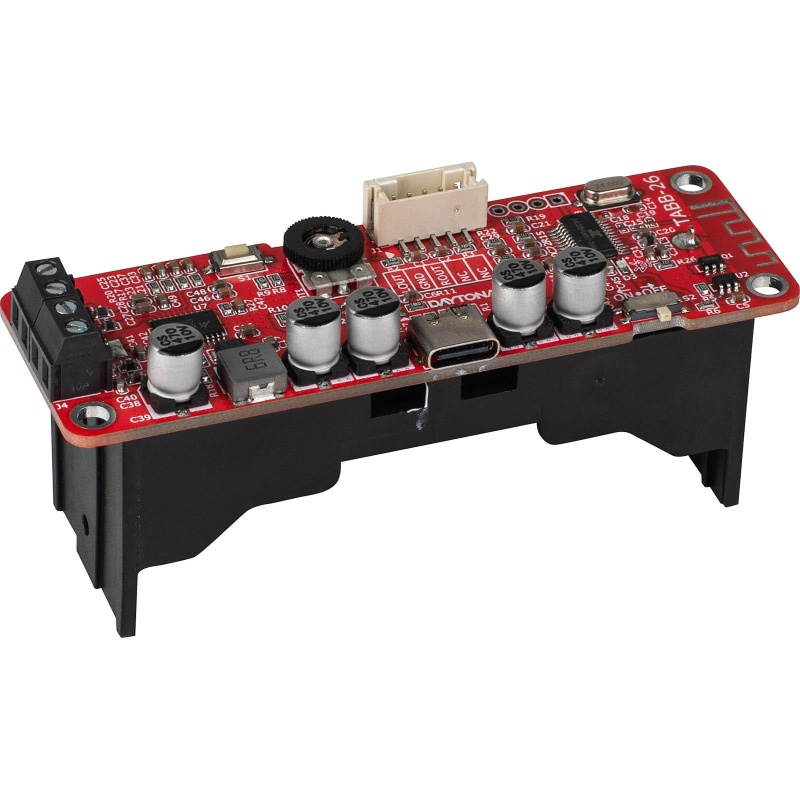

Create Your Own Twin Pairing Portable SpeakersThe Bluetooth 5.0 amplifier board employs cutting-edge technology to establish a wireless connection between devices, allowing for the effortless streaming of music, podcasts, and other audio content. With the twin pairing Bluetooth feature, you can connect not just one, but two boards simultaneously. Imagine the possibilities! Build two Bluetooth portable speakers or add the boards to existing bookshelf speakers and take them with you everywhere you go. Set them apart to get magical left and right channel separation amazing your friends leaving them wondering where all the wires are. It's like having your very own personal concert right at your fingertips.

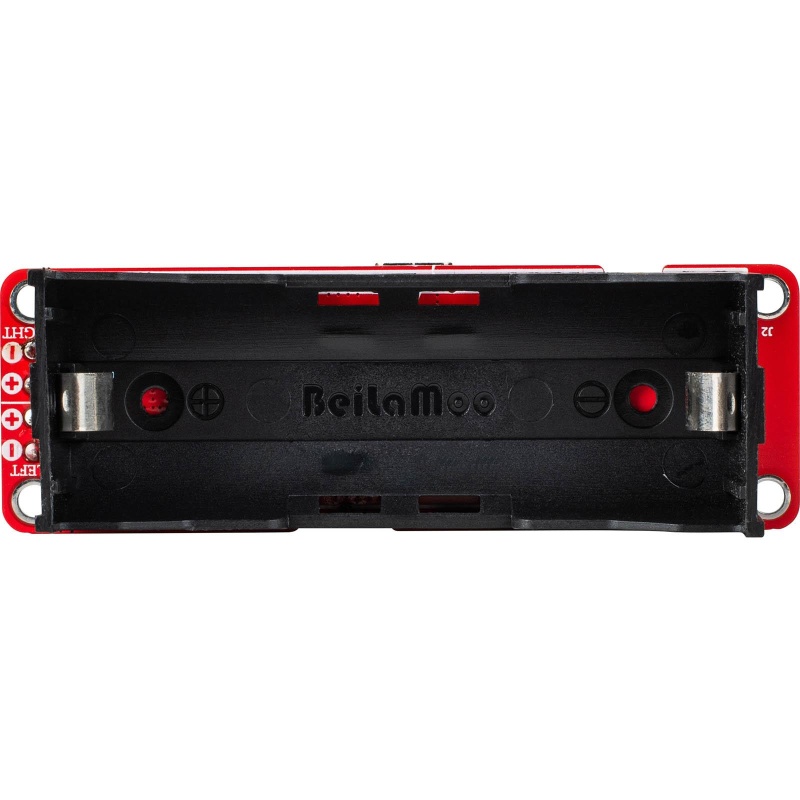

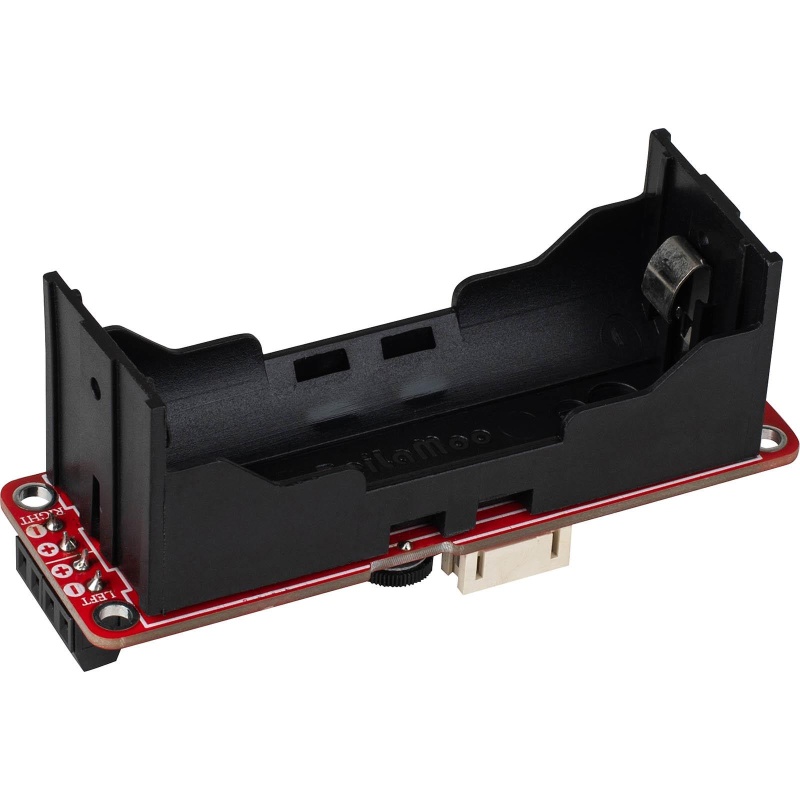

Long Lasting Music OptionBut it doesn't stop there. The 26650 battery holder ensures that your musical journey never has to end prematurely. With its robust design and substantial power capacity, you can enjoy hours upon hours of uninterrupted music. No longer will you have to worry about finding a power outlet or the inconvenience of tangled wires. Simply insert a dependable 26650 battery (available separately 142-207), and you're ready to embark on a musical adventure that knows no bounds.
Pairing Instructions1. Pair with your Bluetooth device.
a. Turn on the TABB. The Blue light starts flashing. Note: To wake up the board you must plug in a USB-C power adapter (sold separately) after installing or reinstalling the battery.
b. Look for DATABB on your Bluetooth device and select it.
c. The Blue light will stop flashing when paired.
a. Connect speaker wire to the left channel of the master board and right channel of the slave board.
b. Play wireless music through the master board that you’ve already paired to.
c. Turn the slave board on and the blue light starts flashing. Check note (1. a.) if not.
d. Hold the # 2 Twin Pairing Switch down on the master board until it beeps.
e. Press the # 2 Twin Pairing Switch until you hear a chime sound.
f. Make sure the volume is up on both boards and enjoy stereo separation up to 40 ft.
g. They’re permanently paired even after powering off.
a. Turn the master off and wait for the blue light on the slave to flash.
b. Scan for the slave on your Bluetooth device and select the new DATABB.
Note: With a speaker hooked up you’ll also hear a beep when pairing starts and when pairing is successful to your device.
Time to BuildNow build that portable Bluetooth 5.0 speaker/amplifier and use it to host a backyard party, on a camping trip, or simply enjoying some downtime at home. The twin pairing Bluetooth amplifier board with a 26650 battery holder is the beginning of an audio project that delivers an exceptional audio experience. Let the power of music transport you, as you revel in the crystal-clear sound and the sheer convenience of wireless connectivity. Elevate your audio game and embrace the symphony that awaits. The stage is set – it's time to unleash the magic.
Note: Stereo full range audio line output: Volume controls Line Output also and is not designed for headphones. Use a USB-C cable (sold separately) to wake up the board when installing a battery that doesn't need to be charged.
Specifications: • Max power output: 2 x 6W @ 4 Ohm • Operating voltage: 4-5 VDC • Switching frequency: 420 kHz • Minimum load impedance: 4 Ohm • DC offset: 5 mV • Charging current: 5 VDC @ 1.2A Max • Portable playtime: 7+ hours depending on the volume setting • Dimensions: 1.2" D x 3.6" W x 1.56" H • Bluetooth version 5.0 • Bluetooth name: DATABB.
