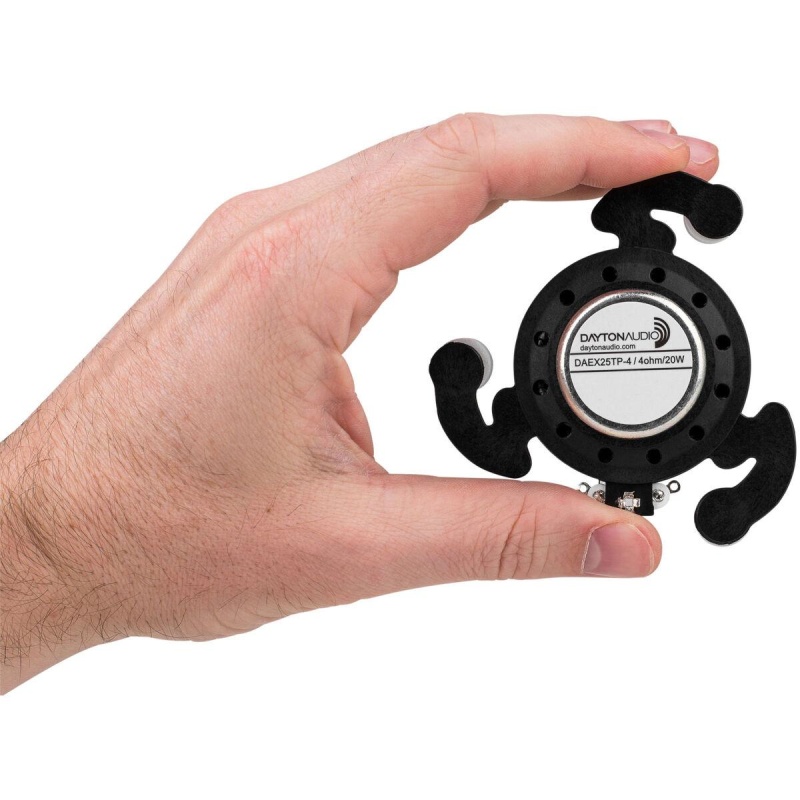

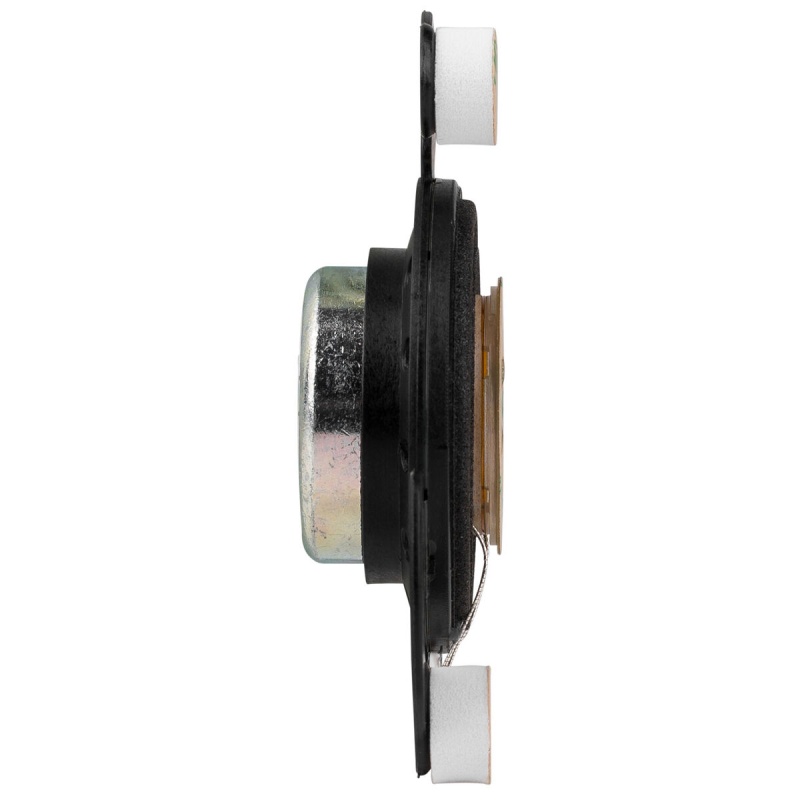

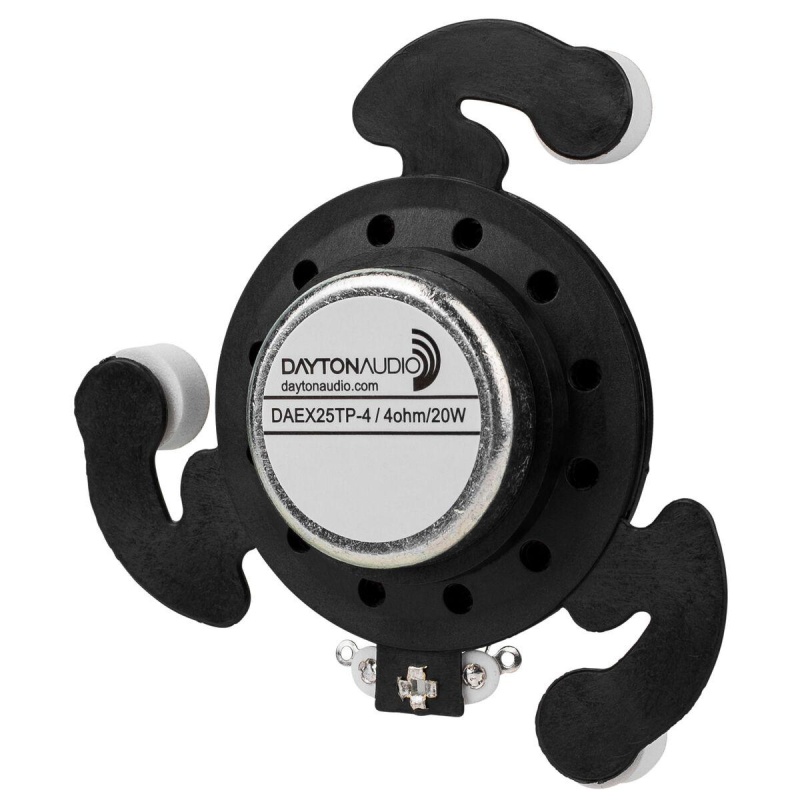

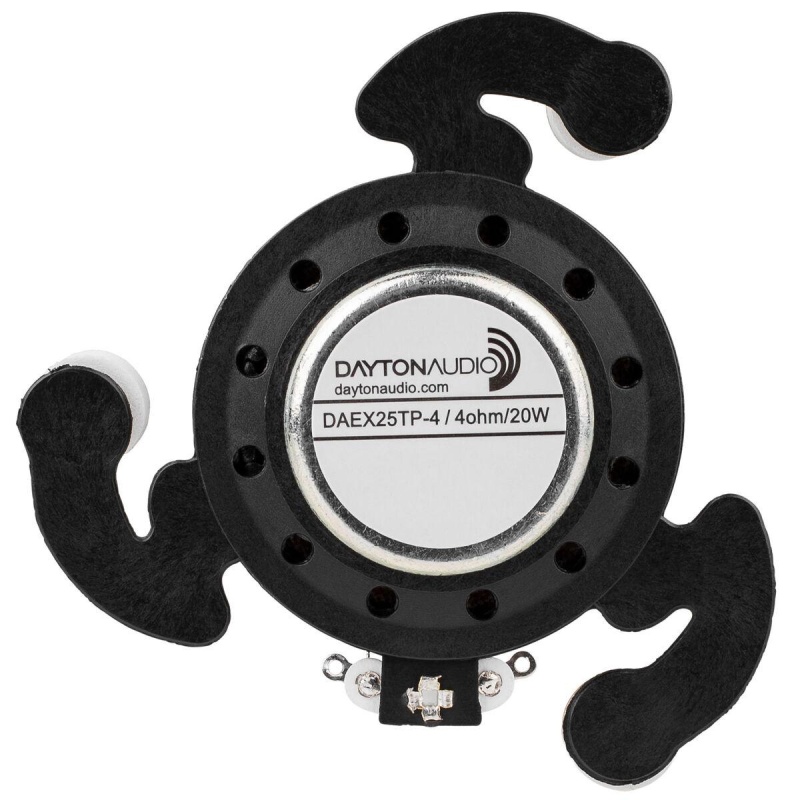

The Dayton Audio tripod audio exciter uses three arms extending from its main body to transfer sound to a larger surface and extend lower-frequency response for more bass. A neodymium magnet creates magnetic flux around the proprietary voice coil for increased sensitivity compared with similarly sized exciters, helping reduce power requirements and support use with very small audio amplifiers without sacrificing total output.

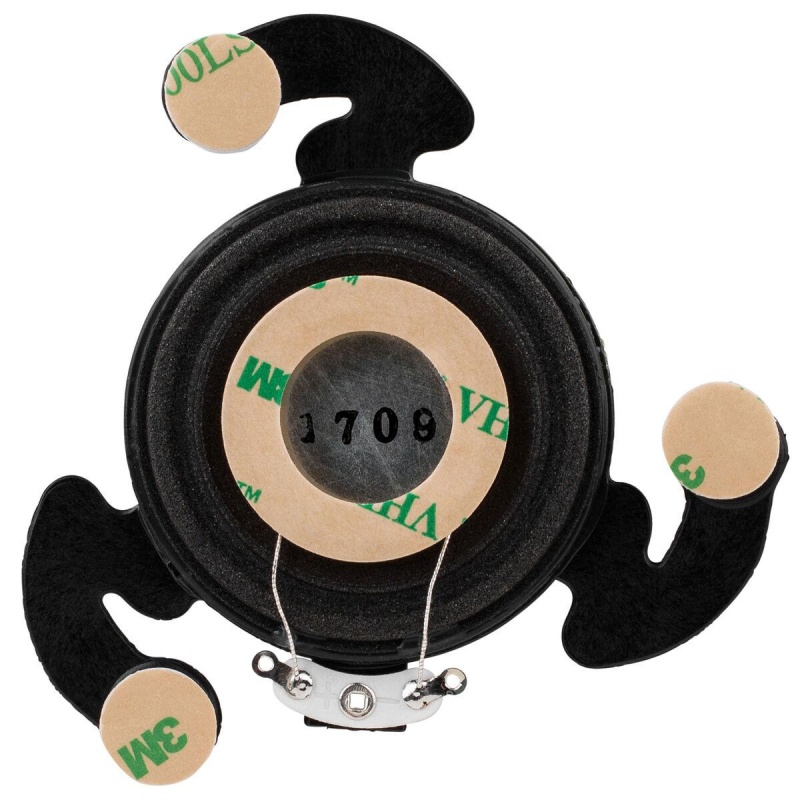

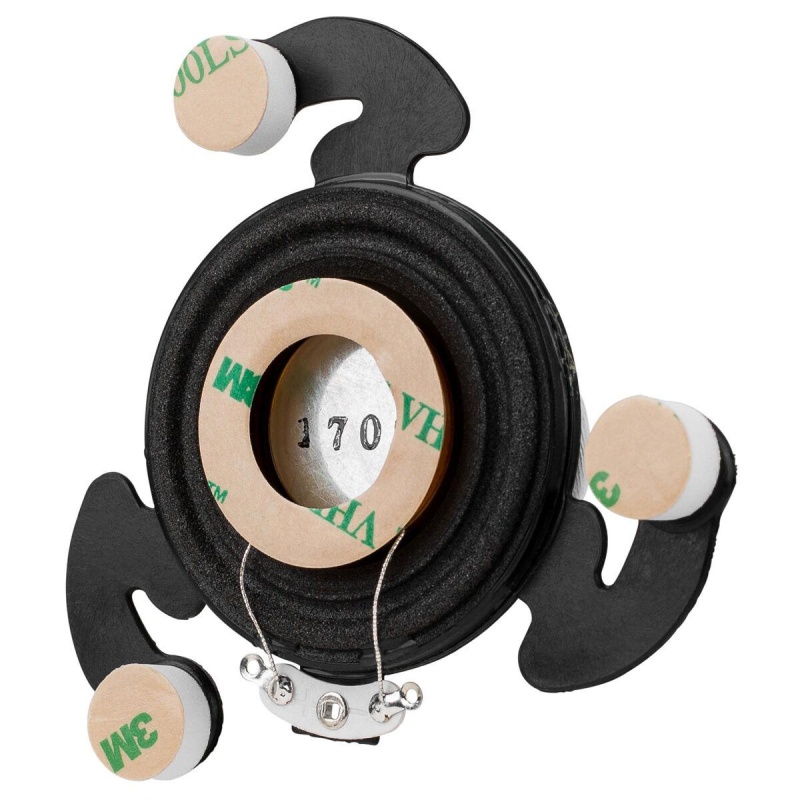

The 1" voice coil (25 mm) and cooling vents allow more input power for higher-output applications while maintaining a slim-line form factor. Pre-applied 3M VHB (Very High Bond) adhesive on the main body and all three arms supports peel-and-stick installation. Two PCB solder points keep installation and wiring compact.
Specifications: 20 watts RMS power handling; 25 mm voice coil diameter; 4 ohms nominal impedance; Re: 4.2 ohms; Le: 0.10 mH; Fs: 233 Hz; dimensions: 3.49" (88.71 mm) overall diameter x 0.83" (21 mm) total height; weight: 82 grams.
Frequency response and sensitivity depend completely on the surface. Thinner, smaller materials tend to be louder and produce a mid/tweeter response. Thicker, larger materials with multiple exciters tend to be slightly quieter and produce a more full-range sound.
