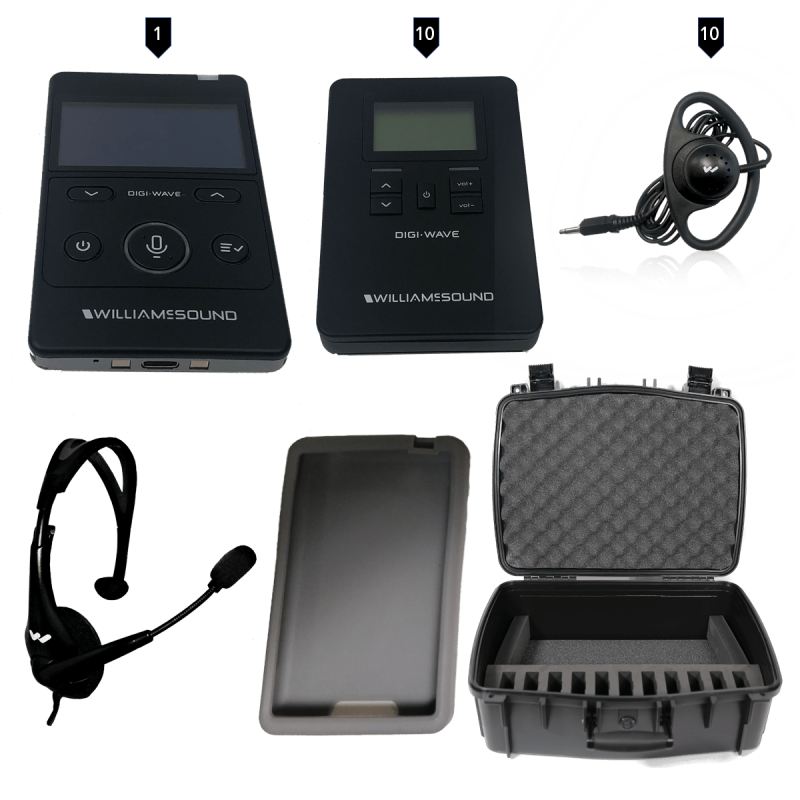

System Includes (1) DLT 400 transceiver (10) DLR 400 ALK receivers (1) MIC 144 headset microphone (10) EAR 022 surround earphones (10) BAT 010-2 AAA alkaline batteries (1) DW ACC PAC4 (1) CCS 056 DW 11 system carry case (1) CCS 061 GR grey silicone skin
How It Works
BAT 010-2 Alkaline, 1.2 Volt
CCS 056 DW 11 Interior Dimensions 13.0” W x 18.0” L x 6.7”H (33 cm W x 46 cm L x 17 cm H) Exterior Dimensions 15.7” W x 19.7” L x 7.2” H (40 cm W x 50 cm L x 18 cm H) Lid Inner Depth 1.5” (4 cm) Bottom Inner Depth 5.2” (13 cm) Approx. weight (empty) 6.6 lbs (3 kg) Material Copolymer Minimum Temperature -40ºF (-40ºC) Maximum Temperature 160ºF (71.1ºC)
DLR 400 ALK Dimensions: 2.36″ W x 3.54″ H x 0.63″ D (60 mm x 90 mm x 16 mm) Weight: 1.7 oz. (47 g) without batteries. Frequency Band: 2.4 GHz (ISM band) Modulation: FSK Case Material: Black ABS Plastic Battery Type: 2 x AAA Alkaline Batteries Battery Life: Alkaline Disposable (BAT 010-2): Up to 30 hrs Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices Audio Frequency Response: (-3dB level) Intercom Mode: 100 – 7,300 Hz Interpretation and other modes: 100-11,200 Hz SNR: 74 dB (A-weighted) THD: 0.1% (typical) Antenna: Internal Range: Up to 900 ft (274 m) (depending upon environmental conditions) Headphone Audio Output: 3.5 mm TRRS jack with mono output for headphones, earphones, or neckloop 27 mW maximum @32 ohms Display: LCD shows status: Battery Level, RSSI, Group/Channel # Temp. Range: 14° – 113°F (-10° to 45°C) Compatible Units DLT 400, DLT 300 Approvals: FCC, Industry Canada, RoHS 3, CE, WEEE, RCM, ANATEL, KC, Giteki Warranty: 2-year warranty against component failure and manufacturing defects. See Full Warranty on the website for details
DLT 400 Dimensions 4.22″W x 2.60″H x 0.50″D (107.3 mm x 66 mm x 12.6 mm) Weight 3.3 oz (94 g) including battery Color Black/Silver (Front/Back) Case Material Black ABS plastic Battery type Lithium Polymer with smart charge built into transceiver; 1800 mAH Battery life Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices Charge time 5 hrs. approx. System Voltages OLED 14VDC; RF 5VDC; Logic 3.3 VDC Operating frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS Audio Frequency response (-3dB Level) Intercom Mode: 100 – 7,200 Hz Other Modes: 100 – 11,500 Hz SNR 73 dB (A-weighted, default Rx volume with mic input ) THD 0.1 % (Default Volume, 1kHz) Microphone input Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range. Line Input USB-C, Adjustable level Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms Audio Output Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level Range Up to 900 ft (274 m) (depending upon environmental conditions) Modulation FSK RF Output 19 dBm Typical Security 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings Side tone -6 dB below volume, tone variation (Off, Low and High settings available) Indicators OLED LEDs Red LED around Talk button when enabled; Bi-color, changing green and red LED at top Charging Connectors USB-C; Two contacts for use with CHG 412 Compatible Receiver DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations Operating Temperature Range 14º to 113ºF (-10º to 45ºC) Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki Warranty 2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details. EAR 022
Style Around-ear speaker Plug 3.5mm mono Cord 39″ Driver Size 23 mm Nominal Impedance 32Ω Freq. Response 20 – 20kHz Weight 15g Max Power Input 30 mW Sensitivity 118 dB @ 1kHz Warranty
2 Years
