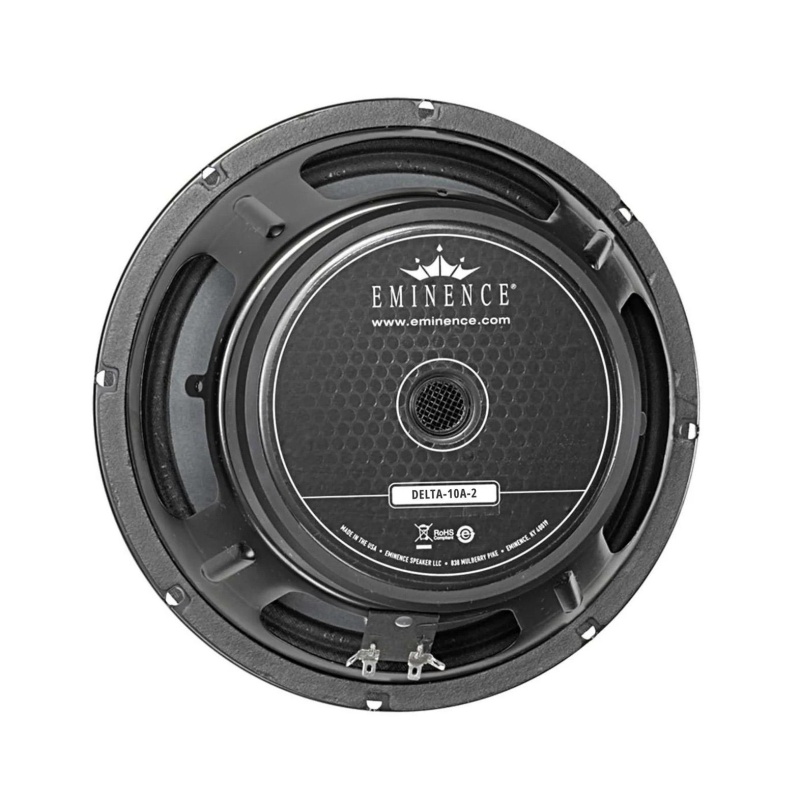

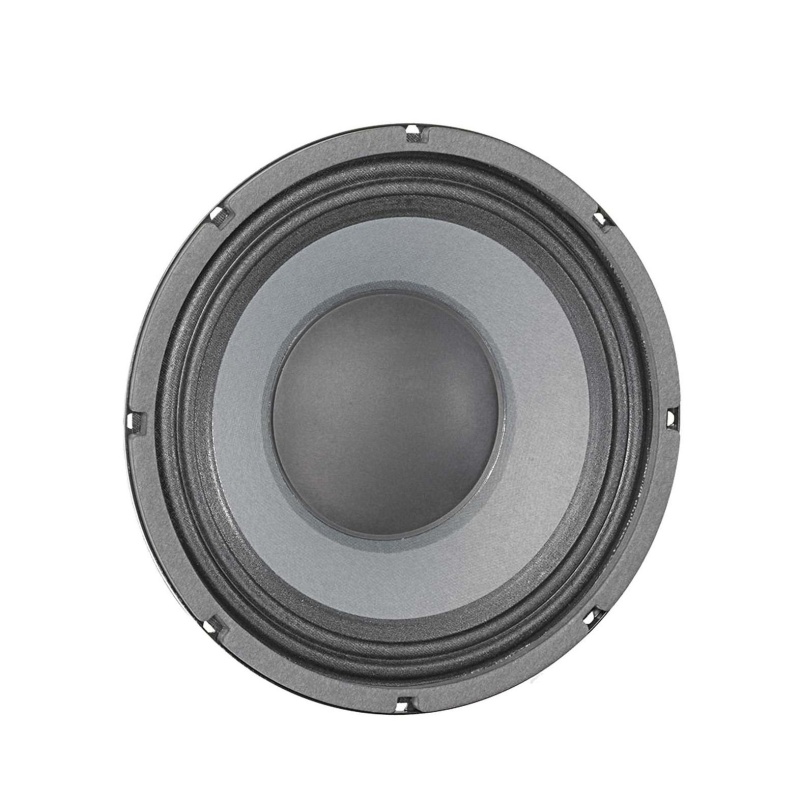

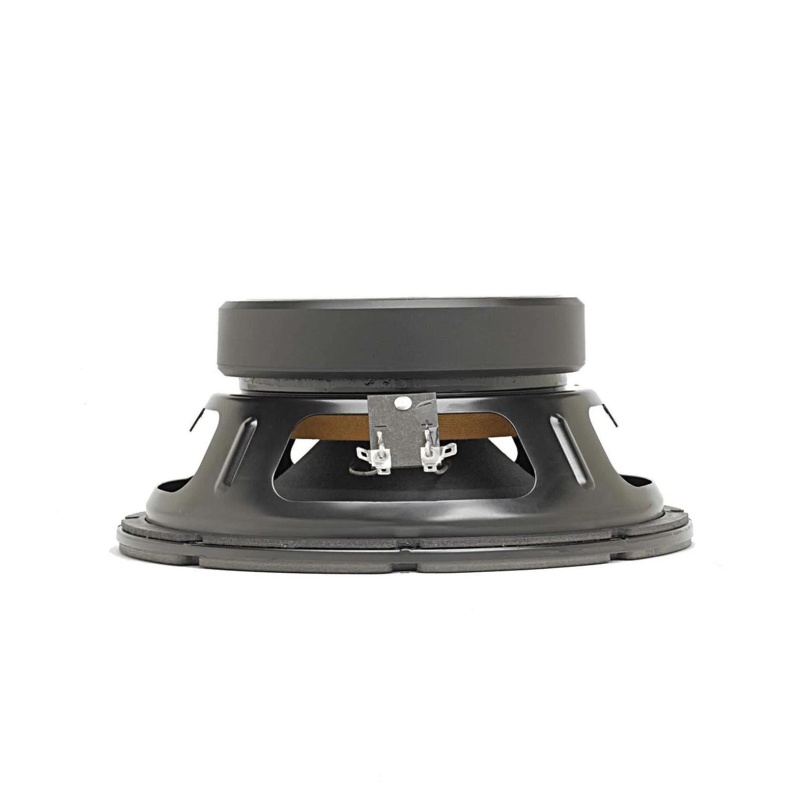

Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.
Suitable for woofer, midbass, midrange, pro audio, and bass guitar usage.
Frequency Response (red) and Impedance Curve (orange) pictured here.
SPECIFICATIONS Nominal Basket Diameter: 10", 254 mm Nominal Impedance: 8 Ω Power Rating -Program Power: 850 WResonance: 69.7 Hz Usable Frequency Range: 50 Hz - 3.7 kHz Sensitivity: 96.7 dB Magnet Weight: 56 oz. Gap Height: 0.375", 9.5 mm Voice Coil Diameter: 2.5", 64 mm
THIELE & SMALL PARAMETERSResonant Frequency (fs): 69.7 Hz DC Resistance (Re): 5.52 Ω Coil Inductance (Le): 0.58 m HMechanical Q (Qms): 5.79 Electromagnetic Q (Qes): 0.48 Total Q (Qts): 0.44 Compliance Equivalent Volume (Vas): 29.73 liters / 1.05 cu.ft. Peak Diaphragm Displacement Volume (Vd): 220.39 cc Mechanical Compliance of Suspension (Cms): 0.18 mm/N BL Product (BL): 12.19 T-M Diaphragm Mass Inc. Airload (MMs): 29.5 grams Efficiency Bandwidth Product (EBP): 145 Maximum Linear Excursion (Xmax); 6.39 mm Surface Area of Cone (Sd): 344.9 cm2 Maximum Mechanical Limit (Xlim): 9.4 mm
MOUNTING INFORMATION
Manufacturer Recommended Enclosure Volume -Sealed: 11.3-113 liters / 0.40-4 cu.ft. -Vented: 11.3-37.69 liters / 0.40-2.44 cu.ft. Driver Volume Displaced: 0.05 cu.ft. / 1.42 liters Overall Diameter: 10.09", 256.3 mm Baffle Hole Diameter: 9.18", 233.2 mm Front Sealing Gasket: Yes Rear Sealing Gasket: Yes Mounting Holes Diameter: 0.25", 6.4mm Mounting Holes B.C.D.: 9.66", 245.4mm Depth: 4.25", 108 mm Net Weight: 10.8 lbs, 4.9 kg MATERIALS OF CONSTRUCTION
Coil Construction: Aluminum voice coil Coil Former: Polyimide former Magnet Composition: Ferrite magnet Core Details: Vented coreBasket Materials: Pressed steel basket Cone Composition: Paper cone Cone Edge Composition: Cloth cone edge Dust Cap: Composition Solid composition paper dust cap
Take a look inside Eminence's factory to see how it's all made!
