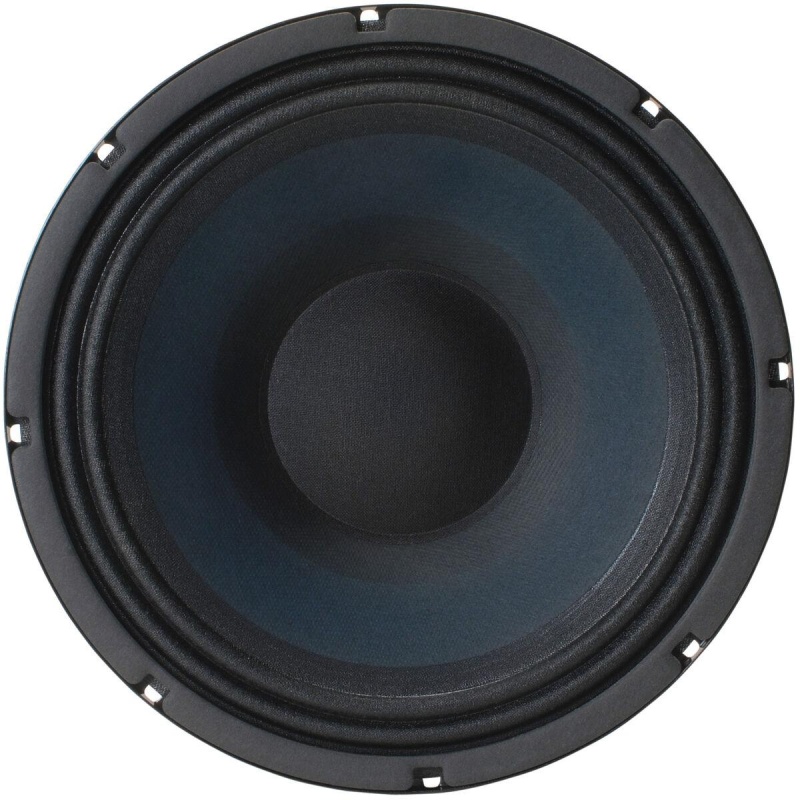

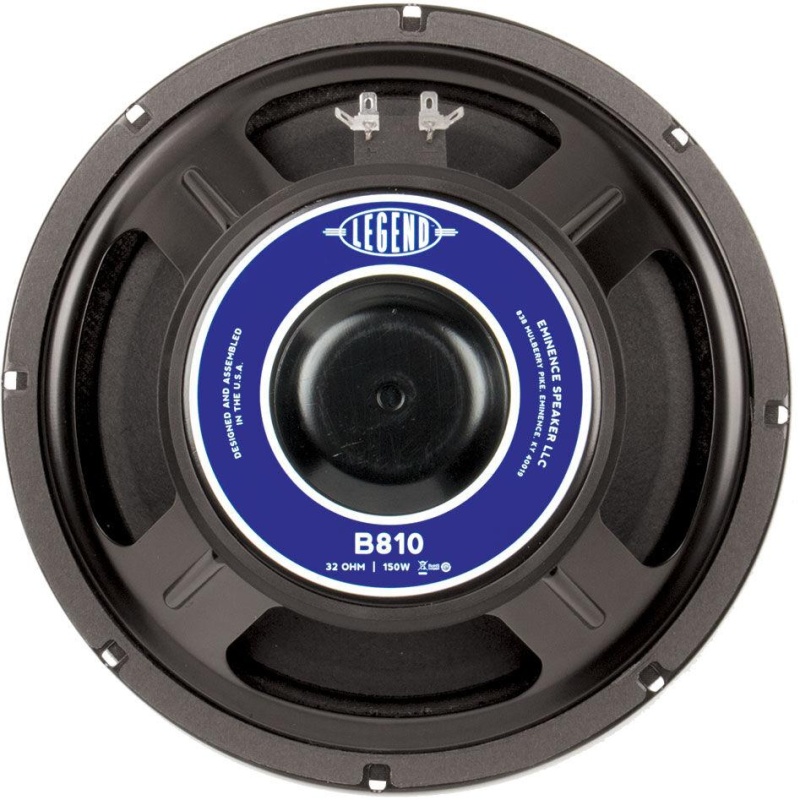

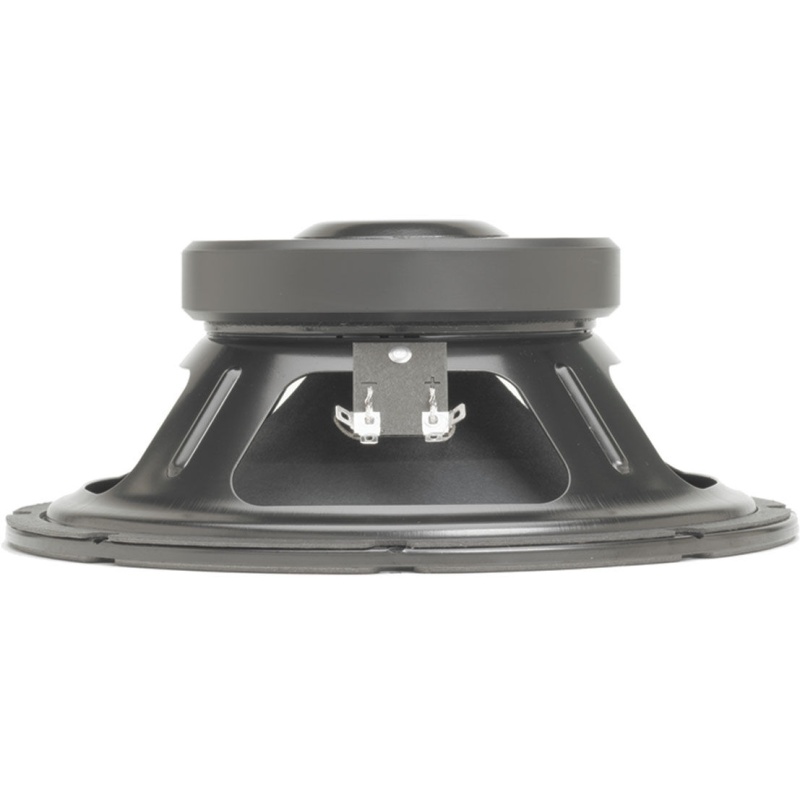

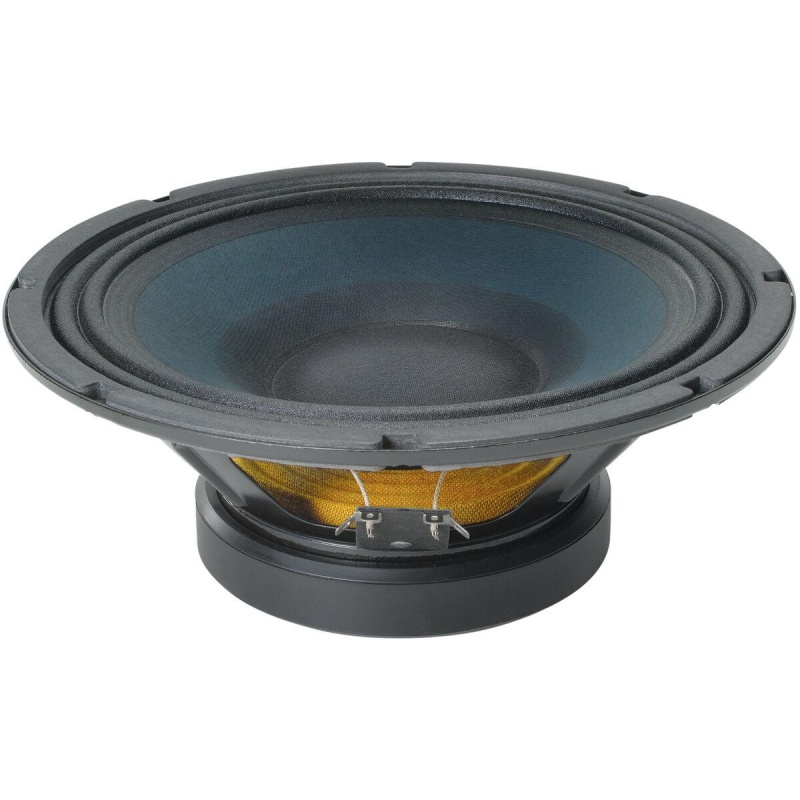

The Eminence Legend B810 is a 32-ohm, 10" stamped-frame bass guitar driver designed for classic 8 x 10" bass guitar cabinets. It handles 150 watts RMS and 300 watts maximum.
Its M-roll surround supports higher excursion and less cone breakage; a double-dipped cone apex strengthens the cone neck, and a bumped back plate allows greater voice coil travel before damage. The driver works well in small sealed enclosures and in some vented applications.
Specifications: 2" voice coil diameter; Le 2.72 mH; Re 27.5 ohms; frequency range 49–5,100 Hz; 30 oz. magnet; Fs 52.07 Hz; sensitivity 92.7 dB 1W/1m; Vas 2.34 cu. ft.; Qms 13.91; Qes 0.68; Qts 0.65; Xmax 4.7 mm. Dimensions: 10.11" overall diameter, 9.13" cutout diameter, and 4.08" depth.
For an 8-ohm load, connect four Legend B810 drivers in parallel; eight connected in parallel result in a 4-ohm load.
