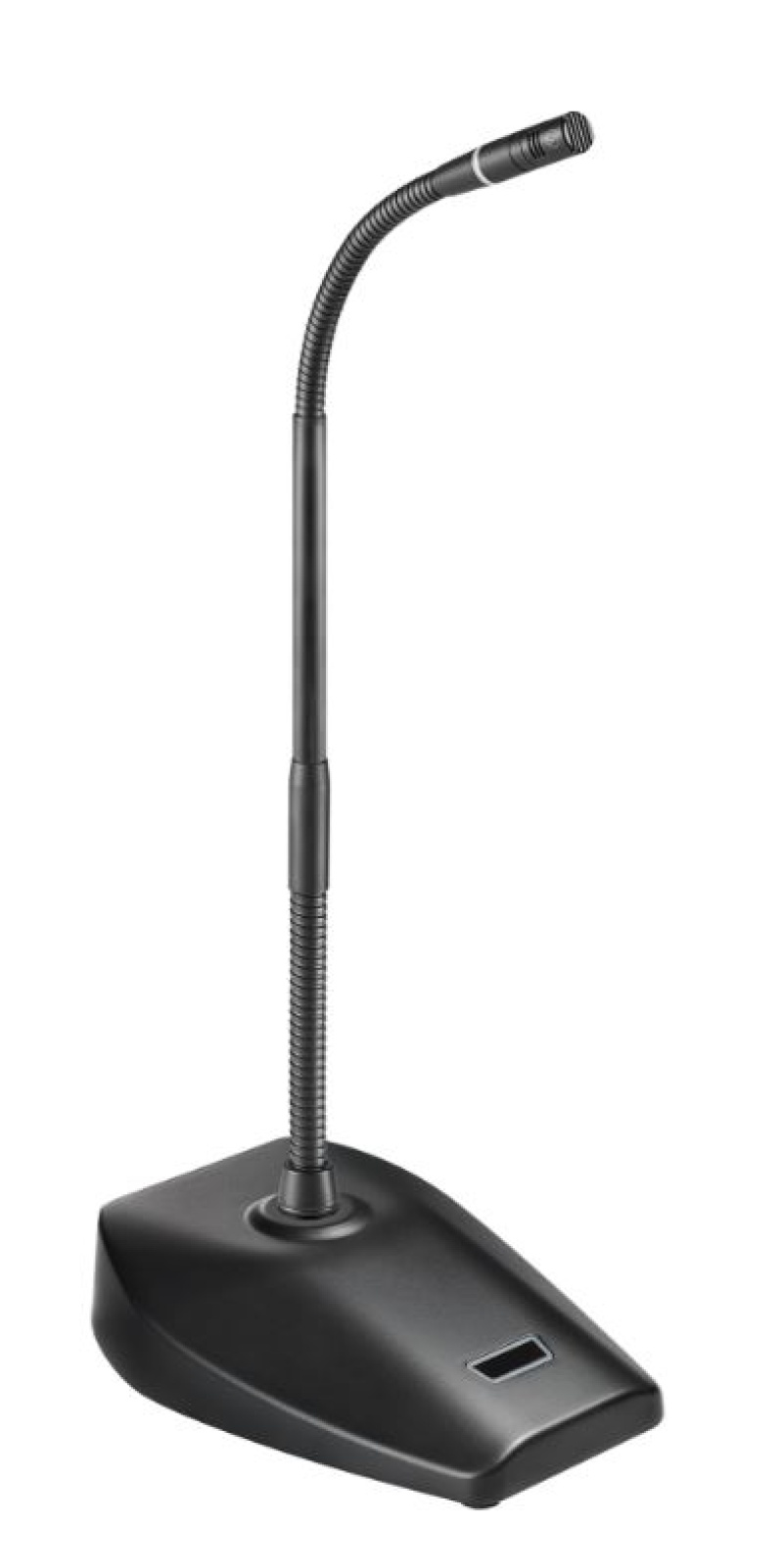

The ES925/DS5 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a condenser microphone element, gooseneck, and a desk stand power module.
Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85″, 9.08″, 12.08″, 15.08″, 18.08″, 21.08″), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).
The ES925/DS5 microphone’s low-profile element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The included foam windscreen protects against plosives. The desk stand power module features heavy die-cast construction and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute.” For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality. Both the desk stand and the microphone element housing feature a highly visible, two-state RGB LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.
Each component is interchangeable with other ES925 modular microphone components, allowing you to customize your build.
Power Modules
3-pin XLR (XLR)
3-pin flush-mount (FM3)
5-pin flush-mount (FM5)
5-pin desk stand (DS5)
Gooseneck Lengths
4.85″, 9.08″, 12.08″, 15.08″, 18.08″, 21.08”
Microphone Polar Patterns
MicroLine®, (90° acceptance angle)
Hypercardioid (100° acceptance angle)
Cardioid (120° acceptance angle)
Omnidirectional (120° acceptance angle) also available
Features This Product is TAA-Compliant Modular microphone system includes a microphone element, gooseneck and power module – each interchangeable with components from other ES Modular Microphones Desk stand and element housing both feature a highly visible, two-state RGB LED status indicator Logic I/O capability permits control of remote devices from the desk stand’s touch-sensitive capacitive-type user switch Capacitive touch switch can be set to any one of three operating modes: “touch-on/touch-off”, “touch-to-talk” and “touch-to-mute” Designed for professional sound reinforcement and other commercial sound applications Interchangeable condenser microphone elements provide full-range, natural sound Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the microphone Local/remote switching operation enables independent microphone audio and control output Available interchangeable elements permit angle of acceptance from 90° to 360° Small-diameter gooseneck design permits highly flexible positioning Superior off-axis rejection for maximum gain before feedback UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Integral UniSteep® filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality Includes foam windscreen Available in six lengths Specifications Microphones Element Fixed-charge back plate, permanently polarized condenser Frequency Response 30-20,000 Hz Low Frequency Roll Off 80 Hz, 18 dB/octave Open Circuit Sensitivity -40 dB (10.0 mV) re 1V at 1 Pa Maximum Input Sound Level 140 dB SPL Dynamic Range 112 dB Signal-to-Noise Ratio 66 dB Phantom Power Requirements 22-52V DC Switches Activation: on/off; LED Color: mic on, mic off; Switch function: touch on/off, momentary on, momentary off; Control: local, remote, LED remote; Flat, roll-off Current Consumption 8 mA Weight ES925C6/DS5: 674 g (23.8 oz) ES925C12/DS5: 698 g (24.6 oz) ES925C15/DS5: 703 g (24.8 oz) ES925C18/DS5: 708 g (25.0 oz) ES925C21/DS5: 713 g (25.2 oz) ES925C24/DS5: 718 g (25.3 oz) Dimensions ES925C6/DS5: 97.0 mm (3.82″) W x 130.0 mm (5.12″) D x 150.6 mm (5.93″) H ES925C12/DS5: 97.0 mm (3.82″) W x 130.0 mm (5.12″) D x 258.0 mm (10.16″) H ES925C15/DS5: 97.0 mm (3.82″) W x 130.0 mm (5.12″) D x 334.2 mm (13.16″) H ES925C18/DS5: 97.0 mm Output Connector TB5M-type Optional Interchangeable Elements ESE-Ca cardioid (120°), ESE-Ha hypercardioid (100°), ESE-MLa MicroLine® (90°), ESE-Oa omnidirectional (360°) Accessories Included 7.6 m (24.9′) microphone cable (TA5F, unterminated); AT8109a foam windscreen; set screw (M2 x 2); hex wrench Audio-Technica Case Style M44
