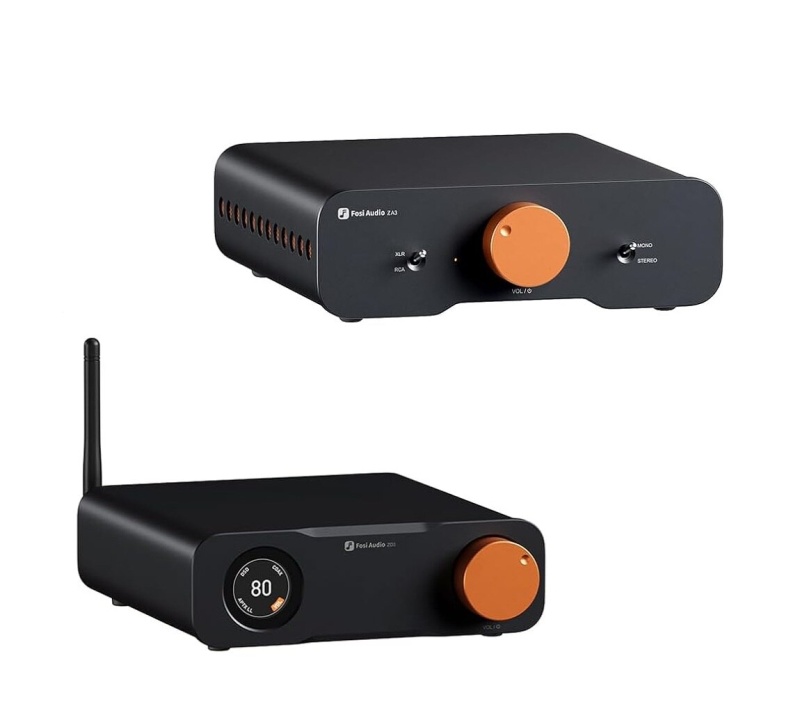

Fosi Audio ZD3 DAC and ZA3 Stereo Amplifier BundleHigh-Performance Digital-to-Analog Audio ConverterThe ZD3 is an audiophile-grade balanced stereo DAC developed by Fosi Audio with close attention to user needs. It features the high-precision ES9039Q2M DAC chip for rich, refined sound quality.

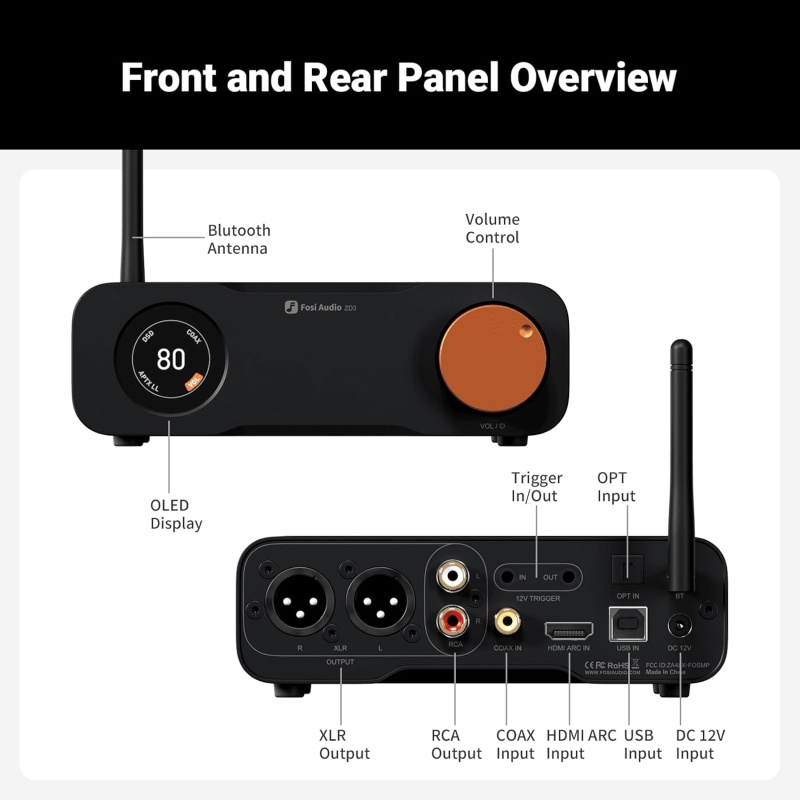

Input: USB, HDMI ARC, Optical, Coaxial, Bluetooth; Output: XLR, RCA (Note: Could not drive headphones) SNR≥126dB; THD+NBluetooth Codecs: SBC, AAC, aptX, aptX HD Power Supply: 12V 1.5A
High-End ComponentsProvides exceptional audio clarity and depth for a more engaging listening experience.
Lossless Wireless StreamingBluetooth Audio Transmission Formats: SBC, AAC, aptX, and aptX HD.
1.5" OLED DisplayProvides real-time visual feedback on audio settings, making adjustments simple and intuitive.
Fully Balanced Output DesignDesigned to deliver exceptional noise reduction and audio purity for a cleaner, more immersive sound.
Multifunctional Infrared Remote ControlMaking it easy to manage your listening environment from anywhere in the room.
Swappable Op-Amp DesignSupports easily replaceable DIP8 dual discrete op-amps, allowing you to customize your sound with options like LME49720, NE5532, MUSES02, and SS3602 for a personalized audio experience.
Bypass ModeThe signal bypasses the internal preamp stage, delivering a fixed output level for clean and direct signal transmission.
Bypass ModeAllows synchronized power on and off throughout your audio system, automating control for smooth and efficient operation.
A Perfect MatchSharing the same series and form factor, the ZD3 integrates seamlessly with the ZA3, enhancing detail and clarity across your audio system.
SpecificationsZD3 Fully Balanced Desktop DAC
Chip Set: XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720 Maximum Sampling Rate: -USB: PCM 32bit/768kHz; DSD512 -OPT/COAX: PCM 24bit/192kHz -Bluetooth: PCM 24bit/48kHz Output Level: -XLR: 5Vrms RCA: 2.5Vrms Input Mode: USB, HDMI (ARC), Coaxial, Optical, Bluetooth Output Mode: XLR, RCA SINAD: 126dB THD: ≥120dBTHD+N: Dynamic Range: ≥123dB Noise Floor: ≤2μV Bluetooth Version: 5.0 Bluetooth Connection Distance: ≥13m Bluetooth Transmission Audio Format: aptX HD, aptX, AAC, SBC Power Supply: DC 12V 1.5A USB Compatible Devices: Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual), Mac OS X, Linux (No driver required)

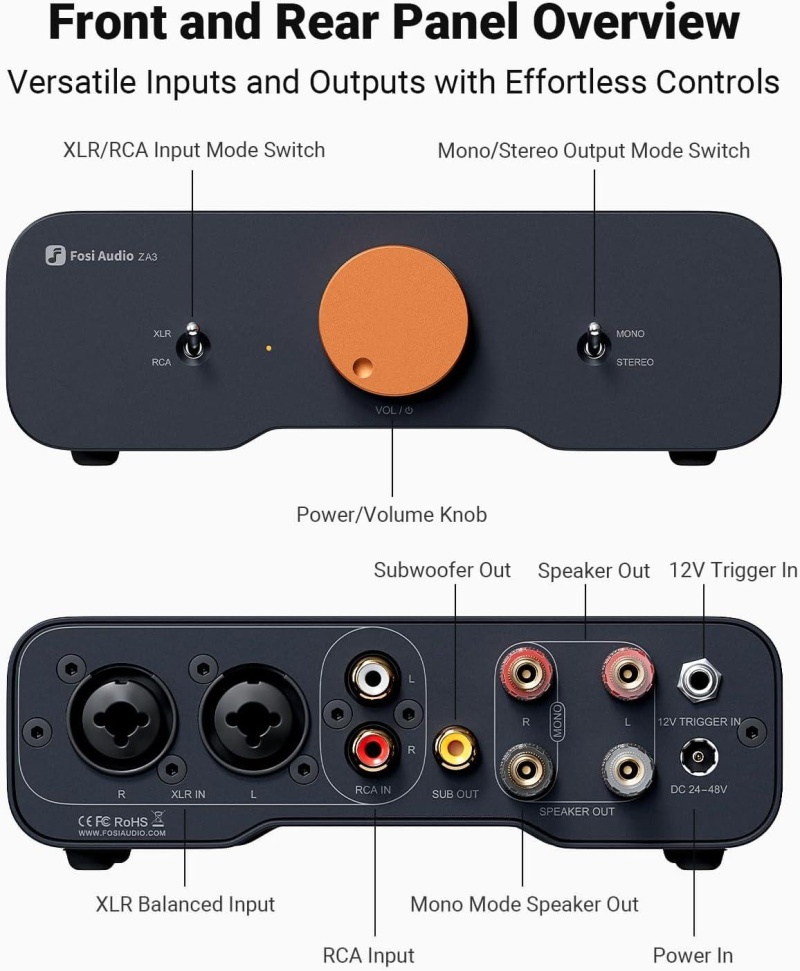

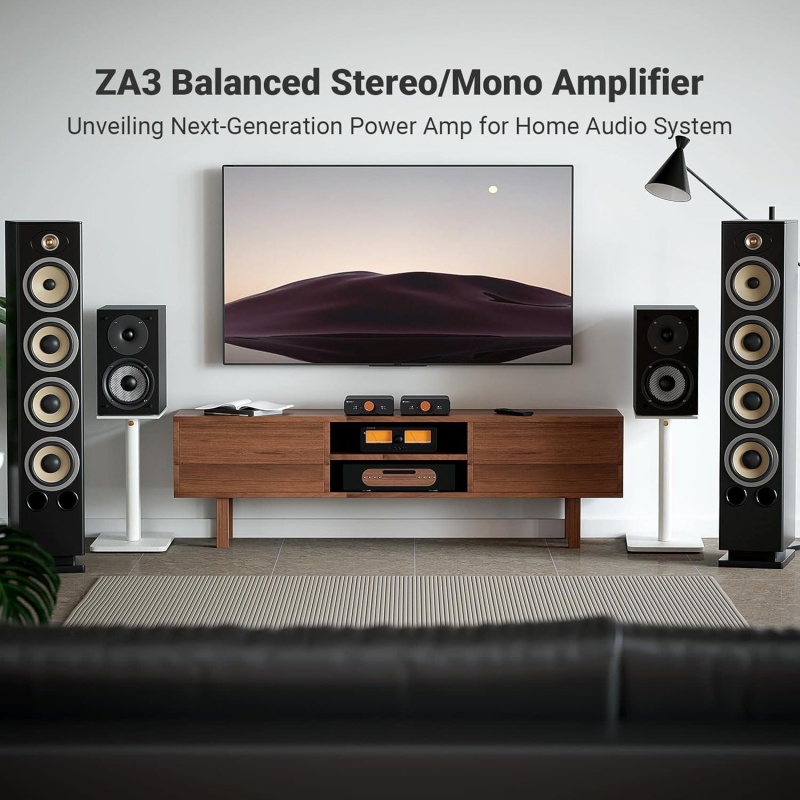

ZA3 Balanced Stereo Amplifier

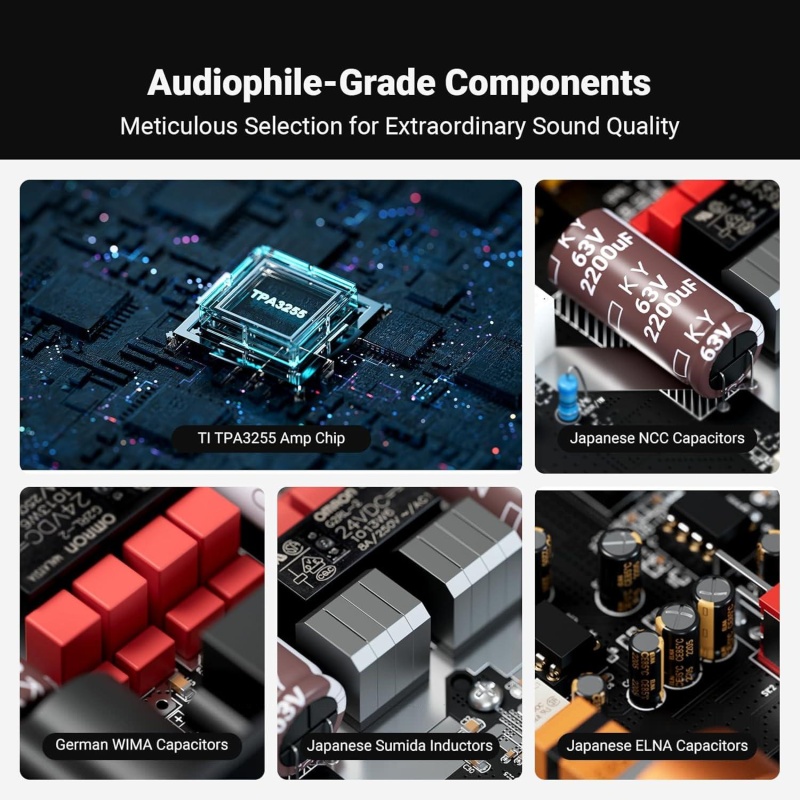

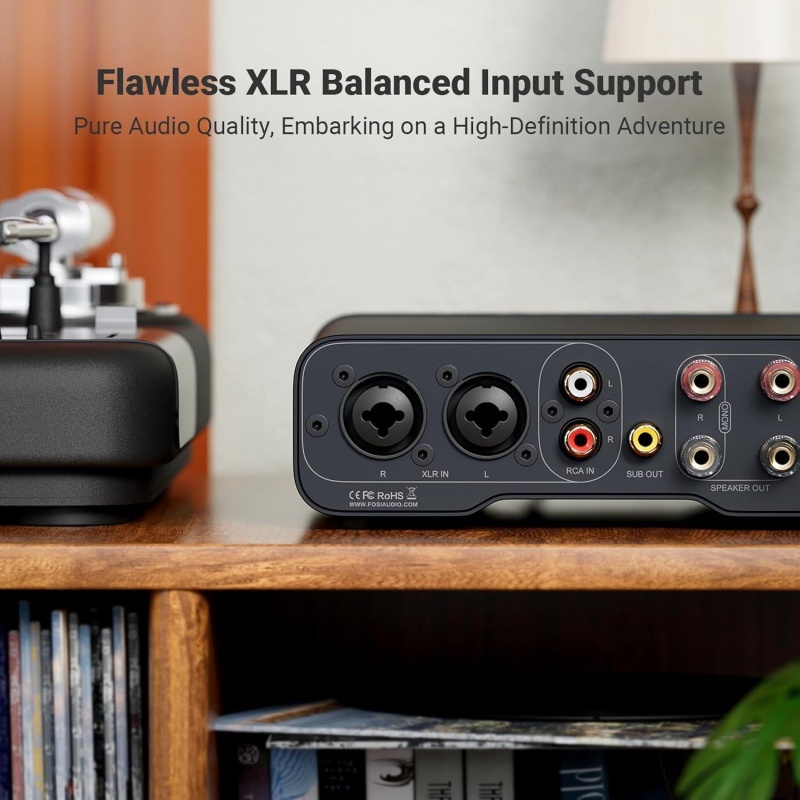

Chip Set: Texas Instruments TPA3255 Output Power: -With 48V/5A PSU Stereo; 155Wx2 @4Ω; Mono: 235Wx1 @4Ω -With 32V/5A PSU Stereo; 95Wx2 @4Ω; Mono: 110Wx1 @4Ω Terminating Impedance: 2-8ΩInput Mode: RCA, XLR, 1/4" TRS Output Mode: Speaker Output (supports banana plug or bare wire connection), Active Subwoofer Output Frequency Range: 20Hz - 20KHz(±0.1dB)SINAD: 89dB THD: ＜0.006% SNR: ≥106dB Dynamic Range: ≥106dB Device Dimension: 15.49 x 18.39 x 5.08 cm; 1.78 Kilograms DC Input Range: 24-48V Power Supply: 32V/5A, 48V/5A
