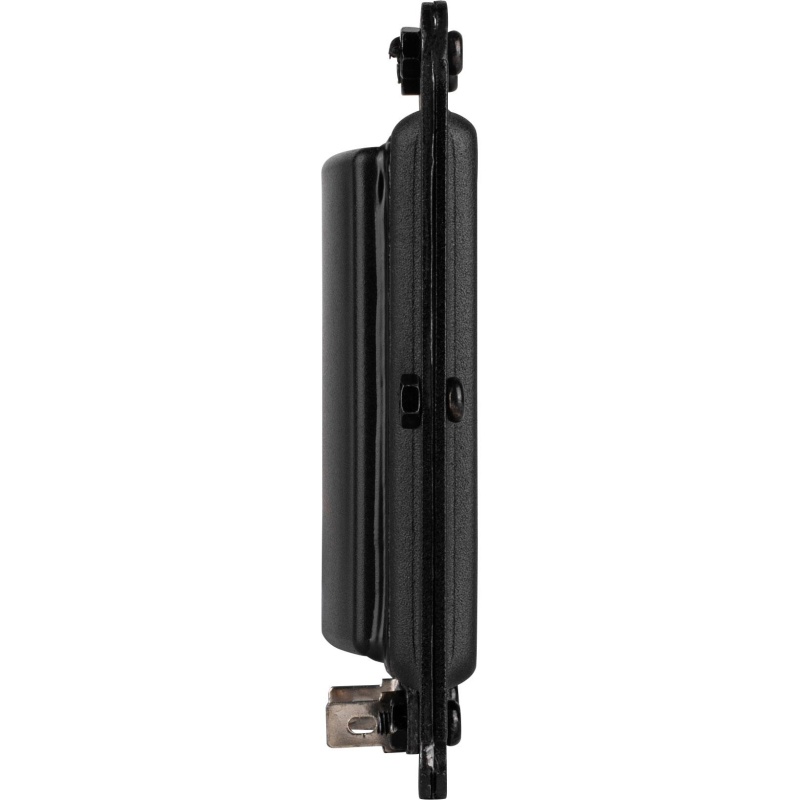

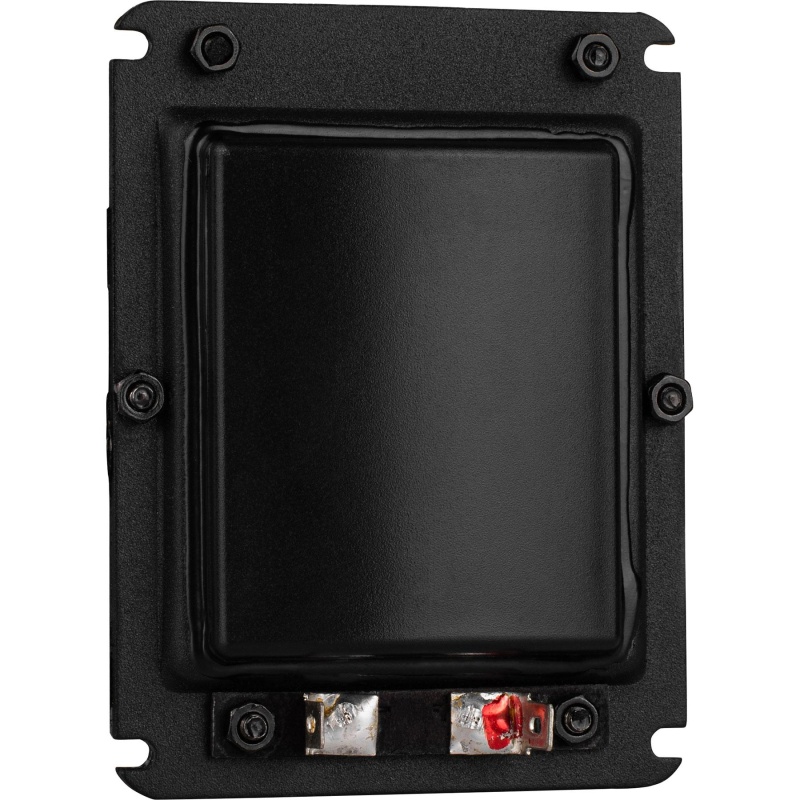

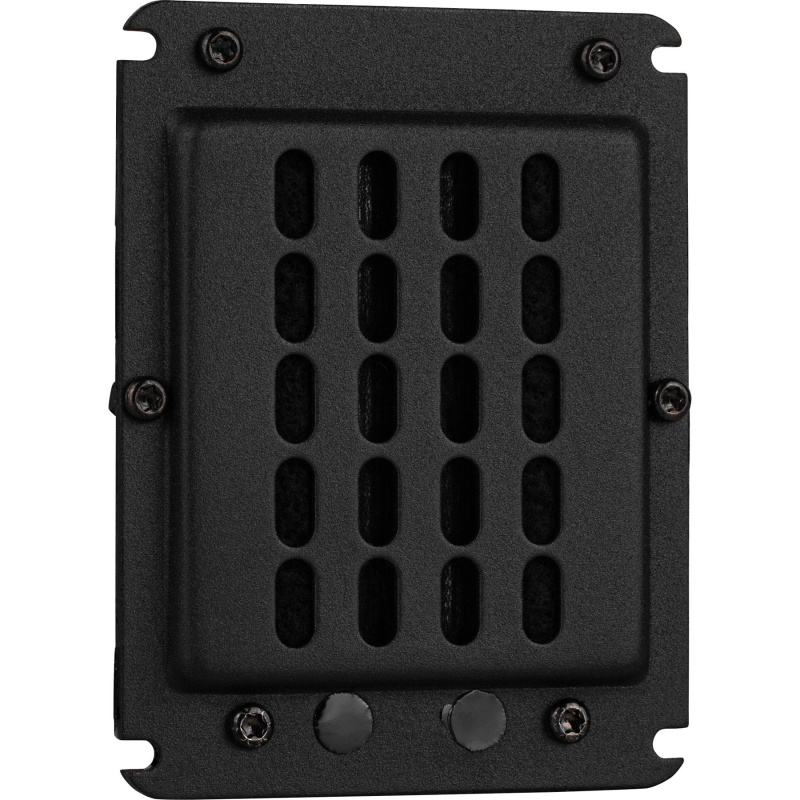

GRS PT2522C-4 3-1/2" Planar Tweeter 4 OhmDesigned to deliver high efficiency with extremely smooth response.The PT2522C-4 is a perfect choice for use as a drop-in replacement in existing systems or for use in new designs where low distortion and accurate response is needed. The sealed rear chamber isolates the rear side of the diaphragm for simple installation into conventional enclosures.
Key Specs: Tweeter Type: Planar MagneticPower Handling (RMS): 20 WattsPower Handling (MAX): 40 WattsImpedance: 4Ω Frequency Response: 1800 - 20,000 HzSensitivity: 94dB 2.83V/1mDiaphragm Material: Polyethylene Naphthalate Frequency Response & ImpedanceThanks to a lightweight damped Polyethylene Naphthalate film diaphragm that is driven by 6 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and low distortion. The linear 3.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off.
Optional Faceplate Available
Add the final touches to any build that uses the PT2522-4 with the optional faceplate! When the tweeter is attached to the faceplate, the resulting shape is easier to flush mount into your speaker baffle, creating a clean aesthetic and reducing diffraction.
Shop all GRS Planar Tweeters and FaceplatesGRS Planar Tweeters provide great transients, and frequency response at the fantastic value you expect from GRS
GRS PT2522-4Nominal Impedance: 4ohm Frequency Response: 1800-20kHz GRS PT6825-8Nominal Impedance: 8ohm Frequency Response: 250-20kHz GRS PT6816-8Nominal Impedance: 8ohm Frequency Response: 320-20kHz GRS PT5010-8Nominal Impedance: 8ohm Frequency Response: 200-8kHz GRS PT2522-FP Face Plate for PT2522-4 and PT2522C-4GRS PT6825-FP Face Plate for PT6825-8 Planar TweeterGRS PT6816-FP Face Plate for PT6816-8 Planar TweeterGRS PT5010-FP Face Plate for PT5010-8 Planar Tweeter
