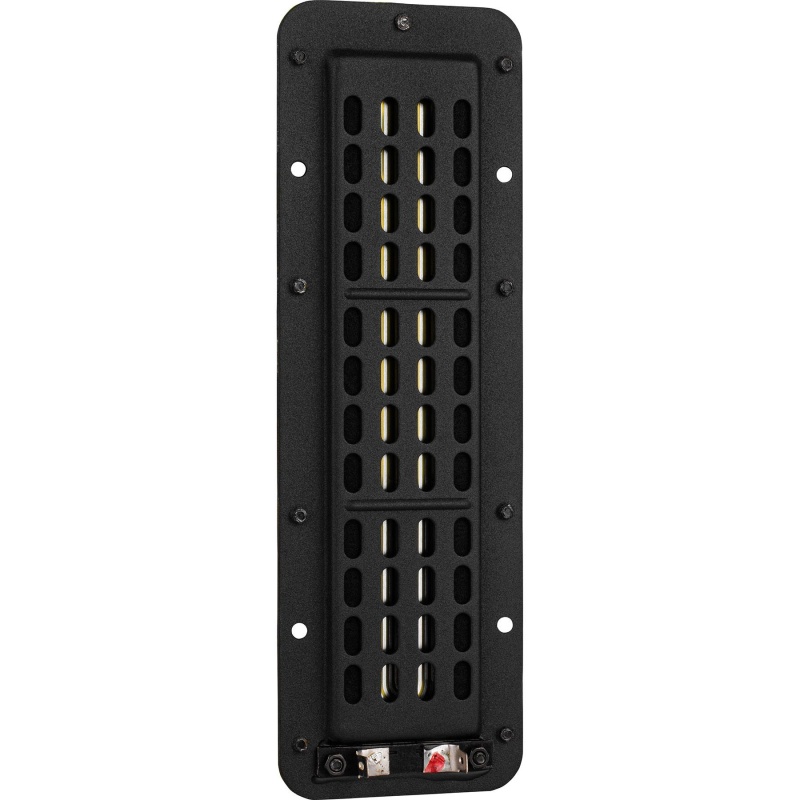

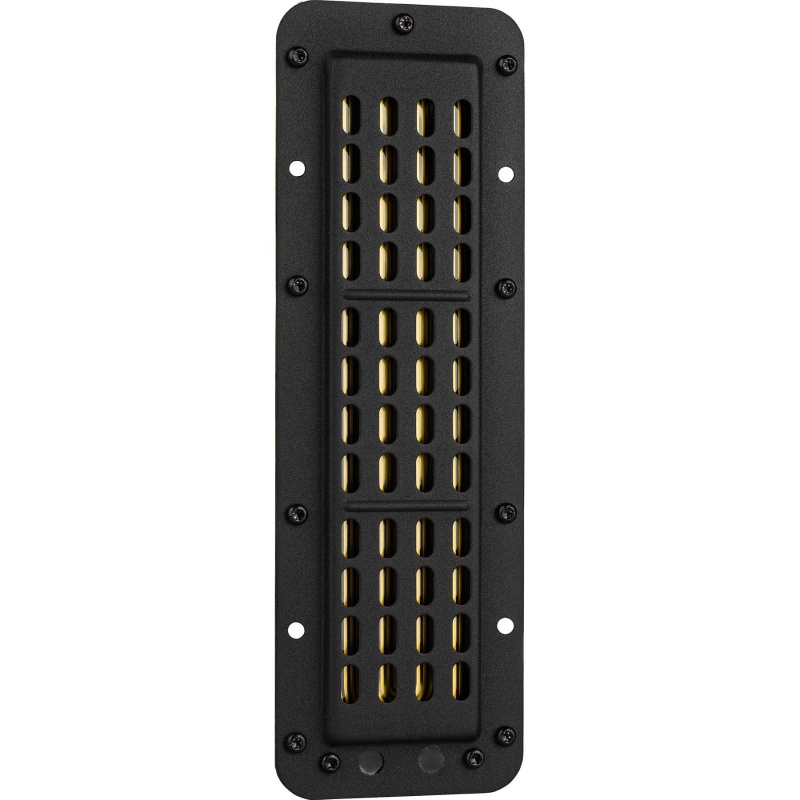

GRS PT6816-8 8" Planar Slim Tweeter 8 OhmDesigned to deliver high efficiency with extremely smooth response.With wide dispersion capabilities and minimal mounting flange, the PT6816-8 is an excellent choice for use in high output line arrays. The open-back design gives this tweeter true dipole radiation making it the perfect choice for use in open baffle speaker designs.
Key Specs: Tweeter Type: Planar MagneticPower Handling (RMS): 35 WattsPower Handling (MAX): 70 WattsImpedance: 8Ω Frequency Response: 500 - 20,000 HzSensitivity: 94dB 2.83V/1mDiaphragm Material: Polyethylene Naphthalate Frequency Response & ImpedanceThanks to a lightweight damped polyimide diaphragm that is driven by 18 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and wide bandwidth. The almost linear 6.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off.
Optional Faceplate Available
Add the final touches to any build that uses the PT6816-8 with the optional faceplate! When the tweeter is attached to the faceplate, the resulting shape is easier to flush mount into your speaker baffle, creating a clean aesthetic and reducing diffraction.
Shop all GRS Planar Tweeters and FaceplatesGRS Planar Tweeters provide great transients, and frequency response at the fantastic value you expect from GRS
GRS PT2522-4Nominal Impedance: 4ohm Frequency Response: 1800-20kHz GRS PT6825-8Nominal Impedance: 8ohm Frequency Response: 250-20kHz GRS PT6816-8Nominal Impedance: 8ohm Frequency Response: 320-20kHz GRS PT5010-8Nominal Impedance: 8ohm Frequency Response: 200-8kHz GRS PT2522-FP Face Plate for PT2522-4 and PT2522C-4GRS PT6825-FP Face Plate for PT6825-8 Planar TweeterGRS PT6816-FP Face Plate for PT6816-8 Planar TweeterGRS PT5010-FP Face Plate for PT5010-8 Planar Tweeter
