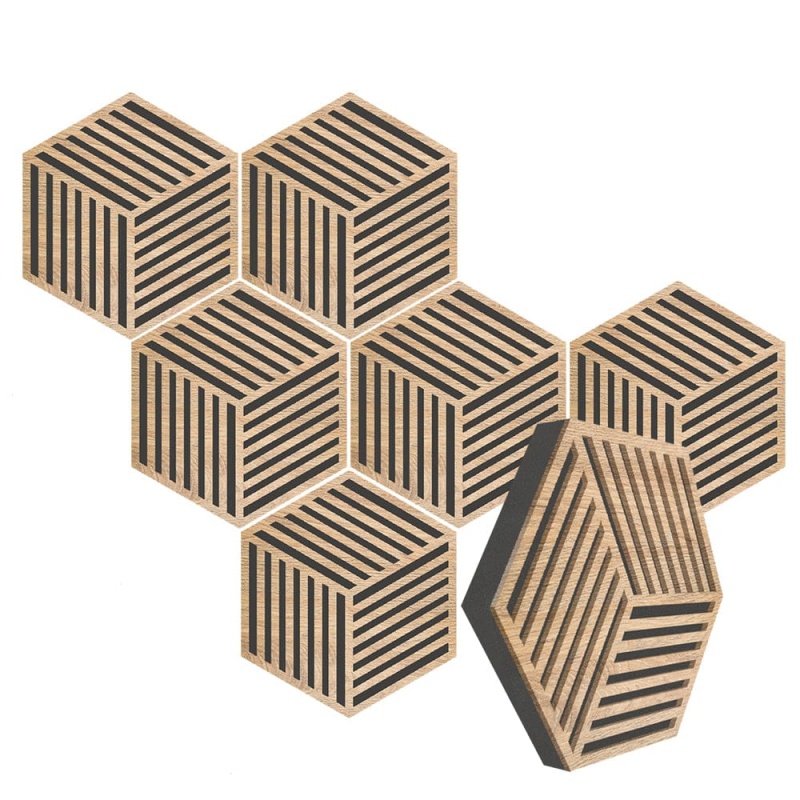

Hexagon acoustic panels with isometric-line grooves — oakwood face, foam core, NRC 0.64. Tiles into a honeycomb wall that looks like architecture, not a foam patch. M1 fire-rated for commercial rooms.
Why Diffuse PRO Isometric Lines Hexagon is different Install in 4 steps 1 Plan the honeycomb layout Lay panels on the floor in your hex pattern. Photograph it. Tight honeycomb, scattered cluster, or feature column — your call. The grooves can run horizontal, vertical, or mixed.
2 Choose your mount Construction adhesive for permanent installs. Heavy-duty Command strips for rental-friendly mounting. The slim 0.4 in / 1 cm profile keeps panels flush to the wall.
3 Mount the panels Press firmly for 30 seconds. Start with the first hex, then add neighbors edge-to-edge. Use a level on the first row — every panel after that aligns off it.
4 Treat first-reflection points For studios and listening rooms, cluster panels at the first-reflection points on side walls and behind the listening position. Honeycomb tiling makes coverage scale cleanly.
Made for Modern recording & podcast studiosClean isometric pattern reads as design intent on camera — not a foam patchwork. Minimalist offices & meeting roomsCuts -call echo while the honeycomb wall doubles as a -grade feature. Restaurants & design-led cafésM1 fire class meets commercial code. Oakwood hex pattern fits warm, architectural interiors. Home theaters & listening roomsDirectional groove scatter cleans dialogue and stereo image without going dead. Why this hexagon beats square MDF panels Diffuse PRO Hex (KK1418) Standard square MDF panel Plain foam square Tiles into seamless wall Yes — honeycomb, no grid lines Visible grid, harsh seams Looks like foam blocks Absorbs echo (NRC) 0.64 Often unrated 0.25–0.40 typical Diffuses reflections (200 Hz – 5 kHz) Yes — isometric grooves Flat face, no scatter No Oakwood face, 10 finishes Yes Pine / generic MDF Foam only Commercial fire rating M1 / Euroclass E Often unrated Varies / often not rated 100-Day Acoustic Guarantee Mount the hex panels. Live with them for up to 100 days. If your room isn't measurably better — or if the look isn't what you wanted — send them back for a full refund. We've shipped acoustic products worldwide for over a decade. We stand behind every order.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Frequently asked questions Will this block noise from my neighbor or the street? No. Diffuse PRO Hexagon is an absorber + diffuser. It reduces echo and breaks up reflections inside a room. Blocking noise through a wall requires mass — extra drywall, mass-loaded vinyl, or a sealed door. Anyone selling a slim hex panel as "soundproofing" is misleading you. Why hexagon instead of squares? Hexagons tile edge-to-edge with no four-way grid intersections, so the wall reads as a continuous honeycomb instead of a checkerboard. Visually it looks like architecture; acoustically the irregular tile edge breaks up reflections better than a flat square grid. What do the isometric-line grooves actually do? The parallel grooves on the oakwood face act as directional diffusers — they scatter sound along the groove axis from 200 Hz to 5 kHz. Mix horizontal and vertical orientations across the wall to scatter in multiple directions for a fully diffused field. How many panels do I need? For most home studios and offices, cover 20–30% of reflective wall area. Rough : small booth or office (8 × 10 ft / 2.4 × 3 m) → 6–12 panels. Mid- studio or restaurant section → 12–24 panels. Large feature wall or auditorium → 24+ panels (multiple packs). Is the wood face real oak? The face is laminated MDF with oakwood veneer — same construction used in commercial acoustic panels and high-end furniture. Solid oak in a slim hex shape would crack and × more. Veneer gives the real oak look at a usable and price. Can I install this myself? What about rentals? Yes. For permanent installs, construction adhesive or screws into wall anchors. For rentals, heavy-duty 3M Command strips rated for the panel , or Z-clip brackets that lift on and off. Mounting hardware is sold separately so you can match the wall. Is this safe for commercial spaces — restaurants, offices, schools? Yes. The panel is M1 fire-rated (Euroclass E), which meets commercial fire-safety code in most EU and Asian markets. Always confirm specific local requirements with your fire marshal or architect before installing in public assembly spaces. Will it work on brick, concrete, or textured walls? Yes — with the right hardware. Use masonry anchors and screws for brick and concrete. For heavily textured drywall, construction adhesive bonds better than tape-based mounting. The panels themselves are rigid and flat, so the wall surface determines the mount. How long does shipping take? Handling 1–2 business days, then standard shipping 7–14 days to the US and most countries (free worldwide on orders $99+). Express shipping is at checkout — 7 days or less to most destinations. What's your return policy? 100-day guarantee. If the panels don't deliver the acoustic or visual result you expected, contact support within 100 days for a full refund. Bulk B2B / contractor orders (100+ panels) follow a separate policy — contact us before placing the order. How do I clean the oakwood face? Dry microfiber cloth for dust along the grooves. Slightly damp cloth (water only, well-wrung) for the rare smudge. No solvents, no furniture polish, no spraying — the veneer and the foam core both prefer dry treatment.
