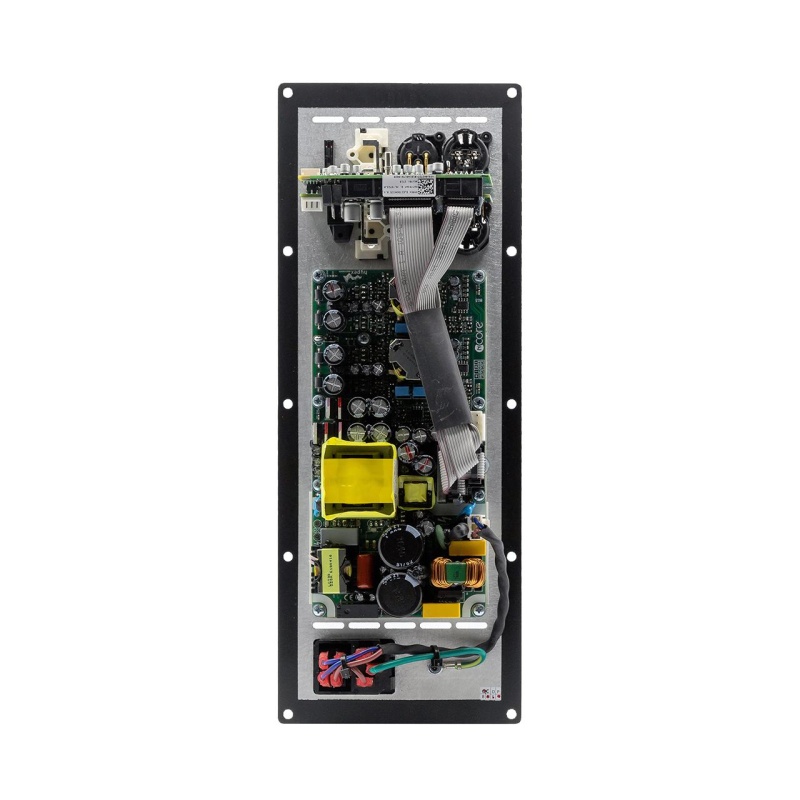

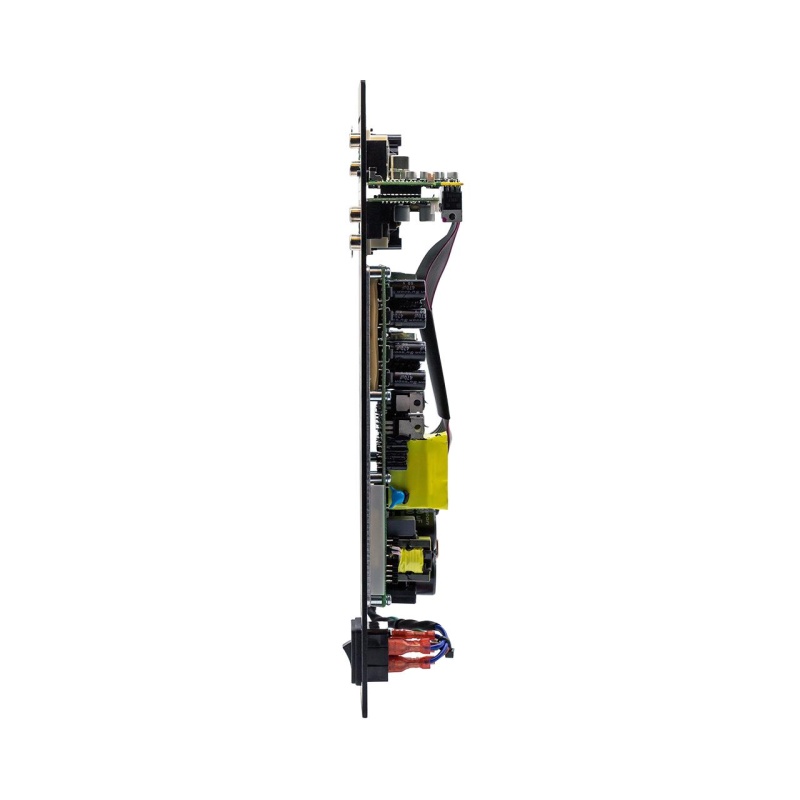

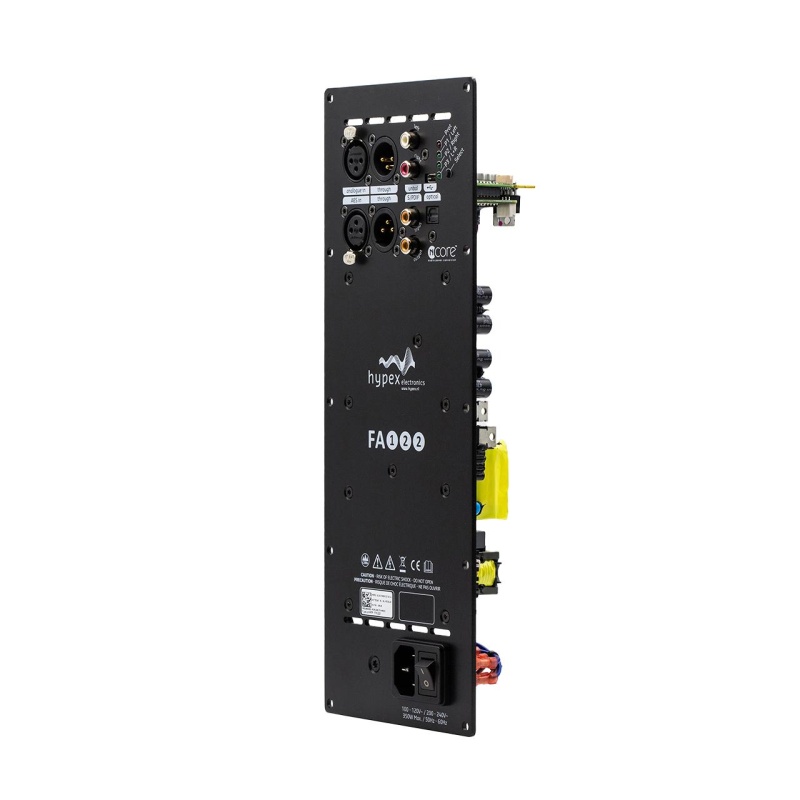

Hypex Direct Fusion AmplifiersThe FusionAmp FA122 is a mono two-way amplifier module developed for active loudspeaker applications. It serves as an integrated solution for systems that need separate amplifier channels for low- and high-frequency drivers.
The module includes two 125 W NCORE® Class D amplifier channels along with onboard DSP. Signal processing is set up through Hypex Filter Design software, giving users the ability to adjust filters, levels, and other system parameters for two-way active loudspeaker designs.

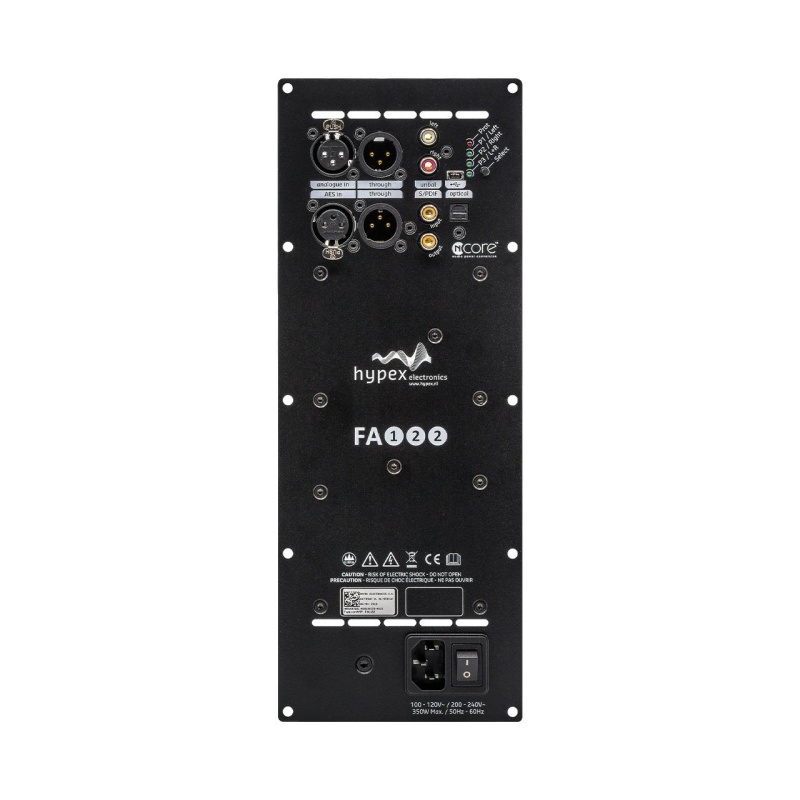

The FA122 offers a variety of analog and digital input options, including balanced analog XLR input with loop through, unbalanced analog RCA input, digital AES input with loop through, digital S/PDIF input with loop through, and optical Toslink input. This makes it easy to integrate with a broad range of analog and digital audio sources.
Optional accessories such as the or are available for remote operation and system feedback.
Multiple Fusion Amp modules can also be arranged in a master-slave configuration to create multi-channel active loudspeaker systems. The FA122 is intended for applications that call for a compact combination of amplification and DSP in a two-way active loudspeaker design.
Compatible Modules
Features
IIR and FIR filter options15 biquads per amplifierThree selectable presets for filtersSource selectionSignal detectAuto shutdownMaster-Slave optionProtections
Clip protectionThermal protection
Possible Applications
Active SubwoofersActive Guitar CabinetsActive Monitor LoudspeakersActive 2-way Loudspeakers; for home and professional useSpecifications
Output Power (4Ω): 2 x 125W, (1 x 200W in BTL) Output Power (8Ω): 2 x 75W, (1 x 250W in BTL)Inputs: AES/EBU, Optical, RCA, SPDIF, XLRMains Voltage Input: 100-200Vac / 200-240Vac ±10%Configuration: 1 channel / 2-wayFamily: Fusion AmpFamily Technology: NCORE®Specifications: 12.40" x 4.72" x 2.17"Weight: 1.80 lbs.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
2-Way Active LoudspeakerA 2-way speaker is a loudspeaker that has only two drivers, which are a tweeter and a woofer. The woofer covers all frequencies lower than the tweeter. The human ear is more sensitive to mid frequencies, that’s why a speaker system should have at least two types of drivers: one mid-range and the other high-frequency, or tweeter.
Examples of available 2-way active loudspeaker solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 125 + 125WOn Board 2pcs for a stereo setup250 + 250W
On Board2pcs for a stereo setup500 + 500W
On Board 2pcs for a stereo setup 250 + 100W
On Board 2pcs for a stereo setup 500 + 100W
On Board 2pcs for a stereo setup 1000 + 100W
On Board 2pcs for a stereo setup
3-Way Active LoudspeakerA 3-way speaker is a loudspeaker that uses three separate drivers: a tweeter, a midrange, and a woofer. Because each driver can be optimized for a specific frequency range, a three-way speaker is able to deliver sound that is clearer, fuller, and more precise.
Examples of available 3-way active loudspeaker solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 125 + 125 + 100WOn Board 2pcs for a stereo setup250 + 250W + 100W
On Board2pcs for a stereo setup500 + 500W + 100W
On Board 2pcs for a stereo setup
Single SubwooferA subwoofer is an important part of an audio system, adding stronger low frequencies throughout the room. It reproduces bass from roughly 20 to 200 Hz, a range that two-way speakers or surround systems often cannot fully handle on their own. Adding a subwoofer can improve overall sound by making the dynamics feel more impactful and the soundstage seem larger.
Examples of available single subwoofer solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply 250WOn Board 500W On Board250W @ 8Ω
On Board 500W @ 8Ω
On Board 1000W @ 8Ω
On Board
Dual SubwooferA dual subwoofer system can significantly increase available headroom, giving you greater dynamic range, reduced output compression, lower distortion, and fewer overdrive-related artifacts. Put simply, running two subwoofers delivers cleaner, more accurate bass when played at very high levels.
Examples of available dual subwoofer solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply 125 + 125W
On Board 250 + 250W
On Board500 + 500W
On Board 1000 + 1000W
On Board
