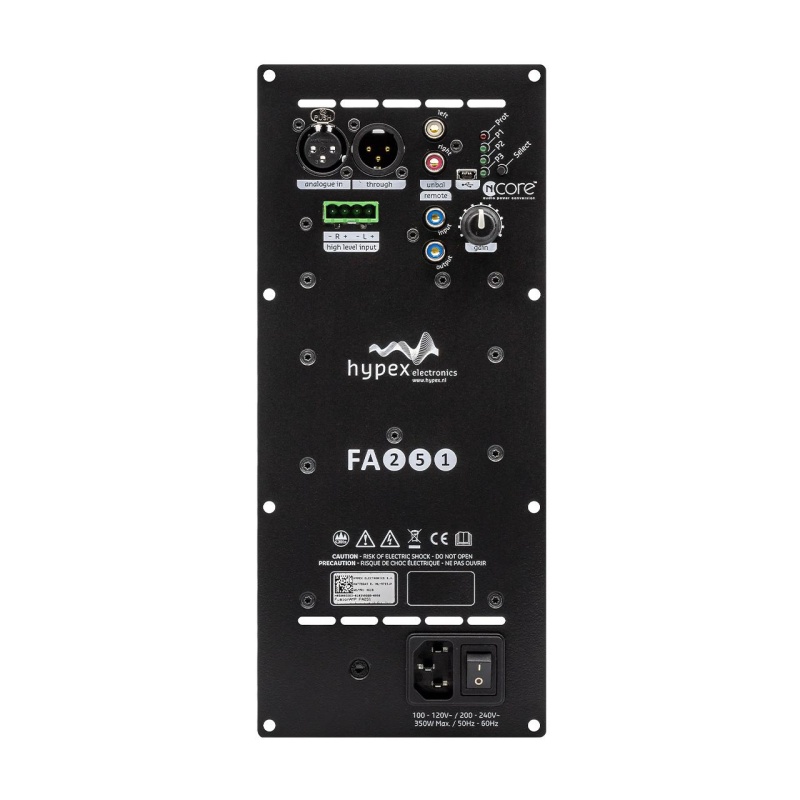

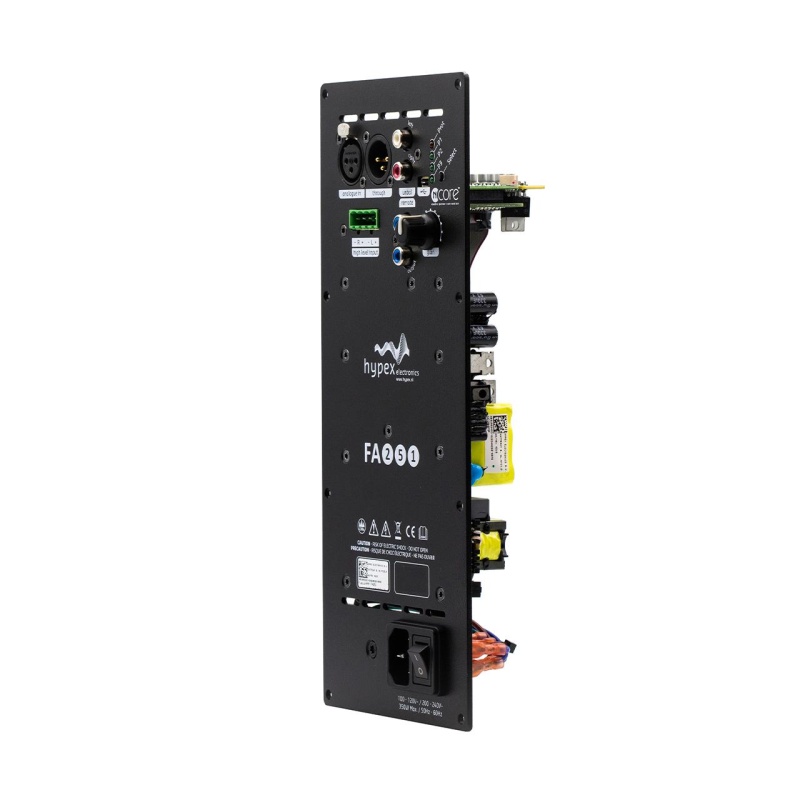

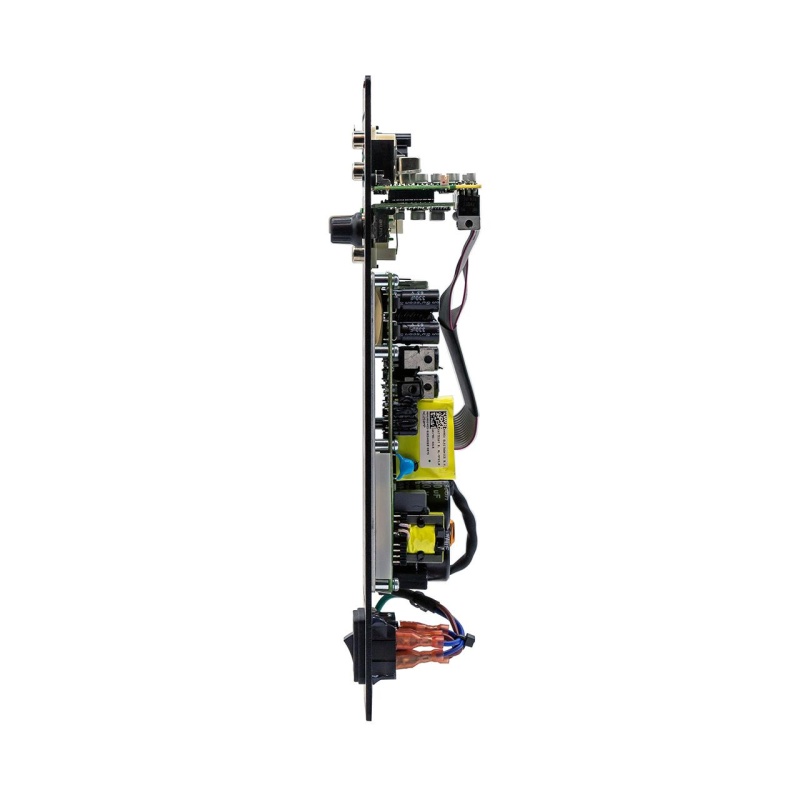

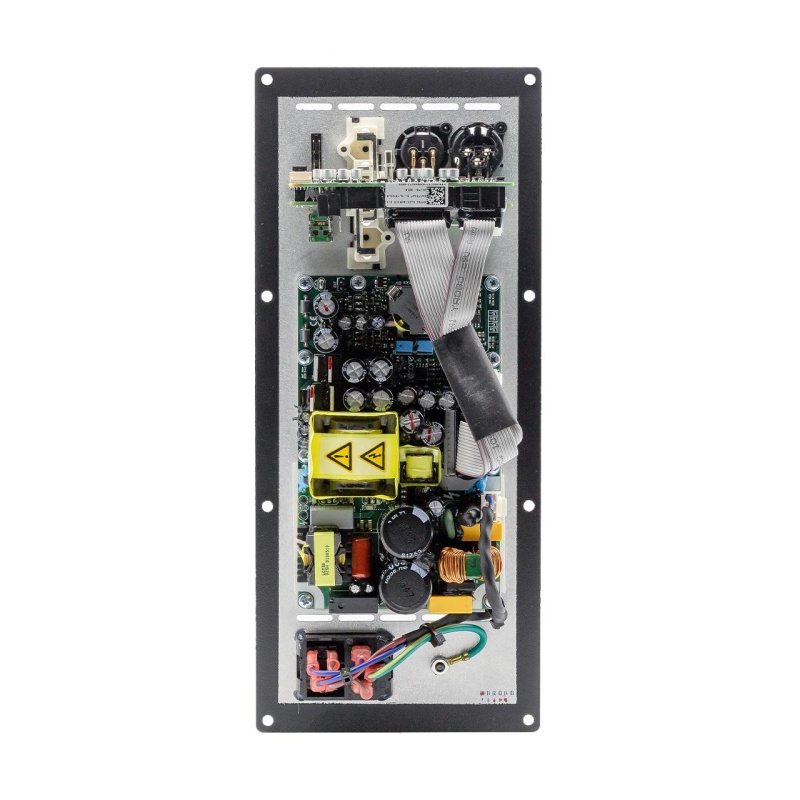

Hypex Direct Fusion AmplifiersThe Fusion Amp FA251 is a mono amplifier module developed for one-way active loudspeaker applications. It is intended for active subwoofers or single-channel active monitors that require built-in amplification and DSP control.
The module features one 250 W NCORE® Class D amplifier channel along with onboard DSP. Signal processing is configured through Hypex Filter Design software, allowing filters, levels, and other system parameters to be adjusted for the specific application.
The FA251 offers several input options, including balanced analog XLR input with loop through, unbalanced analog RCA input, and high-level input. This allows it to connect with a variety of source devices and amplifier outputs. A front-panel gain control is included for level adjustment.
Optional accessories such as the or are available for remote operation and system feedback.
Multiple Fusion Amp modules can be arranged in a master-slave configuration to create multi-channel active loudspeaker systems. The FA251 is intended for applications that need a compact, integrated amplifier and DSP solution for single-channel active designs.
Compatible Modules
Features
IIR and FIR filter options15 biquads per amplifierThree selectable presets for filtersSource selectionSignal detectAuto shutdownMaster-Slave optionProtections
Clip protectionThermal protection
Possible Applications
Active SubwoofersActive Guitar CabinetsActive Monitor LoudspeakersActive 1-way Loudspeakers; for home and professional useSpecifications
Output Power (4Ω): 1 x 250WOutput Power (8Ω): 1 x 130WInputs: High Level, RCA, XLRMains voltage input: 100-120Vac / 200-240Vac ±10%Configuration: 1 channel / 1-wayFamily: Fusion AmpFamily Technology: NCORE®Dimensions: 11.02" x 4.72" x 2.17"Weight 1.60 lbs.
Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
2-Way Active LoudspeakerA 2-way speaker is a loudspeaker that has only two drivers, which are a tweeter and a woofer. The woofer covers all frequencies lower than the tweeter. The human ear is more sensitive to mid frequencies, that’s why a speaker system should have at least two types of drivers: one mid-range and the other high-frequency, or tweeter.
Examples of available 2-way active loudspeaker solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 125 + 125WOn Board 2pcs for a stereo setup250 + 250W
On Board2pcs for a stereo setup500 + 500W
On Board 2pcs for a stereo setup 250 + 100W
On Board 2pcs for a stereo setup 500 + 100W
On Board 2pcs for a stereo setup 1000 + 100W
On Board 2pcs for a stereo setup
3-Way Active LoudspeakerA 3-way speaker is a loudspeaker that uses three separate drivers: a tweeter, a midrange, and a woofer. Because each driver can be optimized for a specific frequency range, a three-way speaker is able to deliver sound that is clearer, fuller, and more precise.
Examples of available 3-way active loudspeaker solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 125 + 125 + 100WOn Board 2pcs for a stereo setup250 + 250W + 100W
On Board2pcs for a stereo setup500 + 500W + 100W
On Board 2pcs for a stereo setup
Single SubwooferA subwoofer is an important part of an audio system, adding stronger low frequencies throughout the room. It reproduces bass from roughly 20 to 200 Hz, a range that two-way speakers or surround systems often cannot fully handle on their own. Adding a subwoofer can improve overall sound by making the dynamics feel more impactful and the soundstage seem larger.
Examples of available single subwoofer solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply 250WOn Board 500W On Board250W @ 8Ω
On Board 500W @ 8Ω
On Board 1000W @ 8Ω
On Board
Dual SubwooferA dual subwoofer system can significantly increase available headroom, giving you greater dynamic range, reduced output compression, lower distortion, and fewer overdrive-related artifacts. Put simply, running two subwoofers delivers cleaner, more accurate bass when played at very high levels.
Examples of available dual subwoofer solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply 125 + 125W
On Board 250 + 250W
On Board500 + 500W
On Board 1000 + 1000W
On Board
