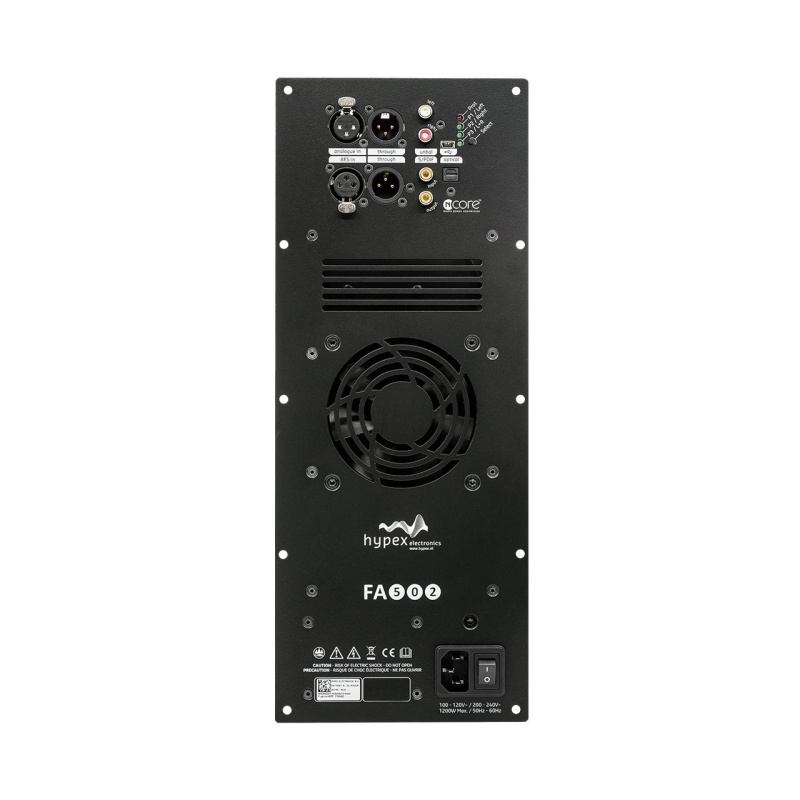

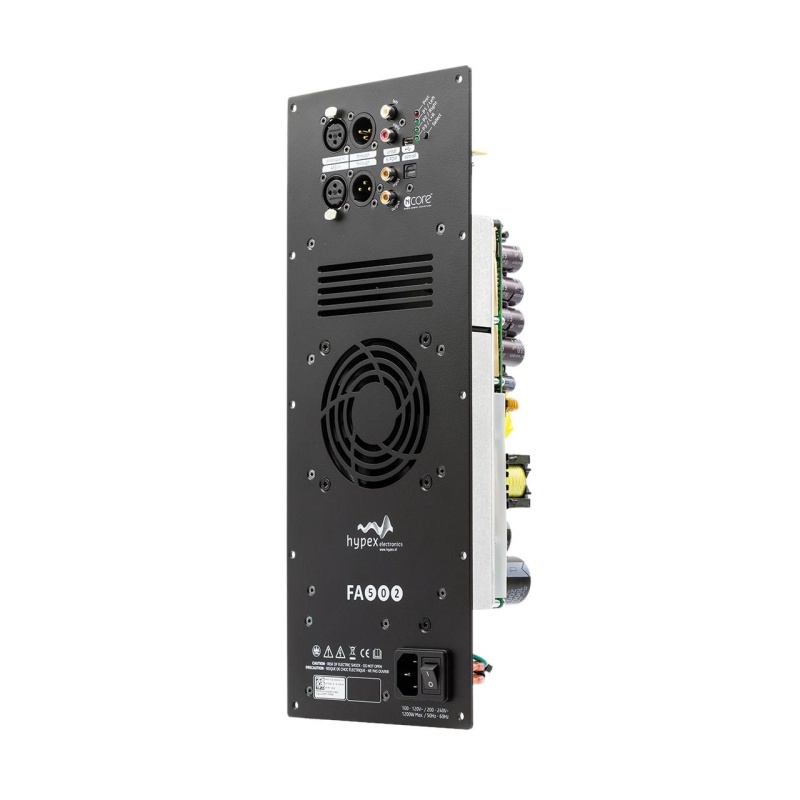

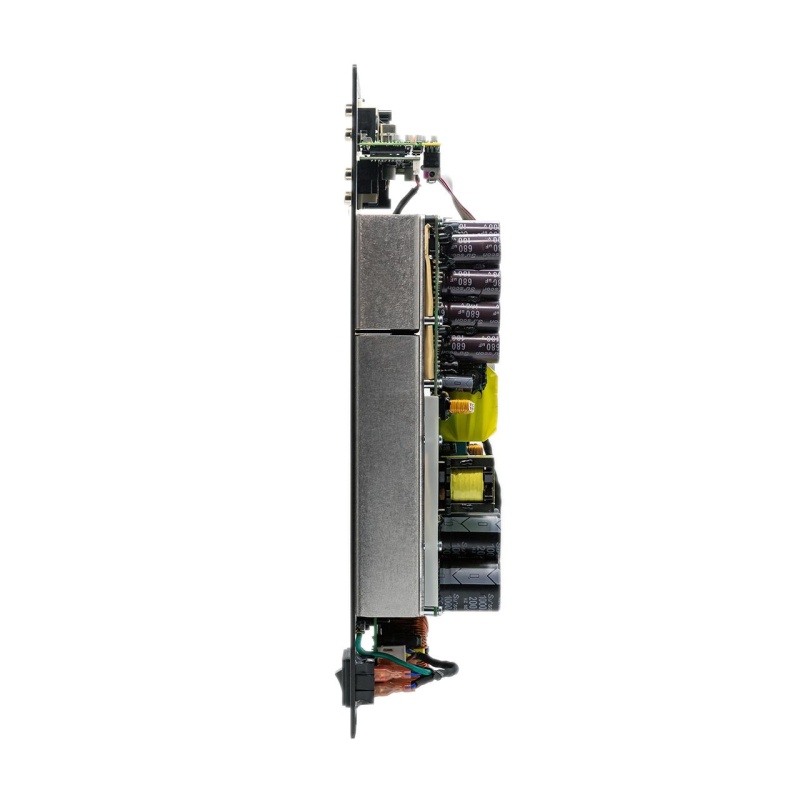

Hypex Direct Fusion AmplifiersThe FusionAmp FA502 is a mono two-way amplifier module created for active loudspeaker applications that require high output power. It is intended for systems with separate amplification channels for low- and high-frequency drivers.

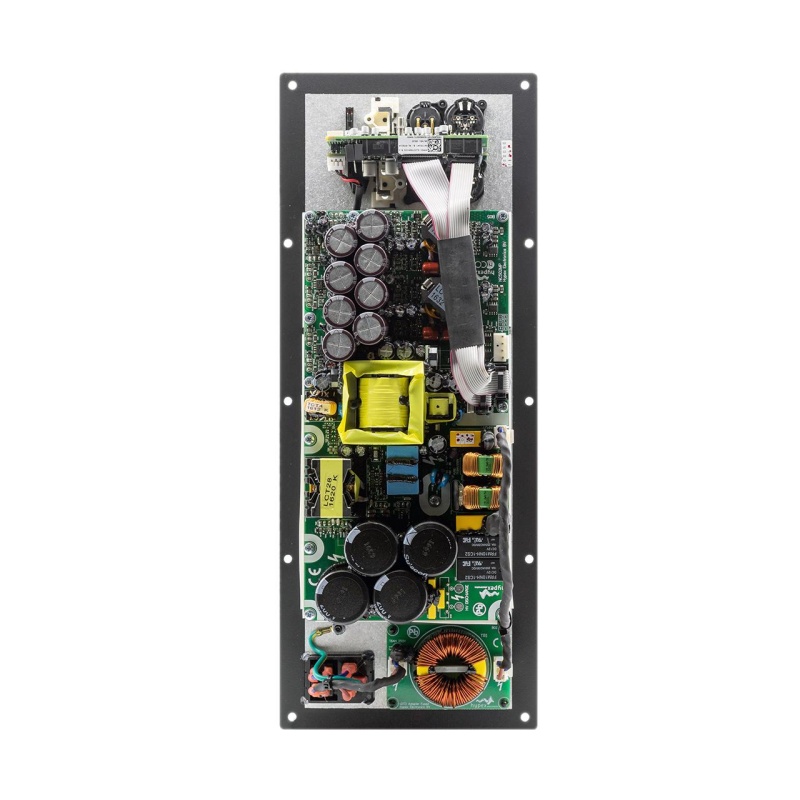

The module includes two 500 W NCORE® Class D amplifier channels and onboard DSP. Signal processing is configured through Hypex Filter Design software, allowing adjustment of crossover filters, levels, and other system parameters for two-way active loudspeaker designs.
The FA502 supports a broad range of analog and digital input options, including balanced analog XLR input with loop through, unbalanced analog RCA input, digital AES input with loop through, digital S/PDIF input with loop through, and optical Toslink input. This allows integration with a wide variety of analog and digital audio sources.
Optional accessories such as the or are available for remote operation and system feedback.
Multiple Fusion Amp modules can be arranged in a master-slave configuration to create multi-channel active loudspeaker systems. The FA502 is intended for applications where compact integration of high-power amplification and DSP is needed for two-way active designs.
Compatible Modules
Features
IIR and FIR filter options15 biquads per amplifierThree selectable presets for filtersSource selectionSignal detectAuto shutdownMaster-Slave optionProtections
Clip protectionThermal protection
Possible Applications
Active SubwoofersActive Guitar CabinetsActive Monitor LoudspeakersActive 2-way Loudspeakers; for home and professional useSpecifications
Output Power (4Ω): 2 x 500W, (1 x 1000W in BTL)Output Power (8Ω): 2 x 350W, (1 x 1200W in BTL)Inputs: AES/EBU, Optical, RCA, SPDIF, XLRMains voltage input: 100-120Vac / 200-240Vac ±10% Configuration: 1 channel / 2-way Family: Fusion AmpFamily Technology: NCORE®Dimensions: 14.96" x 5.91" x 3.54"Weight: 4.74 lbs.
Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
2-Way Active LoudspeakerA 2-way speaker is a loudspeaker that has only two drivers, which are a tweeter and a woofer. The woofer covers all frequencies lower than the tweeter. The human ear is more sensitive to mid frequencies, that’s why a speaker system should have at least two types of drivers: one mid-range and the other high-frequency, or tweeter.
Examples of available 2-way active loudspeaker solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 125 + 125WOn Board 2pcs for a stereo setup250 + 250W
On Board2pcs for a stereo setup500 + 500W
On Board 2pcs for a stereo setup 250 + 100W
On Board 2pcs for a stereo setup 500 + 100W
On Board 2pcs for a stereo setup 1000 + 100W
On Board 2pcs for a stereo setup
3-Way Active LoudspeakerA 3-way speaker is a loudspeaker that uses three separate drivers: a tweeter, a midrange, and a woofer. Because each driver can be optimized for a specific frequency range, a three-way speaker is able to deliver sound that is clearer, fuller, and more precise.
Examples of available 3-way active loudspeaker solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 125 + 125 + 100WOn Board 2pcs for a stereo setup250 + 250W + 100W
On Board2pcs for a stereo setup500 + 500W + 100W
On Board 2pcs for a stereo setup
Single SubwooferA subwoofer is an important part of an audio system, adding stronger low frequencies throughout the room. It reproduces bass from roughly 20 to 200 Hz, a range that two-way speakers or surround systems often cannot fully handle on their own. Adding a subwoofer can improve overall sound by making the dynamics feel more impactful and the soundstage seem larger.
Examples of available single subwoofer solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply 250WOn Board 500W On Board250W @ 8Ω
On Board 500W @ 8Ω
On Board 1000W @ 8Ω
On Board
Dual SubwooferA dual subwoofer system can significantly increase available headroom, giving you greater dynamic range, reduced output compression, lower distortion, and fewer overdrive-related artifacts. Put simply, running two subwoofers delivers cleaner, more accurate bass when played at very high levels.
Examples of available dual subwoofer solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply 125 + 125W
On Board 250 + 250W
On Board500 + 500W
On Board 1000 + 1000W
On Board
