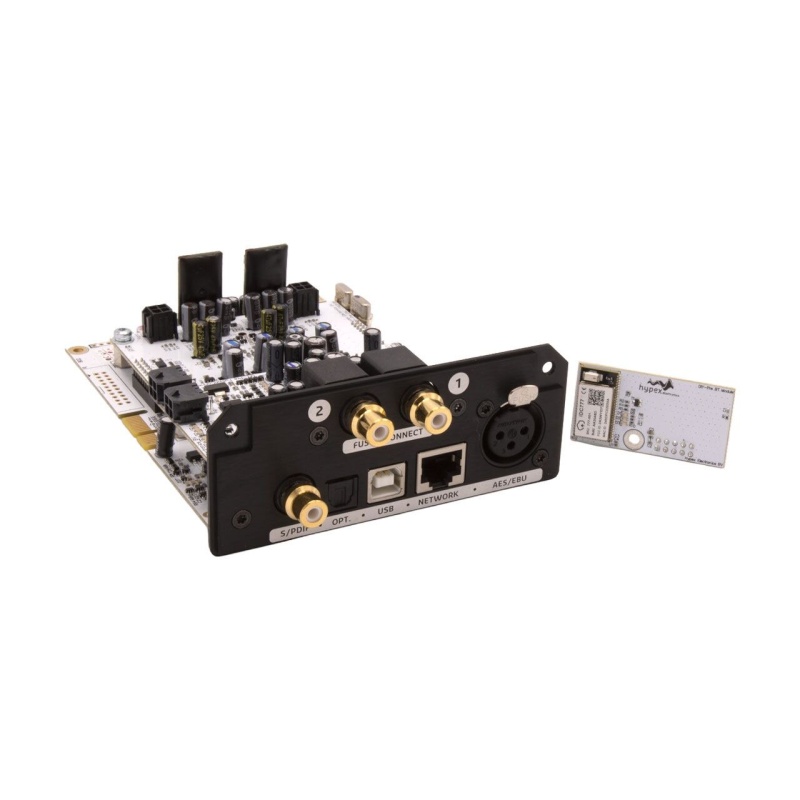

PreDIGin Add-On for PreAmplifier Kit

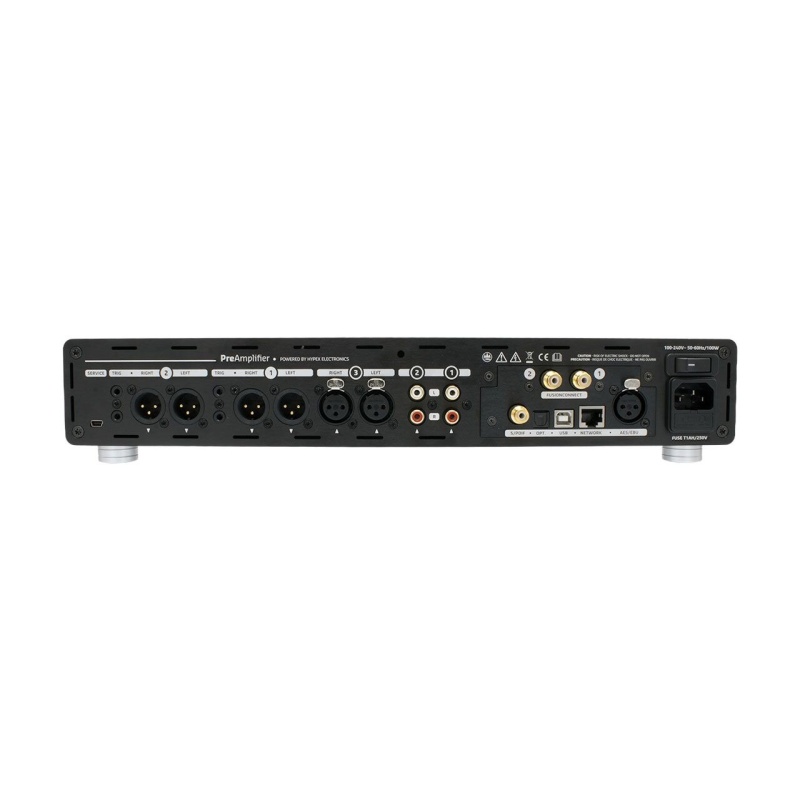

Please note: This product is only compatible with the .The PreDIGin add-on is made to fully complement the PreAmplifier Kit. Serving as its digital counterpart, PreDIGin is built for audio enthusiasts who want the best possible listening experience. At its core is advanced technology, featuring high-quality components such as the AK5574 ADC IC, dual CS43198 DAC ICs running in mono mode, the SRC4392 for high-performance sample rate conversion, and the ADSP21489 DSP for sophisticated signal processing.
An Exceptional DACA defining strength of the PreDIGin is its outstanding DAC performance. With a 14 dBu output level, distortion of an impressive -117.5 dB, a signal-to-noise ratio of 128.5 dB, and a dynamic range of 127 dB, the PreDIGin delivers exceptionally clean audio reproduction that captures the fine detail in your favorite music.

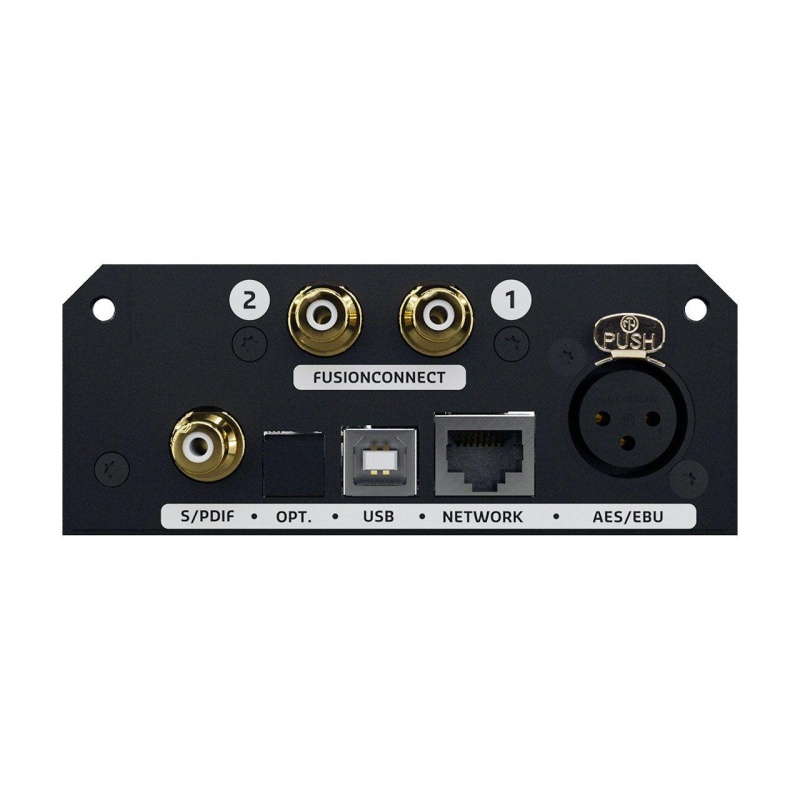

Flexibility is another major advantage of the PreDIGin, with support for a broad range of audio formats and connection options. Whether you use traditional inputs such as S/PDIF, Optical, and AES/EBU up to 192 kHz/24-bit, or more advanced digital connections like USB Type-B and Network1 up to 384 kHz/32-bit, the PreDIGin is built to accommodate them. Bluetooth support at 48 kHz/16-bit also adds a convenient wireless streaming option.

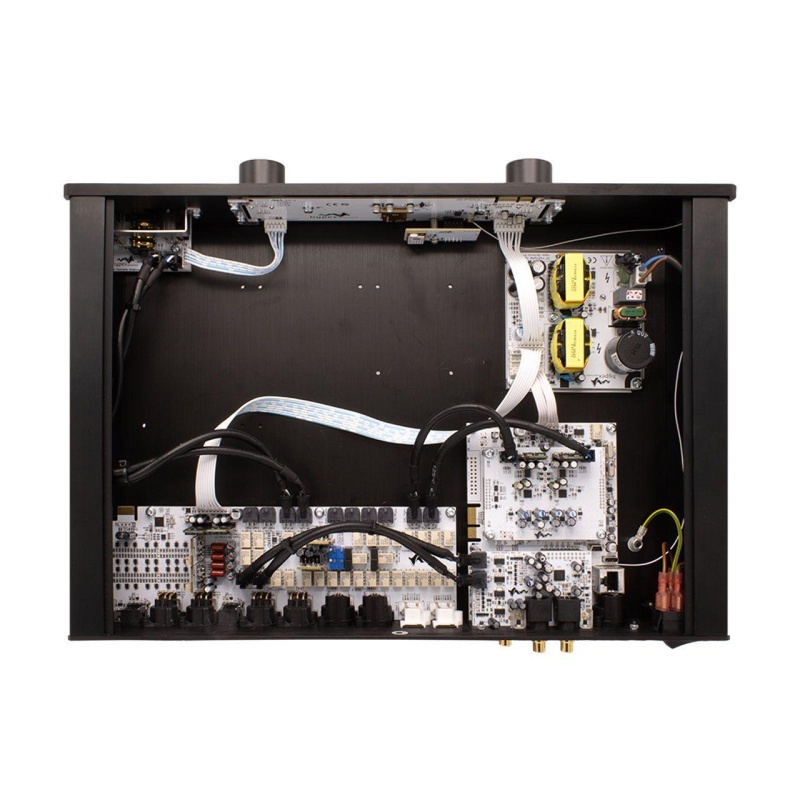

The PreDIGin add-on also includes a network option with an internal USB audio input. Users need to purchase and install a Raspberry Pi inside the DIY PreAmplifier, with support for models 2 through 5 and a dedicated space already provided. The Raspberry Pi acts as the internal processor and works alongside the software you choose. Since several software options are available, each with its own pros and cons, it is worth selecting the one that best fits your needs.
For users who want to push their audio system further, the PreDIGin also includes a FusionConnect board. This optional feature allows the PreAmplifier Kit to serve as the master device in a FusionAmp system, offering smoother integration and greater control across your FusionAmp-based setup.
With its strong performance, broad versatility, and forward-thinking features, the PreDIGin raises the bar for DIY audio enthusiasts. Bring out the full potential of the PreAmplifier and take your listening experience further with the PreDIGin add-on.
FeaturesInputsSelectable DAC-filters FusionConnect S/PDIF Fast, low lat. (default) Master in master/slave setup OpticalFast, linear Digital put-through analog output of pre-amplifier (via ADC) USBSlow, low latency
AES/EBUSlow, linear
BluetoothNon oversampling
Network
Used ChipsADC IC AK5574 (4-to-2 mode) Used for FusionConnect DAC ICs Dual CS43198 Two CS43198 in mono mode SRCSRC4392
DSP DSP Used for DSD-decoding FusionConnect This Kit Contains

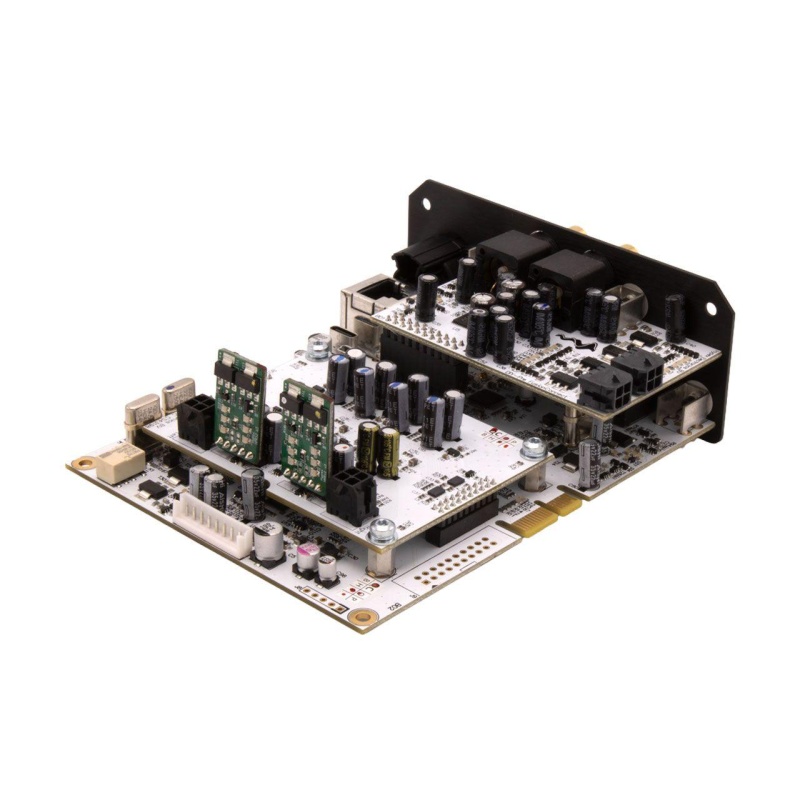

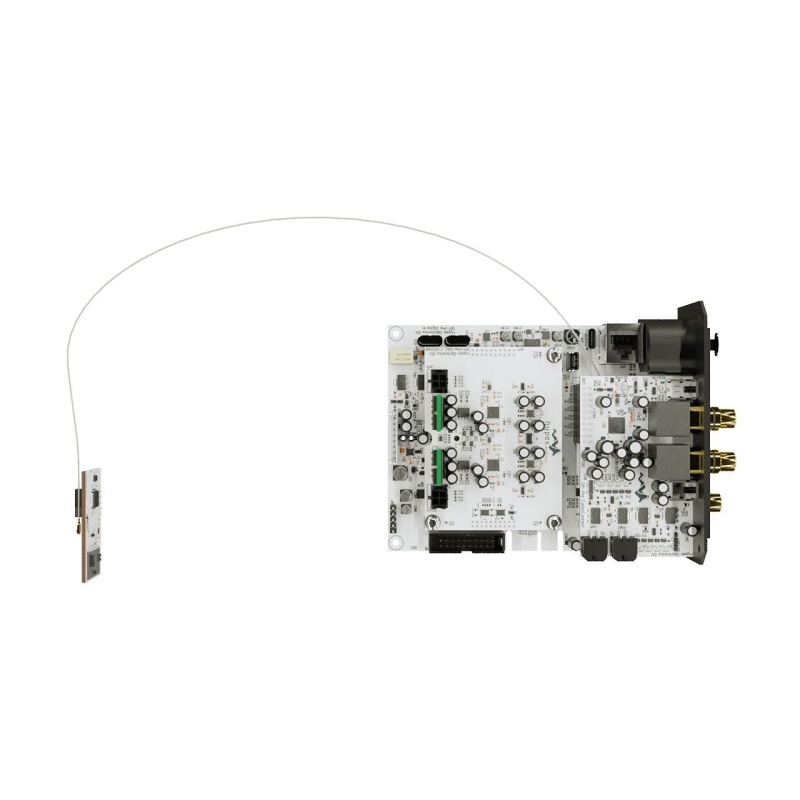

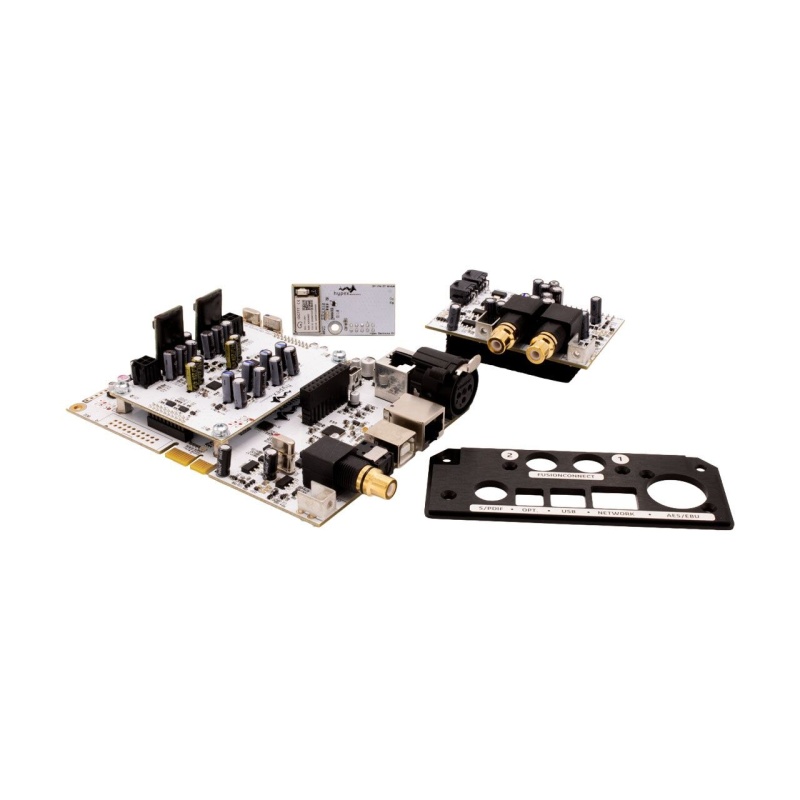

Mainboard with DAC moduleFusionConnect boardBluetooth moduleComplete cable setBack plateAll needed mounting materials
Audio Performance Data DACAll audio measurements are done with AES17 20kHz filter and no weighting.
ItemSymbolMinTypMaxUnitNotesOutput level Vout
14dBu(4.1 Vrms) Distortion THD+N
-117.5 dB(@ 0 dBFS) Signal-to-Noise ratio SNR
128.5dB
Dynamic range DR
127dB
Channel crosstalk
-147dB
Supported FormatsInputPCM SupportDSD SupportNotesS/PDIF Up to 192 kHz / 24 bits No Optical (Toslink) Up to 192 kHz / 24 bits No USB type B Up to 384 kHz / 32 bits DoP: up to DSD256 Native: up to DSD256
Network Up to 384 kHz / 32 bits DoP: up to DSD256 Native: up to DSD256 Note 1 Bluetooth 48 kHz / 16 bits No AES/EBUUp to 192 kHz / 24 bits No Note 1: An additional internally installed streaming board is connected to an internal USB port of the digital input board. Supported formats depend on the chosen streaming board and software.
Fusion ConnectFunctionPCM SupportDSD SupportNotesS/PDIF (Output) 93.75 kHz / 24 bits NoNote 2 Note 2: All formats, PCM and DSD, are converted to PCM 93.75 kHz
Please note: This product is only compatible with the .Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
PreamplifiersA preamplifier boosts low-level signals up to line level, which is the standard operating level required by your power amplifier. That means a preamp is needed for nearly any audio source. In addition to raising low-level signals, a preamplifier also manages source switching and volume control for line-level inputs.
Examples of available preamplifier solutions:
Available solutions
Switch Mode Power Supply Notes
Included Fully analogue, modular design, discrete op-amps
＋ Included Analogue and digital, modular design, discrete op-amps Mono Power Amplifier A mono power amplifier is a self-contained single-channel amplifier unit with its own dedicated power supply and matched amplifier section. Mono power amps are often regarded as one of the best ways to build a high-quality amplifier system. They are commonly used in Hi-Fi and high-end audio systems, but they can also serve in musical instrument amplifier applications.
Examples of available mono power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 525WIncluded
180W ＋
400W ＋
525W ＋
800W ＋ No DC error protection 1150W ＋
Stereo / Dual Power Amplifier A dual power amplifier contains two power supplies and two amplifier channels, with each channel running from its own dedicated power supply. Both the power supplies and amplifier sections are housed within a single enclosure. A stereo power amplifier uses one power supply to run two amplifier channels within the same enclosure.
Examples of available stereo / dual power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 300 + 300WIncluded 1 pcs for a stereo setup 2 x 525W Included 2 pcs for a stereo setup 180 + 180W ＋ for a stereo setup 300 + 300W ＋ for a stereo setup 400 + 400W
＋ No DC error protection 1150W + 1150W
＋ 2 pcs for a stereo setup Multi Channel Amplifier & Immersive AudioA multichannel amplifier houses multiple amplifier channels within a single enclosure. Common multichannel designs include 4, 8, 16, or even 24 channels. Most use a single power supply, though some models may include two or more power supplies depending on the number of channels and the power demands.
Examples of available multichannel amplifier solutions:
Output Power (4Ω) Channels Available solutions Switch Mode Power Supply Notes 150W 8＋ No DC error protection180W2 ＋
180W4＋ No DC error protection 180W 6 ＋ No DC error protection 300W2 ＋
300W4 ＋
400W 2 ＋ No DC error protection 400W4 ＋ No DC error protection 400W 6 ＋ No DC error protection, reversing phase for half of the UcD400 modules 400W 8 ＋ No DC error protection, reversing phase for half of the UcD400 modules
