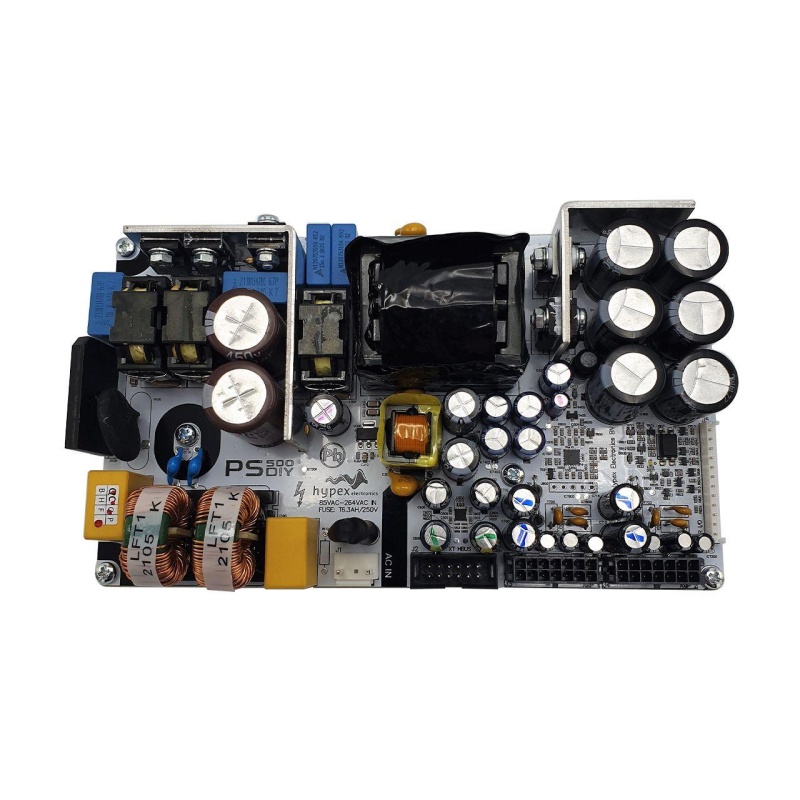

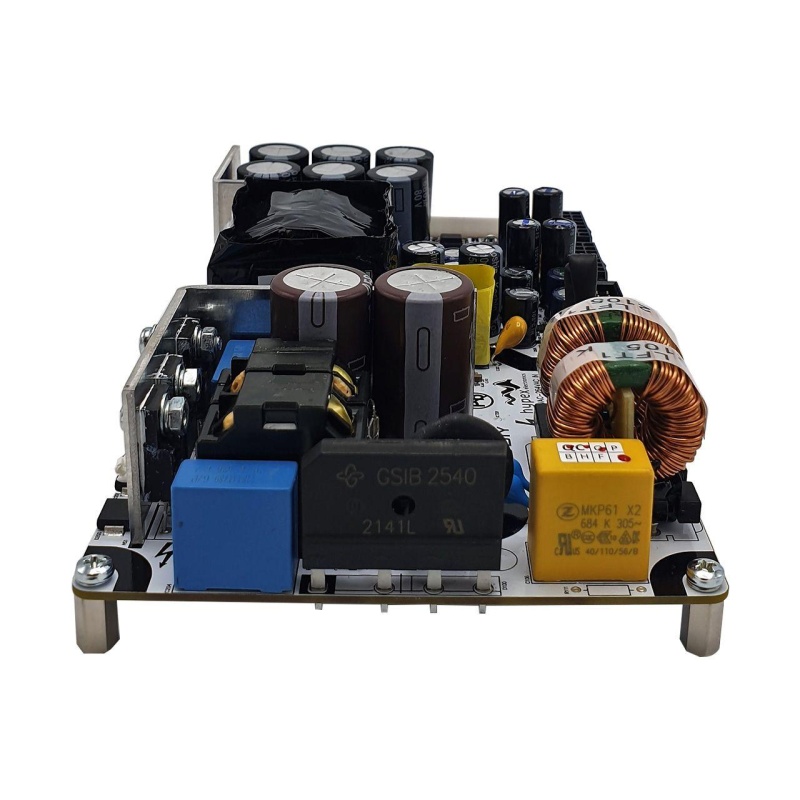

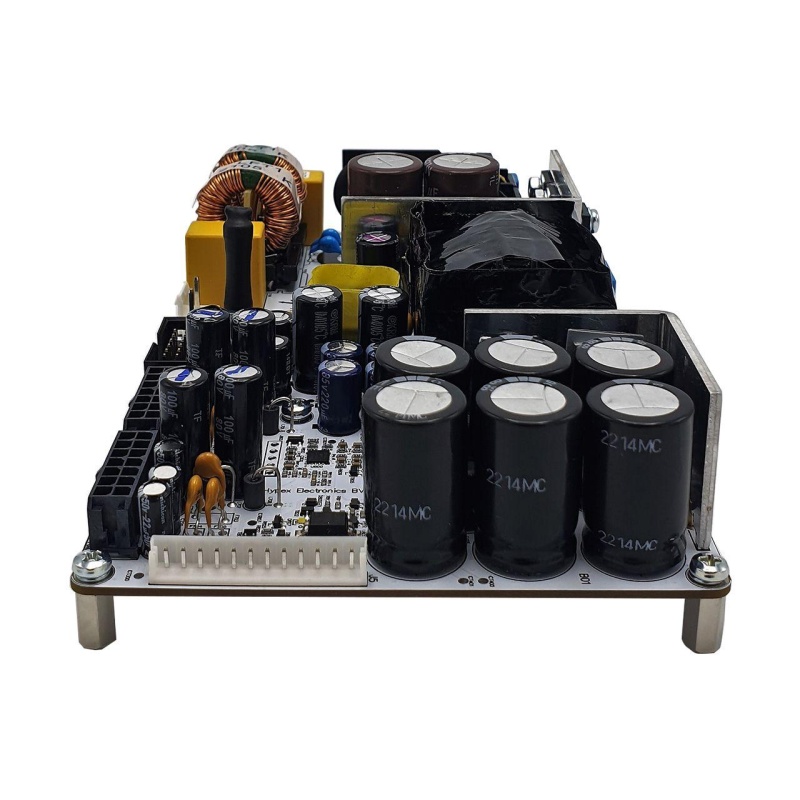

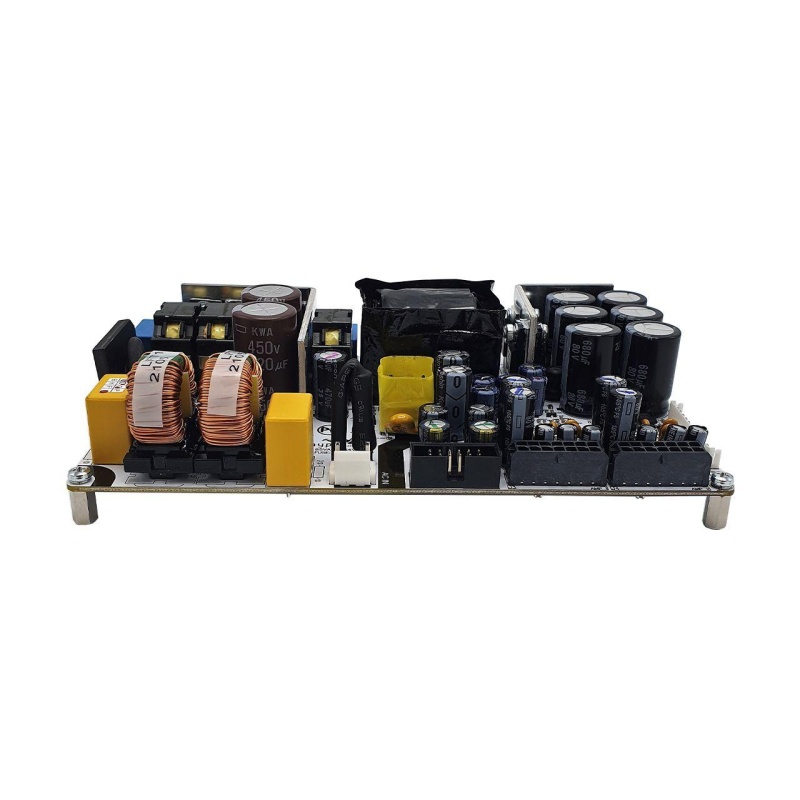

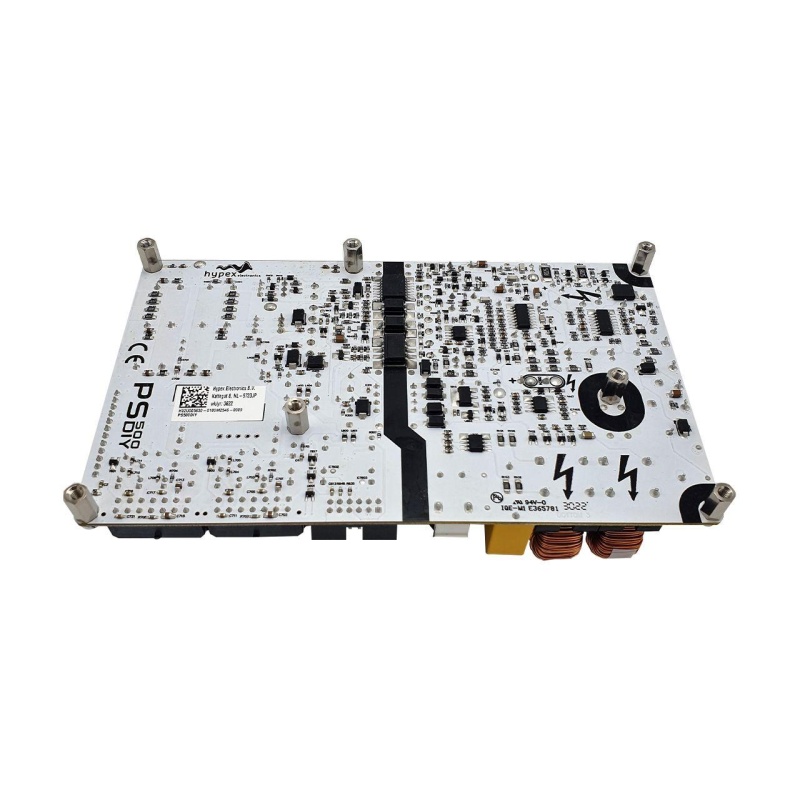

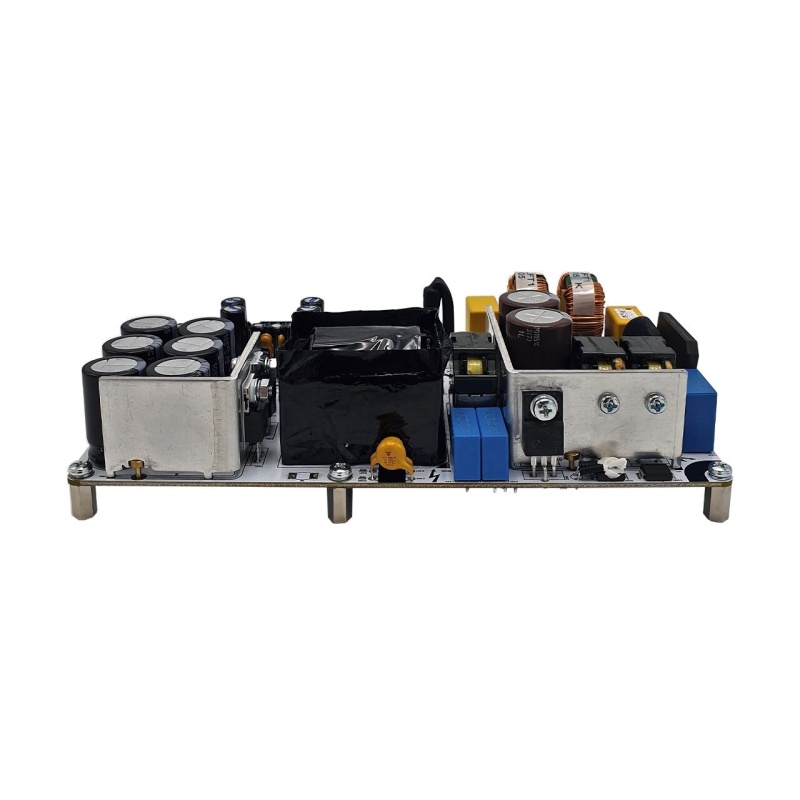

PS500 Switch Mode Power SupplyThe PS500 is a high-efficiency Safety Class 2 switch mode power supply developed specifically for use with single or dual Nilai500 modules. Key highlights include strong efficiency across the full load range, the use of audiophile-grade components, and interleaved PFC for greater power density and reduced conducted EMI.
The PS500 also includes comprehensive overcurrent protection. If an overload condition continues for an extended period, the supply voltage gradually drops until the unit enters hiccup mode. Universal mains support allows dependable operation worldwide. Durable Molex® connectors create a secure link to the amplifier modules, while the user can manage on and off control through the I/O and HBUS connectors.
User-accessible 5V standby and a symmetrical auxiliary supply make it possible to connect third-party electronics, which makes the PS500 especially well suited for DIY applications.
Features
High End Audio AmplificationInterleaved PFC StagesSupplies Single Or Dual Nilai500 AmplifiersUniversal Mains Input 2013 ErP Lot 6 0.5W Standby Supply
Specifications
Output Power: 600W Idle Power: 5.5W Short Term Output Power: 800W Standby Supply: 5V/1A Standby Power: less than 0,5W Output voltage: ±70V Auxiliary Supply: ±18V/150mA

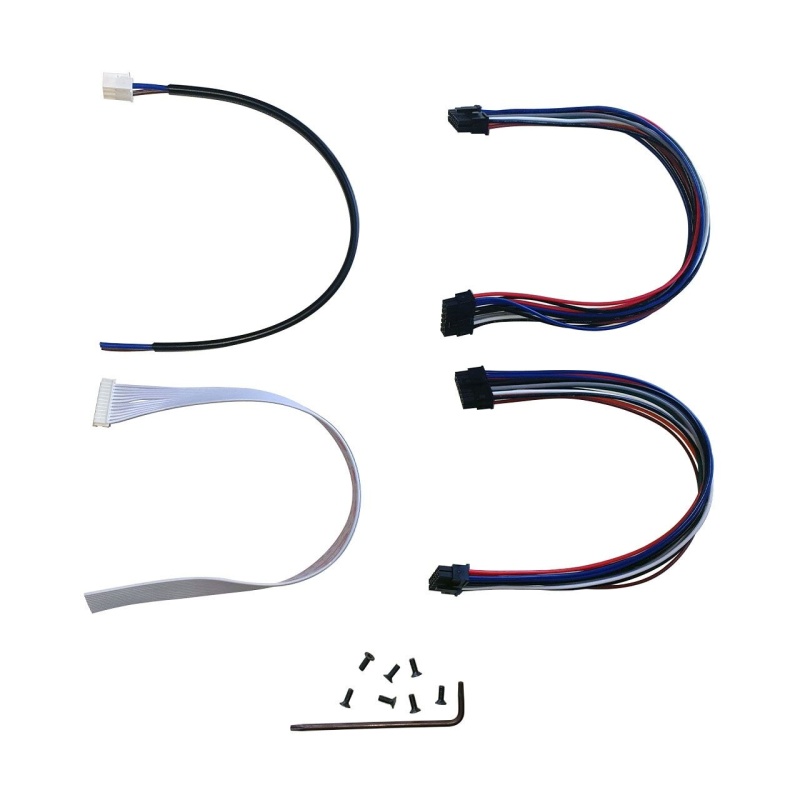

This Kit Contains
PS500 amplifier modulePS500 cable set - part no. K02U0063022x Cable asm Z14A30L2 (30cm amplifier connection cable)1x Cable asm Z12C30L1 (30cm auxiliaries' cable)1x Cable asm Z2B30L3 (30cm power input cable)PS500 mounting setPS500 manual
Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
PreamplifiersA preamplifier boosts low-level signals up to line level, which is the standard operating level required by your power amplifier. That means a preamp is needed for nearly any audio source. In addition to raising low-level signals, a preamplifier also manages source switching and volume control for line-level inputs.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Examples of available preamplifier solutions:
Available solutions
Switch Mode Power Supply Notes
Included Fully analogue, modular design, discrete op-amps
＋ Included Analogue and digital, modular design, discrete op-amps Mono Power Amplifier A mono power amplifier is a self-contained single-channel amplifier unit with its own dedicated power supply and matched amplifier section. Mono power amps are often regarded as one of the best ways to build a high-quality amplifier system. They are commonly used in Hi-Fi and high-end audio systems, but they can also serve in musical instrument amplifier applications.
Examples of available mono power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 525WIncluded
180W ＋
400W ＋
525W ＋
800W ＋ No DC error protection 1150W ＋
Stereo / Dual Power Amplifier A dual power amplifier contains two power supplies and two amplifier channels, with each channel running from its own dedicated power supply. Both the power supplies and amplifier sections are housed within a single enclosure. A stereo power amplifier uses one power supply to run two amplifier channels within the same enclosure.
Examples of available stereo / dual power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 300 + 300WIncluded 1 pcs for a stereo setup 2 x 525W Included 2 pcs for a stereo setup 180 + 180W ＋ for a stereo setup 300 + 300W ＋ for a stereo setup 400 + 400W
＋ No DC error protection 1150W + 1150W
＋ 2 pcs for a stereo setup Multi Channel Amplifier & Immersive AudioA multichannel amplifier houses multiple amplifier channels within a single enclosure. Common multichannel designs include 4, 8, 16, or even 24 channels. Most use a single power supply, though some models may include two or more power supplies depending on the number of channels and the power demands.
Examples of available multichannel amplifier solutions:
Output Power (4Ω) Channels Available solutions Switch Mode Power Supply Notes 150W 8＋ No DC error protection180W2 ＋
180W4＋ No DC error protection 180W 6 ＋ No DC error protection 300W2 ＋
300W4 ＋
400W 2 ＋ No DC error protection 400W4 ＋ No DC error protection 400W 6 ＋ No DC error protection, reversing phase for half of the UcD400 modules 400W 8 ＋ No DC error protection, reversing phase for half of the UcD400 modules
