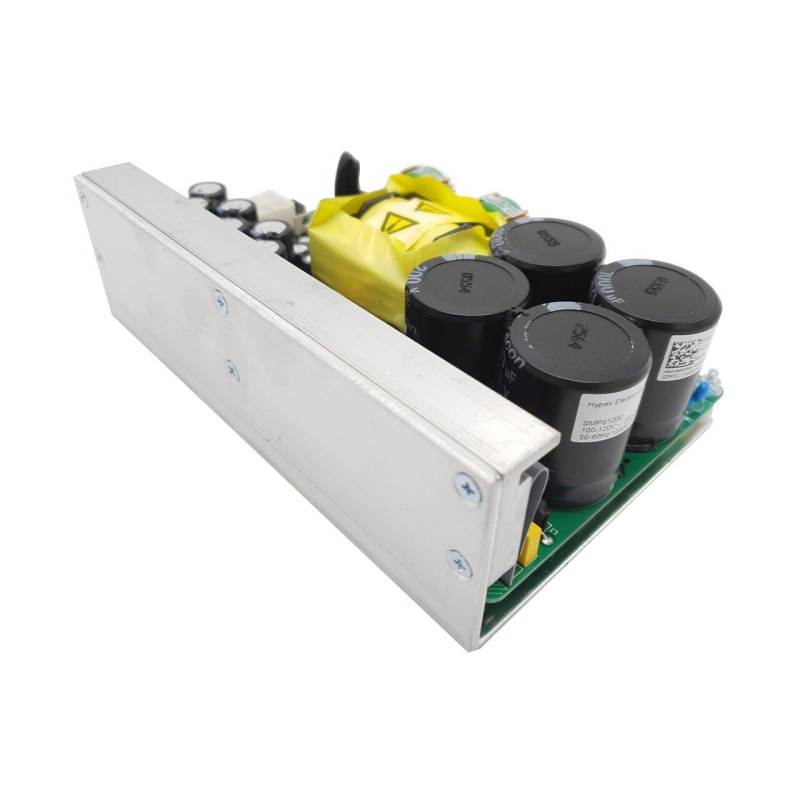

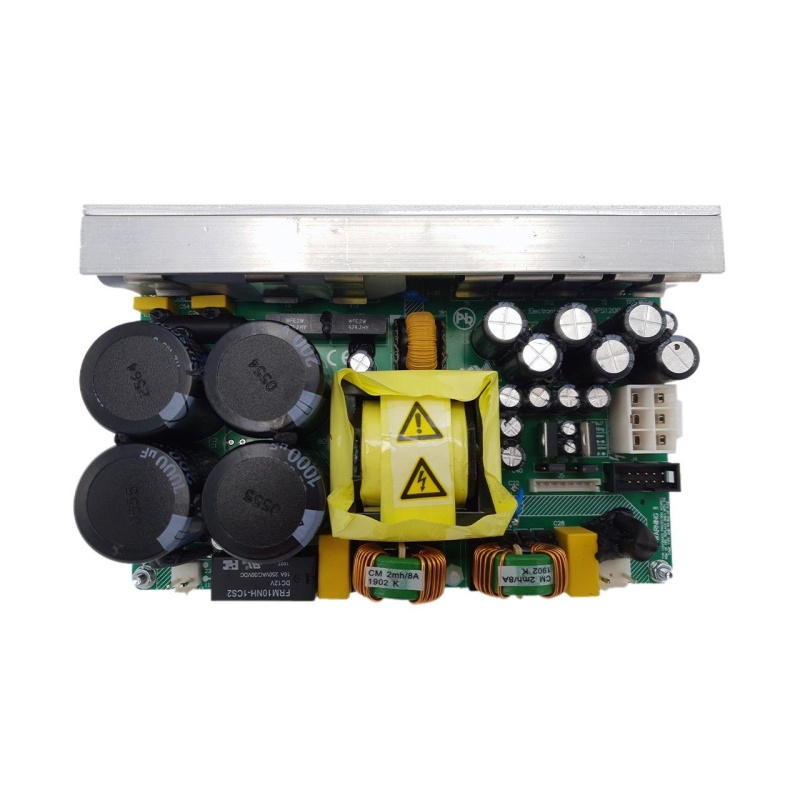

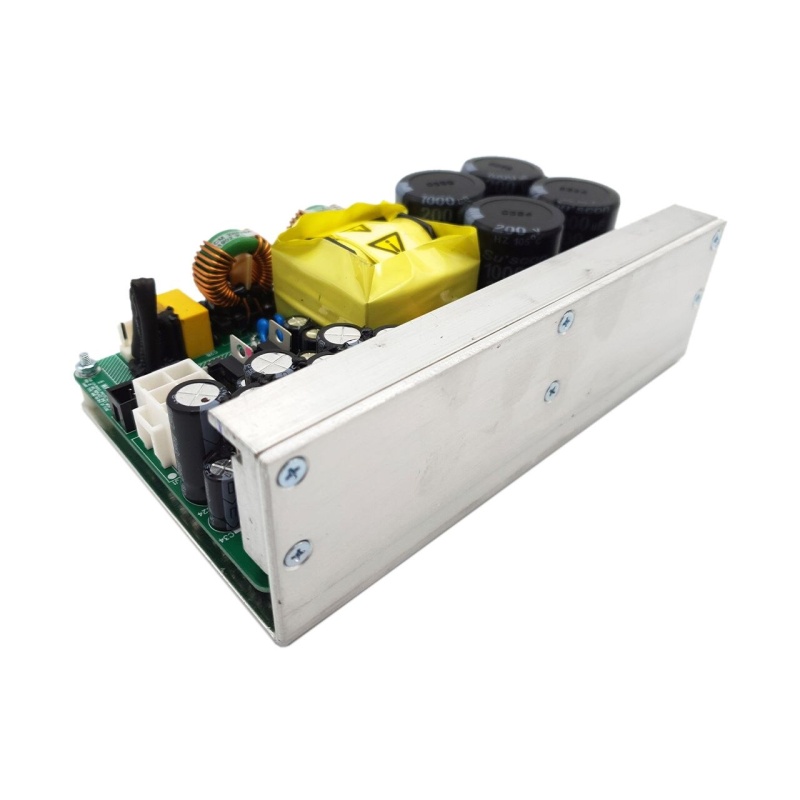

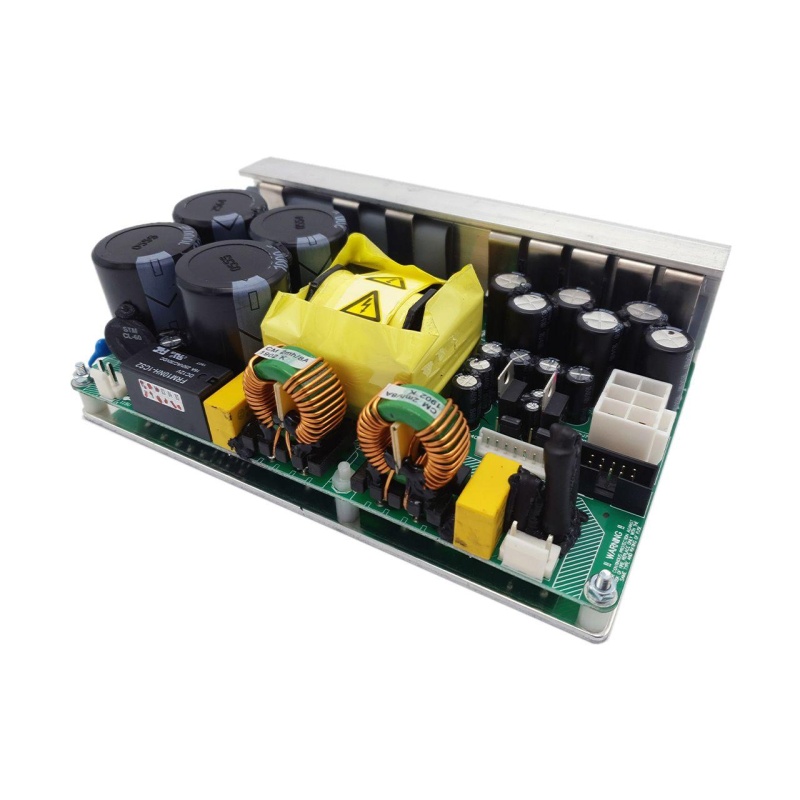

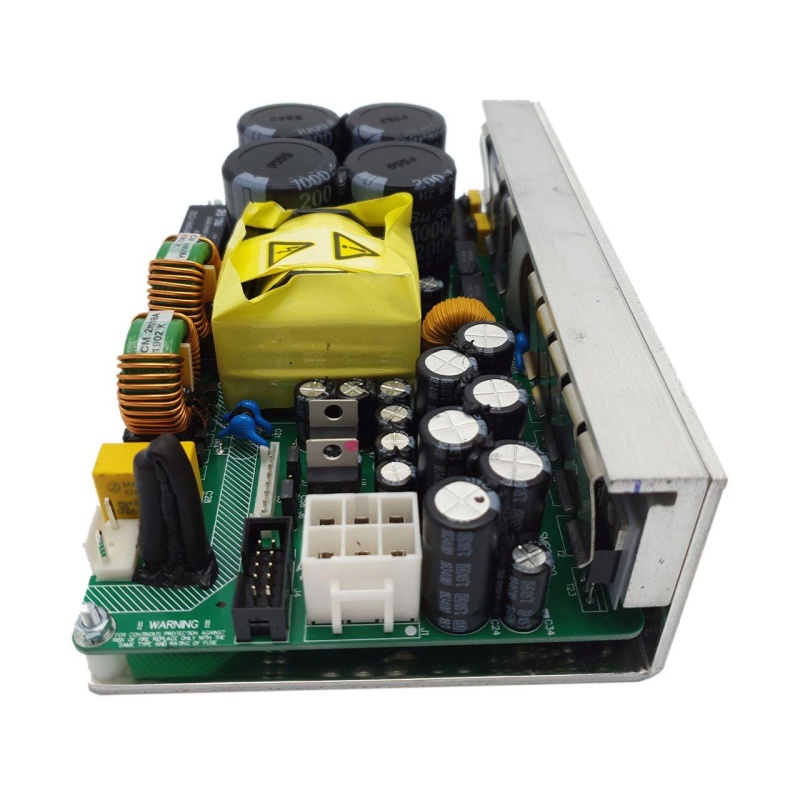

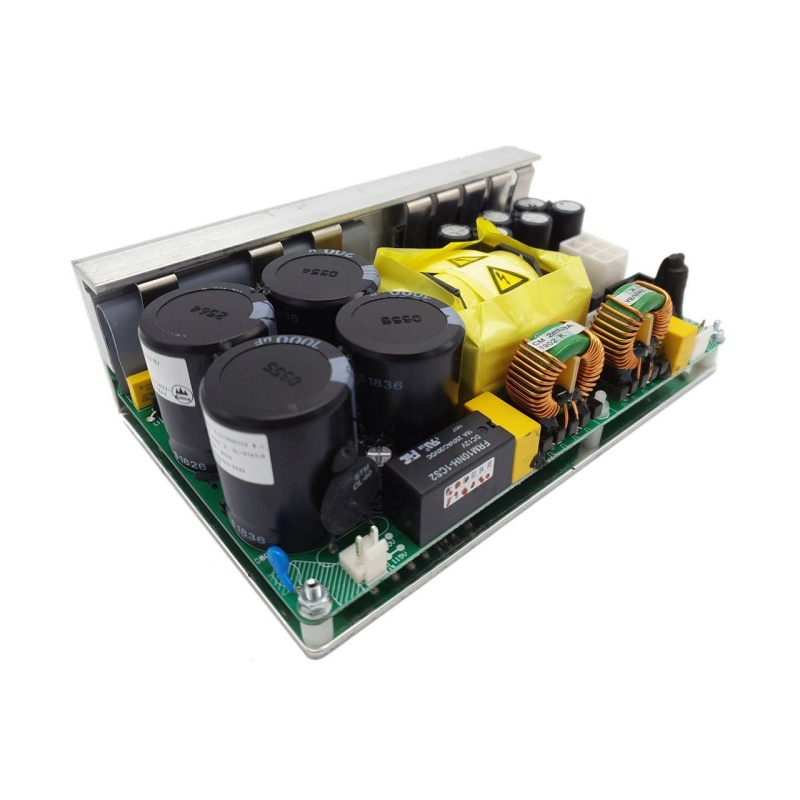

This 1200W switched-mode power supply is designed for use with UcD™ amplifier modules. The product title specifies 2 x 85 Vdc output. It is a high-efficiency Safety Class 2 supply with a compact form and a 2-quadrant full bridge rectifier for single-ended Class D amplifiers.
The listed main output voltage is 2 x 36 Vdc minimum, 2 x 46 Vdc typical, and 2 x 53 Vdc maximum, proportional to AC mains. Auxiliary output voltage is 2 x 17 Vdc minimum, 2 x 22 Vdc typical, and 2 x 25 Vdc maximum, also proportional to AC mains; auxiliary output current is 500 mA. Output power is 1200W at 20Hz into amplifier load.
Mains input is 230V / 115V, selectable with a jumper; automatic input voltage selection is not provided. Features include external controlled operation, symmetrical auxiliary outputs, low radiated and conducted EMI, overcurrent and over-temperature protection, and a DC detection input.
