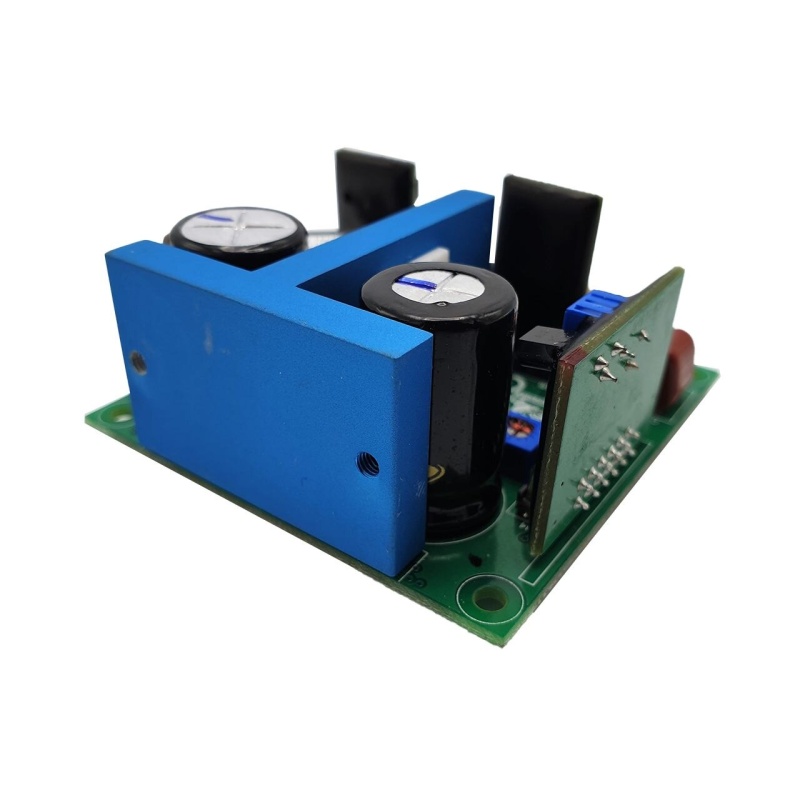

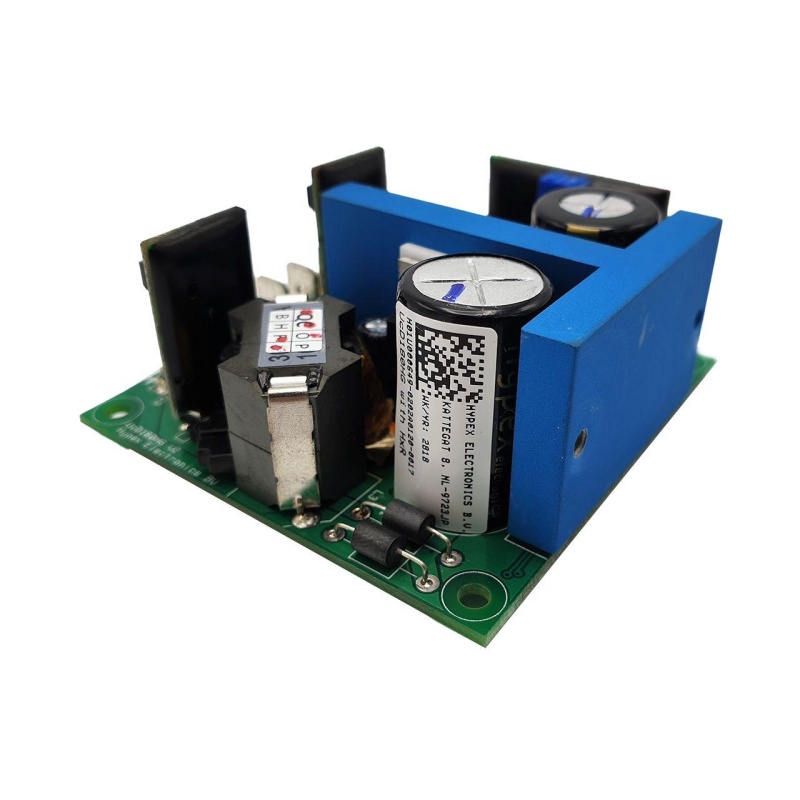

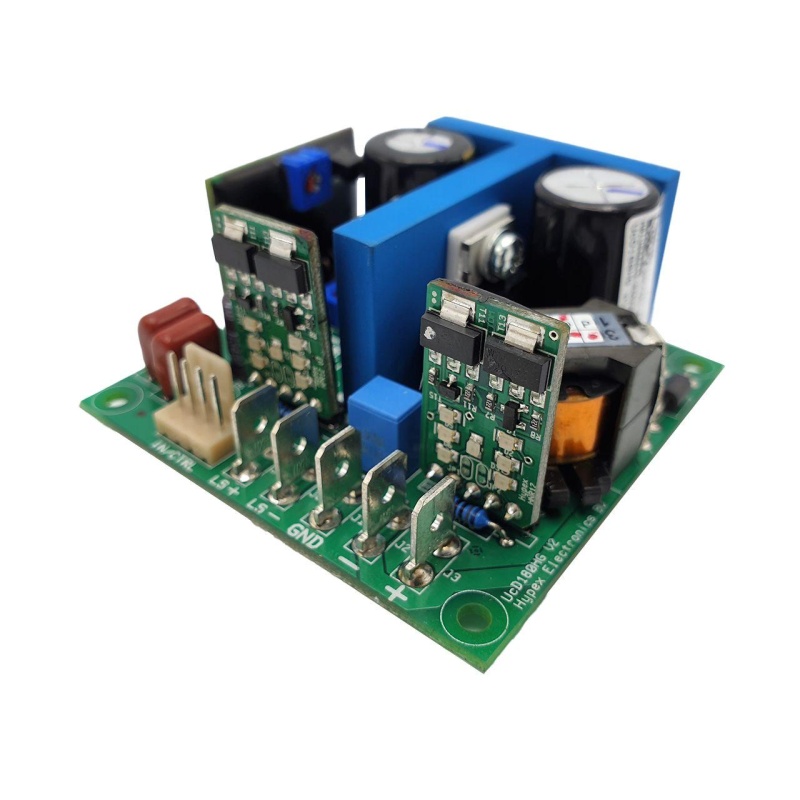

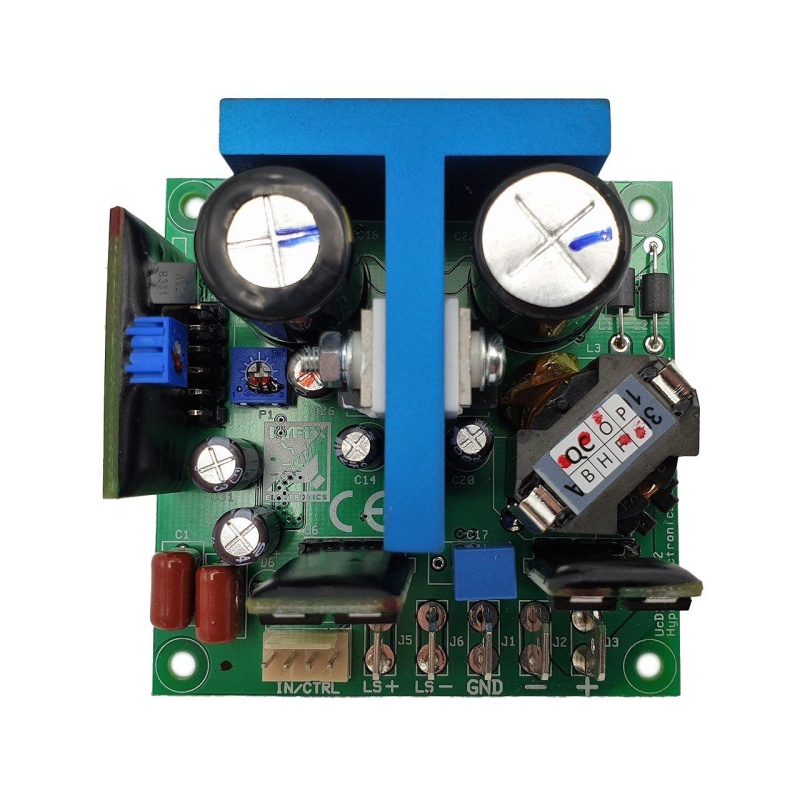

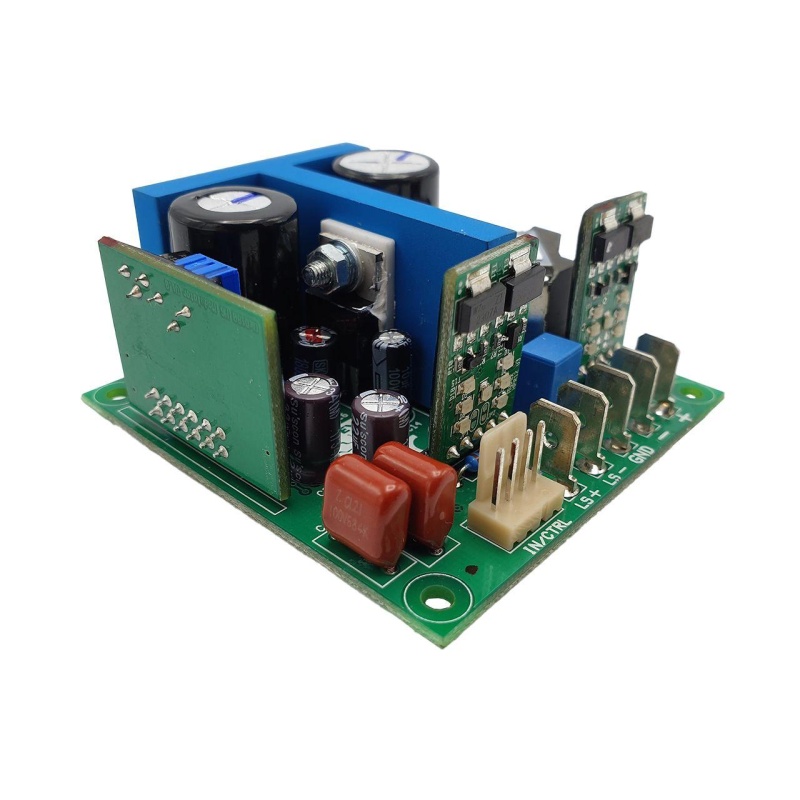

UcD180HG with HxRGet more from your audio system without overspending with the DIYclassD UcD180HG with HxR. Created for serious audio enthusiasts and driven DIY builders, this Class D amplifier module delivers an appealing mix of strong performance and real value.
Picture 180 watts into a 4Ω load, ready to drive medium to more demanding speakers with confident control. With the UcD180HG, you can expect dynamic, clear, and powerful sound that reveals the detail in your music. Built to provide solid output capability, this amplifier module helps make every listening session feel impressive.

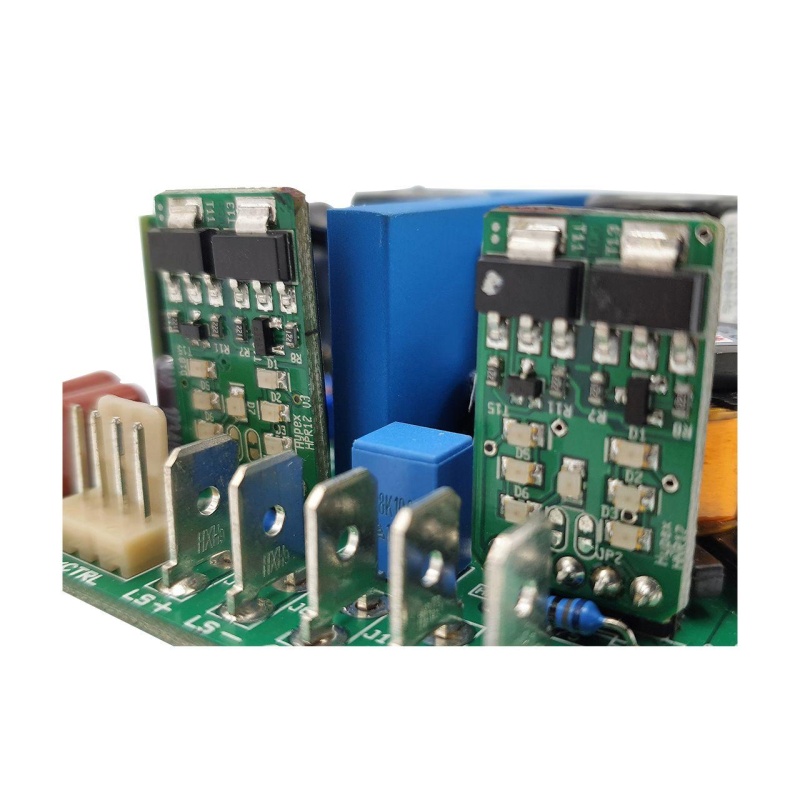

A key part of what makes the UcD180HG stand out is its HxR voltage regulators. These advanced regulators use sophisticated circuitry to lower distortion and improve clarity. The result is a high-fidelity listening experience with excellent detail and precision, delivering the kind of sound quality you would expect from a premium amplifier at a very competitive price.
UcD™ Class D technology is fundamental to the UcD180HG’s design. It provides quality sound while generating very little heat, helping the amplifier operate with excellent efficiency. You get strong audio performance while keeping wasted energy to a minimum.
Thanks to its compact, modular design, the UcD180HG is highly adaptable. Whether you are building a new system or upgrading an existing one, this amplifier fits easily into a wide variety of audio projects. Its flexibility and straightforward integration make it a smart option for anyone looking for both performance and value.
To get the best from the UcD180HG, pair it with an appropriate power supply such as the or . These power supplies are designed to match the module’s requirements and support optimal performance.
Explore the impressive performance and value of the DIYclassD UcD180HG with HxR and enjoy high-quality audio without stretching your budget.
Features

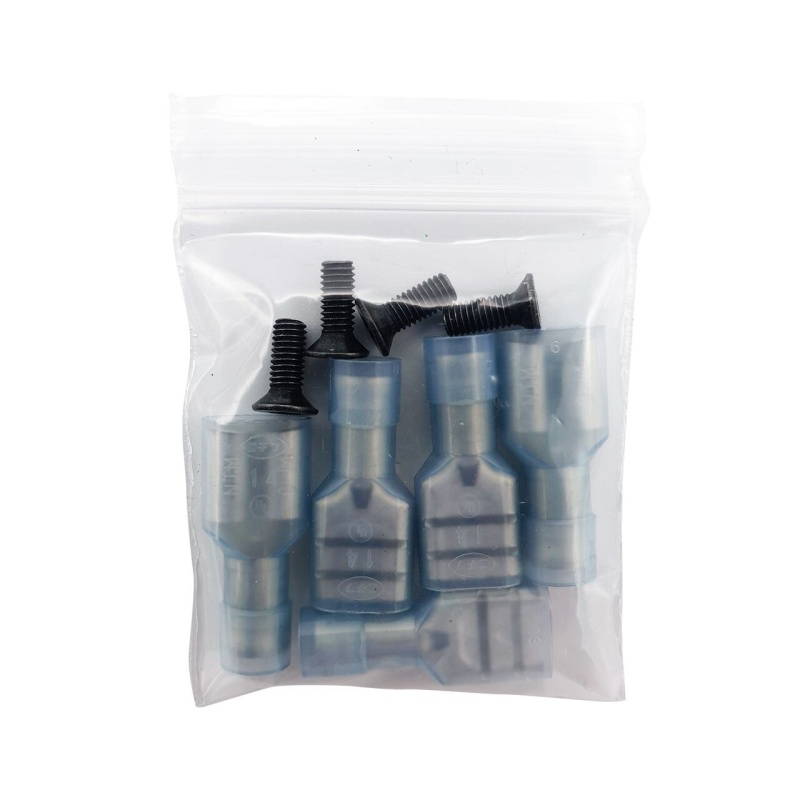

Pop-free start and stop controlDifferential audio inputClip indicatorOvercurrent and over voltage protectionNo compromise componentsLM4562 buffer OpAmpHxR12 mountedUltra-low noiceImproved on-board buffer supplyThis Kit ContainsUcD180HG with HxR amplifier module Mounting set UcD Manual Manual HxR
Possible Applications
Audiophile power amplifiers for home and professional useSpecificationsOutput Power (4Ω): 1 x 180W Output Power (8Ω): 1 x 120W Channels: 1 Power Supply Voltage: 46V HxR Ready: On boardCompatible SMPS: or * (no DC error protection)
Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
PreamplifiersA preamplifier boosts low-level signals up to line level, which is the standard operating level required by your power amplifier. That means a preamp is needed for nearly any audio source. In addition to raising low-level signals, a preamplifier also manages source switching and volume control for line-level inputs.
Examples of available preamplifier solutions:
Available solutions
Switch Mode Power Supply Notes
Included Fully analogue, modular design, discrete op-amps
＋ Included Analogue and digital, modular design, discrete op-amps Mono Power Amplifier A mono power amplifier is a self-contained single-channel amplifier unit with its own dedicated power supply and matched amplifier section. Mono power amps are often regarded as one of the best ways to build a high-quality amplifier system. They are commonly used in Hi-Fi and high-end audio systems, but they can also serve in musical instrument amplifier applications.
Examples of available mono power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 525WIncluded
180W ＋
400W ＋
525W ＋
800W ＋ No DC error protection 1150W ＋
Stereo / Dual Power Amplifier A dual power amplifier contains two power supplies and two amplifier channels, with each channel running from its own dedicated power supply. Both the power supplies and amplifier sections are housed within a single enclosure. A stereo power amplifier uses one power supply to run two amplifier channels within the same enclosure.
Examples of available stereo / dual power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 300 + 300WIncluded 1 pcs for a stereo setup 2 x 525W Included 2 pcs for a stereo setup 180 + 180W ＋ for a stereo setup 300 + 300W ＋ for a stereo setup 400 + 400W
＋ No DC error protection 1150W + 1150W
＋ 2 pcs for a stereo setup Multi Channel Amplifier & Immersive AudioA multichannel amplifier houses multiple amplifier channels within a single enclosure. Common multichannel designs include 4, 8, 16, or even 24 channels. Most use a single power supply, though some models may include two or more power supplies depending on the number of channels and the power demands.
Examples of available multichannel amplifier solutions:
Output Power (4Ω) Channels Available solutions Switch Mode Power Supply Notes 150W 8＋ No DC error protection180W2 ＋
180W4＋ No DC error protection 180W 6 ＋ No DC error protection 300W2 ＋
300W4 ＋
400W 2 ＋ No DC error protection 400W4 ＋ No DC error protection 400W 6 ＋ No DC error protection, reversing phase for half of the UcD400 modules 400W 8 ＋ No DC error protection, reversing phase for half of the UcD400 modules
