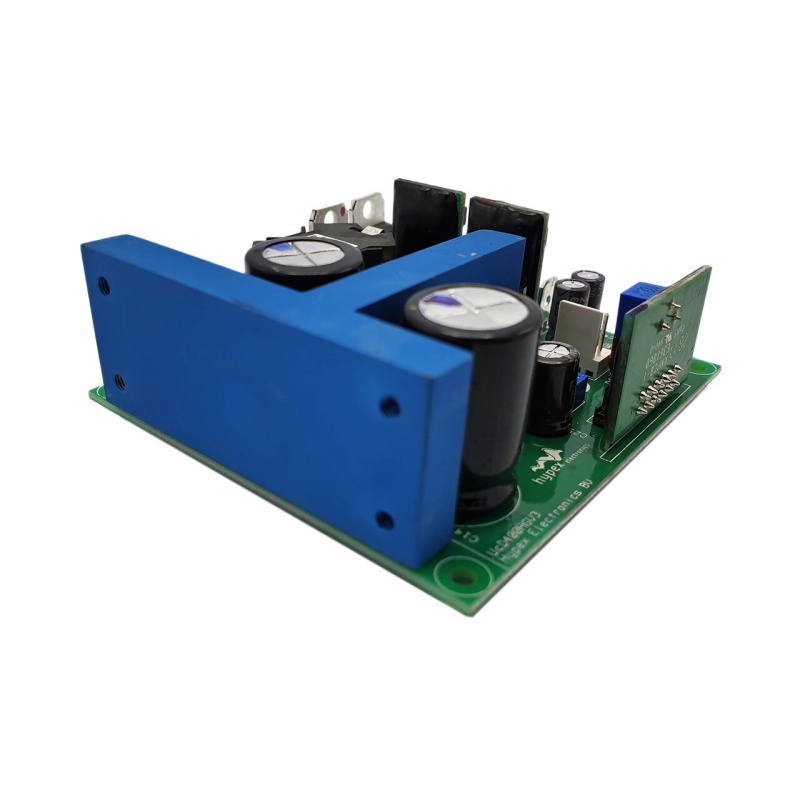

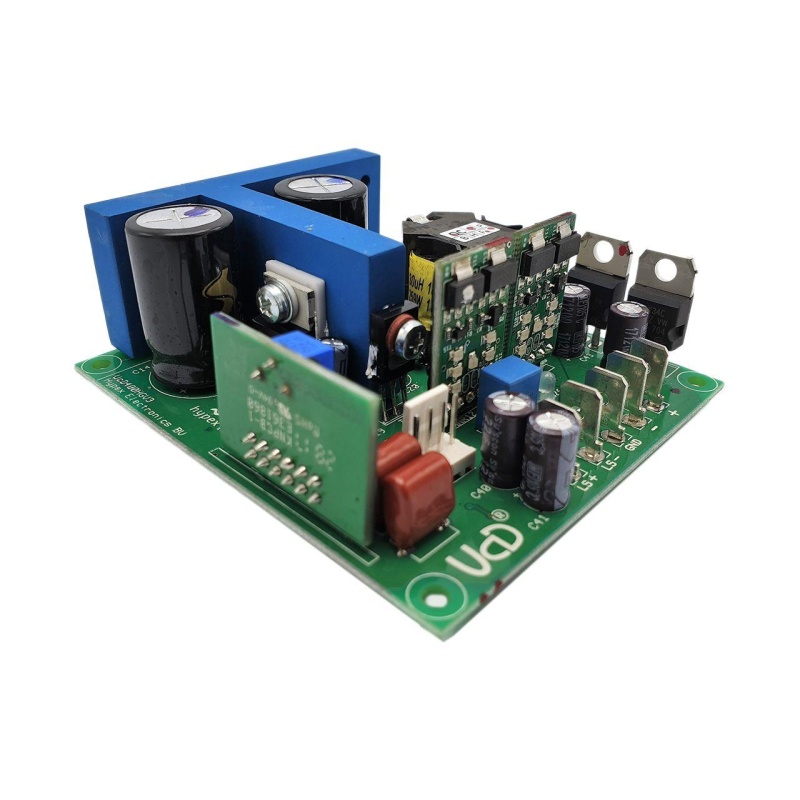

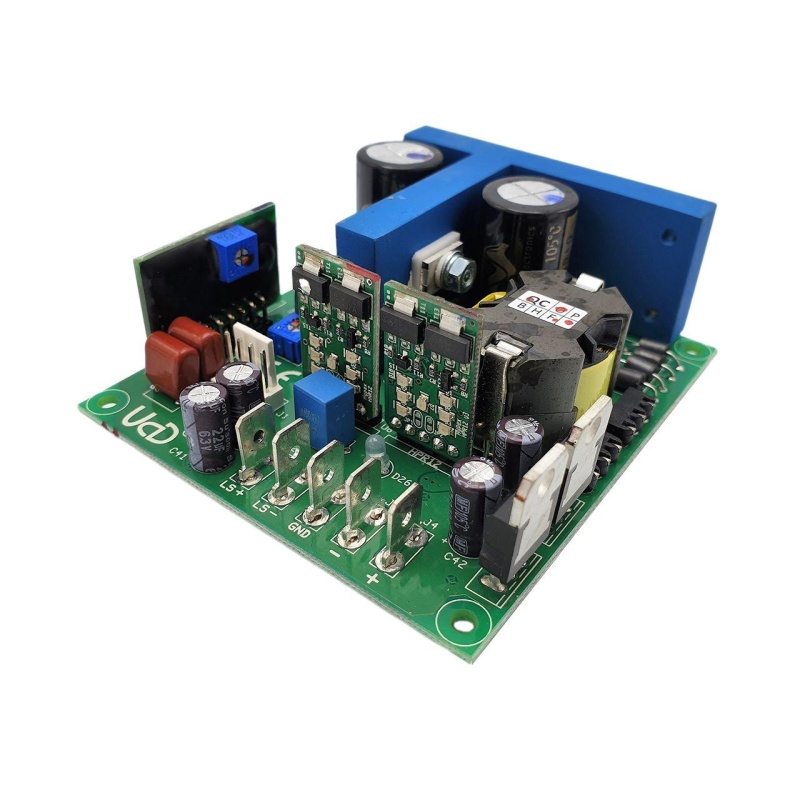

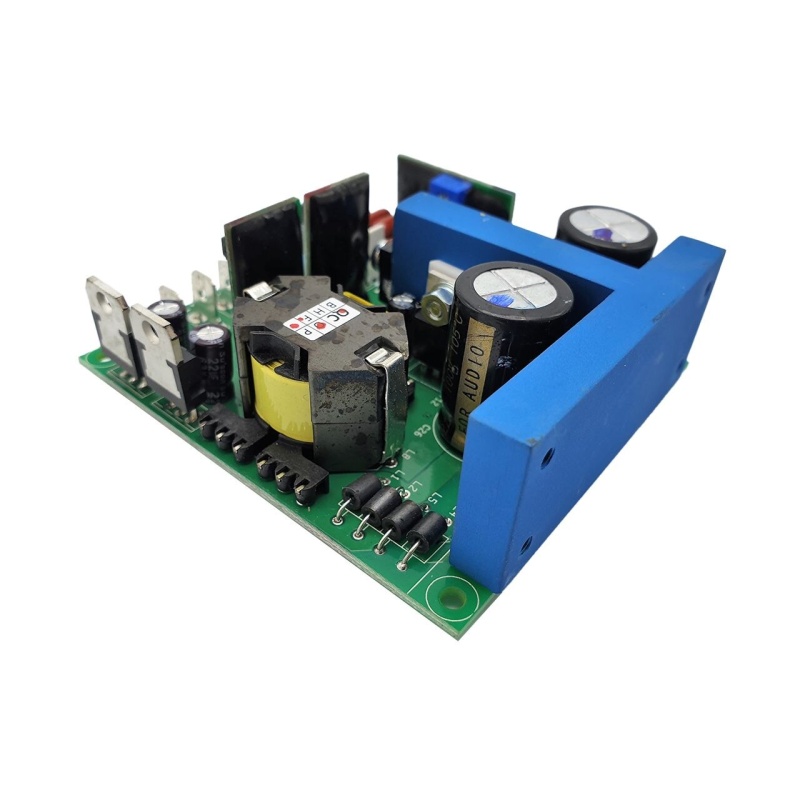

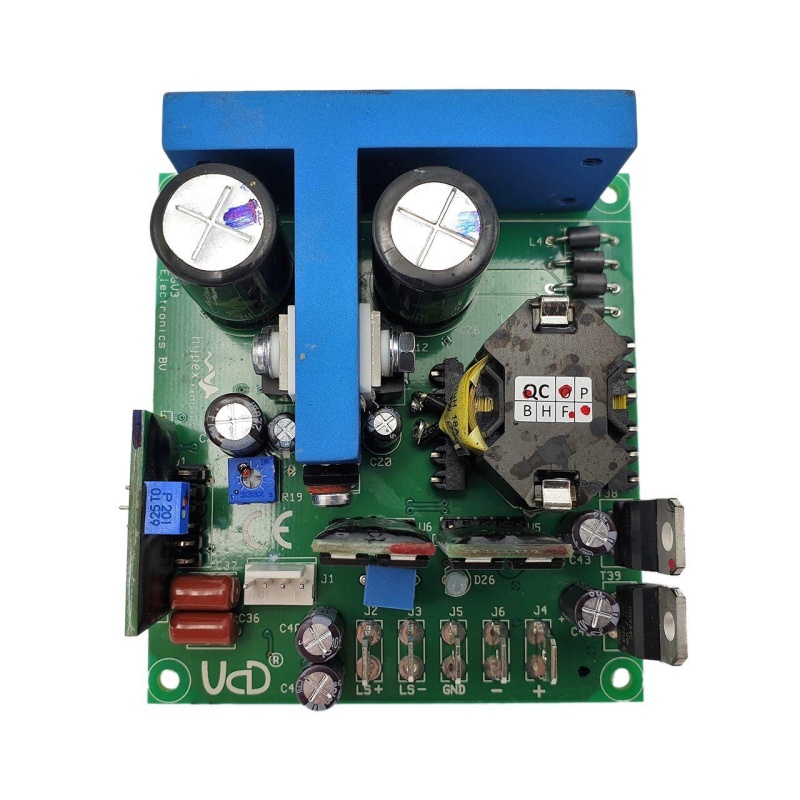

UcD400HG with HxRUnlock strong audio performance and impressive value with the UcD400HG with HxR. Designed for audio enthusiasts and DIY builders who want high power, sound quality, and efficiency, this Class D amplifier module delivers an excellent blend of performance and affordability.
Picture 400 watts into a 4Ω load, giving your speakers the control and authority they need. The UcD400HG with HxR is built to produce dynamic, clear, and powerful sound, bringing out the detail and energy in your music. With its substantial output capability, this amplifier module is ready to take your listening sessions to a higher level.

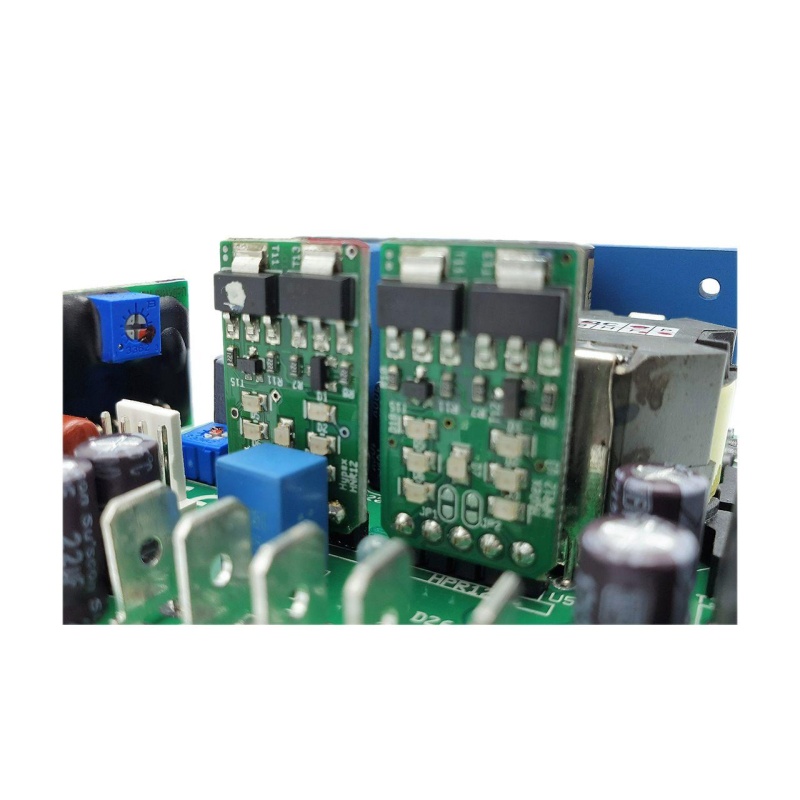

One of the defining features of the UcD400HG is its advanced HxR voltage regulators. These refined regulators use sophisticated circuitry to lower distortion and improve clarity. The result is a high-quality listening experience with excellent detail and accuracy, delivering premium amplifier performance at a competitive price.
UcD™ Class D technology sits at the center of the UcD400HG’s design, offering strong efficiency with very low heat generation. That means you get excellent audio performance while keeping wasted energy to a minimum, making it both a powerful and efficient solution.
Its compact, modular design also makes the UcD400HG highly adaptable. Whether you are building a new audio system or upgrading an existing one, this amplifier fits easily into a wide range of projects. Its versatility and straightforward design make it a great option for those who want both performance and value.
To get the best from the UcD400HG, pair it with a suitable power supply such as the or . These power supplies are designed to match the module’s requirements and support the best possible performance.
Discover the impressive value and performance of the DIYclassD UcD400HG with HxR today. Enjoy high-quality sound and serious power without overspending.
Features

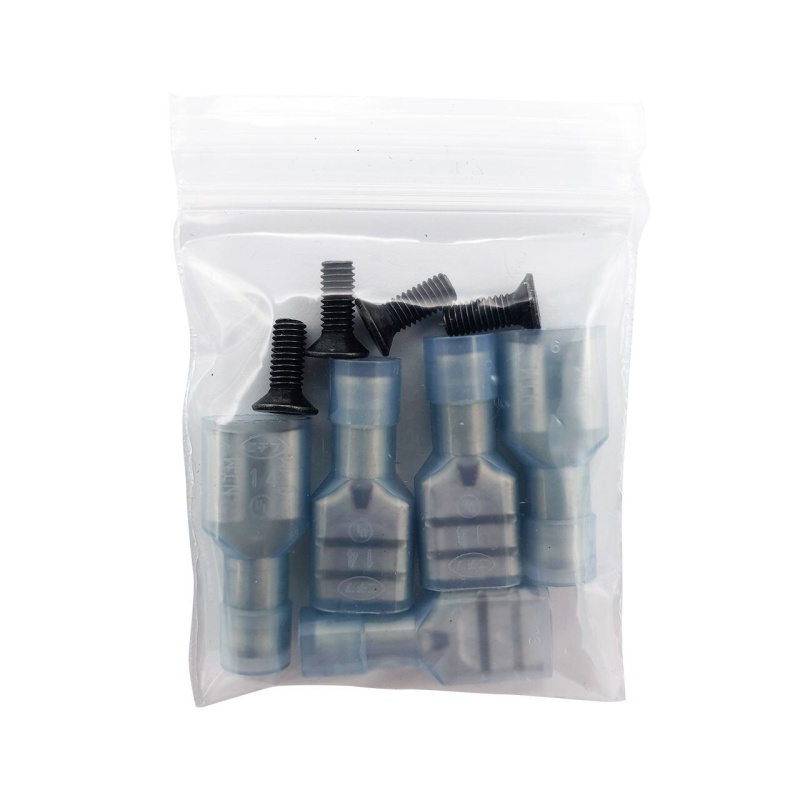

Pop-free start and stop controlDifferential audio inputClip indicatorOvercurrent and over voltage protectionNo compromise componentsLM4562 buffer OpAmpHxR12 mountedUltra-low noiceImproved on-board buffer supplyUcD400HG with HxR amplifier moduleMounting set UcD Manual Manual HxR
Possible Applications
Audiophile power amplifiers for home and professional useOutput Power (4Ω): 1 x 400W Output Power (8Ω): 1 x 240W Channels: 1HxR Ready: On board
Product ApplicationsHypex Direct products can be used in a wide range of DIY applications. Explore the different examples within each application category to help find the right solution for your project.
PreamplifiersA preamplifier boosts low-level signals up to line level, which is the standard operating level required by your power amplifier. That means a preamp is needed for nearly any audio source. In addition to raising low-level signals, a preamplifier also manages source switching and volume control for line-level inputs.
Examples of available preamplifier solutions:
Available solutions Switch Mode Power Supply Notes
Included Fully analogue, modular design, discrete op-amps
＋ Included Analogue and digital, modular design, discrete op-amps
Mono Power AmplifierA mono power amplifier is a self-contained single-channel amplifier unit with its own dedicated power supply and matched amplifier section. Mono power amps are often regarded as one of the best ways to build a high-quality amplifier system. They are commonly used in Hi-Fi and high-end audio systems, but they can also serve in musical instrument amplifier applications.
Examples of available mono power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 525WIncluded 180W ＋ 400W ＋ 525W ＋ 800W ＋ No DC error protection 1150W ＋
Stereo / Dual Power AmplifierA dual power amplifier contains two power supplies and two amplifier channels, with each channel running from its own dedicated power supply. Both the power supplies and amplifier sections are housed within a single enclosure. A stereo power amplifier uses one power supply to run two amplifier channels within the same enclosure.
Examples of available stereo / dual power amplifier solutions:
Output Power (4Ω) Available solutions Switch Mode Power Supply Notes 300 + 300WIncluded 1 pcs for a stereo setup 2 x 525W Included 2 pcs for a stereo setup 180 + 180W ＋ for a stereo setup 300 + 300W ＋ for a stereo setup 400 + 400W
＋ No DC error protection 1150W + 1150W
＋ 2 pcs for a stereo setup
Multi Channel Amplifier & Immersive AudioA multichannel amplifier houses multiple amplifier channels within a single enclosure. Common multichannel designs include 4, 8, 16, or even 24 channels. Most use a single power supply, though some models may include two or more power supplies depending on the number of channels and the power demands.
Examples of available multichannel amplifier solutions:
Output Power (4Ω) Channels Available solutions Switch Mode Power Supply Notes 150W 8＋ No DC error protection180W2 ＋ 180W4＋ No DC error protection 180W 6 ＋ No DC error protection 300W2 ＋ 300W4 ＋ 400W 2 ＋ No DC error protection 400W4 ＋ No DC error protection 400W 6 ＋ No DC error protection, reversing phase for half of the UcD400 modules 400W 8 ＋ No DC error protection, reversing phase for half of the UcD400 modules
