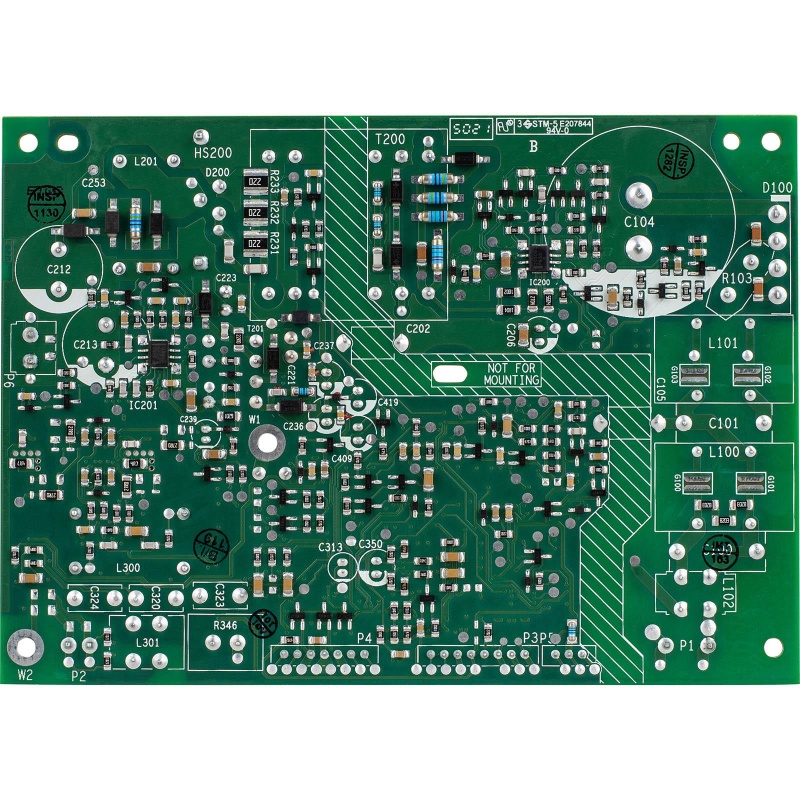

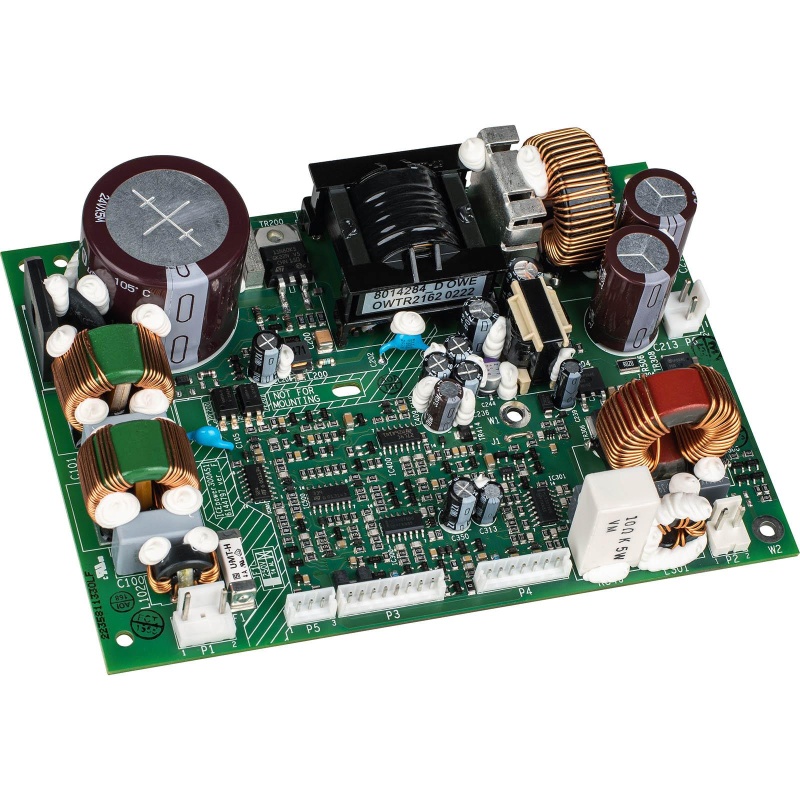

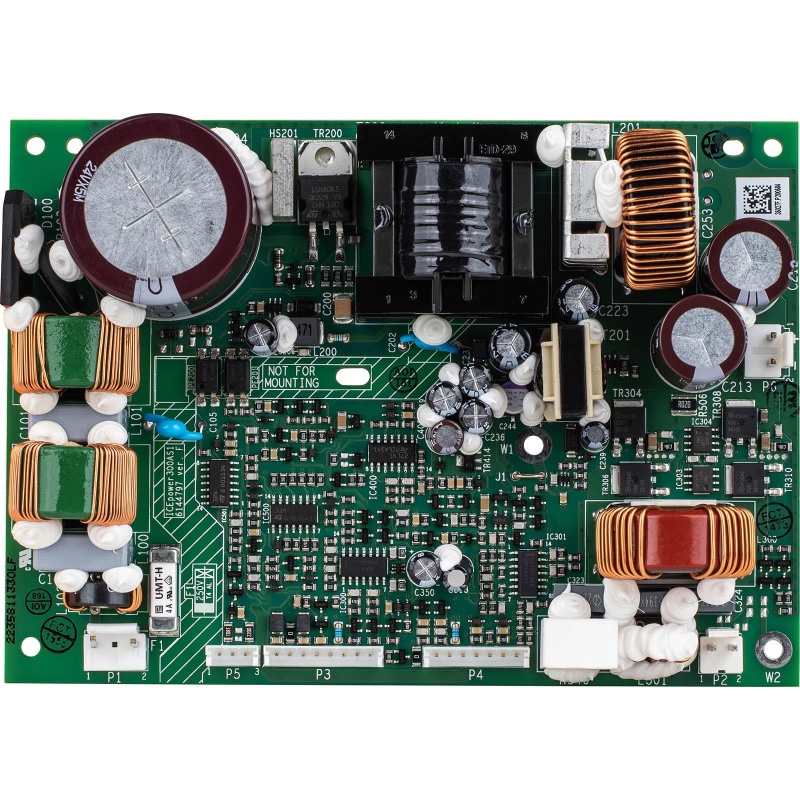

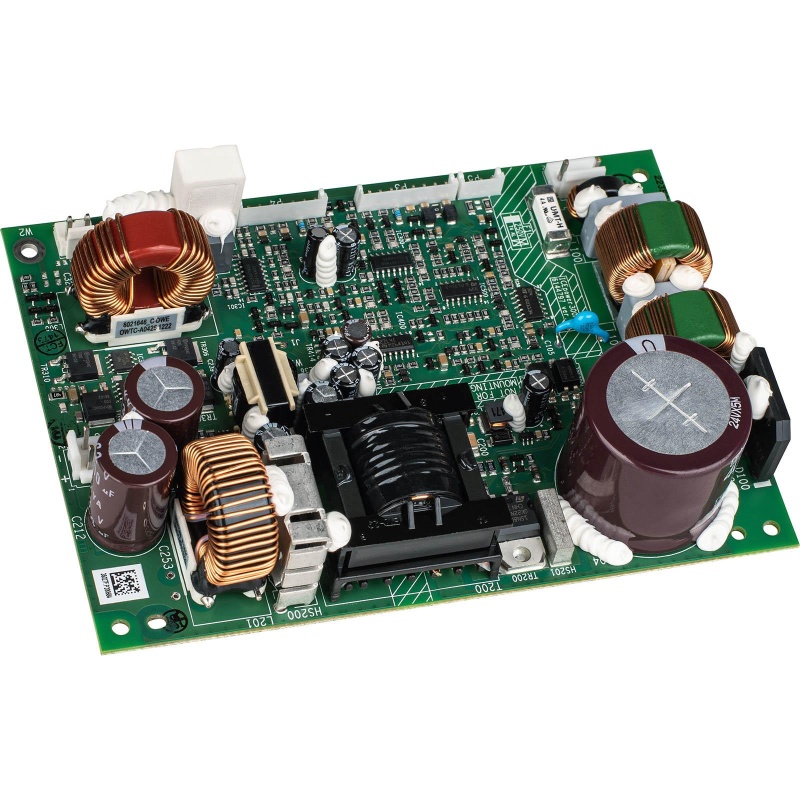

All-In-One Fanless AMP & Power Supply Board
The 300AS1 combines an efficient forward type power supply with a 1x 300W high quality class D amplifier. It includes a DC hanger bus for powering up to two 300A1 hanger amplifiers. On its own it is therefore perfect for single channel applications such as subwoofers, bass and guitar amplifiers. Combined with 300A1 hanger amplifiers, it can be used for 2- and 3-way PA speakers, studio monitors, hi-fi, and home automation amplifiers.
ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.
Note: Requires the for full stand-alone functionality (sold separately).
Specifications: • Wattage output: 1 x 300W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz all loads • Dynamic range: 113 dB • Total efficiency: 73% @ 300W 4 ohm 115 VAC • DC-Bus: 50 VDC @20A and +/-12 VDC @ 0.4A maximum • Input voltage: 100~240 VAC 50/60 Hz • Maximum output current limit: 20A • Dimensions: 5.91" W x 4.22" D x 1.6" H.
