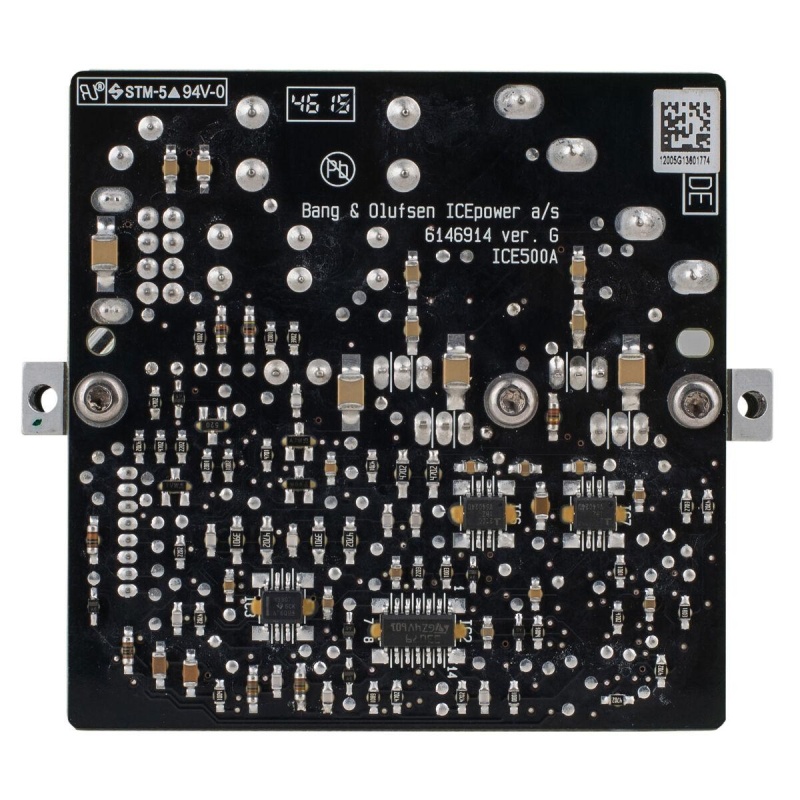

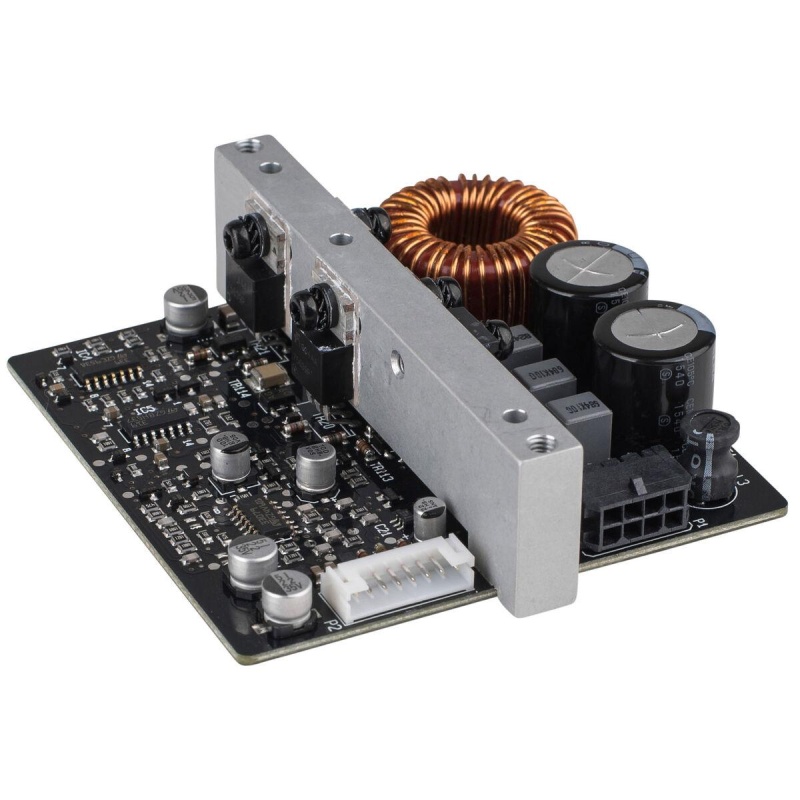

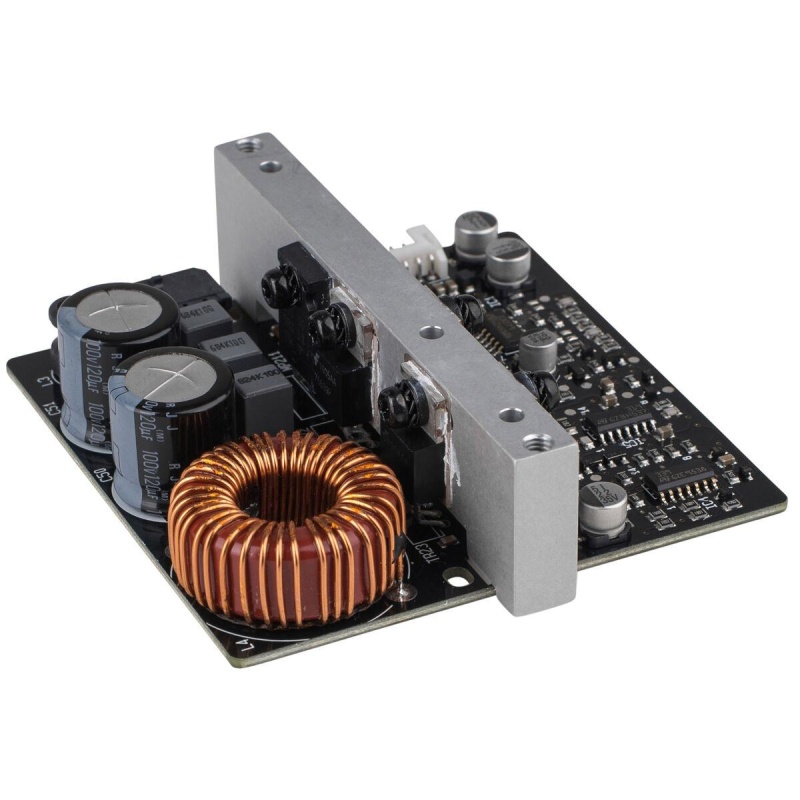

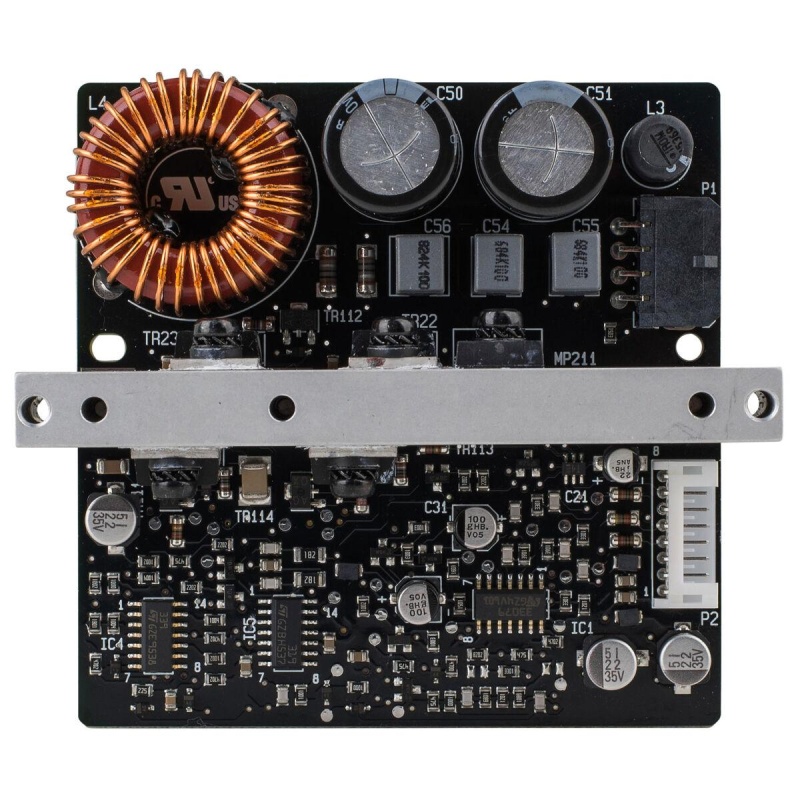

Add one or two of these 500A modules to 500ASP, or 1000ASP ICEpower amp boards to create an active 2 or 3-way speaker system. This enables each speaker in the system to have its own amplifier verses sharing power with a single amplifier. The 500A will get all its 80 VDC from the ASP series amp boards to deliver 500W RMS at 4 ohms and even more with 2-ohm stability.
Note: Requires the to attach to the ASP series amp boards (sold separately).
Like the ASP series, the ICEpower 500A withstands 70 G-force shock to each side of the board. This along with the under-voltage and thermal protection ensure long life under live concert conditions. Make a high power, fanless stereo amp, 2-way, or 3-way powered speaker by adding this amp board to the 500ASP, or 1000ASP. ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This helps repair shops give quicker and more accurate estimate times when ordering ICEpower replacement boards, and makes it easier than ever to acquire ICEpower amp modules for your projects. Continental USA DIYs, OEMs, and repair shops also save money by eliminating international shipping cost. Specifications: • Wattage output: 500W RMS @ 4 ohms 0.02% THD+N, 1 kHz • Frequency response: 20 Hz to 20,000 Hz, all loads • Dynamic range: 117 dBA • Total efficiency: 93% @ 300W, 8 ohms • Input voltage: 80 VDC • Dimensions: 3.55" W x 3.12" D x 1.04" H.
