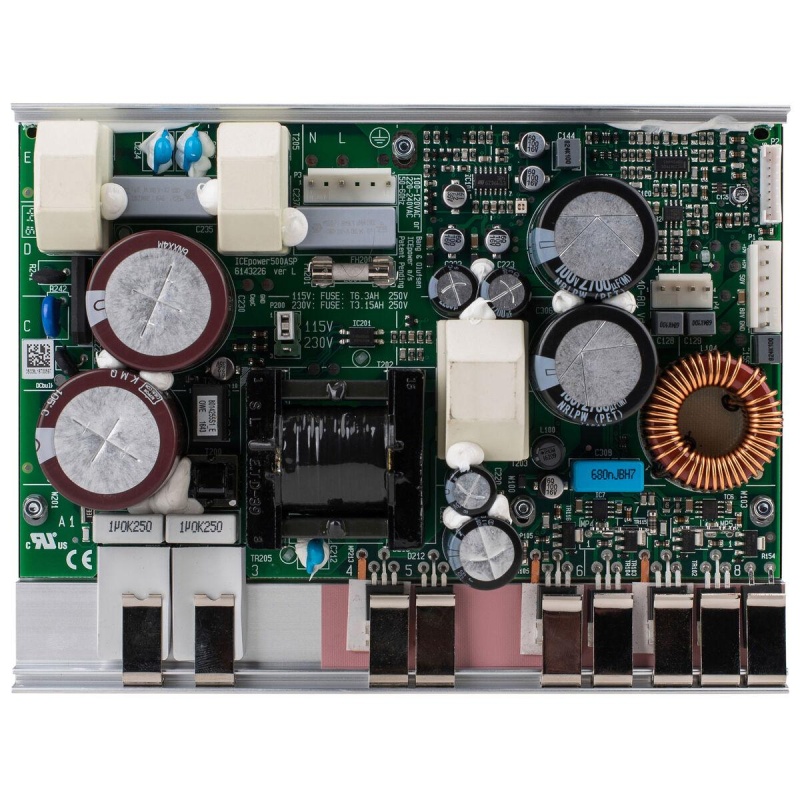

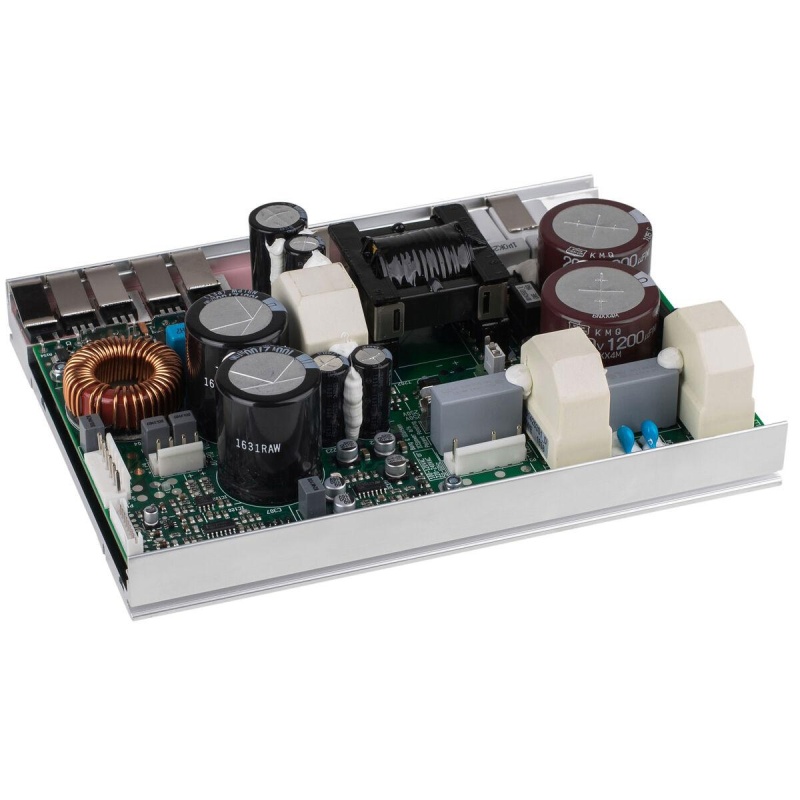

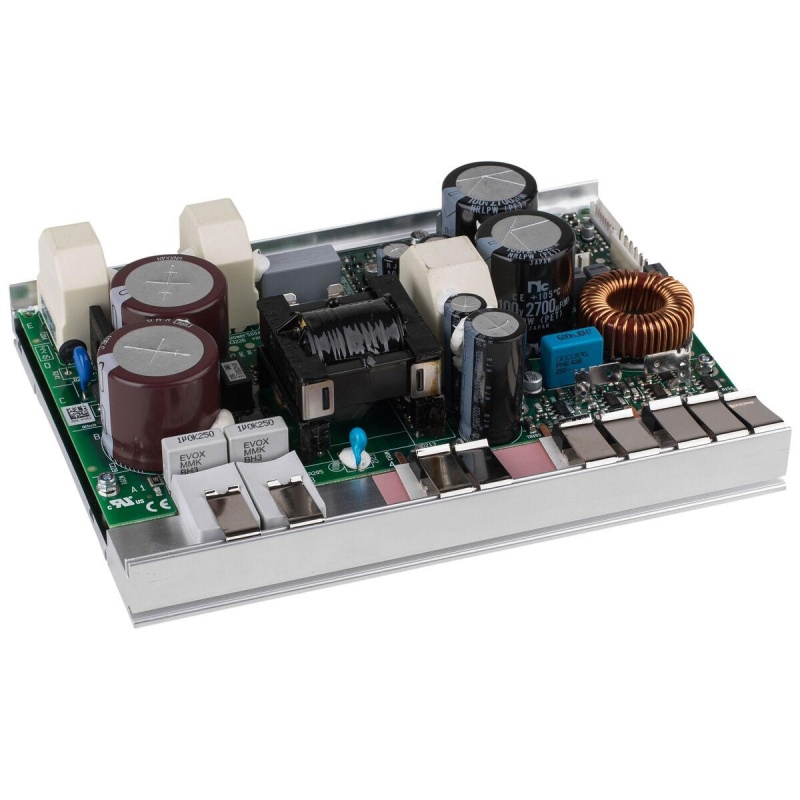

The Icepower 500ASP is a Class D audio amplifier board with a power supply module, rated at 1 x 500W. Use it to build a powered subwoofer or active speaker system, including 2-way and 3-way designs.
The amplifier delivers 500W RMS at 4 ohms, 0.05% THD+N, at 1 kHz. Frequency response is 20 Hz to 20,000 Hz across all loads, dynamic range is 115 dBA, and total efficiency is 81% at 100W and 8 ohms. Thermal overload protection is included, and the board has a 70 G-force rating.
Its DC bus provides 80 VDC at 7A, 50 VDC at 5.5A, and +/-12 VDC at a maximum of 0.8A. The 50 VDC bus can power additional amplifier boards, while the +/-12 VDC supply can serve crossover networks and preamp boards. Selectable input voltage is 115/230 VAC, 50/60 Hz; verify the jumper configuration before wiring. The 115V main fuse is 6.3A 250V, and the 230V main fuse is 3.15A 250V. A smaller 3.15A fuse is needed for 250 VAC applications.
Dimensions: 8" W x 6" D x 2-1/8" H.
