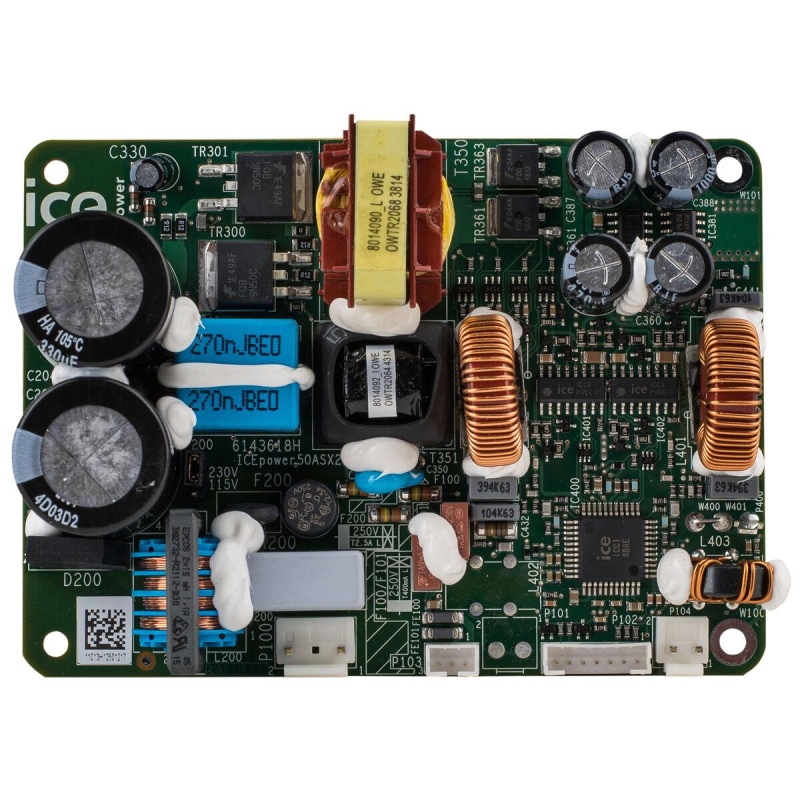

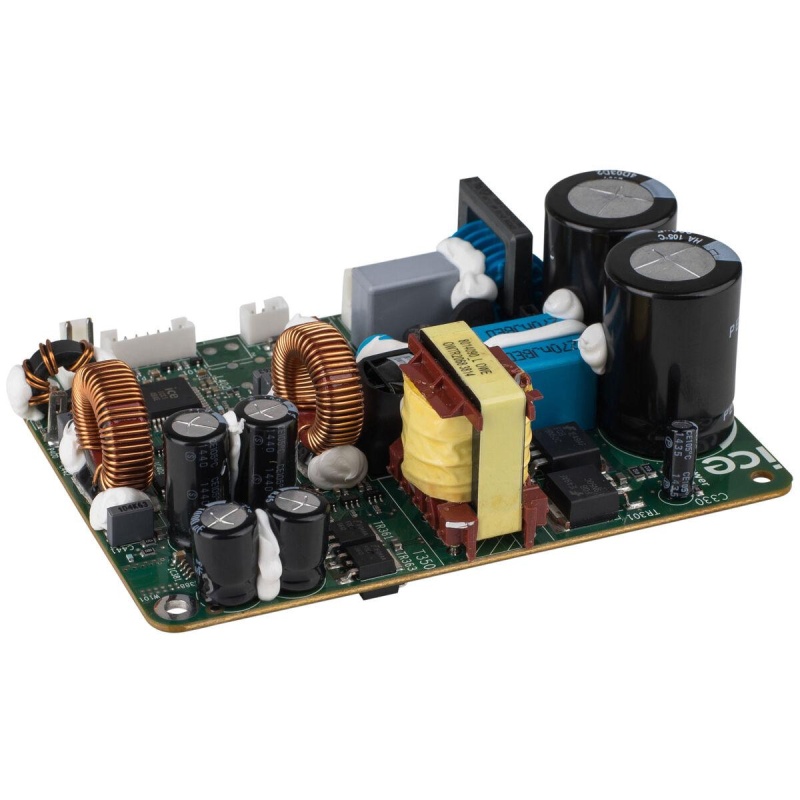

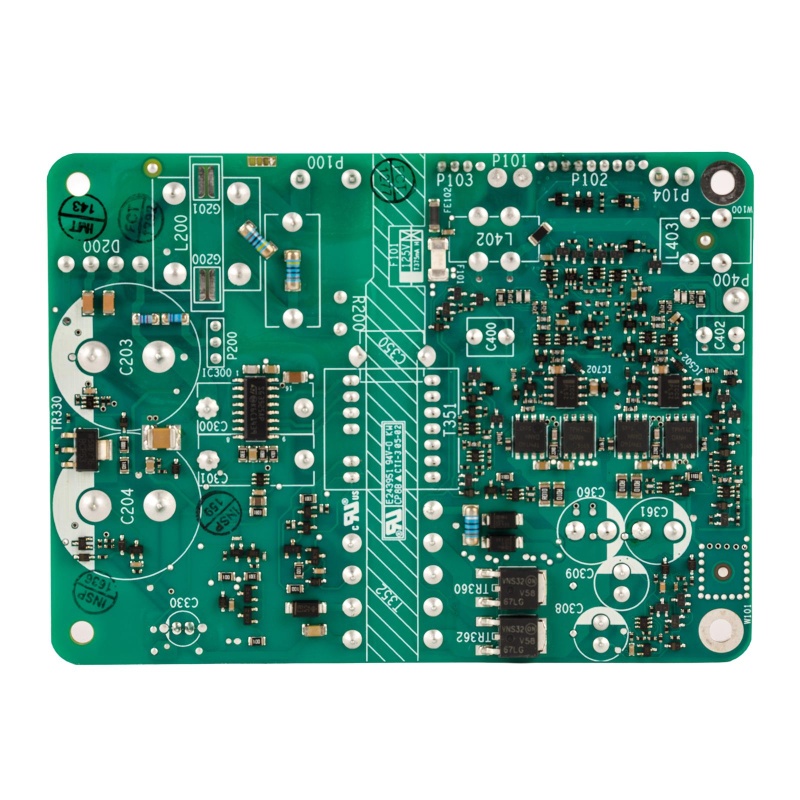

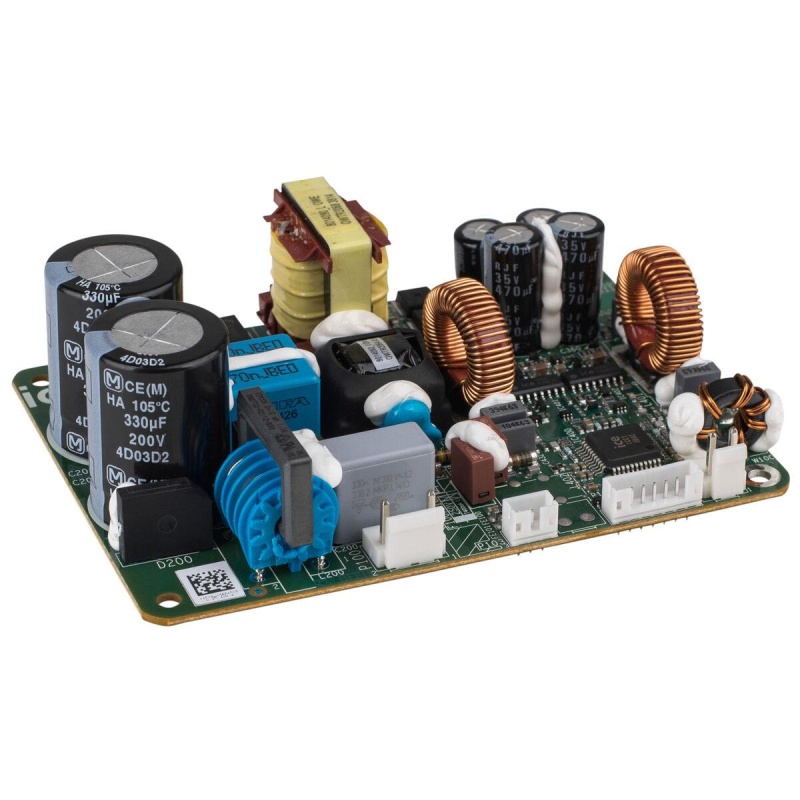

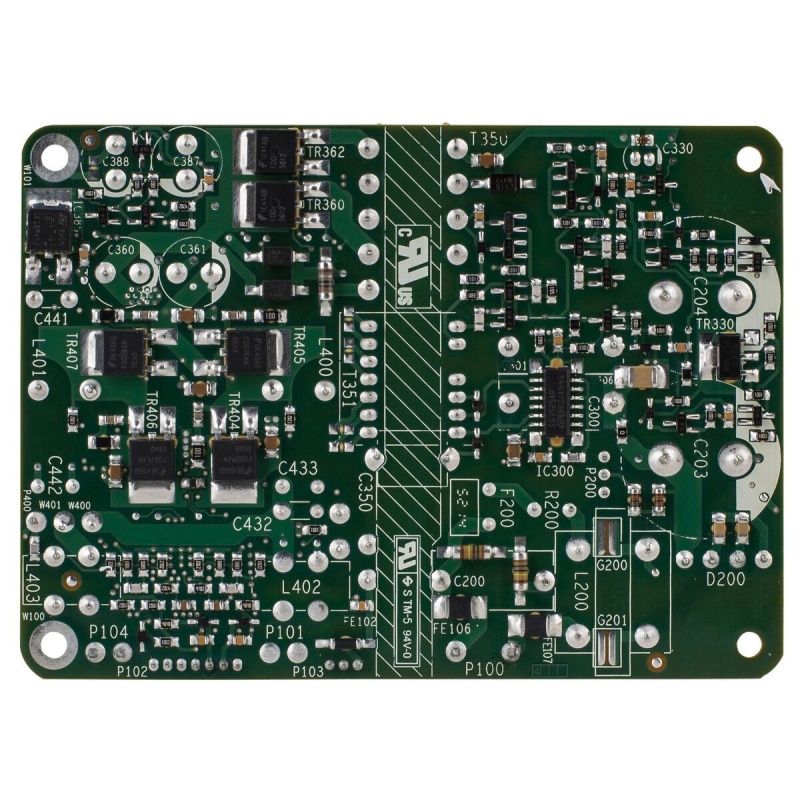

The Icepower 50ASX2BTL is a compact, fanless Class D amplifier board with a combination power supply, rated at 1 x 170W. It is suited to small active subwoofer projects and can also be used for a powered center channel or a single-channel Bluetooth speaker project with a separately sold Bluetooth receiver board.
Output is 1 x 150W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz. Frequency response is 20-20,000 Hz all loads, dynamic range is 125 dBA, and total efficiency is 81% @ 170W 4 ohm. The unregulated auxiliary power supply is +/-25 V @ 200mA; maximum output current limit is 20A. Selectable input voltage is 115/230 VAC 50/60 Hz. Dimensions are 4.34" W x 3.15" D x 1.32" H.
The ICEpower Amplifier Module 50ASX2BTL Wiring Harness Kit is required for full stand-alone functionality and is sold separately. Audio input needs to be fully balanced. Set the jumper to 115V for use in the USA, or to the correct setting for other countries.
