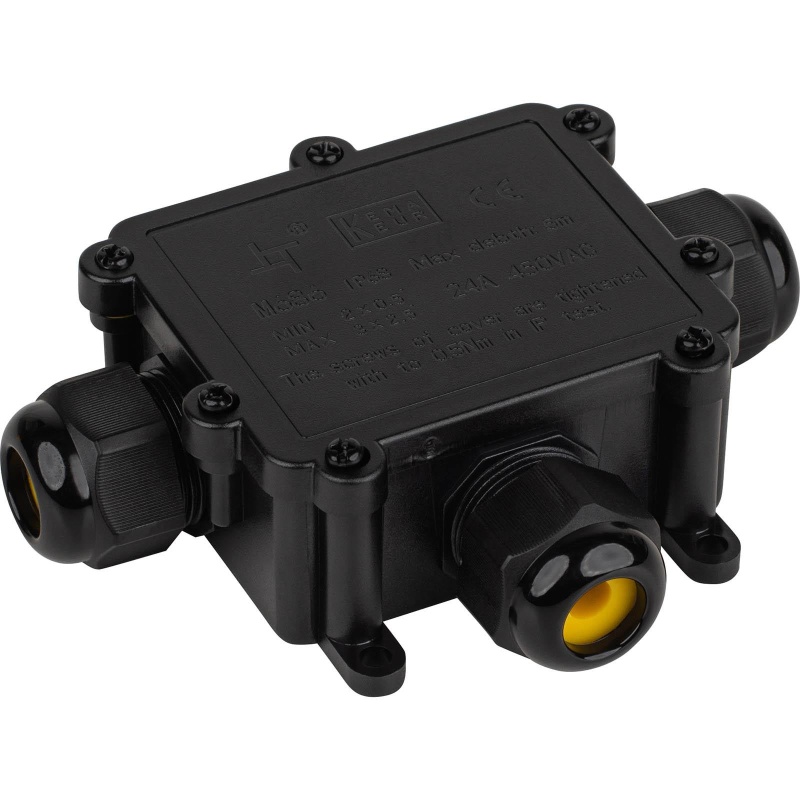

Many outdoor projects require wiring that branches off in two different directions from the main feed. This 3-way IP68 waterproof junction box protects the exposed wires plus prevents having to solder heavy gauge conductors together. The internal 4-pole European terminal strip makes it easy to install wires up to 6 AWG.

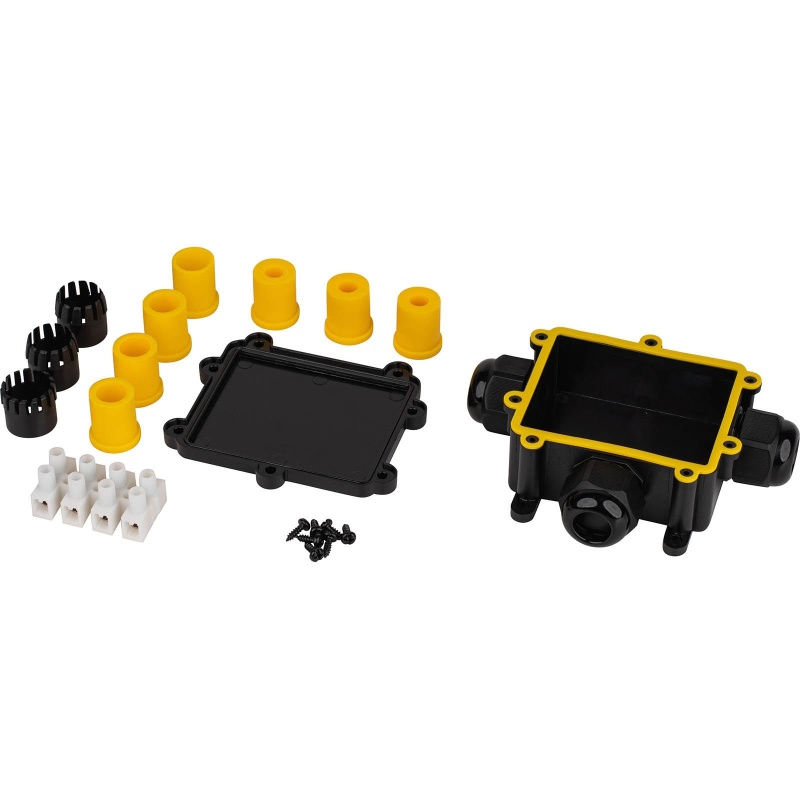

To help keep moisture out, this box comes with five soft rubber bushings to squeeze around the round wire jacket. One large bushing handles OD wire up to 1/2" (14 mm). Use this bushing to handle the main input wire which is usually the largest wire in the junction. It squeezes down to 1/3" (9 mm) if needed. Three of the bushings handle up to 13/32" (10 mm) OD wire and squeeze down to 1/5" (5 mm). One of these two may handle the main input also. The smallest three bushing inserts handle up to 5/16" OD wire and squeeze down to 1/8" (3 mm). The box, gasket, and all the bushings are ready to handle the conditions of the extreme outdoors. Whether it's sunny UV rays or heavy downpours of rain this box is ready to protect your outdoor wiring for LED lights, solar panels, outdoor speakers or other outdoor components.
Specifications:
• Outer dimensions without mounting tabs and connectors: 2.8" x 3.4" x 1.54" (71 x 86.5 x 39 mm) with lid • Inner dimensions without terminal strip: 2.22 x 2.77 x 1.08 (56.4 x 70 x 28 mm) • Waterproof connector shaft dimensions without nut or cap: 0.5" L x 0.98" Dia. (12.5 x 25 mm) • Cap nut size 0.82" H x 1.19" Dia. (21 x 30 mm) at the largest point • Wire OD accepted: 0.13" to 0.55" (3 to 14 mm) • Terminal strip: 4-pole European style 500V, 50A, 12 mm spacing and accepts 18 to 6 gauge wire
