Product Features

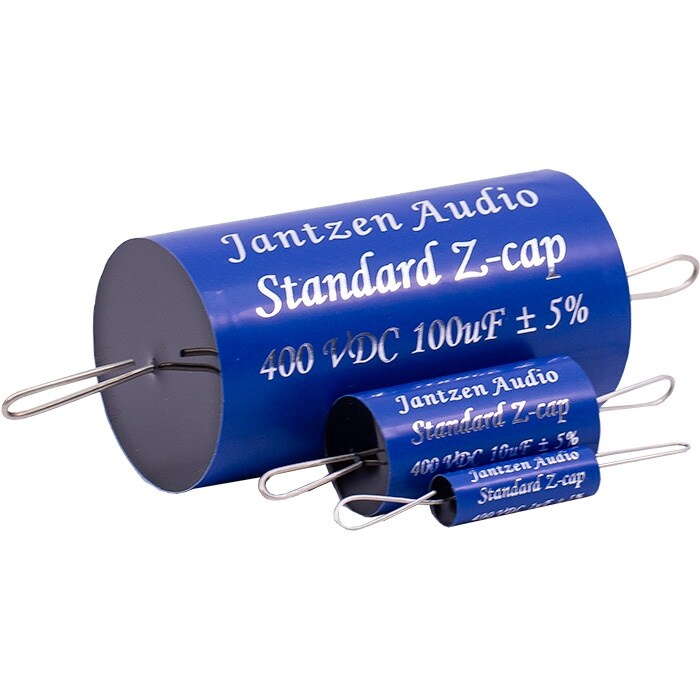

Dimensions: (Ø 43mm - L: 92mm)The Standard-Z Cap is our entry level audiophile capacitor.It is a single foil standard type MKP capacitor that uses the highest possible quality aluminum based metalized PP foil.It uses the same foil as our Superior- and Silver Z-caps, but in this application as a single foil capacitor.The Superior – and Silver Z-caps are double foil (“Super MKP”) constructions where two capacitors are essentially wound into to one housing.
A capacitor that offers great sound and performance within its class.Fast reacting, smooth and detailed in sound, compared to other single foil PP capacitors.Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.
Technical Data
Capacitor foil: Polypropylene foil metalized with Aluminum (Al)Type: Non-polarized MKP (single foil lane)Dielectric: Polypropylene filmConstruction: Round tubular type axial leadsWinding: Bifilar extended metalized foilRated Voltage: 400 VDC / 250 VACTest Voltage: 150% rated voltageElectrodes: Aluminum metallized vacuum depositedContacts: Non-inductive zinc thermally sprayed extended filmCoating: Blue plastic tape wrapped and sealed in black resinLeads: Tin plated oxygen free copperCapacitance Range: 400VDC from 1.0 μF to 100μF
Capacitance tolerance: ±5% (on nominal value)Dielectric constant: Non-polar dielectricDissipation factor: Extremely low 4 / 6Dielectric absorption factor: ＜0.5% @ 20℃Dielectric thickness: PB=5µmEquivalent series resistance: Extremely lowSelf-inductance: Insulation resistance: ＞100.000 MΩ @ 20℃Temperature coefficient: -200℃ x 10-6/℃Temperature Range: -55℃t o +85℃Metal layer thickness: PB=0.3µmMetal layer conductivity: PB =1.2 Ω/cm2
