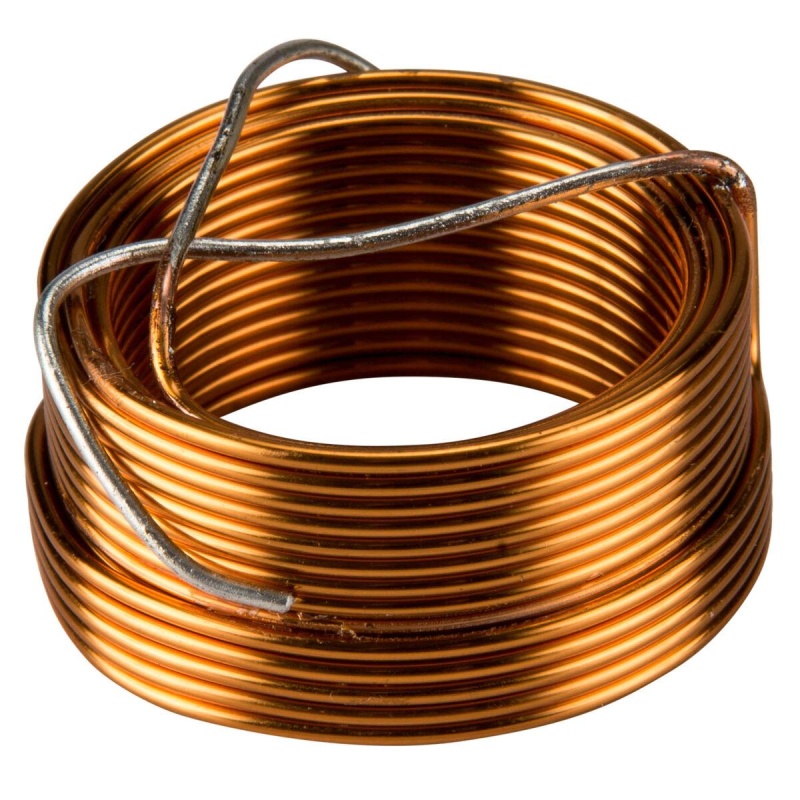

Jantzen Audio Air-Core Inductor Crossover CoilsProduct FeaturesThe Air Core Wire Coil is a very versatile coil that be used on any crossover position.
It features high-purity copper wire and is made with baked wire (bonding lacquer) that creates a perfectly shaped self-supporting and distortion-free inductor.
The modern self-supporting design means there is no need for plastic bobbins and that we can make air core coils with tighter windings compared to coils wound on a plastic bobbin.
Low inductance tolerance of +/-3%.
Technical Data
Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire with insulation and bonding lacquersInductance tolerance: +/- 3%DCR (coil resistance) tolerance: +/- 3%
Electrical properties
Inductance: 0.0500 mHDCR: 0.0900 ΩWind. Wire: 1.00 mmAWG: 18Dimensions
Inner: ø 25 mmOuter: ø 33 mmHeight: 15 mm
