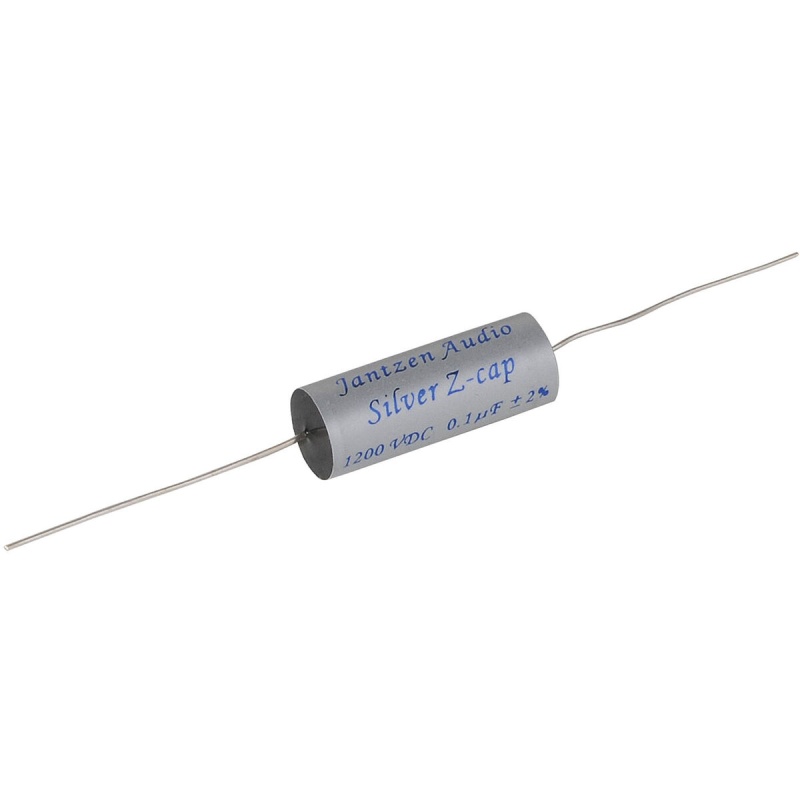

The Jantzen Audio 0.10µF 1200V Silver Z-Cap is a non-polarized super MKP crossover capacitor. Its stated applications include tweeters and mid-range in high-end passive speakers, and coupling in tube and power amplifiers.
It measures Ø 17mm × 43mm and uses pure silver lead-wires. The polypropylene-film capacitor has a double-foil construction: two capacitors are connected in series within one housing, using four times the foil of a standard metalized polypropylene foil capacitor. It has a capacitance tolerance of ±2% and contains no dielectric fluid; the description states this eliminates risks of evaporation or leakage that can shorten capacitor longevity and quality.
Technical details: double-layer round tubular construction with axial leads; bifilar extended metalized foil winding; aluminum metallized vacuum-deposited electrodes; non-inductive zinc thermally sprayed extended-film contacts; silver plastic tape-wrapped black resin coating, sealed in an anodized aluminum tube; and a test voltage of 150% of rated voltage. For 0.1 μF to 0.39μF, the voltage rating is 1200 VDC / 800 VAC; for 0.47 μF to 22μF, it is 800 VDC / 630 VAC.
Other stated specifications: non-polar dielectric; extremely low dissipation factor 4 / 6; dielectric absorption factor <0.5% @20℃; dielectric thickness PB=6µm; extremely low equivalent series resistance; self-inductance 0 nH; insulation resistance >100.000 MΩ@20℃; temperature coefficient -200℃x10-6/℃; temperature range -55℃to +85℃; metal layer thickness PB=0.4µm; and metal layer conductivity PB =2.5 Ω/cm2.
