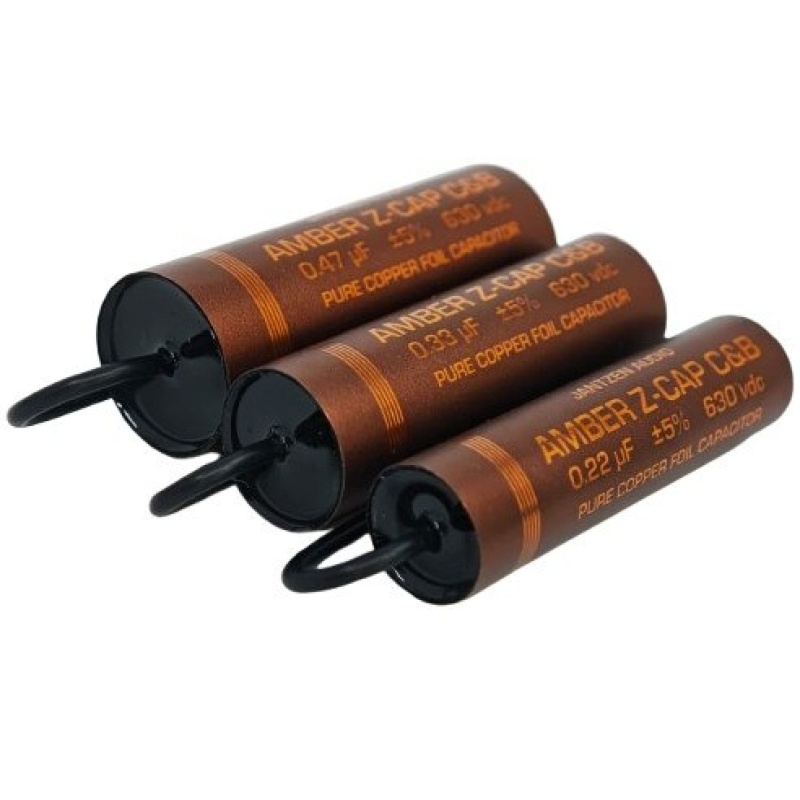

Jantzen Amber Z-Cap C&B Pure Copper Foil CapacitorsProduct Features
The Amber Z-Cap “C&B” is the newest capacitor in Jantzen's lineup. The “C&B” stands for “Coupling and Bypass”. Just as the larger capacity value Amber Z-Caps, the Amber Z-Caps C&B are super high-end pure copper foil capacitors. The sonic “flavor” of copper foil is best described as giving an even more neutral/natural depiction of vocals and instruments. This is paired with the enhancements in transparency and detail richness on an even higher level compared to many other capacitor types. Compared to the larger capacity value Amber Z-Caps, this new capacitor model comes in smaller capacity values and with a thicker dielectric insulation allowing for a voltage rating of 630 volts DC, which means that the Amber Z-Caps “C&B” have sufficient voltage rating for amplifier applications. The Amber Z-Cap C&B is a great choice when it comes to upgrading both coupling and power supply capacitors in tube (pre-amp) amplifiers and certain solid-state amplifiers and are very compact in size, which can be critical for application in the tight spacing within amplifiers. In addition, when adding a smaller value Amber Z-Cap C&B (for example 0.01 μF) as a bypass capacitor in parallel to a high-quality series capacitor in a tweeter circuit on passive speaker crossovers, it may enhance performance.Key Product NotesSuper high-end pure copper foil capacitors for upgrading coupling capacitors in tube amplifiers (pre-amp) and certain solid-state amplifiersHigh quality pure copper foil wound with high precision on specialized winding machineryCan also be used as a bypass capacitor in parallel to a high-quality series capacitor for the tweeter circuit on passive speaker crossovers Very compact in sizing compared to other 630 volt rated copper foil capacitors on the market, which makes a big difference for application in tight spacing of amplifiers
For safety reasons and to eliminate the risk of short circuiting, the Amber Z-Caps C&B capacitors do not have the decorative anodized aluminum jackets (tubes) which are used on their larger value counterparts that are for use in passive speaker crossovers only. Extremely low ESR, SEL, inductance and dielectric absorption data
Technical Data
Type: Non polarized pure copper foil capacitor Dielectric: Polypropylene film Construction: Four-layer round tubular type axial leads Winding: Pure solid copper foil spliced to polypropylene insulation film Voltage Rating: 630VDC / 350VAC Test Voltage: 150% rated voltage Electrodes: Pure copper foil Contacts: Non-inductive zinc thermally sprayed extended filmLeads: Tin plated oxygen free copper (99,99% purity) Capacity Range: 0.01 μF to 0.47 μF. Capacity tolerance: ±5% (on nominal value) Dielectric constant: Non-polar dielectricDissipation factor: Extremely lowDielectric absorption factor: ＜0.5% @20℃Dielectric thickness: PB=5µm Equivalent series resistance: Extremely low Self-inductance: 0 nH Insulation resistance: ＞100.000 MΩ@20℃ Temperature coefficient: -200℃x10-6/℃ Temperature Range: -55℃to +85℃ Metal layer thickness: PB=0.3µm Metal layer conductivity: PB =1.2 Ω/cm2
Capacity: 0.33µFVoltage: 630VDiameter Ø: 19 mm / 0.75"Length: 62 mm / 2.44"
