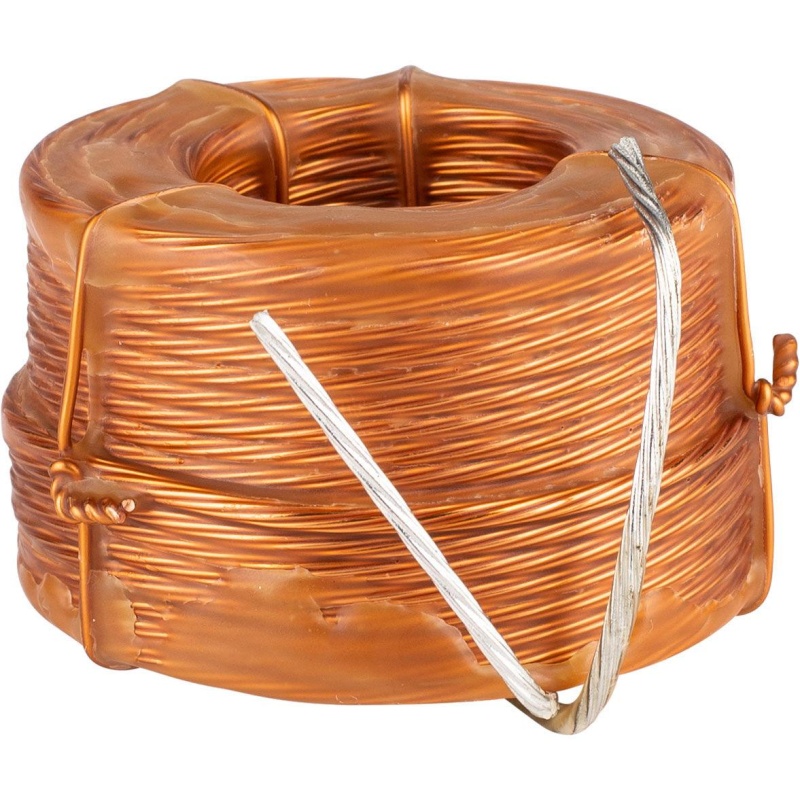

Jantzen Audio Litz Wire Wax InductorsProduct FeaturesThe Litz Wire Wax Coil is the only wax impregnated litz wire coil on the market.
The Litz Wire Wax Coil was co-engineered with Audiothlon in Poland.
Audiothlon was looking for an inductor with a price-point and performance level placed somewhere in the middle between wire-based and foil-based inductors.
The advantage of Litz Wire Coils is that they have many of the advantageous properties of foil-based inductors but are smaller in size and lower in cost.
Depending on the specific crossover design, the litz wire coils can be a good substitute for foil-based inductors.
Litz wire enables inductors to have reduced skin effect and lowered resistance, which in turn offers more dynamic headroom, compared to single wire-based inductors.
The wax impregnation secures the integrity of the windings and greatly reduces unwanted distortion and microphonic effect
Technical Data
Made from ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire Available in 14 AWG (7 x 0,63 mm stranded wires) and 15 AWG (7 x 0.5 mm stranded wires) Wax impregnated to greatly reduce unwanted distortion and microphonic effect The wire is designed to reduce skin and proximity effect losses in conductors up to frequencies of approx. 1 MHz Inductance tolerance: ±3% DCR (coil resistance) tolerance: ±5%Electrical Properties
Inductance: 0.4700 mHDCR: 0.2200 ΩWind. Wire: 1.40 mmAWG: 15Dimensions
Inner ø: 25 mmOuter ø: 58 mmHeight: 30 mm
