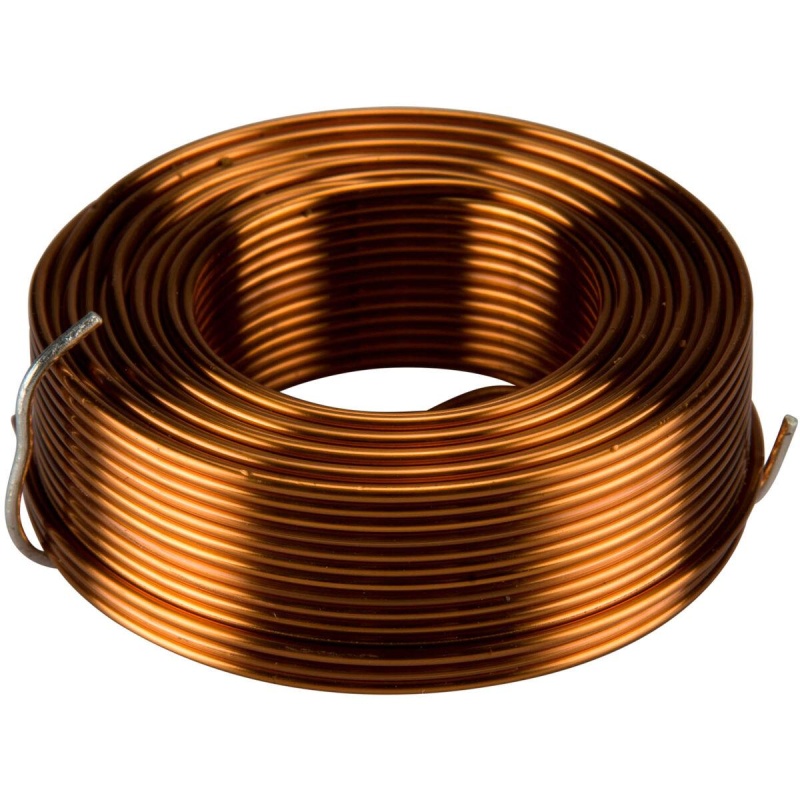

The Jantzen Audio air-core inductor crossover coil is designed for use in any crossover position. It uses high-purity copper wire with baked bonding lacquer to form a self-supporting, distortion-free coil. Its design needs no plastic bobbin and allows tighter windings than coils wound on a plastic bobbin.
The coil is wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire with insulation and bonding lacquers. Inductance is 0.5600 mH with an inductance tolerance of +/-3%; DCR is 0.3400 Ω with a DCR tolerance of +/-3%. The winding wire is 1.00 mm (18 AWG).
Dimensions: inner diameter ø 25 mm, outer diameter ø 47 mm, and height 15 mm.
