Product Features

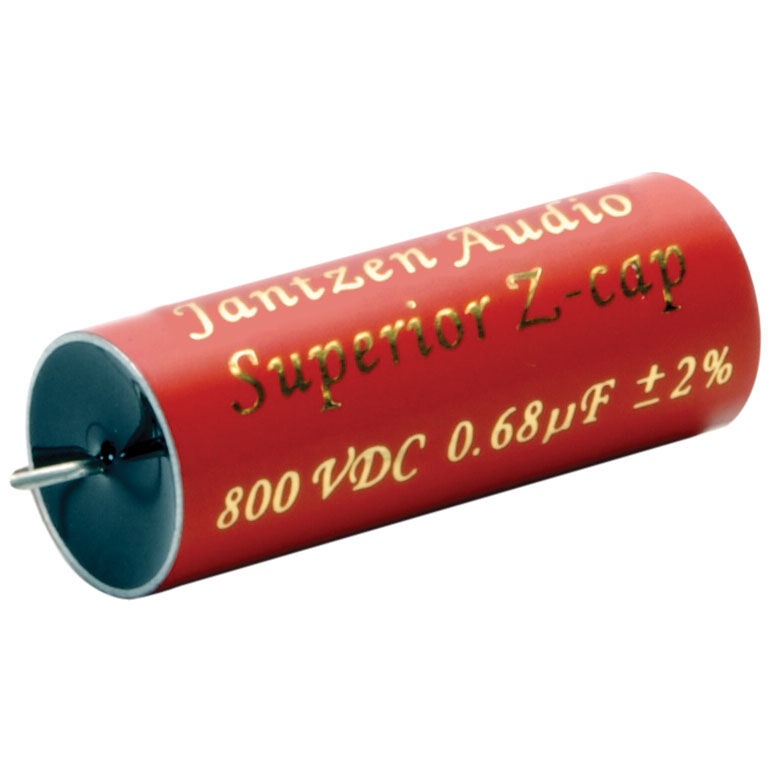

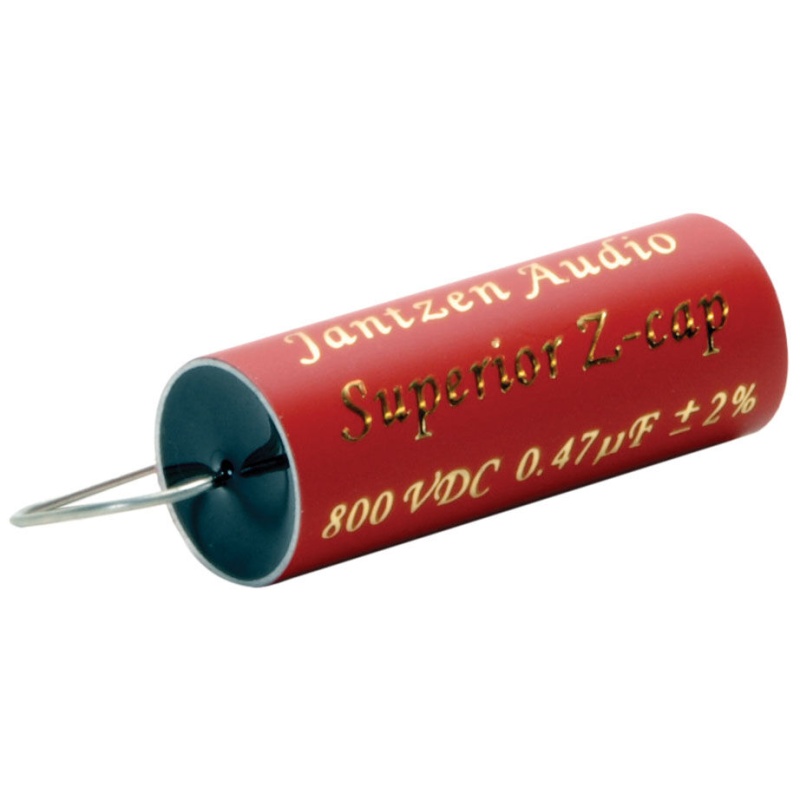

Dimensions: (Ø 17mm - L: 43mm)The Superior-Z Cap offers extremely high performance, but still at a reasonable price point.Highly recommended for tweeters and mid-range application for high-end passive speaker crossovers and as coupling capacitors in tube and power amplifiers.The Superior Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super MPK Capacitor”.Super MKP capacitors are made with a double lane of metalized polypropylene foil, hence a double foil construction.By using special winding machines and winding techniques, two capacitors are connected in series within one capacitor housing,
When making this type of capacitor you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.
Technical Data
Type: Non-polarized super MKP (double foil lanes)Dielectric: Polypropylene filmConstruction: Double-layer round tubular type axial leadsWinding: Bifilar extended metalized foilTest Voltage: 150% rated voltageElectrodes: Aluminum metallized vacuum depositedContacts: Non-inductive zinc thermally sprayed extended filmCoating: Red plastic tape wrapped black resin, sealed in an anodized aluminum tubeLeads: Tin plated oxygen free copperVoltage rating: 800 VDC / 630 VAC
California Prop 65: This product can expose you to chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Capacitance tolerance: ±2% (on nominal value)Dielectric constant: Non-polar dielectricDissipation factor: Extremely low 4 / 6Dielectric absorption factor: ＜0.5% @ 20℃Dielectric thickness: PB=6µmEquivalent series resistance: Extremely lowSelf-inductance: 0 nHInsulation resistance: ＞100.000 MΩ @ 20℃Temperature coefficient: -200℃ x 10-6/℃Temperature Range: -55℃ to +85℃Metal layer thickness: PB=0.4µmMetal layer conductivity: PB =2.5 Ω/cm2
