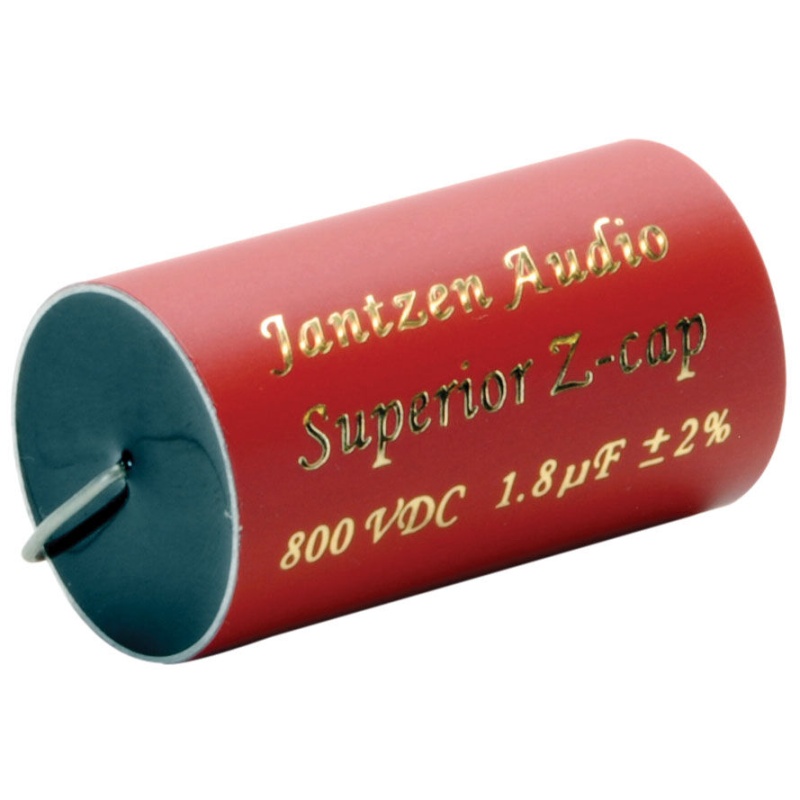

The Jantzen Audio 1.8 µF 800V Superior Z-Cap is a non-polarized Super MKP capacitor for high-end passive speaker crossovers, especially tweeter and mid-range applications, and for coupling in tube and power amplifiers. Dimensions: Ø 26mm × 45mm.
Its metalized polypropylene foil uses a double-lane, double-foil construction, with two capacitors connected in series inside one housing. This design uses four times the foil of a standard metalized polypropylene foil capacitor and is made using special winding machines and techniques. Capacitance tolerance is ±2%. Jantzen does not fill the capacitor with dielectric fluid, avoiding the risks of evaporation or leakage that can shorten capacitor longevity and quality.
Electrical specifications: Rated voltage: 800 VDC / 630 VAC; test voltage: 150% of rated voltage; dielectric: polypropylene film; dielectric constant: non-polar dielectric; dissipation factor: extremely low 4 / 6; dielectric absorption factor: <0.5% @ 20℃; dielectric thickness: PB=6µm; equivalent series resistance: extremely low; self-inductance: 0 nH; insulation resistance: >100.000 MΩ @ 20℃; temperature coefficient: -200℃ x 10-6/℃; temperature range: -55℃ to +85℃.
Construction specifications: Double-layer round tubular type with axial leads; bifilar extended metalized foil winding; aluminum metallized vacuum-deposited electrodes; non-inductive zinc thermally sprayed extended-film contacts; red plastic tape wrapped black resin coating, sealed in an anodized aluminum tube; tin-plated oxygen-free copper leads. Metal layer thickness: PB=0.4µm; metal layer conductivity: PB =2.5 Ω/cm2.
