Product Features

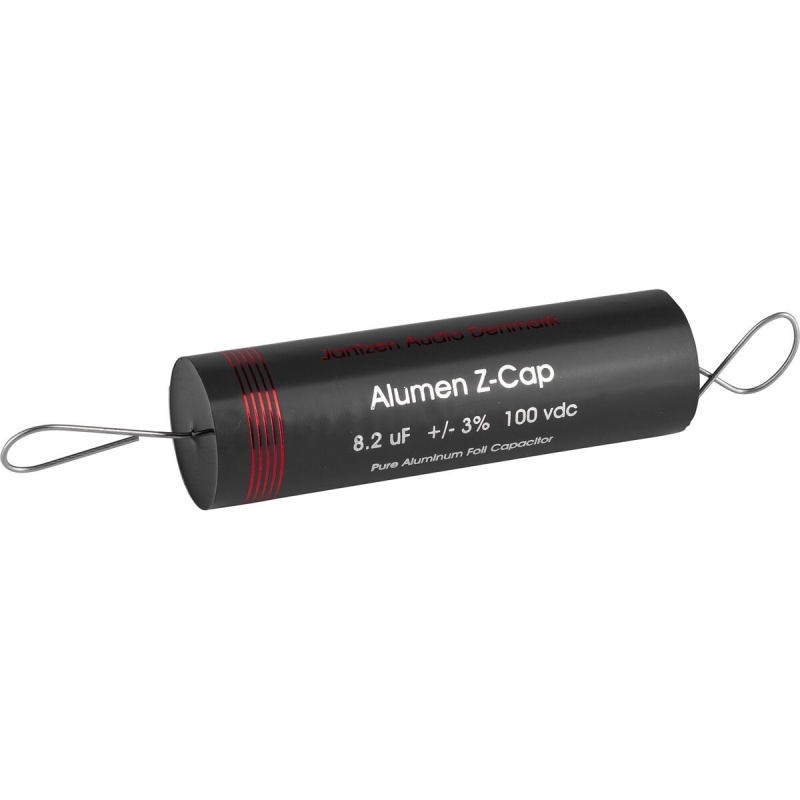

Dimensions: (Ø 31mm - L: 105mm)The Alumen Z-Cap is a high-end pure aluminum foil capacitor, designed specifically for passive crossovers (tweeters and midrange drivers).It utilizes a much thinner dielectric insulation compared to the market standard.A high voltage rating is not needed for application related to passive loudspeaker crossovers.The usage of a thinner dielectric insulator allows for a capacitors with less “memory” and one that is much faster reacting.The Alumen Z-Cap offers unparalleled value for money in terms of cost versus performance.Compared to the Superior and Silver Z-Caps (Super MKP / double metallized polypropylene foil) capacitors, the Alumen Z-Cap will bring less brightness and a little more natural top end balance to your system.Ideal for audio aficionados who prefer a slightly less bright system, while also hearing improvements in the overall naturalness/neutrality of the whole system.Due to the max. 100 volts DC voltage rating, we advise customers to be mindful when using Alumen Z-Caps for tube/valve and power amplifier application.For upgrading the coupling capacitors in amplifiers, we instead recommend choosing our Superior or Silver Z-Caps (Double-foil Super MKP capacitors).
Technical Data
Type: Non polarized pure aluminum foil capacitorDielectric: Polypropylene filmConstruction: Four-layer round tubular type axial leadsWinding: Aluminum foil spliced to polypropylene insulation filmRated Voltage: 100 VDC / 65 VACTest Voltage: 150% rated voltageElectrodes: Pure copper foilContacts: Non-inductive zinc thermally sprayed extended filmCoating: Gray plastic tape wrapped black resin, sealed in an anodized aluminum tubeLeads: Tin plated oxygen free pure copperCapacitance Range: 100VDC from 1.0 μF to 10μFCapacitance tolerance: ±3% (on nominal value)Dielectric constant: Non-polar dielectricDissipation factor: Extremely lowDielectric absorption factor: ＜0.5% @20℃Dielectric thickness: PB=4µmEquivalent series resistance: Extremely lowSelf-inductance: 0 nHInsulation resistance: ＞100.000 MΩ@20℃Temperature coefficient: -200℃x10-6/℃Temperature Range: -55℃to +85℃Metal layer thickness: PB=0.3µmMetal layer conductivity: PB =1.2 Ω/cm2
Key Innovations
Ultra-thin dielectric insulation to eliminate memory effect in the capacitorAn extremely fast reacting capacitor• Very low ESR, SEL, inductance and dielectric absorption dataHigh quality pure aluminum foil wound with highly specialized machinery and precision winding techniquesSpecifically designed for the tweeter and mid-range section of passive crossoversCan also be used as coupling capacitors for transistor amplifiers
