Product Features

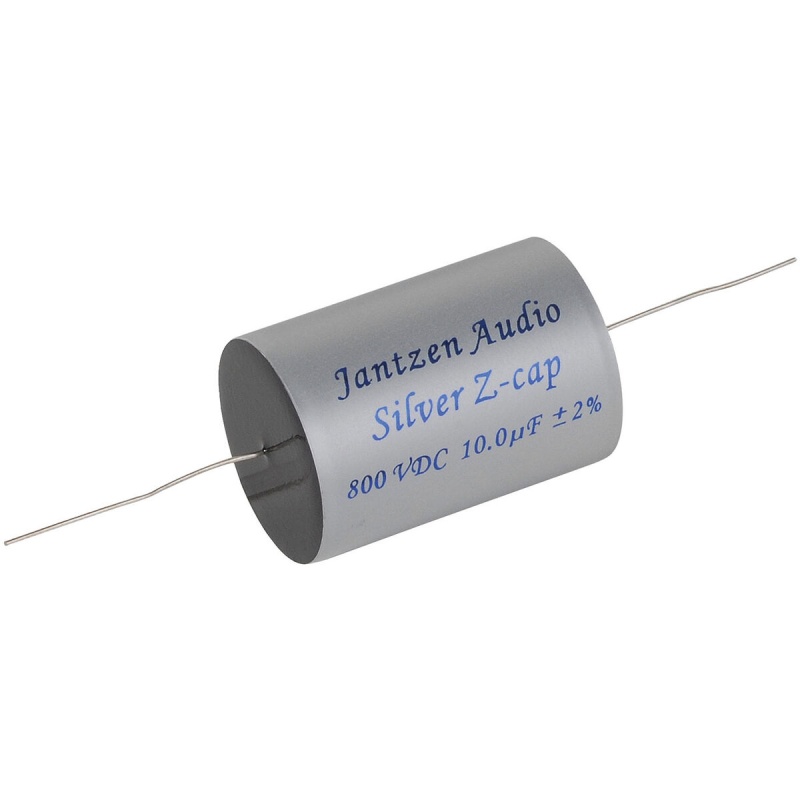

Dimensions: (Ø 46mm - L: 70mm)Where the Superior Z-Cap is made with pure copper lead-wires, the Silver Z-Cap is made with pure silver lead-wires, changing the sound characteristics of the capacitor slightly.Highly recommended for tweeters and mid-range application for high-end passive speakers and as coupling capacitors in tube and power amplifiers.The Silver Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super MPK Capacitor”.Super MKP capacitors are made with a double lane of metalized polypropylene foil, hence a double foil construction.
By using special winding machines and winding techniques, two capacitors are connected in series within one capacitor housing,When making this type of capacitor you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.
Technical Data
Type: Non-polarized super MKP (double foil lanes)Dielectric: Polypropylene filmConstruction: Double-layer round tubular type axial leadsWinding: Bifilar extended metalized foilTest Voltage: 150% rated voltageElectrodes: Aluminum metallized vacuum depositedContacts: Non-inductive zinc thermally sprayed extended filmCoating: Silver plastic tape wrapped black resin, sealed in an anodized aluminum tubeLeads: Pure silverVoltage rating: 1200 VDC / 800 VAC from 0.1 μF to 0.39μF 800 VDC / 630 VAC from 0.47 μF to 22μF
Capacitance tolerance: ±2% (on nominal value)Dielectric constant: Non-polar dielectricDissipation factor: Extremely low 4 / 6Dielectric absorption factor: ＜0.5% @20℃Dielectric thickness: PB=6µmEquivalent series resistance: Extremely lowSelf-inductance: 0 nHInsulation resistance: ＞100.000 MΩ@20℃Temperature coefficient: -200℃x10-6/℃Temperature Range: -55℃to +85℃Metal layer thickness: PB=0.4µmMetal layer conductivity: PB =2.5 Ω/cm2
