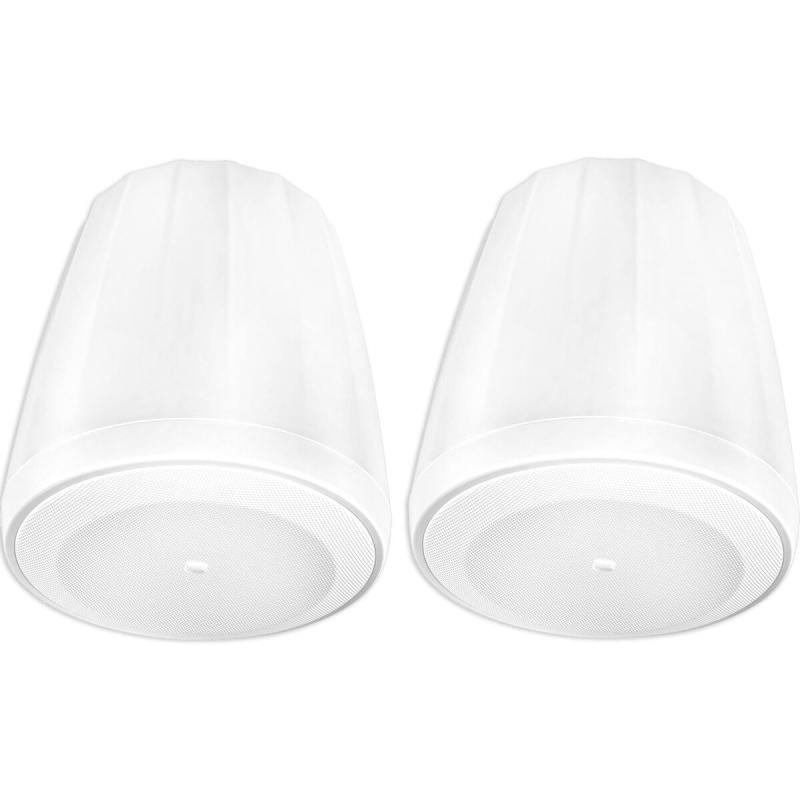

The Control 64P/T-WH by JBL is an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, cafes, leisure venues, and anywhere open architecture or high ceilings make pendant speakers necessary or desirable.
JBL's Control Series speakers are loaded with complication-reducing innovations. Rugged molded high-impact polystyrene (HIPS) enclosures balance mass, strength, and resonance, perfectly complementing their respective transducers. The symmetrical 120° dispersion geometry delivers precise directability and control. Compact design dimensions make the Control Series unobtrusive in any decor. The suspension system and Gripple®-brand cable fastener (UL1598 and UL2239) and factory-installed autoformers (UL1876) take the headaches out of installation.
Extensive use of high-tech materials adds years to speaker life expectancy while increasing weather resistance. The Control 64P/T-WH exceeds MilSpec 810 for humidity, salt-spray, temperature & UV, and IP44 splash-proof rating per IEC 529, among other agency ratings.
Specifications: • Frequency range (-10 dB): 65 - 15,000 Hz • Frequency response (±3 dB): 85 - 14,000 Hz • Power rating: 100W continuous program (2 hrs.); 50W (200W peak) continuous pink noise (2 hrs.); 40W (160W peak) continuous pink noise (100 hrs.) • Maximum input voltage: 18.2 VRMS (2 hrs.), 36.4 V peak • Nominal sensitivity: 88 dB • Coverage angle: 120° (averaged 1 kHz to 4 kHz) • Directivity (Q): 6.2 • Directivity index (DI): 7.3 dB (averaged 1 kHz to 16 kHz) • Rated maximum SPL (1m): 105 dB continuous, 111 dB peak • Rated impedance: 8 ohms • Transformer taps: (70V) 30W, 15W, 7.5W, 3.7W; (100V) 30W, 15W, 7.5W • Transformer insertion loss: 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W • Environmental: exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating • Termination: two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire; connectors paralleled for input and loop-thru; max. wire 12 AWG (2.5 mm²); rubber terminal covers included • Suspension: two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft.) long 2 mm (0.077") high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple®-brand adjustable-height cable fasteners for infinitely adjustable height; cables have SWL rating of 45 kg (99 lb) • Safety agency ratings: speaker listed per UL1480, transformer registered per UL1876; in accordance with IEC60849/EN60849; suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81 • Dimensions: 9.3" diameter, 10.2" height, 11" height to top of suspension bracket • Item weight (each speaker): 5.2 lbs. (2.35 kg).
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
