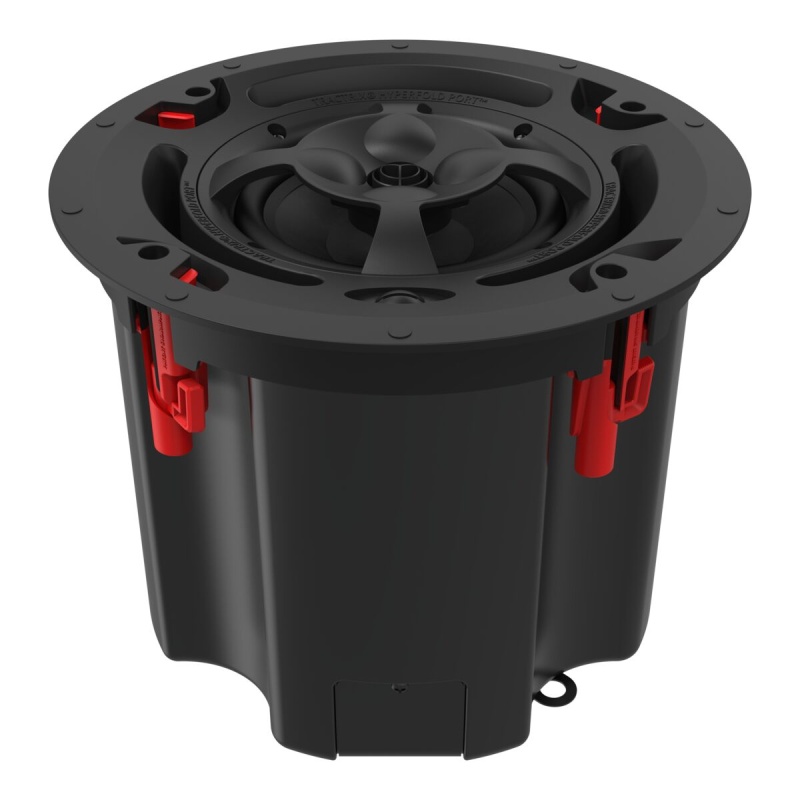

Klipsch PIC Professional In-Ceiling SpeakersMore Bass, Less Space with the All-New Tractrix® Hyperfold Port™ Klipsch focuses on high efficiency and low distortion. Continuing that legacy, the all-new patented Tractrix® Hyperfold Port™ is engineered with a proprietary five-step folded design to extend port length for maximum bass power. Increased airflow eliminates chuffing and port noise while delivering a wider dispersion pattern for larger coverage areas.

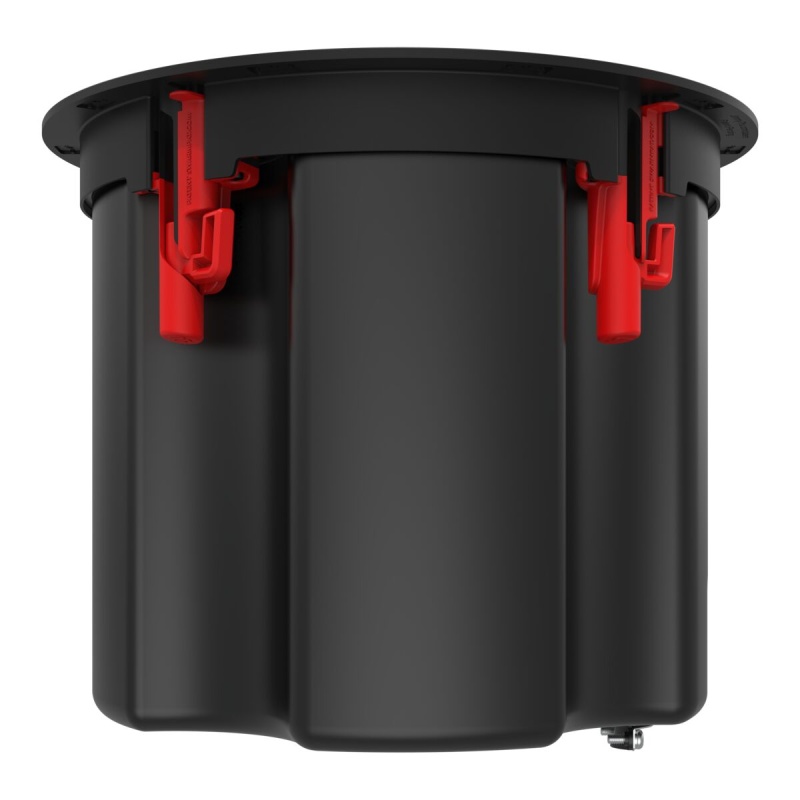

Exclusive Patented Sky Hook® Pro System for Faster, Tool-Free Installation The Klipsch PIC Series is designed for quick and simple installation once the hole is cut. Featuring the exclusive patented Sky Hook® Pro, the tool-free system allows you to install without worrying about torque settings or even needing a screw gun. With a simple click of four buttons, the PIC Series is securely in place.
IPX5 Rated for Challenging Commercial Environments Built for demanding commercial use worldwide, this product in the Klipsch PIC Series is IPX5 Rated. This rating provides maximum weather resistance, giving clients peace of mind in even the toughest conditions.

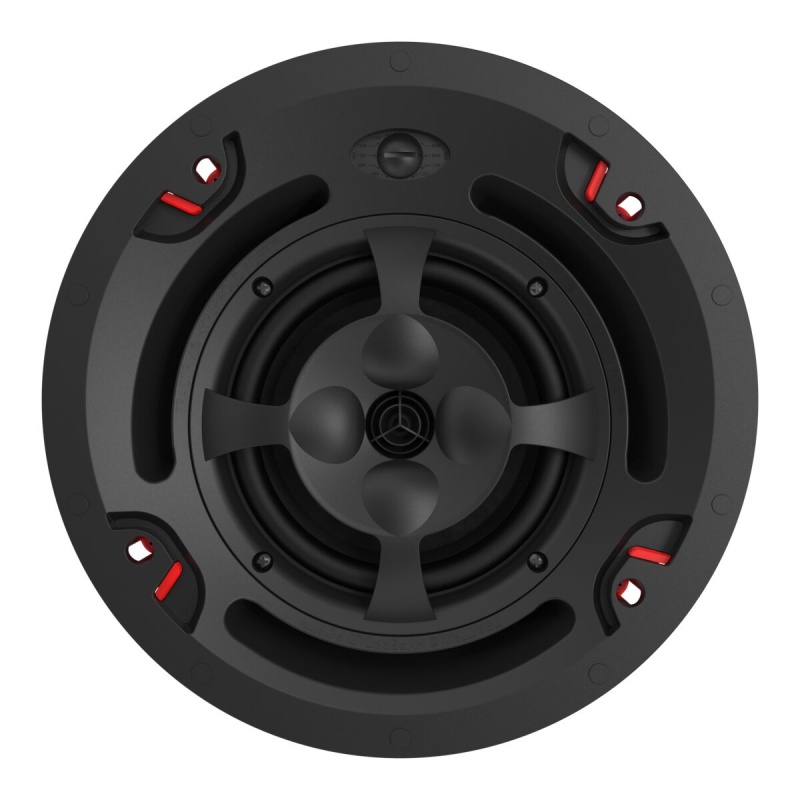

1" Titanium Compression Driver for Effortless, High-Clarity Detail Outperforming the competition, the all-new 1” Titanium-loaded floating driver bridge includes a wide dispersion phase plug. Combined with Klipsch’s patented Mumps technology, the PIC Series delivers extra-wide coverage with consistent, even energy across any space.

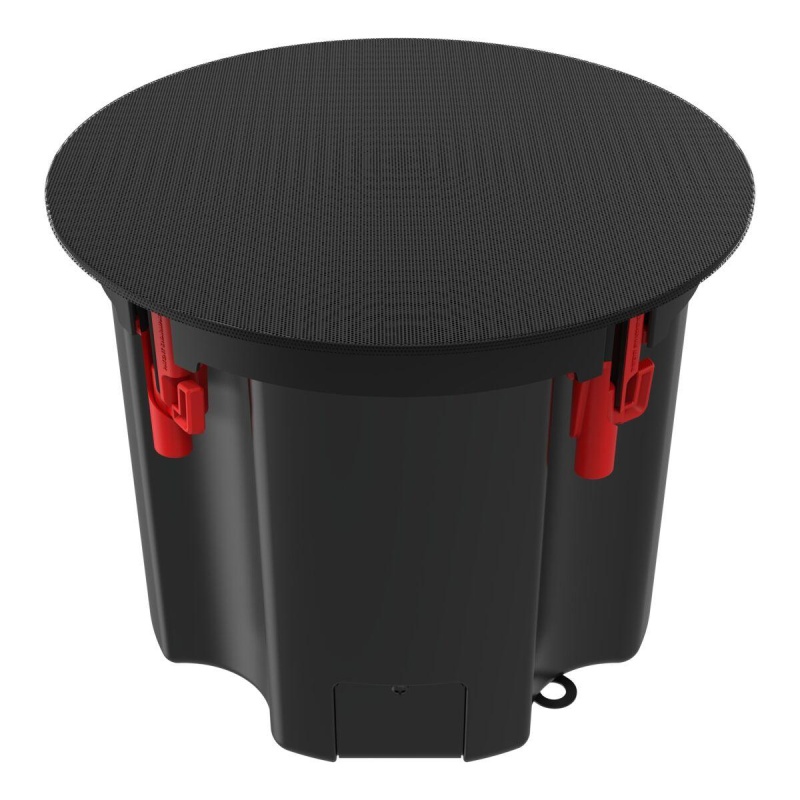

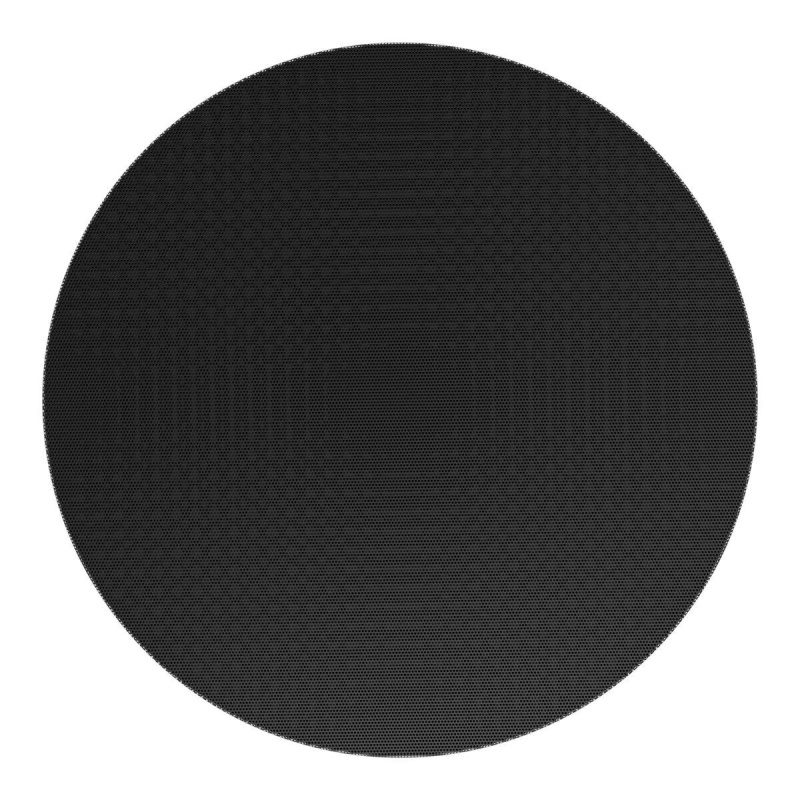

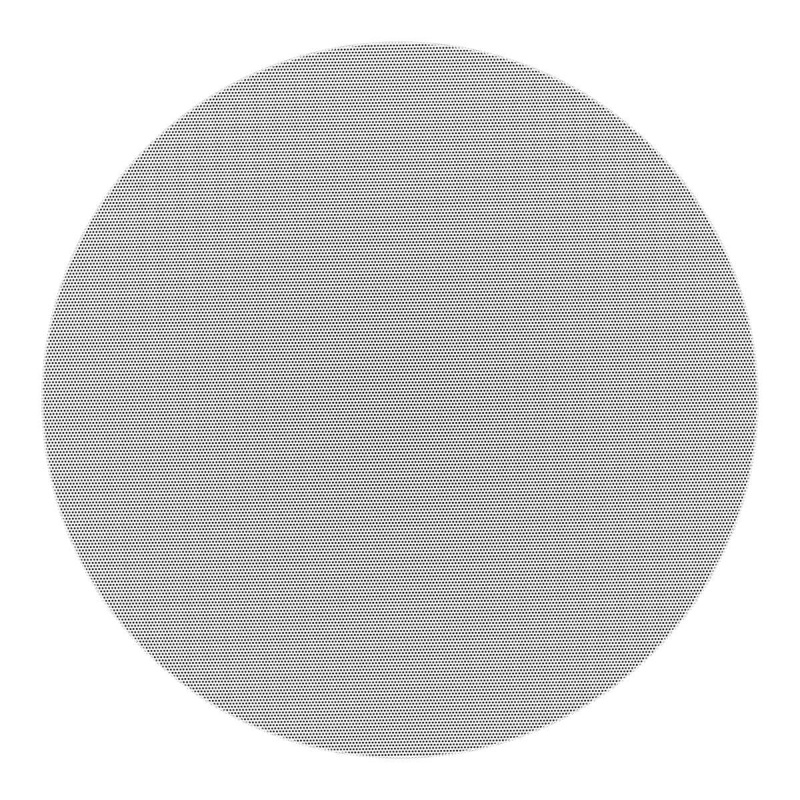

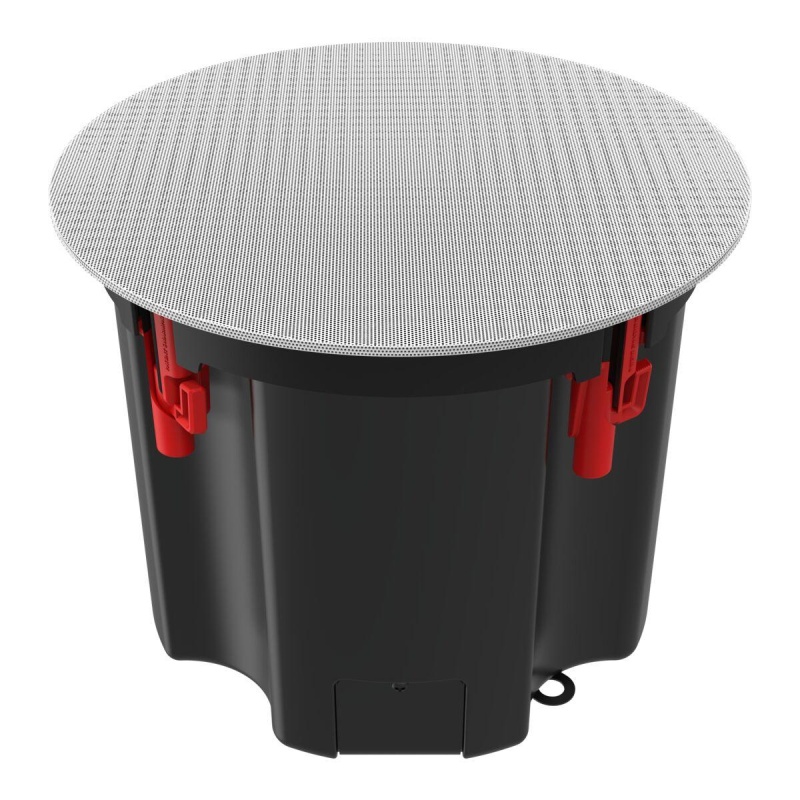

Black and White Paintable Grille Options Included Designed to blend into any environment, the Klipsch PIC Series comes packaged with both black and white grilles.

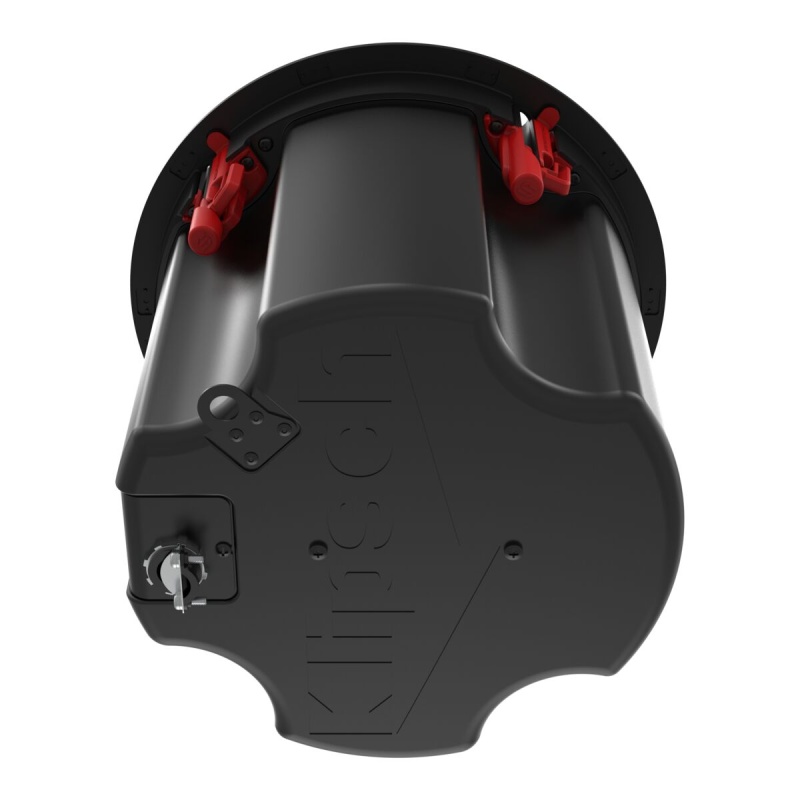

Phoenix Connectors for Simplified Installation For quick and intuitive setup, the PIC Series uses a phoenix connector that simplifies the installation process.
Use as a Pendant SpeakerWith the addition of the Klipsch KPH-650 housing, turn this ceiling speaker into a pendant speaker. This provides the same efficiency and clarity of the PIC and IC series in a suspended design ideal for distributed sound in high-ceiling installations. Available in and .
Specifications PIC-450-TPIC-525-TPIC-525-T-SCPIC-650-TPIC-800-TPIC-800-SWFrequency Response 64Hz-20kHz +/- 4dB, 54Hz -10dB 62Hz-20kHz +/- 4dB, 52Hz -10dB 95Hz-20kHz +/- 4dB, 60Hz -10dB 60Hz-20kHz +/- 4dB, 50Hz -10dB 56Hz-20kHz +/- 4dB, 46Hz -10dB 40Hz-200Hz +/- 4dB, 32Hz -10dB Power Handling50 watts (14.6V) 58Hz-10kHz (200 watts peak) 65 watts (16.7V) 55Hz-10kHz (260 watts peak) 65 watts (16.7V) 55Hz-10kHz (260 watts peak) 80 watts (19V) 53Hz-10kHz (320 watts peak) 100 watts (21V) 50Hz-10kHz (400 watts peak) 150 watts (25.4V) 40Hz-200Hz (600 watts peak) Calc. Max. Cont. Output102dB104dB104dB106dB109dB108dBSensitivity88dB89dB89dB90dB92dB89dBCoverage90° +/- 40° 1kHz-20kHz 100° +/- 20° 1kHz-20kHz 100° +/- 20° 1kHz-20kHz 100° +/- 20° 900Hz-20kHz 100° +/- 20° 1kHz-20kHz — Directivity Index7dB +/- 3dB 800Hz-20kHz 7dB +/- 1.5dB 1kHz-20kHz 7dB +/- 1.5dB 1kHz-20kHz 7dB +/- 1.5dB 800Hz-20kHz 7dB +/- 1.5dB 800Hz-20kHz — Nominal Impedance8 ohms, 4.3 ohms at 185Hz minimum 8 ohms, 4.3 ohms at 175Hz minimum 8 ohms, 4.3 ohms at 175Hz minimum 8 ohms, 4.5 ohms at 160Hz minimum 8 ohms, 4.2 ohms at 150Hz minimum 8 ohms, 4.2 ohms at 40Hz minimum Acoustic Crossover2kHz2kHz 2kHz 2kHz 2kHz — Transducers4.5” woofer 1” titanium compression driver, on a K-1500 TRACTRIX horn/tweeter bridge 5.25” woofer 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge 5.25” woofer 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge 6.5” woofer 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge 8” woofer 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge 8" WooferEnclosure MaterialAll Weather Abs Plastic, Paintable; Metal Can All Weather Abs Plastic, Paintable; Metal Can All Weather Abs Plastic, Paintable; Metal Can All Weather Abs Plastic, Paintable; Metal Can All Weather Abs Plastic, Paintable; Metal Can All Weather Abs Plastic, Paintable; Metal Can IP RatingIPX6IPX5IPX5 IPX5 IPX5 IPX6 Enclosure TuningVented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Input Connectors4 pin euro block 4 pin euro block 4 pin euro block 4 pin euro block 4 pin euro block 4 pin euro block Transformers Taps70V: 15W, 7.5W, 3.8W, 1.9W 100V: 15W, 7.5W, 3.8W Bypass position: 8 ohms nominal 70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 7.5W, 3.8W Bypass position: 8 ohms nominal 70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 7.5W, 3.8W Bypass position: 8ohms nominal 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 7.5W Bypass position: 8 ohms nominal 70V: 100W, 50W, 25W,12.5W 100V: 100W, 50W, 25W Bypass position: 8ohms nominal 70V: 70W, 35W 100V: 70W, 35W Bypass position: 8ohms nominal Cutout Dimension9.125"9.125"10.125" 10.125"12.5"12.5"Mounting Depth7.313"7.313"3.875"9.438"10.313"10.313"Overall Depth7.438"7.438"4.438"9.563"10.375"10.375"Overall Width10.625"10.625"11.25"11.25"13.625"13.625"Thru Hole Width8.875"8.875"10"10"12.313"12.313"Weight8 lbs.9 lbs.8 lbs.11 lbs.17 lbs.27 lbs.
