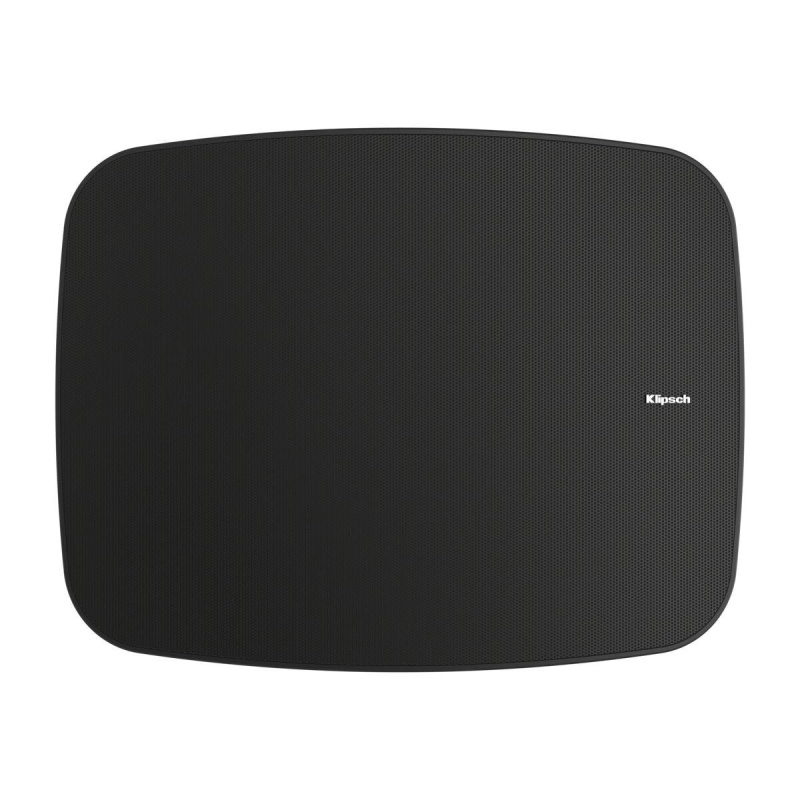

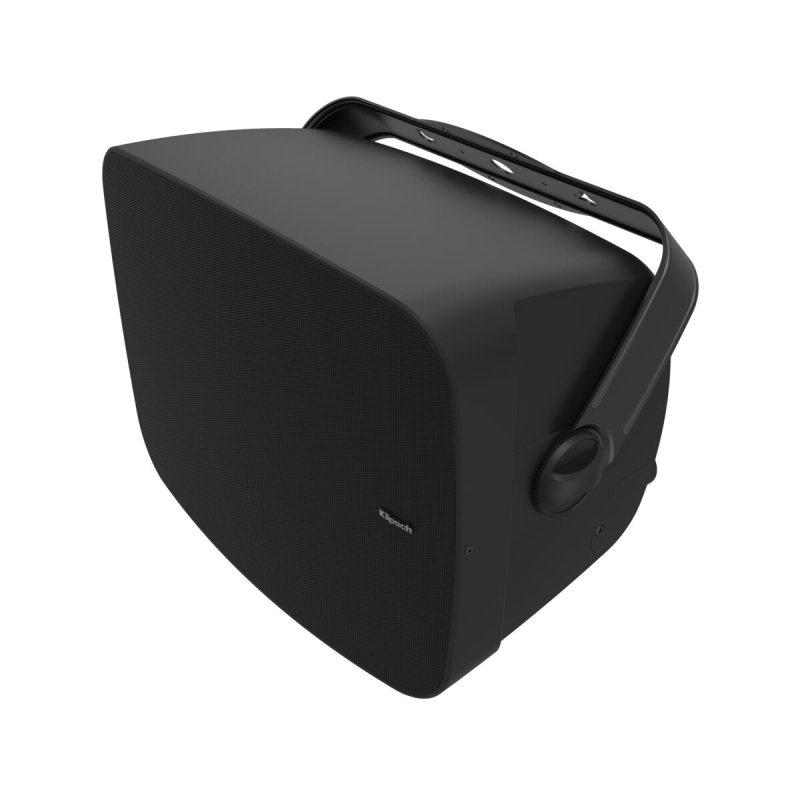

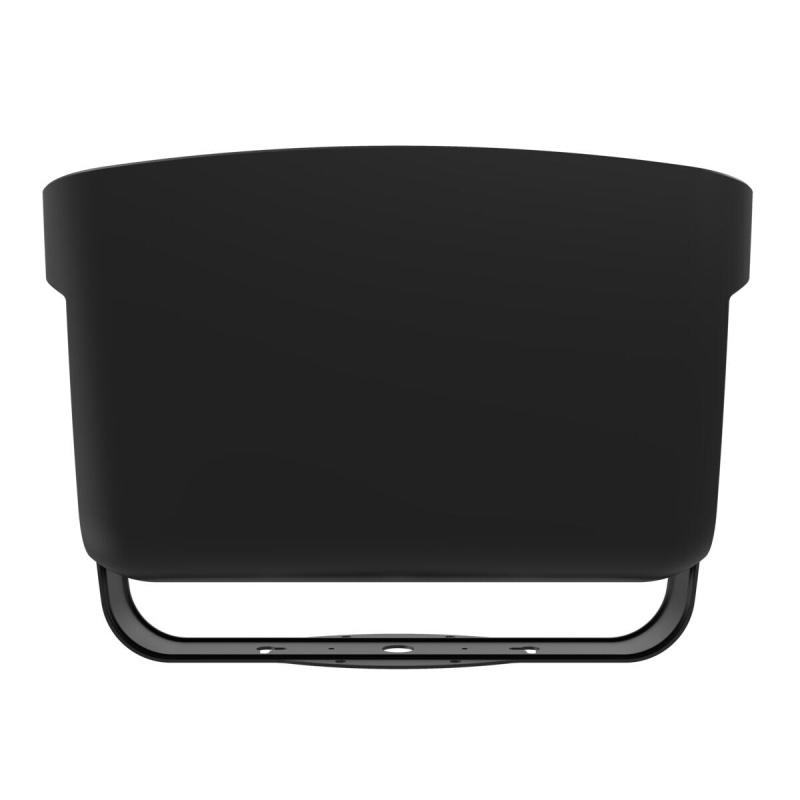

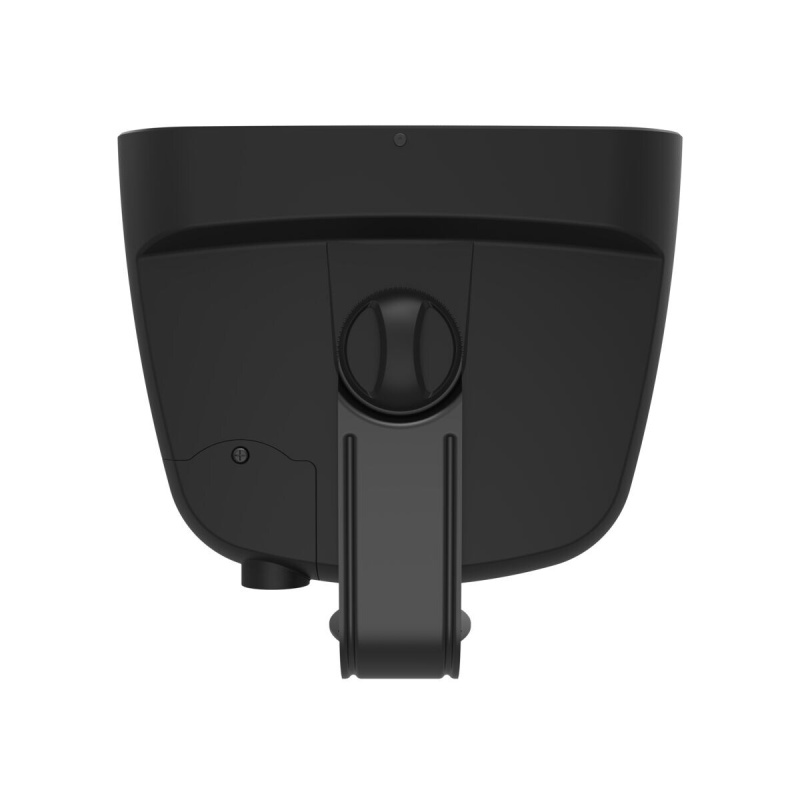

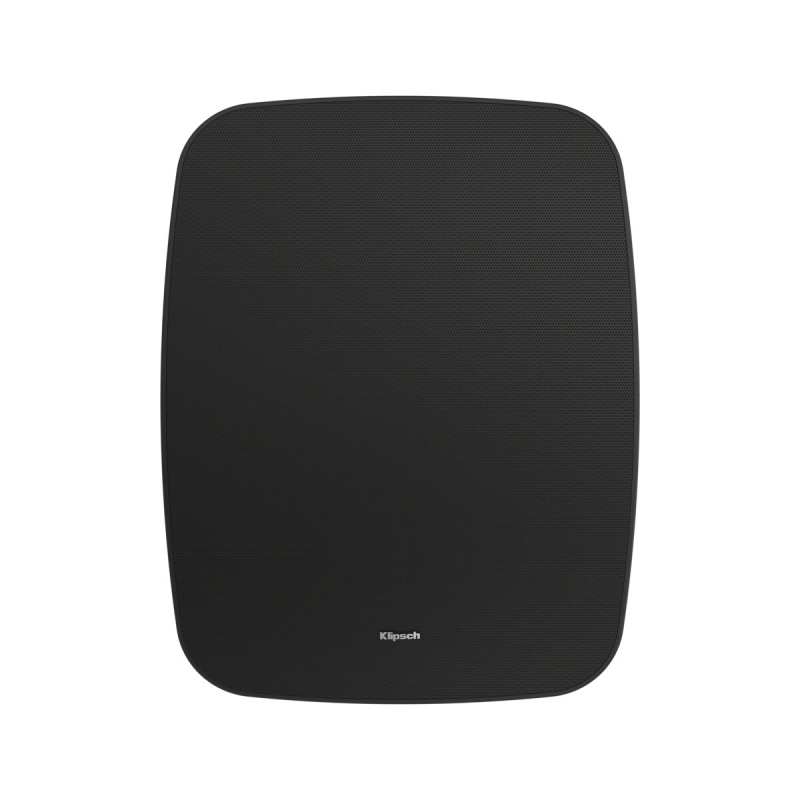

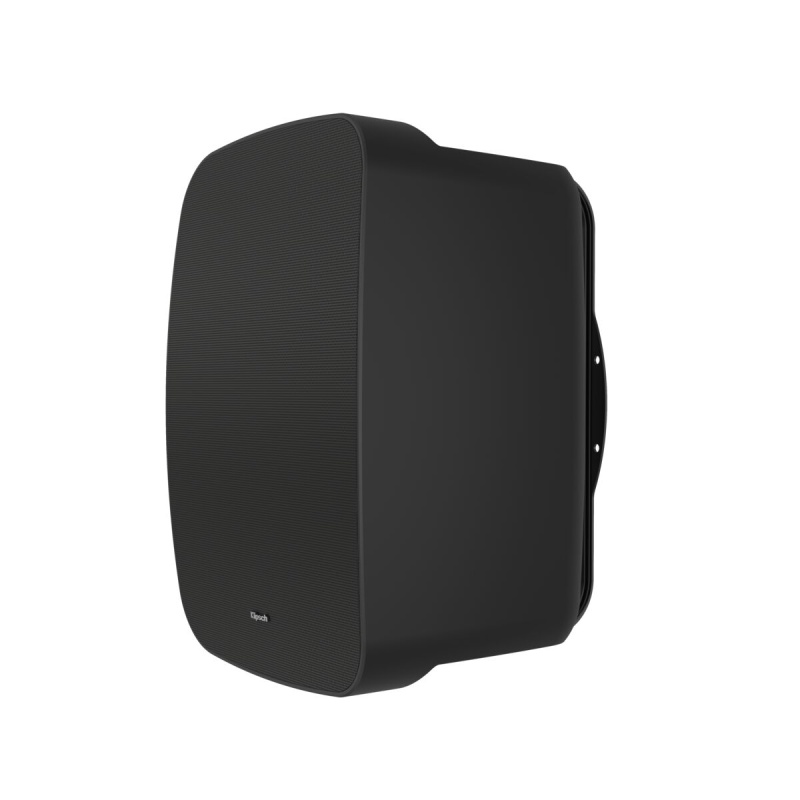

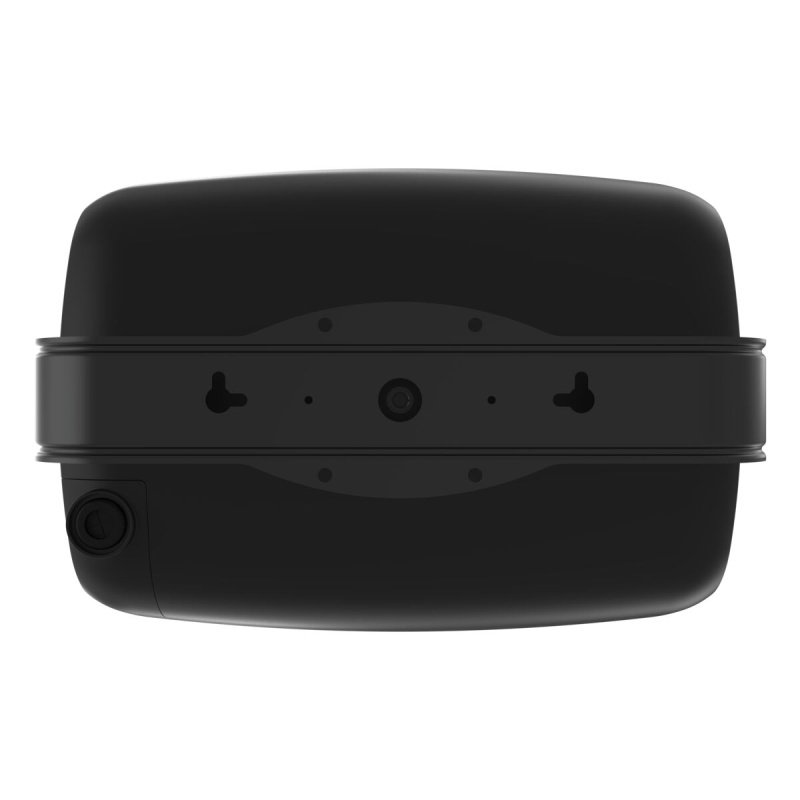

Professional Surface Mount SpeakersThe updated Professional Surface Mount speaker line now features the newly developed Tractrix Hyperfold Port. This design innovation allows for stronger bass output while also broadening dispersion, all from a more compact enclosure. The result is a system that delivers greater low-frequency performance and wider sound coverage without requiring a larger cabinet.
IPX6 Waterproof ProtectionReady for use in commercial environments both indoor and outdoor.
All-New Tractrix Hyperfold PortWe’re introducing the all-new patented Tractrix Hyperfold Port, designed with a proprietary five-step folded structure to extend port length for maximum bass power. The increased airflow eliminates chuffing and port noise while also providing a broader dispersion pattern for greater coverage.
Paintable UV-Resistant ABS EnclosureThese professional surface mount speakers are designed for flexibility, featuring rustproof grilles that can be painted to match any project color.
Multiple Tap Settings & Phoenix ConnectorThese speakers come equipped with a multi-tap transformer for use in 70 or 100 volt systems. For installations that don’t need a transformer, a bypass position allows standard 8 ohm operation. The PSM Series also features a phoenix connector for fast, straightforward wiring.
Set Screws on GrilleThe included set screws on each grille provide a firm connection between the speaker and grille, keeping them securely attached. This design prevents the grilles from coming loose, even in challenging or demanding environments.
1" Titanium Compression DriverKlipsch stands apart with its 1" titanium-loaded floating driver bridge featuring a wide dispersion phase plug. Combined with patented Mumps technology, these professional surface mount speakers deliver broad, even coverage and consistent acoustic energy across any space.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Specifications PSM-450-T PSM-525-T PSM-650-T PSM-800-T Frequency Response 60Hz-20kHz +/- 4dB, 50Hz -10dB 58Hz-20kHz +/- 4dB, 48Hz -10dB 56Hz-20kHz +/- 4dB, 46Hz -10dB 52Hz-20kHz +/- 4dB, 44Hz -10dB Power Handling50 watts (14.6V) 58Hz-10kHz (200 watts peak) 65 watts (16.7V) 55Hz-10kHz (260 watts peak) 80 watts (19V) 50Hz-10kHz (320 watts peak) 100 watts (21V) 50Hz-10kHz (400 watts peak) Calc. Max. Cont. Output102dB104dB106dB 109dBSensitivity88dB89dB90dB 92dBCoverage90° +/- 40° 1kHz-20kHz 100° +/- 20° 1kHz-20kHz 100° +/- 20° 900Hz-20kHz 100° +/- 20° 1kHz-20kHz Directivity Index7dB +/- 3dB 800Hz-20kHz 7dB +/- 1.5dB 1kHz-20kHz 7dB +/- 1.5dB 800Hz-20kHz 7dB +/- 1.5dB 800Hz-20kHz Nominal Impedance8 ohms 4.3 ohms at 185Hz minimum 8 ohms 4.3 ohms at 175Hz minimum 8 ohms 4.5 ohms at 160Hz minimum 8 ohms 4.2 ohms at 150Hz minimum Acoustic Crossover2kHz2kHz 2kHz 2kHz Transducers4.5” woofer 1” titanium compression driver, on a K-1500M horn/tweeter bridge 5.25” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge 6.5” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge 8” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge Enclosure MaterialAll Weather ABS Plastic, Paintable All Weather ABS Plastic, Paintable All Weather ABS Plastic, Paintable All Weather ABS Plastic, Paintable IP RatingIPX6 IPX6 IPX6 IPX6 Enclosure TuningVented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Vented via 3 folded Tractrix ports Input Connectors4 pin euro block 4 pin euro block 4 pin euro block 4 pin euro block Transformer Taps70V: 15W, 7.5W, 3.8W, 1.9W 100V: 15W, 7.5W, 3.8W Bypass position: 8 ohms nominal 70V: 30W, 15W, 7.5W, 3.8W 100V: 30W, 7.5W, 3.8W Bypass position: 8 ohms nominal 70V: 60W, 30W, 15W,7.5W 100V: 60W, 30W, 7.5W Bypass position: 8 ohms nominal 70V: 100W, 50W, 25W,12.5W 100V: 100W, 50W, 25W Bypass position: 8 ohms nominal Dimensions [with Bracket]12.13” (309 mm) x 9.5” (242 mm) x 6.5” (166 mm) [8.38” (213 mm)] 12.13” (309 mm) x 9.5” (242 mm) x 6.5” (166 mm) [8.38” (213 mm)] 12.81” (326 mm) x 10.19” (259 mm) x 7.57” (193 mm) [9.19” (234 mm)] 15.5” (394 mm) x 12” (305 mm) x 9.31” (237 mm) [11.12” (283 mm)] Weight7.25 lbs. (3.29kg) 7.75 lbs. (3.52kg) 11.25 lbs. (5.11kg) 15.75 lbs. (7.15kg)
