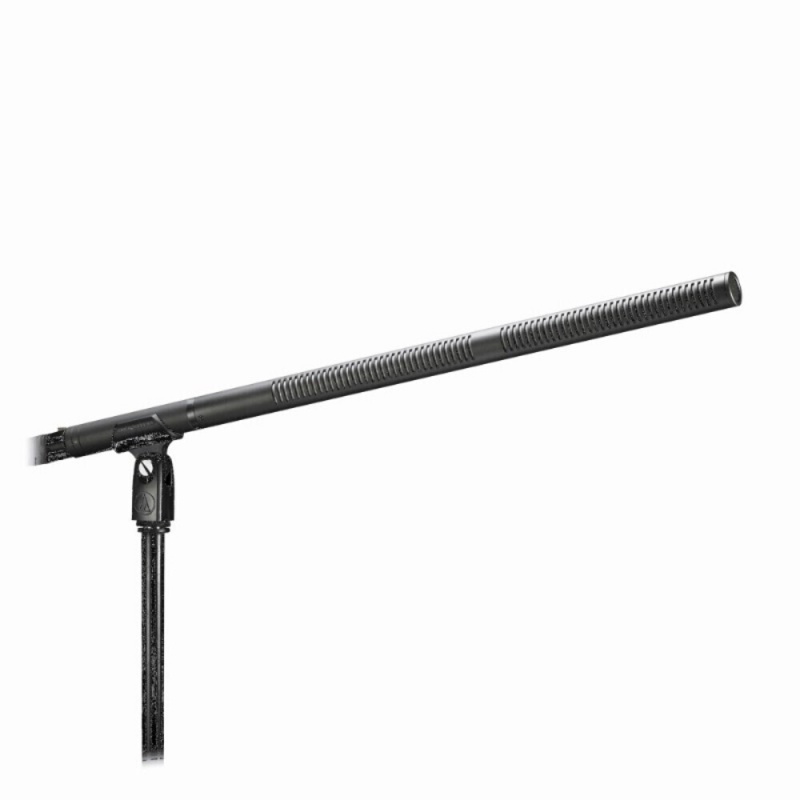

Designed for video production and broadcast (ENG/EFP) audio acquisition, the AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
– Designed for video production and broadcast (ENG/EFP) audio acquisition – Provides the narrow acceptance angle desirable for long-distance sound pickup – Excellent sound rejection from the sides and rear of mic – Switchable low-frequency roll-off – Operates on battery or phantom power – RoHS compliant?free from all substances specified in the EU directive on hazardous substances
SPECIFICATIONS ELEMENT Fixed-charge back plate, permanently polarized condenser POLAR PATTERN Line gradient FREQUENCY RESPONSE 40-20,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY Phantom: 38 dB (12.5 mV) re 1V at Pa
Battery: 39 dB (11.2 mV) re 1V at Pa IMPEDANCE Phantom: 250 ohms Battery: 300 ohms MAXIMUM INPUT SOUND LEVEL Phantom: 132 dB SPL, kHz at 1% T.H.D. Battery: 120 dB SPL, kHz at 1% T.H.D. DYNAMIC RANGE (typical) Phantom: 110 dB, kHz at Max SPL Battery: 98 dB, kHz at Max SPL SIGNAL-TO-NOISE RATIO 72 dB, kHz at Pa PHANTOM POWER REQUIREMENTS 11-52V DC, mA typical BATTERY TYPE 1.5V AA/UM3 BATTERY CURRENT LIFE 0.4 mA 1200 hours typical (alkaline) SWITCH Flat, roll-off WEIGHT 195 (6.9 oz) DIMENSIONS 460.0 mm (18.11″) long, 21.0 mm (0.83″) diameter OUTPUT CONNECTOR Integral 3-pin XLRM-type ACCESSORIES FURNISHED AT8405a stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; AT8135 windscreen; battery; protective carrying case AUDIO-TECHNICA CASE STYLE SG3
SPECIFICATION GRAPHS Click on the chart to view the larger image POLAR PATTERN FREQUENCY RESPONSE
