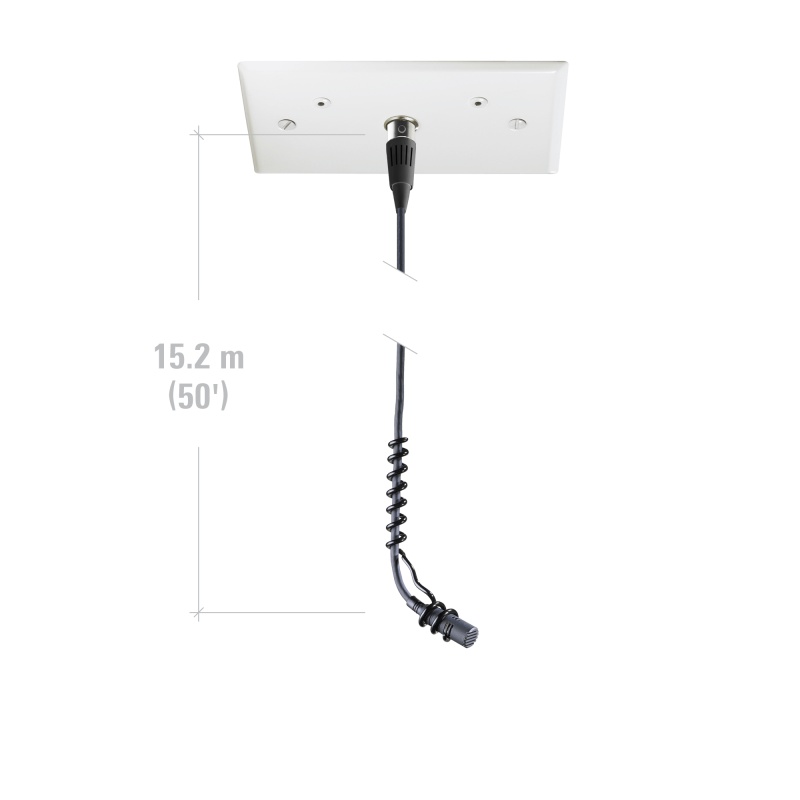

This low-profile miniature cardioid condenser hanging microphone is designed for sound reinforcement, professional recording, television, and other demanding sound pickup. Its small size and response suit suspension over choirs, instrumental groups, and theater stages. This product is TAA-compliant and includes a wall/ceiling plate power module. Available interchangeable elements provide angles of acceptance from 90° to 360°: omnidirectional (360°), hypercardioid (100°), and MicroLine (90°).
UniGuard® RFI-shielding technology rejects radio frequency interference, while the integral UniSteep® filter provides steep low-frequency attenuation without affecting voice quality. The microphone provides superior off-axis rejection for maximum gain before feedback and requires 11–52V DC phantom power (2 mA typical). Switches: Flat, roll-off.
Specifications: fixed-charge back plate, permanently polarized condenser element; frequency response 30–20,000 Hz; low-frequency roll-off 80 Hz, 18 dB/octave; open-circuit sensitivity −40 dB (10.0 mV) re 1V at 1 Pa; maximum input sound level 138 dB SPL, 1 kHz at 1% T.H.D.; dynamic range 109 dB, 1 kHz at Max SPL; signal-to-noise ratio 65 dB, 1 kHz at 1 Pa. Microphone weight: 5.5 g (0.2 oz); power module weight: 81 g (2.9 oz).
The permanently attached cable is 15.2 m (50′) long, 3.2 mm (0.13″) in diameter, and is a 2-conductor shielded cable terminated with a TA3F-type connector. The power module measures 92.9 mm (3.66″) long and 18.9 mm (0.74″) in diameter, with an integral 3-pin XLRM-type output connector. The microphone measures 27.5 mm (1.08″) long with an 8.4 mm (0.33″) head diameter. Included accessories: AT8109 two-stage foam windscreen and AT8452 steel hanger. Audio-Technica case style: M25.
