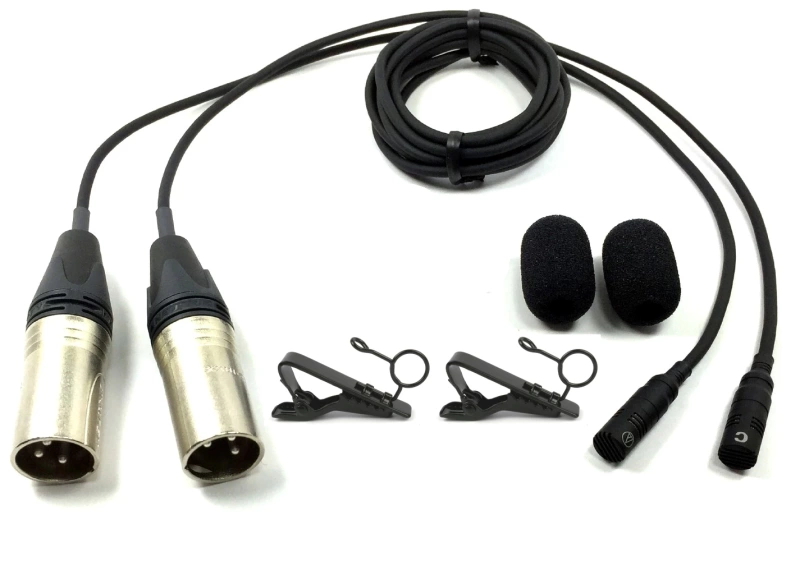

The Premium Slimline Audio Technica microphone set uses matched set of Audio Technica microphones. Removable windscreens and lapel clips are included (unless you opt-out of getting the microphone elements).
The standard configuration comes with two microphone cables terminated together into a premium stereo gold plated 1/8 inch (3.5mm) mini plug. The high SPL XLR versions come with each mic on separate cable and connector. Custom cable lengths and configurations are available – Windscreens are included and premium locking windscreens are also available.
These are our finest miniature microphones and compare well with the well-known DPA 4060 and 4061 miniature microphones. They also have the advantage of available interchangeable capsules, which most other miniature mics don’t offer. Cable length is 48″. Microphone capsules:
ESE-C (included) ESE-H (optional) ESE-O (optional) ESE-ML (optional) Powering Options:
There are several ways to power these microphones. Each of these options provides the same sound quality, the only difference is the maximum sound pressure level (SPL) the mics can handle.
The microphones can be powered with normal plug-in-power, available on many portable recorders and camcorders. With this type of power, the mics will handle reasonable sound levels. If you will be using the mics in high SPL (sound pressure level) situations, the microphones require additional power, beyond the normal “plug in power”. You will need to use one of the powering schemes described below:
1 – For strong sound levels, consistent with moderately loud amplified concerts, you can add battery module for increased high SPL performance and dynamic range.
2 – For strong sound levels, consistent with loud amplified concerts when your recorder/mixer, etc. supplies phantom power, you can add the high SPL modified XLR connectors. Each mic has it’s own XLR connector and cable and microphones ordered this way will not work with plug in power or standard battery module as shown above.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Specifications:
Element Fixed-charge back plate, permanently polarized condenser Polar Pattern Cardioid Frequency Response 30-20,000 Hz Low Frequency Roll Off N/A Open Circuit Sensitivity -40 dB (10.0 mV) re 1V at 1 Pa (-47 dB with low sensitivity modification option) Maximum Input Sound Level 125 dB SPL, 1 kHz at 1% T.H.D. with 12v “plug in power” and standard sensitivity option
132 dB SPL, 1 kHz at 1% T.H.D. with 12v “plug in power” and low sensitivity option
138 dB SPL, 1 kHz at 1% T.H.D. with XLR phantom power option
Dynamic Range 109 dB, 1 kHz at Max SPL Signal-to-Noise Ratio 65 dB, 1 kHz at 1 Pa Phantom Power Requirements 2-12 vdc “plug in power” Switches N/A Weight (Microphone) 0.2 oz (5 g) Weight (Power Module) N/A Cable 48″ long (other lengths available – call) Dimensions (Power Module) N/A Dimensions (Microphone) 0.92″ (23.3 mm) long,
0.33″ (8.4 mm) head diameter Output Connector Select in option box
