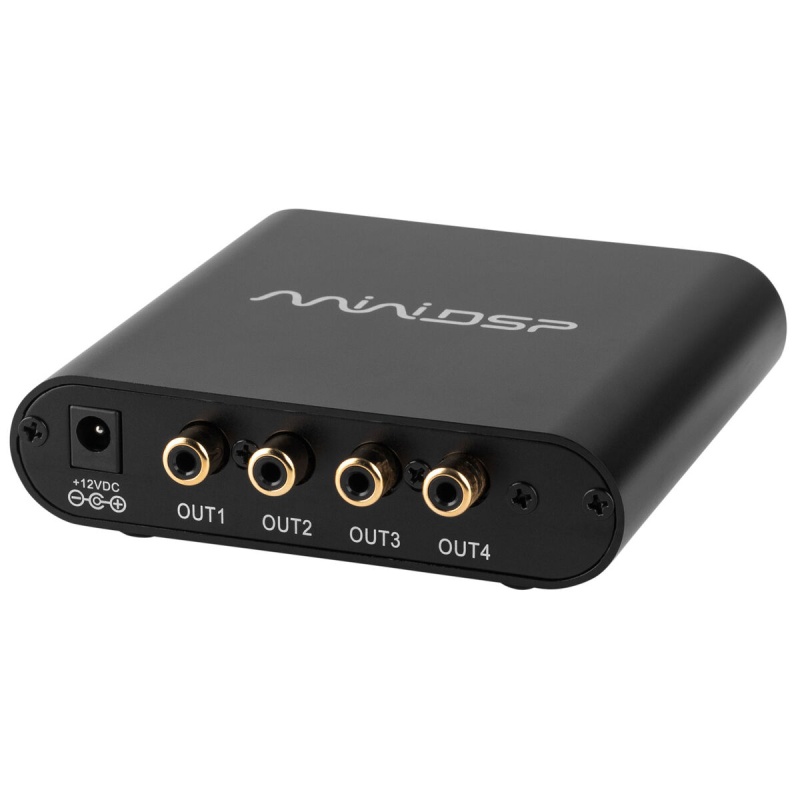

miniDSP 2x4 HD USB DAC Digital Signal ProcessorminiDSP 2x4 HD, a USB DAC+DSP in a low cost package powered by a powerful Sharc 400MHz floating point DSP
Introducing miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!
The upgraded on-board 400 MHz Analog Devices SHARC processor also enables substantial processing upgrades previously available only on more ex-pensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use Device Console interface software.
I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios or anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.
FeaturesADSP21489 400MHz Sharc DSP floating point engine XMOS multicore processor for USB control and bidirectional audio streaming 24 bit ADC/DAC resolution Toslink digital inputUSB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx 4 preset configurations Plug and Play USB driver and real time Software configuration using miniDSP plug-ins External single 12V supply
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
What's in the box?1 x MiniDSP 2x4 HD, board assembled and ready to use 1 x 12V power supply with UK/EU/US/AU plugs 1 x IR remote 1 x shielded USB cable 1 x plugin automatically included in the user downloads
Powered by Device ConsoleSpecifications

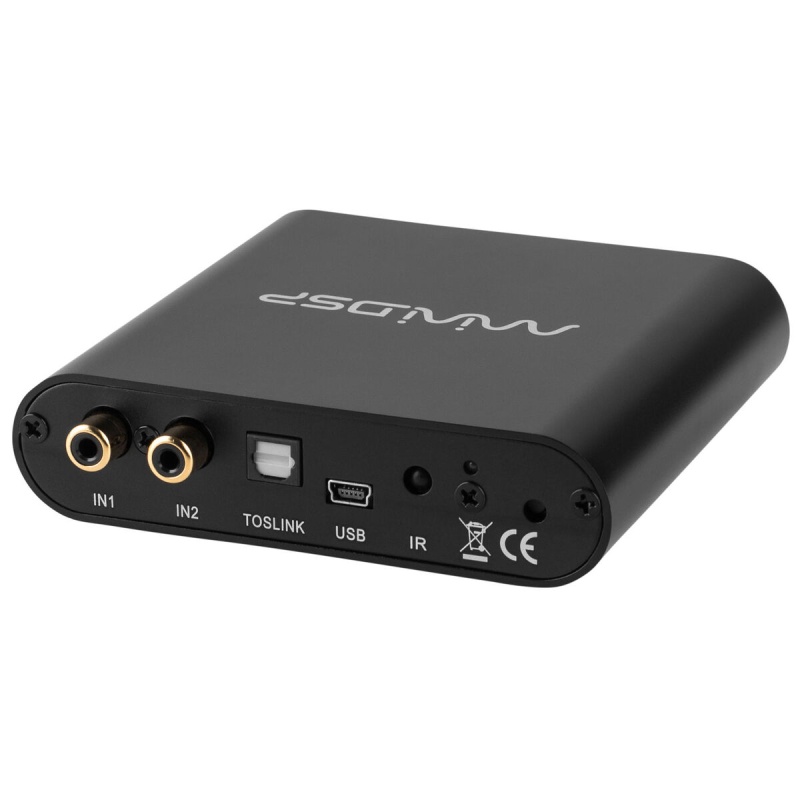

Digital Signal Processor Engine: Analog Devices Floating point DSP SHARC ADSP21489 Internal Processing resolution & Sample rate: 32 bit / 96kHz with 2x4HD1 plugin Input/Output Configuration: 2 in / 4 out Audio Input Connectivity -Unbalanced analog input, RCA terminated -Stereo Digital Inputs: TOSLINK (optical) -Stereo USB audio input: USB Audio -Supported ASCR: 20~216kHz Audio Output Connectivity -Unbalanced output, RCA terminated -USB Audio streaming: USB audio 4ch
Input / Output Max Levels -IN: 2Vrms / 4Vrms (jumper-selectable) -OUT: 2VrmsInput Impendence 10 kΩ Output Impedance 560 Ω Calibration Software miniDSP 2x4 HD1 plug-in Filtering Technology FIR + IIR DSP Presets Up to 4 presets Dimensions 27 x 119 x 107 mm Power 12 VDC single supply 2.1 mm round plug 2.5W
